Instruction No Version Part. No.
8622741 1.0

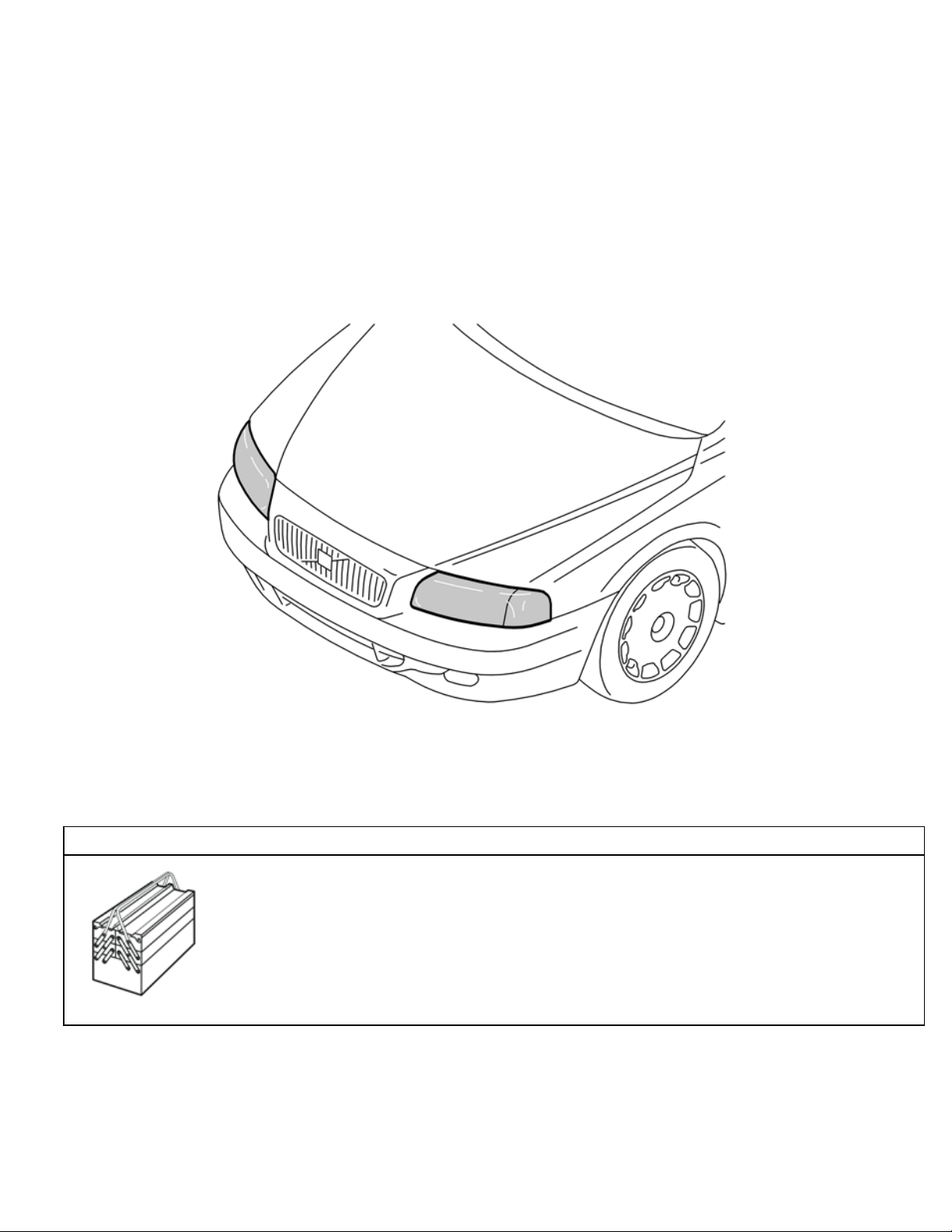

Headlamp guard
D8400670
Equipment
A0000162
Instruction No Version Part. No.
8622741 1.0
Headlamp guard
D8400670
Equipment
A0000162
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Headlamp guard- 8622741 - V1.0
Side 1 / 7
M8400805
Tem comentários a fazer sobre esta publicação? Contacte o concessionário mais próximo. Agradecemos a sua colaboração!
Publicação n#: MA 8622741, Publicação: 2000-08
Observações:.......................................................................................................
............................................................................................................................
............................................................................................................................
............................................................................................................................
............................................................................................................................
.............................................................................................................................
De:.......................................................................................................................
Morada:.............................................................................................................
N# telefone:....................................................................................................
Telefax:...............................................................................................................
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Headlamp guard- 8622741 - V1.0
Side 2 / 7
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Installation
1
M3501268
Installation
Open the bonnet
Clean the headlamp lens
Take the mounting strips for the headlamp guards from the kit
Pry up the weatherstrip for the headlamp. Use a plastic
weatherstrip tool
Insert the mounting strip between the top of the headlamp and
the weatherstrip. Position the mounting strip as illustrated.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Headlamp guard- 8622741 - V1.0
Side 3 / 7
2
D8901957
Remove the two clips from the kit. Check that the tab (1) is
angled a few millimetres below the other surface. If it is not,
bend the tab down as illustrated.
3
D3501135
Press the two clips into the gap between the lower edge of the
headlamp and the weatherstrip, approximately at the point
illustrated. Use the headlamp guard as a template.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Headlamp guard- 8622741 - V1.0
Side 4 / 7
4
D3501136

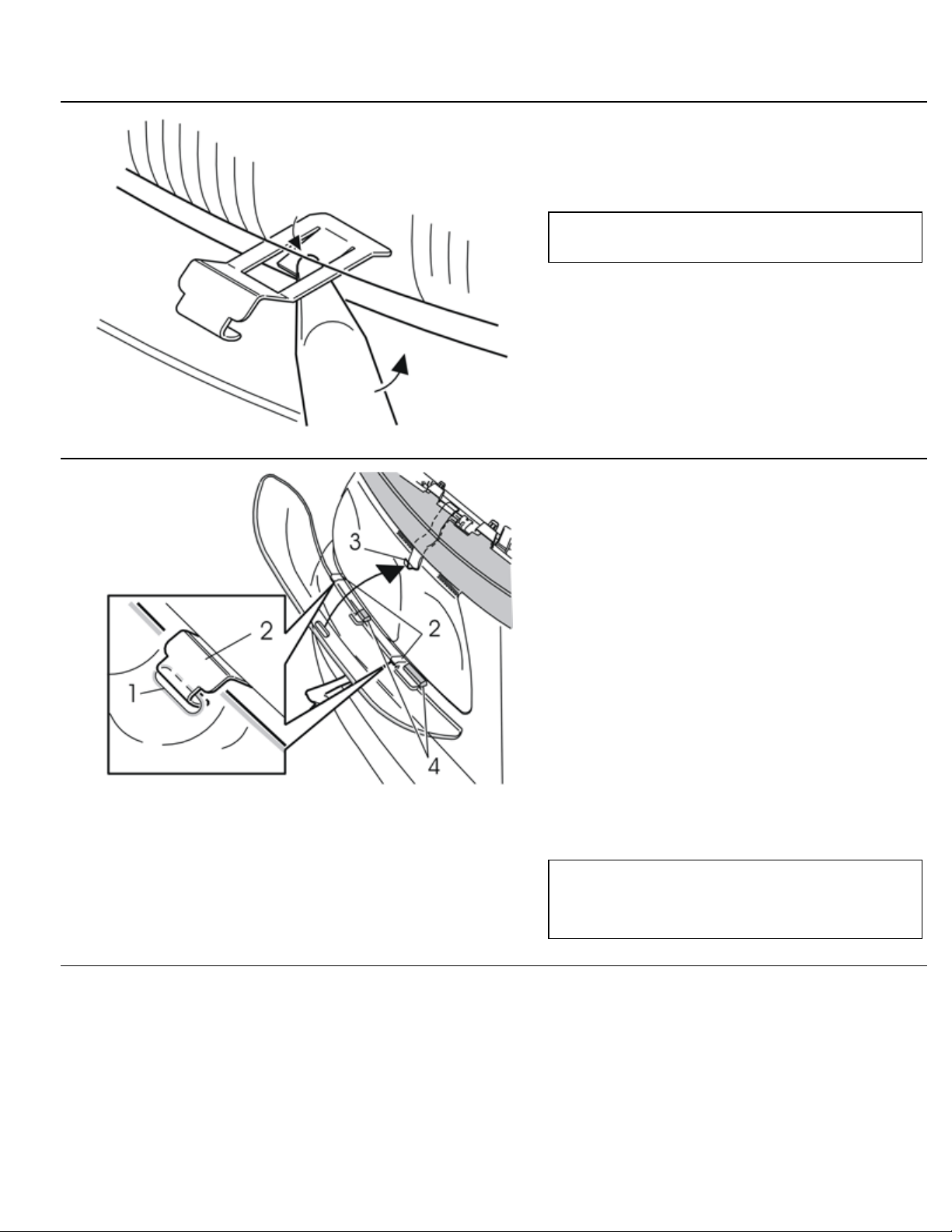

Insert a plastic weatherstrip tool between the weatherstrip and
the clips. Bend the tab down further on the clips to ensure that
the clips are secure.
Note!
Do not damage the paint work.
5
M3501282
Remove the protective film from the headlamp guard (from the
kit).
Applies to cars without headlamp washers
Position the headlamp guard opposite the headlamp.
Applies to cars with headlamp washers
Fold the headlamp washer out
Position the headlamp guard so that the cut out in the lower
edge is opposite the two stops (4) for the headlamp washer.
Applies to all cars
Hook the headlamp guard into place in the holes (1) in the lower
edge of the two clips (2). These clips slide sideways to suit the
holes in the headlamp guard
Fold up the headlamp guard towards the mounting strip (3).
Note!
Ensure that the stop does not catch the headlamp guard when
folding it upwards on cars with headlamp washers. Lift the
guard slightly so that the stop is positioned in the cut out.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Headlamp guard- 8622741 - V1.0
Side 5 / 7
6
M3501269
Hook the headlamp guard into place. Secure the hook on the
previously installed mounting strip in the hole in the top edge of
the headlamp guard as follows:
Slide the mounting strip forward as far as possible. Ensure that
the mounting strip is not concealed under the weatherstrip.
Press the front edge of the mounting strip downwards. Slide the
hole for the headlamp guards over the hook. Secure the hook in
the hole.
7
M3501271
Grasp the free end of the mounting strip. Pull the mounting strip
backwards. Hook the mounting strip around the edge in the
headlamp. At the same time, press the headlamp guard towards
the headlamp
Check that the guard is properly secured.
Removing when cleaning and replacing
8
Removing when cleaning and replacing
The headlamp guards must be removed when using a car wash.
Carry out the procedure in points 1, 5, 6, 7 reverse order.
The headlamp guards must also be removed when cleaning the
headlamps and the inside of the headlamp guards. This must be
carried out regularly to prevent deterioration in the function of
the headlamps.
Note!
Do not use strong washing agents which can affect the
transparency of the headlamps and therefore the function.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Headlamp guard- 8622741 - V1.0
Side 6 / 7
9
D3501205
Note!
The headlamp guard is a perishable component which must be
replaced when necessary. When replacing the headlamp
guards, all the components in the kit must be used. Do not
reuse the old components.

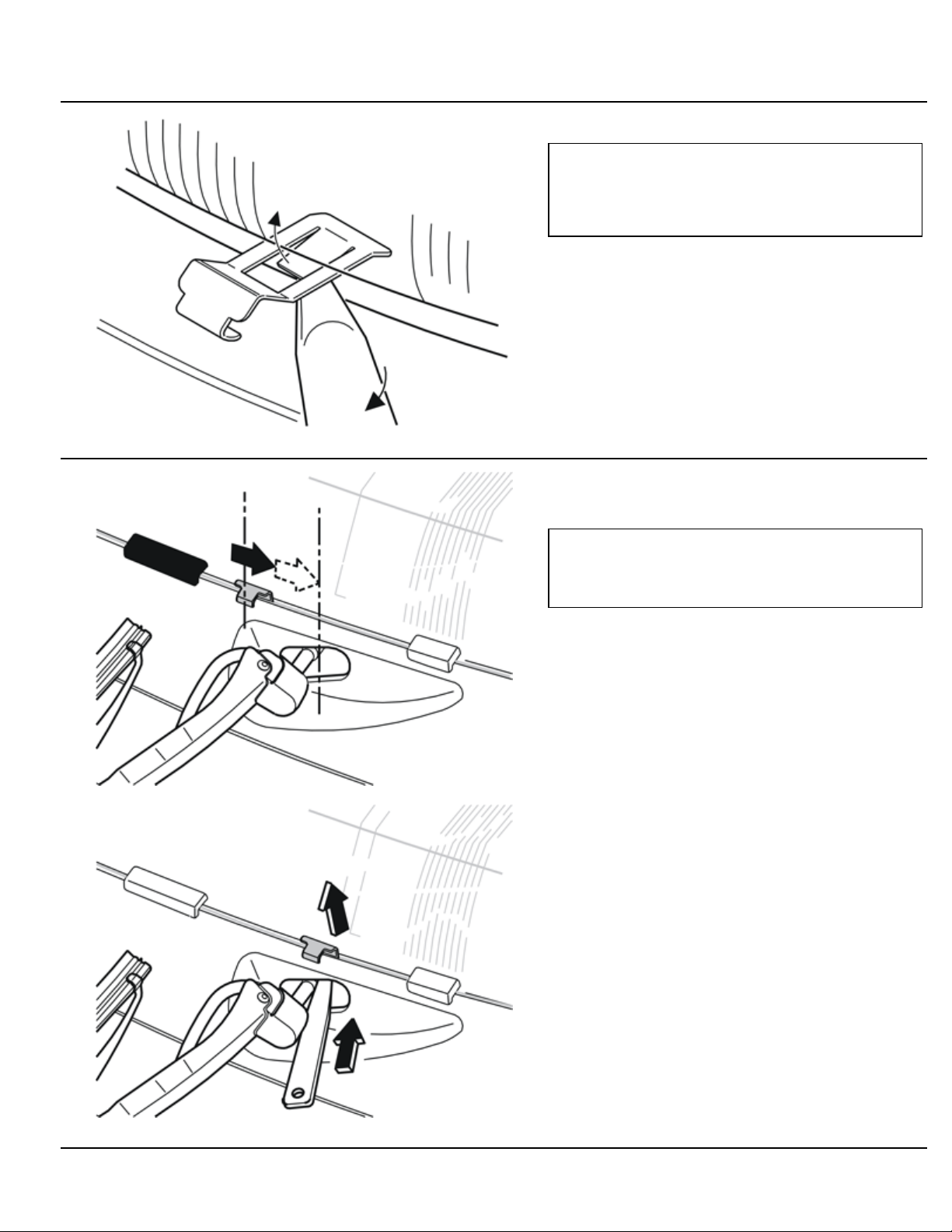

Remove the headlamp guard. See
Remove the clips by pressing up the tab on the clip using a
plastic weatherstrip tool as illustrated.
10A
M3501285
10B
M3501283
Applies to cars with headlamp washers
Note!
To remove the inner clips, slide the clips sideways so that they
are positioned opposite the hole for the headlamp washer
shaft. See illustration A.
Insert a small screwdriver or weatherstrip tool. Press in the tab
on the clip at the same time as pulling outwards. See illustration
B
Remove the outer clips. See the earlier description in point .
