MANUAL
Kind
Installation manual
Title
Installation
Manual VBB4 PRC
and camera
Language
English
Version
1.00
Date
February 28
th
2014
Applicable to
VBB4
in S40,V50,C70
Contents
Manual describes installation of the VBB4 Pl
ug and play
and minicamera.
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 1of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
VBB4 INSTALLATION MANUAL
Applicable to:
VBB4 (VolvoTech’s Video Break-in Box type 4)
Installation manual and description of connections.
Pre requirements for this document to be useful:
-A Volvo S40,V50 or C70 with RTI Navigation.
-No known errors or failures in the electronics of your Volvo.
Need to know:
-Obviously we try to put as much information in a manual as we can.
Sometimes things are “normal” and “of base logic” to us, which might not
be for you, simply because you are not installing electronics in your car
daily, and we are. Please in cases where we seem to miss out on
information in a manual; think logically, measure power and/or contact us!
-In case you might have any questions, please email us at
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 2of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
CONNECTIONS
Please read carefully before performing installation:
VIDEO 2 Port:
Used for the Rearview
Camera
Power Led:
Should ALLWAYS be on!
VIDEO
1
Port:
Used for any video
playback device,
activated with the
supplied switch
12V Power port
:
Connect to the RTI
computer with the
supplied connector set.
RTI Port:
Connect to the RTI
computer with the
supplied cable.
SYNC switch:
Set to RGB-S please.
(in YOUR Volvo no
other setting possible)
Brightness and RESET:
In case the image of
the video port (Video 1)
is to dark, you can set
and change brightness
here. (NOTE : Not
required for a
VolvoTech camera, the
camera adjusts
itselves!)
RESET : Factory default
the VBB4.
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 3of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
VBB Power + EOPS:
In case you ordered the
combined EOPS you
can connect any
required switched
power to the RED and
BLACK wire here.
OEPS device:
Starts up power feed to
the RED wire once the
car is STARTED.
(This saves your
battery dramatically!)
RTI Receptable:
Connects to the
connector you need to
remove from the RTI
computer.
Power connector:
Connects to the Power
port on the VBB4.
RTI Connector:
Connects to the RTI
computer, in the port
where you removed the
original green
connector from.
RTI Receptable:
Connects to the
connector you need to
remove from the RTI
computer.
VBB4 C
onnector:
Connects to the RTI
IN/OUT port of the
VBB4.
RTI Connector:
Connects to the RTI
computer, in the port
where you removed the
original grey connector
from.
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 4of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
SCHEMATIC OVERVIEW OF COMPONENTS AND WIRING.
INSTALLATION
VBB4 (Video Break-in Box type 4)
Open glove compartment. Remove panel behind the console.
Camera
VBB4
RTI Computer
VIDEO HARNESS
From Camera to
VBB4 (RCA/RCA
Yellow)
Rear light unit:
Provides 12V+ and 12V-to
the camera and VBB4 when
car in reverse. (Right is more
easy since RTI compu is ont
the right as well!)
12V+ switch line from
reverse light.
(Connects to the
BLUE wire on VBB4)
RT
I Connection
harness from VBB4
to RTI computer
(Video)
RTI Connection
harness from VBB4
to RTI computer
(Power)
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 5of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
Remote the cover from below the RTI computer and remove the TORX screws.
Remove TORX scews from the top and then from the bottom mounts.
Pull forward the glove-compartment and remove/disconnect connectors
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 6of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
Remove TORX screws and remove the airvent pipe:
Carefully remove the RTI computer in its housing and disconnect connectors:
Connect VBB4 Harnesses to the connectors:
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 7of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
Done with this part. Please leave everything as is for now and continue with the
camera first now.
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 8of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU
INSTALLATION
Rearview camera
Remove lights and TORX screws from licenseplate light cover.Take the cover away
and put it on a table or so, protect the surface!
Now; drill a whole of 8.5mm,
Exactly on the center line between the right licenseplate light gap and the CENTER
of the most right O of VolvO. Do the same in the car’s original panel so the cable
and connector can be put trough. DO NOT finalize camera position YET, this has to
be done later, once the image is available for adjustment on the screen!
VOLVOTECH.EU INSTALLATION MANUAL
VBB4 (VIDEO BREAK-IN BOX TYPE 4) VERSION 1.1
Page 9of 14
CopyRight 2012, VolvoTech.EU
C: BE || CD 121107 || V 1.00 || RD 140228 || HC 1 || FC 3.26 ||
VolvoTech-manual-EN-installation-VBB4-VID-POW-MC-S40-V50-
C70-1.1.doc
Contact details:
VolvoTech.EU

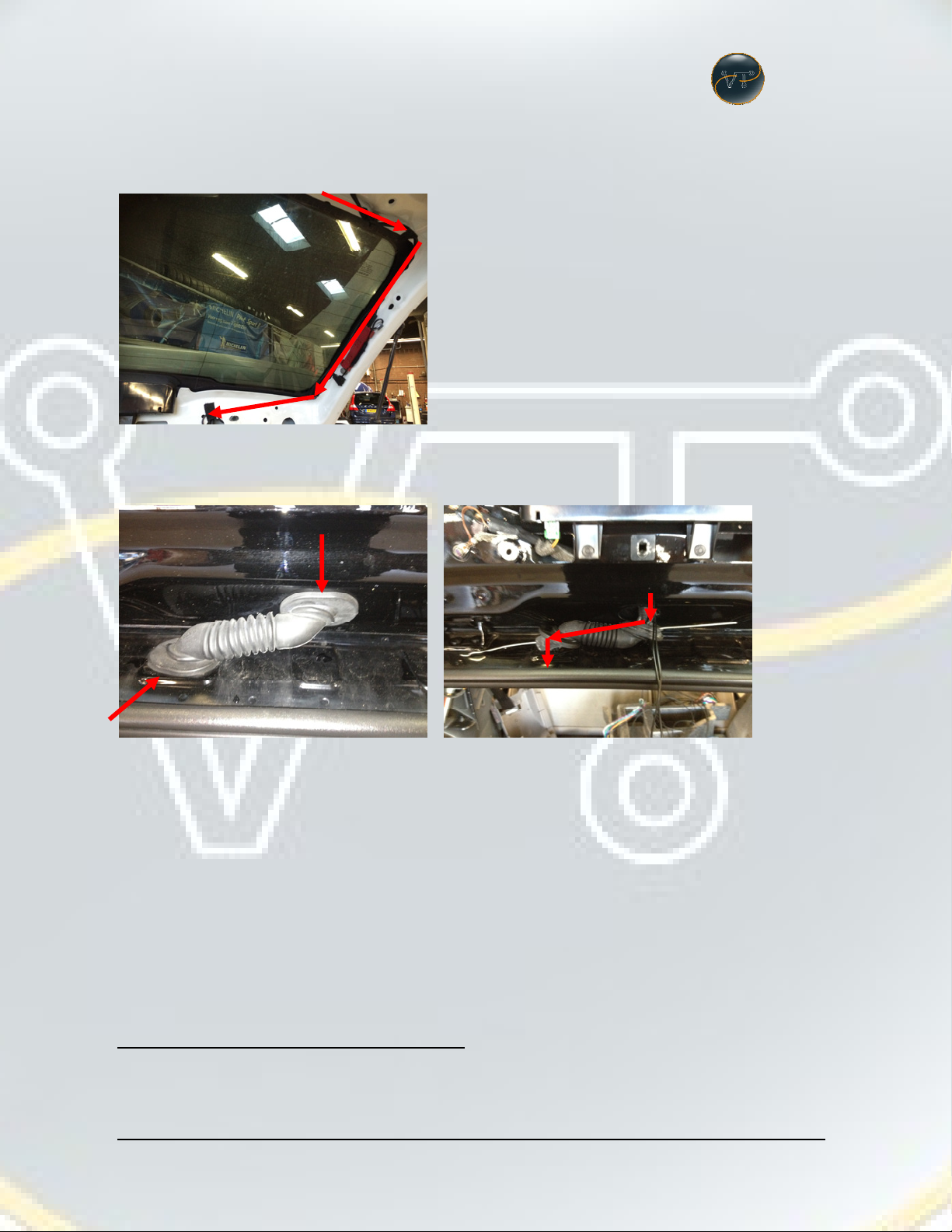

V50 ONLY:
Guide the wiring as demonstrated with the arrows:
Remove the ends of the rubber guiding from the car.
Then use a tie rap, hook, or just anything to carefully stick trough the rubber
cover and pull the wiring loom from camera trough.
