Vulcan-Hart C24EA3 Bedienungsanleitung

Item # _____________________________

C.S.I. Section 11420

A2780

ISO9001

Vulcan-Hart Co.

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

F-32627 (06-08)

MODEL C24EA SERIES

ELECTRIC COUNTER CONVECTION STEAMER

MODEL: C24EA SERIES Electric Counter Convection Steamer

SPECIFICATIONS:

Single compartment electric convection steamer, Vulcan-Hart

Model No. (C24EA3) (C24EA5). Stainless steel exterior and

cooking compartment with coved interior corners. Manual

control with 60 minute timer. High output stainless steel

steam generator with manual drain and Smart Drain System

(timed drain) with PowerFlush. Heavy duty door and door

latch mechanisms. Shipped for 208/60-50/3 electrical service.

Can be eld converted to 208/60-50/1 and 240/60-50/3 and

240/60-50/1. Split water line connection. 11/2" NPT drain con-

nection.

Exterior dimensions:

3 pan: 24"w x 33"d x 191/2"h.

5 pan: 24"w x 33"d x 26"h.

■C24EA3 3 pan capacity

■C24EA5 5 pan capacity

STANDARD FEATURES

■Stainless steel exterior and cooking compartment with coved

interior corners.

■Leveling feet.

■Manual control with 60 minute timer.

■High output stainless steel steam generator with manual drain

Smart Drain System (timed drain) with PowerFlush.

■Heavy duty door and door latch mechanisms.

■Shipped for 208/60-50/3 electrical service. Can be eld con-

verted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.

■Split water line connection. 11/2" NPT drain connection.

■One year limited parts and labor warranty.

OPTIONS

■Professional Control Package includes:

■Superheated Steam System

■Staged Fill

■Lighted power switch with cook and ready lights

■Auto drain with Smart Drain System (timed drain) with

PowerFlush

■Timer 60 minute 60 cycle (50 cycle x 1.2) with Constant

Steam Setting

■Cord strain relief

■Second year extended limited parts and labor warranty

contract.

ACCESSORIES

■4" counter legs.

■12" x 20" stainless steel pans:

- 1" deep (solid) (perforated) Qty.____.

- 21/2" deep (solid) (perforated) Qty.____.

- 4" deep (solid) (perforated) Qty.____.

■Stainless steel pan cover. Qty.____.

■Open leg stand.

■28" open leg stand with pan slides 24"w x 28"h.

■34" open leg stand with pan slides 24"w x 34"h.

■Set of two universal pan slides for open leg stand.

■Stand sliding shelf.

■Stacking kit for two units with hardware, counter mount.

■Floor legs, 6".

■Floor caster, 6".

■Pull-out 12" x 20" sliding shelf (cooking compartment).

Qty. ____.

■Cord and plug set.

■Water treatment system.

Shown on optional stand with

extra set of pan slides and pans

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specications without notice.

Printed On Recycled Paper

F-32627 (06-08)

MODEL C24EA SERIES

ELECTRIC COUNTER CONVECTION STEAMER

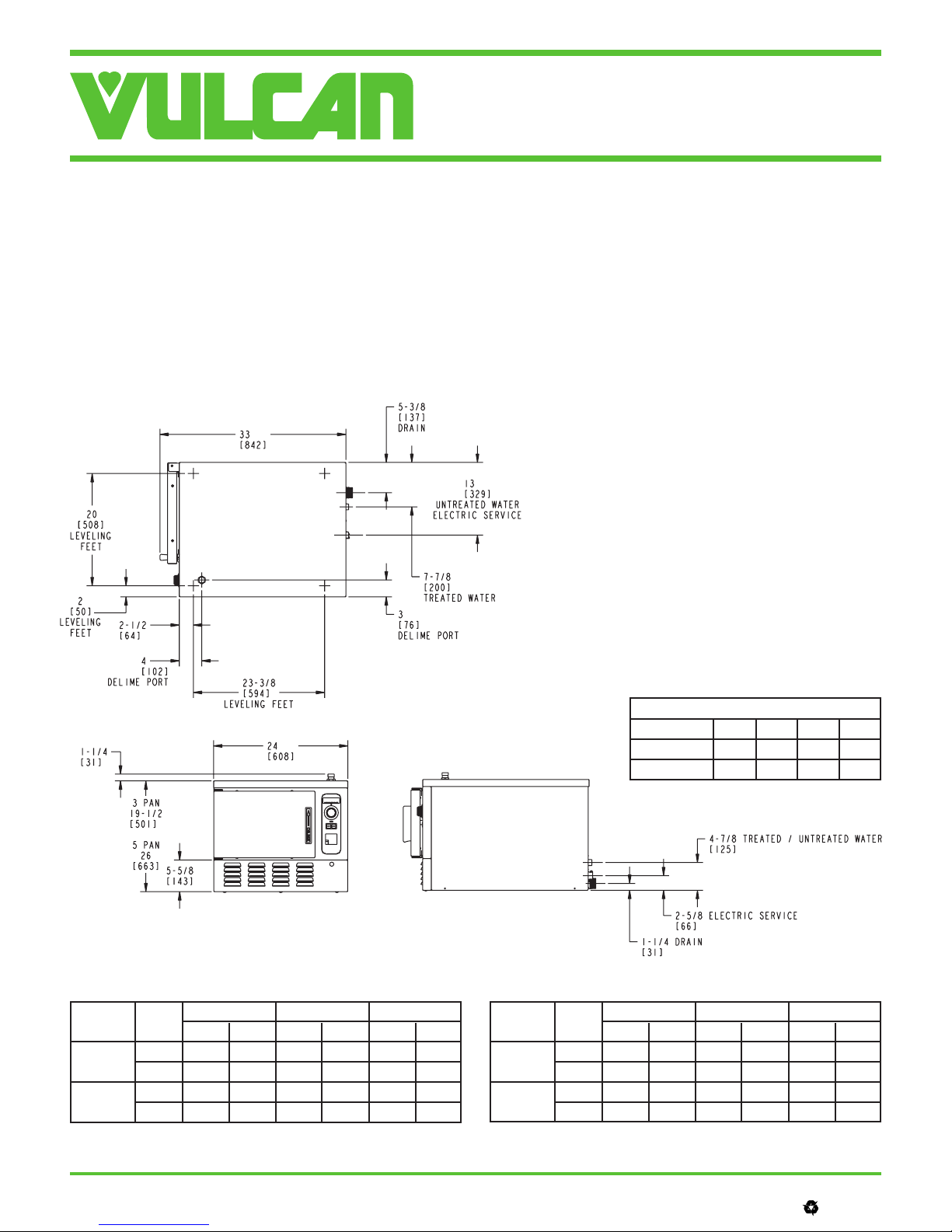

SERVICE CONNECTIONS:

ELECTRICAL CONNECTIONS: Field Wire Electrical Connection 11/4"

(32 mm) K.O. service entrance.

DRAIN: 11/2" IPS piped to open drain. No solid connections. 60" length

before open air gap opening and not more than two bends or elbows.

GENERATOR WATER SUPPLY: 3/4" (19 mm) hose bib to generator,

ow rate .5 gpm @ minimum 25 to maximum 50 psi. (170-345 kPa).

CONDENSING WATER SUPPLY: 3/4" (19 mm) hose bib to condenser,

ow rate .5 gpm @ minimum 25 to maximum 50 psi. (170-345 kPa).

WATER QUALITY STATEMENT:

The fact that a water supply is potable is no guarantee that it is suitable

for steam generation. Your water supply must be within these general

guidelines:

SUPPLY PRESSURE 20 - 60 psig

HARDNESS* less than 3 grains

SILICA less than 13 ppm

TOTAL CHLORIDE less than 4.0 ppm

pH RANGE 7-8

UN-DISSOLVED SOLIDS less than 5 microns

* 17.1 ppm = 1 grain of hardness

Other factors affecting steam generation are iron content, amount of

chloridation and dissolved gases. Water supplies vary from state to

state and from locations within a state. Therefore it is necessary that

the local water treatment specialist be consulted before the installation

of any steam generating equipment.

NOTE:

• Dimensionswhichlocatetheaboveconnectionshavea

tolerance of + or -3" (+ or -75 mm).

• Installation of backow preventers, vacuum breakers

and other specic code requirements is the responsibility

of the owner and installer. It is the responsibility of the

owner and installer to comply with local codes.

• Plastic drains are not recommended due to inherent

limited temperatures of the plastic. Boiler purge tempera-

tures may exceed 180°F. The installer may be required to

provide means to reduce boiler purge water temperature

to be that of the condensate temperature of 140°F or

less.

• Thisapplianceismanufacturedforcommercialinstallation

only and is not intended for home use.

BASIC CONTROL PACKAGE

MODEL PH 208V 240V 480V

KW AMP KW AMP KW AMP

C24EA3 1 8.5 41 8.5 36

3 8.5 27 8.5 21 8.5 11

C24EA5 1 15 72 15 63

3 15 42 15 36 15 18

NOTE: 208 volt, 3 phase is an unbalance load, and amp listed is

the max on any leg. Refer to the I/O manual for further details.

PAN CAPACITY

MODEL 1" 21/2" 4" 6"

C24EA3 6 3 2 1

C24EA5 10 5 3 2

PROFESSIONAL CONTROL PACKAGE

MODEL PH 208V 240V 480V

KW AMP KW AMP KW AMP

C24EA3 1 9.25 45 9.25 39

3 9.25 29 9.25 23 9.25 12

C24EA5 1 15.75 76 15.75 66

3 15.75 44 15.75 38 15.75 19
