WÄRTSILÄ RS24 Bedienungsanleitung

94-0601-C 1

RS24

Wärtsilä Guidance Marine Ltd,

5 Tiber Way, Meridian Business Park, Leicester, LE19 1QP, UK

T: +44 116 229 2600 E: [email protected]

USER’S GUIDE

www.wartsila.com/guidance-marine

94-0601-C 2

RS24 User’s Guide

Issue Date: 03/08/2020

Document No: 94-0601-C

Serial No:

Sensor Software Version: Client Software Version:

Date of Shipment from UK:

Copyright in the whole and every part of this document belongs to Wärtsilä Guidance Marine Limited (the “Owner”) and may not be used, sold, transferred, copied or reproduced in whole or in part in any manner or

form or in or on any media to any person other than in accordance with the terms of the Owner’s Agreement or otherwise without the prior written consent of the Owner. “RS24” is a registered trademark of Wärtsilä

Guidance Marine Ltd. All other brand and product names are trademarks of their respective companies or organisations.

Wärtsilä Guidance Marine Ltd,

5 Tiber Way,

Meridian Business Park,

Leicester,

LE19 1QP

United Kingdom

T: +44 116 229 2600

UK Support: +44 116 229 2665

(365 days a year; 08:00 - 20:00 UTC)

USA Support: +1 504 305-1120

Asia Support: +65 6734 6365

[email protected] 2812

This equipment complies with CE under RED Directive 2014/53/EU, the EMC Directive 2014/30/EU

and the RoHS Directive 2011/65/EU. The relevant Declaration of conformity is available upon request:

Compliance Statement

Europe

RF Emissions Notice

This equipment complies with European exposure limits set forth for an uncontrolled environment.

This device must be installed in accordance with provided instructions; and it must be operated with

minimum 1m spacing between the sensor and all person’s body (excluding extremities of hands, wrist

and feet) during operation.

94-0601-C 3

Document Number Changes Issue Date

94-0601-A First release of RS24 User’s Guide 28/03/2019

94-0601-B RS24 Product Label has been updated to the latest version 16/03/2020

94-0601-C Cable Routing Diagrams added and updated information to the latest version 03/08/2020

Document History

94-0601-C 4

Table of Contents

Introduction

Welcome

System Overview

Important Safety Notes

Non-ionising Radiation

Risk of Electric Shock

Isolating the Sensor

Lifting the Sensor

Serial Numbers and Software Versions

Product Labels

Software Version Information

To Display the About System Pane

1.1

1.2

1.3

1.4

Installing the Sensor Hardware and Software2.

Mounting the Sensor

Avoiding Other Sources of Radiation

Sensor Dimensions

2.1

2.2

Mounting Template 142.3

Universal Mounting Bracket 152.4

RS24 Electrical Interface 162.5

Power Supply and Cable Specication 172.6

Sensor Information Display 182.7

Upgrading the Sensor 192.8

Installing the RS24 Client Software3.

Installing RS24 Client Software 21

3.1

Conﬁguring the RS24 System4.

Using the RS24 Service Interface 23

4.1

Network Communication Settings 244.2

Radar Image Network Conguration 264.3

Vessel Denition 294.5

Blanking Zone 334.6

RS24 Dashboard Operation

Start Up and Shut Down

Start Up

Screen Layout

5.1

5.3

Display Views 475.4

Shut Down 37

Main Screen and Bird’s Eye View 41

Side Bar 43

Hotkey Buttons 44

Menu Pane 45

Vessel Orientation 46

Radar Image 485.5

To Modify the Radar Image 49

Appendices6.

Using the On-Screen Keyboard 53

6.1

Working with Alarms 546.2

Filtering Alarms 54

Low Temperature Set Up 556.3

Regular Maintenance 566.4

Troubleshooting 576.5

Installation Checklist 606.8

Parameter Conguration 284.4

Index 626.9

Information Tabs 344.7

Dashboard Modes 385.2

Dashboard In Command Mode 38

Dashboard Monitoring Mode 39

Data Logging 505.6

Starting and Stopping Manual Logging 50

To Start Manual Logging 50

To Stop Manual Logging 50

Exporting Data Logs 51

Taking Screenshots 51

System Specication 596.7

Cable Routing Diagrams 586.6

94-0601-C 5

1. Introduction

Welcome

System Overview

Important Safety Notes

Non-ionising Radiation

Risk of Electric Shock

Isolating the Sensor

Lifting the Sensor

Serial Numbers and Software Versions

Product Labels

Software Version Information

To Display the About System Pane

1.1

1.2

1.3

1.4

94-0601-C 6

Welcome

Welcome to the RS24 User’s Guide. It explains how to mount, install, congure and

use the RS24 system on a vessel.

The System Overview on page 7 describes the different components of the system

and how they work together.

Please read the Important Safety Notes on page 8 before beginning the installation.

The Installing the Sensor Hardware and Software section on page 10 describes

where to mount the RS24 Sensor onto the vessel, and how to connect it. It also

explains how to upgrade the sensor software, if required.

The Conﬁguring the RS24 system on page 22 explains how to congure the system

for your vessel.

The RS24 Dashboard Operation section on page 36 explains how to get the system

up and running and how to shut it down again. It also details what you will see on the

Dashboard screen when the system is running, and how to interpret the information.

Further useful information is included in the Serial Numbers and Software Versions

section on page 9, and in the Appendices on page 52.

Introduction1.1

Note: Installation of a RS24 system should be carried out by a suitably qualiﬁed

and competent engineer.

94-0601-C 7

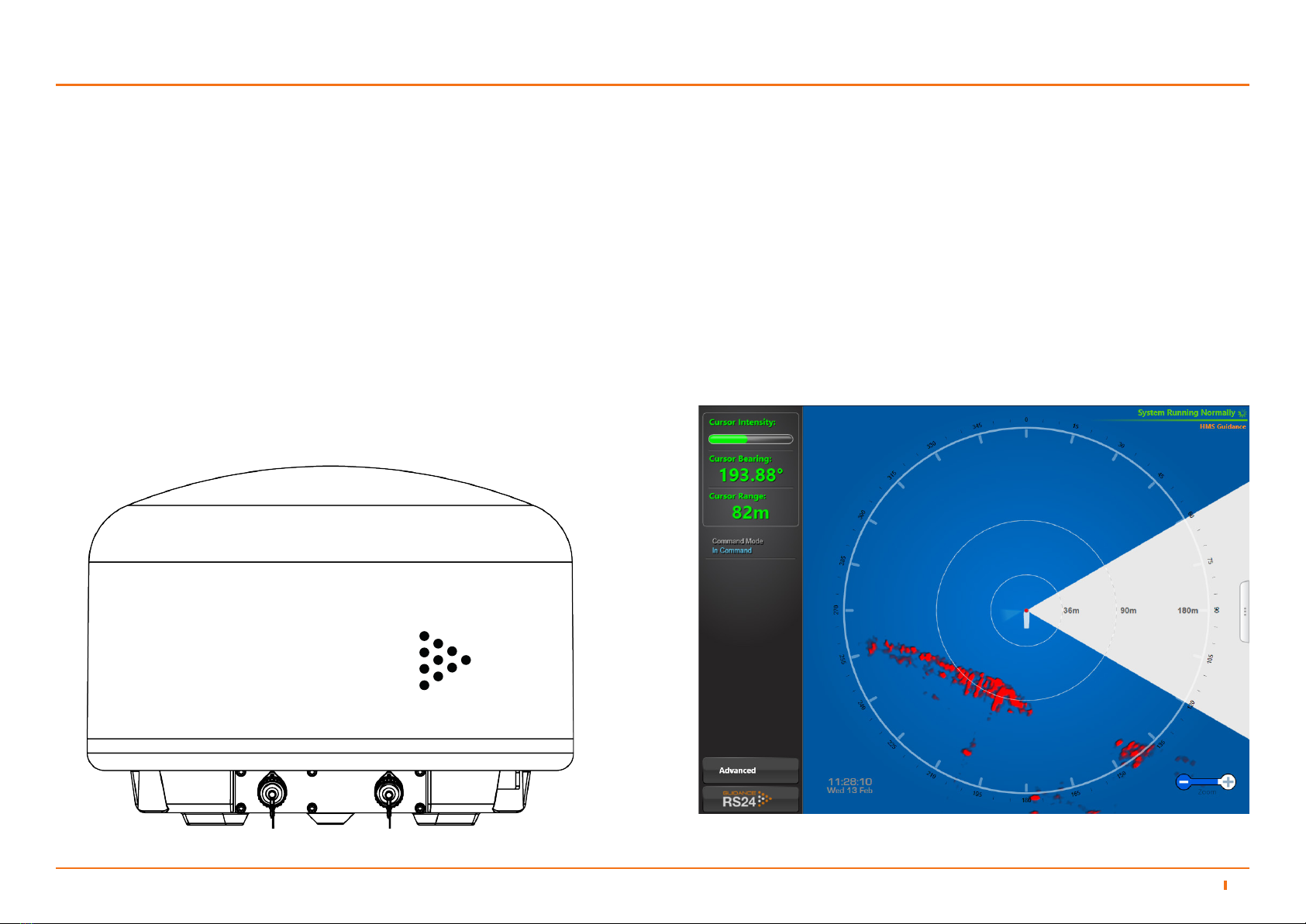

System Overview

The RS24 system is the latest generation of Wärtsilä Guidance Marine’s high

resolution radar. It is designed to provide high levels of situational awareness.

RS24 Sensor

The RS24 system consists of four main parts:

• The RS24 Sensor

• The RS24 Dashboard Software

• The RS24 Service Interface

• Marine Computer

The RS24 sensor is a high speed, high resolution FMCW K-Band dome radar.

K-Band (24GHz) radar has an inherently higher resolution than standard S

or X band navigational radars. It can output radar images both to the RS24

Dashboard and also to third party applications which support the ASTERIX

CAT-240 open data format.

RS24 Dashboard Software

The RS24 Dashboard software is the interface through which the operator can

control the day to day operation of the RS24 Sensor and view the radar image

that it generates.

RS24 Service Interface

The RS24 Service Interface software is the interface to the sensor which allows

a service engineer or advanced user to change the behaviour of the RS24

Sensor. It controls the functions which should not be required for day to day

operation of the radar.

RS24 Sensor

Introduction1.2

Marine Computer

This is usually mounted on the bridge and runs the RS24 Dashboard software

and RS24 Service interface.

RS24

94-0601-C 8

Important Safety Notes

Non-ionising Radiation

Risk of Electric Shock

Lifting the Sensor

The RS24 sensor emits non-ionising radiation with an output

power of 100mW EIRP when transmitting.

This equipment should be treated with the same safety precautions

as other marine radar devices.

Safe distance is 2cm which is inside the physical dome.

Disconnect the mains electricity supply before making or breaking

electrical connections, or removing the radome cover.

CAUTION - DOUBLE POLE/NEUTRAL FUSING.

Isolating the Sensor

It is recommended that a readily accessible disconnect device

should be incorporated external to the equipment.

During installation, the Sensor should be moved to the top of the

ship in its STC (Special to Type Transit Case). The transit case must

be carried using a correctly specied and weight-rated cargo-net.

The transport case handles are not rated or weight tested, and

should not be used as lifting points for this task.

Introduction1.3

94-0601-C 9

Serial Numbers and Software Versions

Serial Numbers and Software Version Numbers are used to identify the hardware

conguration and product revision of each RS24 Sensor. They will be requested by

Wärtsilä Guidance Marine in the event of an application service or support call to the

company.

Part Numbers and Serial Numbers can be found on the product label xed on the side

of the sensor, left of the connection panel.

Product Labels

The About System pane provides version information about the Dashboard and the

software within the RS24 Sensor. It also contains the Serial Number of the Sensor.

Software Version Information

1. Click on the Advanced button.

2. Click on the About System button.

Alternatively, click F2 or the About System button via the Hotkey tab.

To Display the About System Pane

Product Label Connection

Panel

Introduction1.4

Notes:

Label Material - 3M Type 76759 (UL File MH18072)

•

Printing Ink - Armor AXR7

•

J Morgan

REVISIONS

REV.

ZONE

JIRA TASK No.

DESCRIPTION DATE

APPROVED

ALL

RS24-749

Production Release

10/04/2019

RS24-1169

Electrical Input parameters updates

03/10/2019

ALL

RS24-1239

Rebranding to Wartsila colours

03/12/2019

B01

RS24-1316

Update CE number

09/03/2020

C:\GUIDANCE1\Projects\RS24\

CHECK'D

REV:

THIRD ANGLE

PROJECTION

SHEET 1 OF 1

SCALE:2:1

DWG NO.

TITLE:

MATERIAL:

DATE

NAME

ALL PARTS TO BE FREE FROM BURRS, SHARP EDGES,

FLASHING, AND CORROSION

FINISH:

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS

APPV'D

DRAWN

SURFACE FINISH (µm) UNLESS

OTHERWISE SPECIFIED:

3.2

UNLESS OTHERWISE SPECIFIED, LINEAR AND ANGULAR

DIMENSIONS ACCORDING TO ISO 2768-fk

RS24 Product Label

WEIGHT:

96-0260

See Drawing

B01

Information contained on this document is the property

of Wartsila and is issued solely for the purpose of the

Contract to which it refers.It must not be reproduced,

loaned, given, sold or transmitted in any other manner

to any other person or company, or used for any other

purpose whatsoever except with the express written

Jeff Morgan

04/04/2017

REV:

DWG NO.

DO NOT SCALE DRAWING IF IN DOUBT ASK

B01

96-0260

DRAWING TO BS 8888

SIGNATURE

SHEET SIZE

STATUS:

RS24 Sensor

Part Number

RS24 Sensor

Serial Number

RS24

94-0601-C 10

2. Installing the Sensor Hardware and Software

Mounting the Sensor

Avoiding Other Sources of Radiation

Sensor Dimensions

2.1

2.2

Mounting Template 142.3

Universal Mounting Bracket 152.4

RS24 Electrical Interface 162.5

Power Supply and Cable Speciﬁcations 172.6

Sensor Information Display 182.7

Upgrading the Sensor 192.8
