INSTALLATION INSTRUCTION

Axis - LED Outdoor

WS-W50607

WARNING

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the“OFF”position and unscrew the fuse(s) or switch ”OFF”

the circuit breaker switch(es) that control the power to the xture or room that you are working on.

- Place the wall switch in the“OFF”position.

CAUTION

- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are

worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.

CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les

règlements locaux.

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt

(« OFF »).

- Placez l’interrupteur mural en position d’arrêt (« OFF »).

MISE EN GARDE

- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté

et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/CETL du

luminaire. MISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression à la LED, tenir l’appareil par la seule base.

ADVERTENCIA

IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.

- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta lación de esta

lámpara.

- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional y las normas locales.

- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali mentación

principal en la posición “OFF” (APAGADO).

- Coloque el interruptor de la pared en la posición“OFF”(APAGADO).

PRECAUCIÓN

- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la instalación ni

utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación

ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la base sólo.

HARDWARE

Wire Connector

Qty: 3 pcs +1 Extra

7EAC112201

Junction Box Screw

Qty: 2 pcs +1 Extra

7MPF0820C1

Mounting Screw

Qty: 1 Extra

7MPF0820C1

Allen Screw

Qty: 1 pc

7MPF040603

Allen Wrench

Qty: 1 pc

7MPE205001

Long Allen Screw

Qty: 1 pcs

7MPF0408K2

Mounting Screw

Qty: 4 pcs +1 Extra

4MPF0308C4PMO

A1 B1 C1 D1 E1 F1

waclighting.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

FIG. 1

FIG. 2

FIG. 3

Back Plate Dimensions

Ø4"

1 3/4"

Mounting ScrewScrew Hole for

Decorative Ring

Wire Connector

Junction Box Screw

Mounting Screw

Canopy

Junction Box

Mounting Plate

Glass

(RPL-GLA-52306)

Allen Screw

Allen Wrench

Ground Screw

Mounting Screw

Allen Wrench

Long Allen Screw

Decorative Ring

GND

1 3/8"

INSTALLATION INSTRUCTION

Axis - LED Outdoor

WS-W50607

waclighting.com

Phone (800) 526.2588

Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive

Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct

Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue

Ontario, CA 91760

Fixture Wires

Black or

Smooth

Fixture Wires

White or

Ribbed

Fixture Wires

Bare wire

(Ground)

House Wires

Black

(Hot)

House Wires

White

(Neutral)

House Wires

Green or Bare Copper

(Ground)

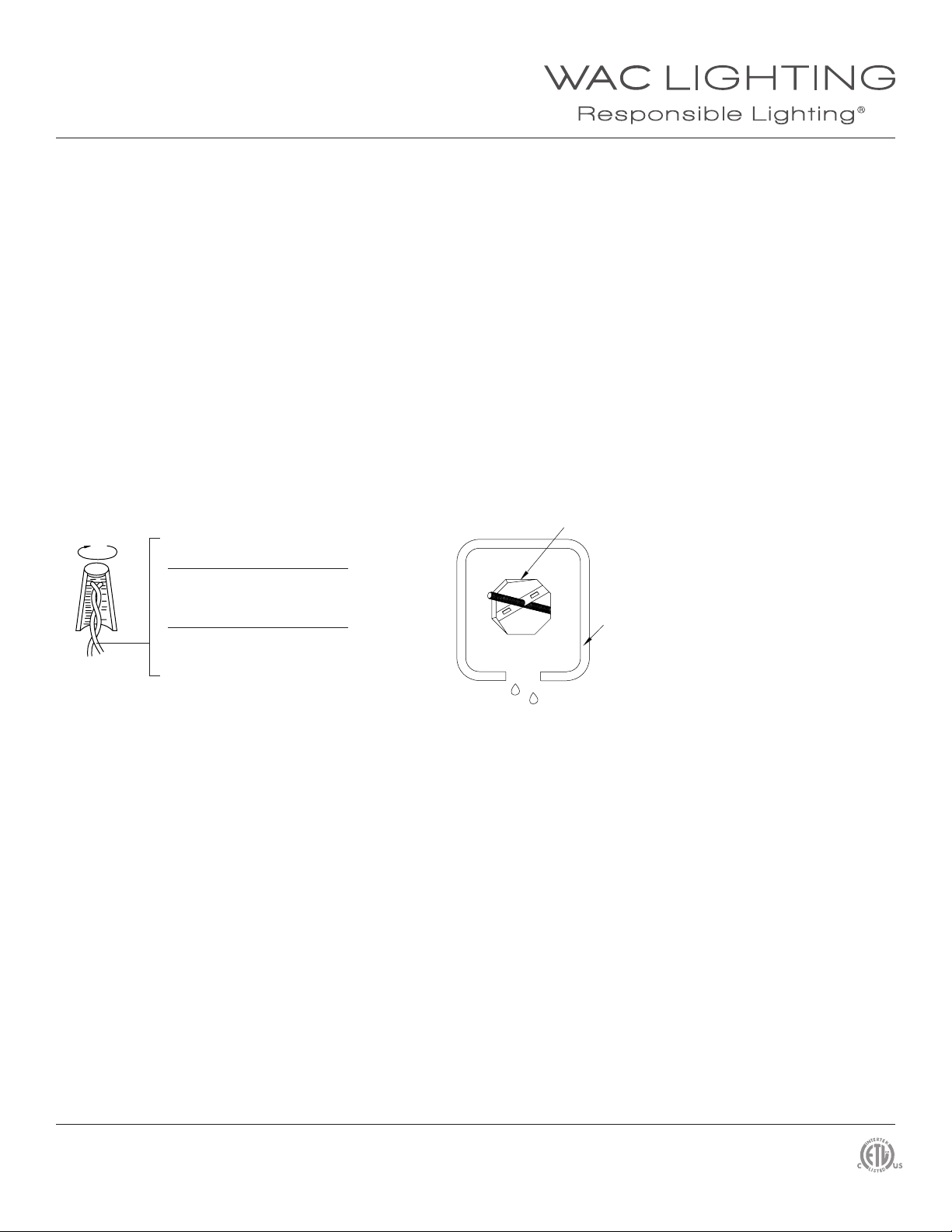

Fig. 4 Wiring Junction Box

Caulking

Fig. 5 Sealing

PREPARATION

1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.

2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary for installation.

CONNECTING THE WIRES (Fig. 1, 4)

3. Remove the mounting screw (C1) from the canopy.

4. Secure the mounting plate to the junction box using junction box screws (B1). The side of the mounting back plate marked

“GND”must face out.

5. Connect the xture’s wires to junction box wires as shown in Fig. 4, making sure that all wire connectors (A1) are secured. If your outlet box

has a green or bare copper ground wire, connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to the

back plate using the green screw provided. After wires are connected, tuck them carefully inside the junction box.

MOUNTING THE FIXTURE (Fig. 1, 2, 3)

6. Secure the canopy to the mounting plate using the mounting screw (C1), make sure the G1 screw holes are on the top and bottom.

7. Screw the glass onto the canopy; fasten it with Allen screw (D1) using Allen wrench (E1).

8. Put on the decorative ring on the glass as shown in Fig. 2, then expand the decorative ring to fasten it to the canopy using

mounting screw (G1) as shown in Fig. 3.

9. Secure the decorative ring with long Allen screw (F1) using Allen wrench (E1).

10. To prevent moisture from entering the outlet box and causing a short, use clear caulking (i.e. indoor/outdoor silicone sealant) to outline the

outside of xture back plate where it meets the wall. Leave a space at the bottom to allow moisture to escape (Fig. 5).

INSTALLATION INSTRUCTION

Axis - LED Outdoor

WS-W50607
