Wali MF002 Bedienungsanleitung

MF002

Dual Monitor Desk Mount

75x75\100x100

INSTALLATION MANUAL

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

(10kg/22lbs)x2

RATED

MAX 27”

WARNING

！

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIP OVER.

SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

TIPOVER WARNING

● NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

● USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.

VESA Plate

d (x2)

Swivel Arm

c (x1)

Weighted Base

b (x1)

Pole

a (x1)

Wire Clip

n2 (x4)

Wire Clip

n1 (x1)

Grommet Base Plate

m (x1)

M4 Spacer

s (x8)

Nut

h (x2)

M5x14 Bolt

e (x3)

Wrench

p (x1)

Allen Key

o (x1)

M4x30 Bolt

r (x8)

M4x12 Bolt

q (x8)

M10 Bolt

i (x1)

Support Plate

j (x1)

M10 Washer

k (x1)

Spring Washer

l (x1)

Supplied Parts List

1a. Install the Pole a to the weighted Base b using 3pcs M5x14 Bolts e , and tighten

with the Allen key 3mm o .

1b. Optionally, you can drill a 10mm diameter hole in your desk and secure using the

Support Plate , M10 Washer k , Spring Washer and M10 Bolt i . Fasten M10 Bolt with

provided Wrench p .

ø 10mm

(ø ")3/8

Option B : Grommet Base Installation

I. Place Pole a onto Grommet Base Plate m . Connect them from the bottom using M5x14 Bolt

and tighten with Allen Key 3mm .

a m e

Option A : Weighted Base Installation

3Put the Wire Clip n1 and Swivel Arm d through the Pole a , adjust the preferred height and

tighten using Allen Key 6mm o . Attach the Wire Clips n1 to the Swivel Arm d .

5Put the assembled TV/Monitor onto the Swivel Arm d and tighten the VESA Plate e with

Nut h for stability.

8Guide the cable through the Wire Clips ( n1, n2 ) and store the Allen Keys o in the Wire Clip n1 .

Adjust the tilt angle using Allen Key 5mm n .

Manually swivel, tilt, and rotate the monitor for the best viewing angle.

7For safety, please do not extend the arms too far forward or backward. This may cause

instability and tip over.

n1 n1

aja

n1n2

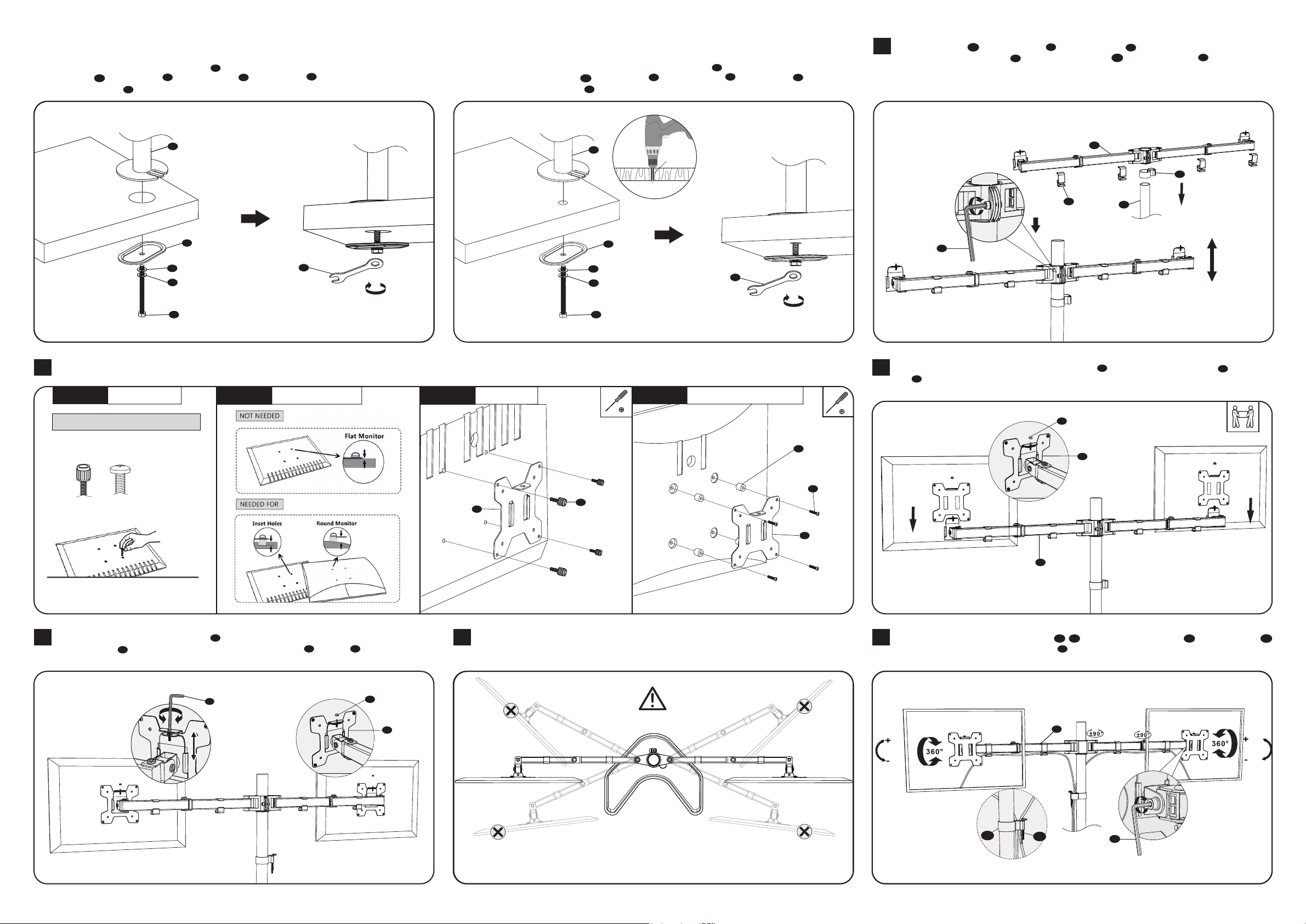

2a. Existing Grommet Hole Installation

If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before

installing the desk mount. Position the Pole a on the mounting surface and secure using the

Support Plate j , M10 Washer k , Spring Washer l , and M10 Bolt i . Fasten the Bolt using

the provided Wrench p .

2b. Self-drilled Grommet Hole Installation

Mark the position of the hole on your mounting surface. Drill a 3/8"(10mm) diameter hole at the

marked position through the mounting surface. Position the Pole a on the mounting surface and

secure using the Support Plate j , M10 Washer k , Spring Washer l , and M10 Bolt i . Fasten the

Bolt using the provided Wrench p .

90°

jkli

jkl

ø 10mm

(ø ")3/8

Note: Please make sure two arms are aligned and balanced.

Ignore this step if monitors are level.

If one monitor is lower, remove the Nut h and turn the bolt counter-clockwise using

Allen key 3mm o to raise the monitor. Tighten the VESA Plate e with Nut h for stability

after the adjustment.

Select bolts and spacers (if needed) according to your TV/Monitor. Attach the VESA Plate to the Monitor and tighten with a screwdriver. (Screwdriver not included)

Step 4.1 Step 4.3a

Flat Back Monitor

Step 4.3b

Curved or Recessed Back Monitor

M4x12 M4x30

Step 4.2

Select Spacers ( if needed )

Select Monitor Screws

Only one screw size fits your Monitor

Hand thread screws into the

threaded inserts on the back

of your Monitor to determine

which screw (M4x12 or M4x30)

to use.
