Wasp CCD - 80SIR Bedienungsanleitung

CONFIGURATION

MANUAL

Bar Code Scanner

12345 67890

CCD - 80SIR

Configuration Commands

START

To begin the configuration

procedures

END

To finish the configuration

procedures and save new

parameters in memory.

ABORT

To give up all parameters that you

have just selected.

SET

To make all parameters back to

default settings with * in this

manual.

Configuration Commands

START

To begin the configuration

procedures

END

To finish the configuration

procedures and save new

parameters in memory.

ABORT

To give up all parameters that you

have just selected.

SET

To make all parameters back to

default settings with * in this

manual.

Configuration Procedures

START

Configuration

Interface Type Settings

Bar Code Type Settings

Other Options Setting

Abandon ?

Finish ?

ABORT

Configuration

END

Configuration

SET

All Defaults

Yes

Fig. 1 - Flow Chart of Configuration Procedures

IMPORTANT NOTICE

Each standard package contains main unit, interface

cable and user's manual. The user's manual gives you an

overall review and information about the scanner only.

For those who can do the configuration by themselves,

please contact your dealer for separate configuration

manual.

To avoid any misuse or misunderstanding, we strongly

suggest and recommend that the configuration manual

should be used by either your dealer or your software

consultant for proper set-up and custom configuration.

INFORMATION

All materials in this manual is for your information only and

are subject to change without notice. We reserve the

rights for any changes or upgrades that have to be done.

Reproduction of this manual or any part of its contents is

not allowed without the written permission of SCSC.

SOFTWARE COPYRIGHTS

All parts of the softwares implemented in the scanners are

protected by Copyright International Regulations.

Safety Requirements

The scanner passes and complies with the following tests

and regulations.

A) Emission: EN55022 Class B

B) Emission: EN55022 Class B which includes

1) IEC801-2 (ESD) Class B

2) IEC801-3 (RS) Class A

3) IEC801-4 (EFT) Class B

C) CDRH class II and IEC class 2 laser product

D) UL, CSA and TUV

Released Date: July 11, 2006

Manual P/No: SCCM - 80S-01A

TABLE OF CONTENTS

1.1 Default Configuration

1.2 Custom Configuration

1.3 Configuration Procedures

CHAPTER 2 INTERFACE SETTING

2.1 Keyboard Wedge Parameters

2.2 RS-232C Parameters

CHAPTER 3 BAR CODE SETTING

3.1 Code 39 Parameters

3.2 Interleave 2 of 5 Parameters (ITF2/5)

3.3 Industrial 2 of 5 Parameters ( IND2/5)

3.4 Matrix 2 of 5 Parameters (MTX 2/5)

3.5 Codabar Parameters (NW-7)

3.6 EAN-13 Parameters

3.7 UPC-A Parameters

3.8 EAN-8 Parameters

3.9 UPC-E Parameters

CHAPTER 4 OPTIONAL SETTING

4.1 Reading Modes Parameters

4.2 Code Mark ( COde I.D.) Parameters

4.3 Pre-amble and Post-amble

4.4 Buzzer Parameters

4.5 Other Parameters

CHAPTER 5 USEFUL EXAMPLES

CHAPTER 6 USB Connection

APPENDICES

A) Keyboard Wedge Parameters-Computer Type

B) Keyboard Wedge Parameters-Keyboard Layout

C) Readable Code

D) Code 11 Parameters

E) Code 93 Parameters

F) China Postage Parameters

G) General Parameters - Code Mark

H) General Parameters - Bar/Space Invert to Read

I ) K/B Control Code Emulation F1-F12

Appendix D HEX-LABEL TABLE

CHAPTER 1 INTRODUCTION

Appendix A ASCII CODE TABLE

Appendix B DECIMAL TABLE

Appendix C OTHER OPTIONS

USER MANUAL

Using the CCD Scanner

Installation

General Scanning Tips

Testing the Symbologies

General Scanning Tips

Affixing the CCD stand 6b

USER'S MANUAL

BAR CODE SCANNER

12345 67890

Using the CCD Scanner

There are several scanning modes within the CCD

scanner for you to choose in order to suit your

application. Please refer to the configuration manual

for a proper selection.

Here are some suggestions about the way to hold the

scanner, in CCD-80SIR with no trigger, you may using

the better way to let your operating more easily.

1) EASY WAY to hold the CCD-80SIR

2) CCD-80SIR doesn't have trigger, you may get more

easily and no worry about trigger place.

3) This is the HARD WAY to get the scanner, we usually

do this way while the scanner has trigger. Getting this

way working will be tired soon.

Installation

The CCD scanner can be easily interfaced to a

keyboard or a serial port to your computer. Now

follow the procedures below for a proper installation.

On your first time installation, it is necessary to select a

compatible computer type. (See the configuration

manual for the correct type.)

To install the scanner as keyboard wedge:

Plug the phone jack of scanner cable into your

CCD scanner.

Turn off your computer.

Remove the keyboard plug from our computer,

plug it into the Din-5P or PS/2 female connector of

scanner cable, and then connect the Din-5P or

PS/2 make connector to the keyboard port of your

computer.

Turn on the power of computer, the red LED

indicator will light and the CCD scanner will beep

to indicate a correct installation.

To install the scanner as a RS-232C device:

Plug the phone jack of scanner cable into your

CCD scanner.

Turn off your computer.

Plug the DB-9P female connector of serial cable

into RS-232C port on your computer.

If it is necessary, plug another end of DC jack to

the adapter.

5) Turn on the power of computer, the red LED

indicator will light and the CCD scanner will beep

to indicate a correct installation.

General Scanning Tips

You can optimize performance by changing the

position of the scanner with respect to the barcode

labels. Please note the help hints below to ensure an

effective scanning with the CCD scanner.

* Center the reading aperture on the barcode label.

* Touch the label with the reading aperture.

* Hold the scanner within a distance of 0-20mm from

the barcode label.

3 4

Testing the Symbologies Troubleshooting List

If you have installed the CCD scanner, please try to

read the following barcodes to make sure your

scanner is operating properly.

12345 6789005

78349108

UPC-A UPC-E

2468 1353 712345 6789004

EAN-8 EAN-13

ABCDE

Code 39

123456

Interleaved 2 of 5

0123456

Codabar

123456789

Code 128

The CCD scanner automatically executes a self-test

when the power is on. If the CCD scanner does not

read a barcode label, please check the following list

first.

If the barcode label is smeared or rough.

●

●If the interface cable is firmly connected.

●If the power is applied.

●If the LED light is on.

●If the buzzer tone is set to none.

●If the barcode label is wider than the sperture of

CCD scanner.

●Remove any visible dirt from the window of the

aperture with a soft damp cloth.

●Be sure the configuration parameters of the

barcode labels, communication interface, and

other options are properly selected.

The Test Chart

5 6a

Affixing the CCD stand

6b 6c

CHAPTER 1 INTRODUCTION

This manual provides all useful information regarding

configuration, custom configuration and

configuration procedure. You are suggested to read

all information containing herein before starting to

configure your scanner. As stated, we recommend

that configuration, especially custom configuration,

better to be performed

by experienced users, your dealer or your software

consultant.

1.1. Default Configuration

The operation parameters of the scanner are set to

defaults at the factory in order to suit for the most

popular bar code data collection applications.

* Emulation as keyboard wedge

* IBM PC AT, PS/2 series computers

* US keyboard layout

* Data transmitted in lower case

* Reading mode: Trigger on/good read off

* Good reading beep active

* Keyboard data terminator : CR

* Keyboard number key: Alphanum

* Red LED light on

1.2 Custom Configuration

The scanner can be re-configured at any time for

your different application. You can change one or

several default parameters by scanning the labels

provided in this manual to fit our applications. For

entering our own custom configuration, please refer

to Chapter 2,3,4 and appendixes of this manual for

details. Please, however, note that once the

configuration is re-programmed, the desired

parameters will be saved in the memory even after

the power is turned off.

1.3 Configuration Procedure

One or more parameters of the scanner can be

reconfigured to meet your need. The basic steps of

customs configuration are as under :

1) Scan " START " label

2) Scan desired parameters

3) Scan " EXIT" label, otherwise proceed to the next

step

4) Scan " END" label

In order to have a better idea about all configuration

procedures, please refer to the Fig. 1, Flow Chart of

Configuration Procedure, which is on the overleaf of

the front cover of this manual.

All default parameters are marked with an asterisk "*"

in this manual. Generally, the defaults set in the

factory are:

7 8

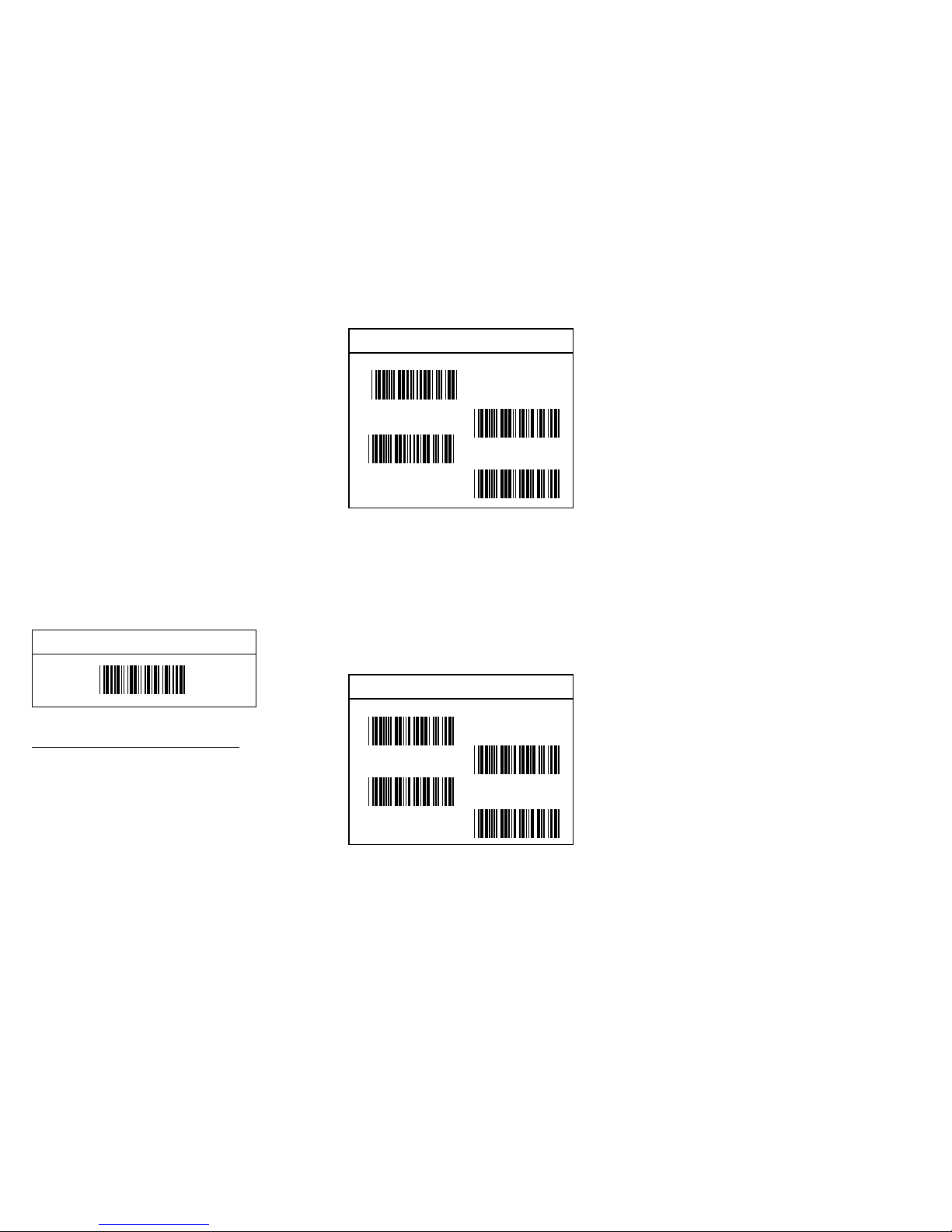

CHAPTER 2 INTERFACE SETTING

The scanner has 2 modes of communication,

keyboard wedge, and RS-232C, (CCD WAND and

OCIA are options.)

Keyboard Wedge

Computer Type

2.1 Keyboard Wedge Parameters

The keyboard wedge is convenient for most

applications. First of all, select one of the computer

type from labels below for keyboard interface.

*PC/AT & PS-50,60,70,80

IBM5550

PS-55

Keyboard parameters include:

1. Keyboard layout

2. Keyboard speed

3. Keyboard character delay

4. keyboard upper/lower case

5. keyboard number keys

6. keyboard data terminator

1. Keyboard Layout

* US

Germany

France

Spain

PC/XT

Important configuration commands:

START -

ABORT -

END -

EXIT -

Scan START label to initiate your custom

configuration procedure.

Scan ABORT label to abadon all parameters

you have just selected.

Scan END label to finish the configuration

and save the new parameters in memory.

"EXIT" is specially for ending the setup of

"Hex-Label" printed in Appendix D.

3. Keyboard Character Delay

4. Keyboard Upper/Lower Case

5. Keyboard Number Keys

6. Keyboard Data Terminator

Min. to Max:(00-99)

Define char. delay=??

Note: For setting up, please refer to the examples in

Chapter 5.

* Lower

Auto

Upper

* Alphanum

Numeric Pad

* CR

SPACE

ESC

None

TAB

Ctrl + C

11 12

2. Keyboard Speed of PC/AT

* Normal

Turbo

Inhaltsverzeichnis

Andere Wasp Barcode-Lesegerät Handbücher

Wasp

Wasp WDI4200 Bedienungsanleitung

Wasp

Wasp WLR8900 Betriebsanleitung

Wasp

Wasp WPL205 Bedienungsanleitung

Wasp

Wasp WPL305 Betriebsanleitung

Wasp

Wasp WPL25 Bedienungsanleitung

Wasp

Wasp WDI9600 Bedienungsanleitung

Wasp

Wasp WWS650 Administratorhandbuch

Wasp

Wasp WDI4700 Bedienungsanleitung

Wasp

Wasp WWS800 Bedienungsanleitung

Wasp

Wasp Bar Code Laser Betriebsanleitung

Wasp

Wasp WDI4500 Bedienungsanleitung

Wasp

Wasp WDI4600 Bedienungsanleitung

Wasp

Wasp HC1 Bedienungsanleitung

Wasp

Wasp WPL618 Series Bedienungsanleitung

Wasp

Wasp WLS9600 Installations- und Betriebshandbuch

Wasp

Wasp 2D Bedienungsanleitung

Wasp

Wasp WLP 4170 Bedienungsanleitung

Wasp

Wasp WPA 1200 II Bedienungsanleitung

Wasp

Wasp WWR2900 Betriebsanleitung

Wasp

Wasp WWS110i Bedienungsanleitung

Wasp

Wasp WPL308 Bedienungsanleitung

Wasp

Wasp CCD Scanner Betriebsanleitung

Wasp

Wasp WWS500 Betriebsanleitung

Wasp

Wasp 2D Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung
