Wasp WLS 9500 Bedienungsanleitung

QUICK START GUIDE

Wasp WLS 9500

www.waspbarcode.com

Quick Start Guide

CORD ATTACHMENT

Scan Window

Trigger

LED

Beeper

Interface cable

modular connector

To host

Cable

interface

Interface cable

modular connector clip

Model Number and

Serial Number appear

here.

Quick Start Guide

SCANNER PROGRAMMING BARCODES

Reset Defaults

Set All Defaults

Set Postamble

Note: If you do not need a Postamble, scan 1 Erase All Rules.

*Default Setting

1 Erase All Rules

Erase All Rules

2 Begin New Rules

Begin New Rules

3 Send All Data

Send All Data

Enter

TAB

5 Save All Rules

Save All Rules

Quick Start Guide

HOST INTERFACES

Note: Cable may vary depending on configuration.

SCANNER PROGRAMMING BARCODES

Start Here if you have a USB scanner:

*HID Keyboard Emulation

USB OPOS Handheld

Start Here if you have a keyboard wedge scanner.

IBM PC/AT and IBM PC Compatible

IBM AT Notebook

Must be PS2 Port

Keyboard Wedge

Must be powered USB

port.

USB

Quick Start Guide

TROUBLESHOOTING

Scanner not working Scanner not decoding barcode

No power

to scanner

Incorrect

interface

cable

used

Interface/power

cables are

loose

Scanner not

programmed

for barcode

type

Barcode

unreadable

Distance

between

scanner

and

barcode

incorrect

Check

system

power;

ensure

power

supply, if

required,

connected.

Ensure

that

correct

interface

cable is

used

Check for

loose cable

connections

Program the

scanner to

read that

type of

barcode.

Ensure

barcode is

not

defaced;

try

scanning

test

barcode of

same

barcode

type

Move

scanner

closer to

further

from

barcode

Scanner decoding barcode, but data

not transmitting to host

No keyboard connected

Scanner not

programmed for

correct host

interface

Interface cable is

loose

A keyboard is not being used with this

device.

Check scanner

host parameters

or edit options

(The scanner

host barcodes

are provided

below in the

Start Here if you

have a USB

scanner section

and the Start

Here if you have

a keyboard

wedge scanner

section.)

Check for loose

cable connections

Scan the IBM AT NOTEBOOK

barcode (This barcode is provided

below in the Start Here if you have a

keyboard wedge scanner section.)

Problem

Resolution

Problem

Resolution

Possible Cause

Quick Start Guide

SYMBOLOGIES

This section provides the following information:

Enable/Disable Barcodes - These barcodes allow you to enable or disable symbologies.

Check Digit Barcodes - The check digit is the last character of the symbol used to verify the integrity

of the data. It is always verified to guarantee the integrity of the data (applies to UPC-A/UPC-E and

Code 39 only).

Preamble Barcodes - Preamble characters are part of the UPC symbol consisting of Country Code

and System character. Three options are given for transmitting UPC-A preamble to the host device:

transmit System Character only, transmit System Character and Country Code ("0" for USA) and no

preamble transmitted (applies to UPC-A/UPC-E only).

Conversion Barcodes - Allow you to convert UPC and Code 39 barcodes.

*Denotes default value

UPC/EAN

Enable/Disable UPC-A/UPC-E

*Enable UPC-A

Disable UPC-A

*Enable UPC-E

Disable UPC-E

Quick Start Guide

Enable/Disable UPC-E1

Enable/Disable EAN-13/EAN-8

Enable UPC-E1

*Disable UPC-E1

*Enable EAN-13

Disable EAN-13

*Enable EAN-8

Disable EAN-8

Quick Start Guide

Enable/Disable Bookland EAN

Transmit UPC-A Check Digit

Enable Bookland EAN

*Disable Bookland EAN

*Transmit UPC-A Check Digit

Do Not Transmit UPC-A Check Digit

Quick Start Guide

Transmit UPC-E1 Check Digit.

UPC-A Preamble

*Transmit UPC-E1 Check Digit

Do Not Transmit UPC-E1 Check Digit

No Preamble

(<DATA>)

*System Character

(<SYSTEM CHARACTER> <DATA>)

System Character & Country Code

(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)

Quick Start Guide

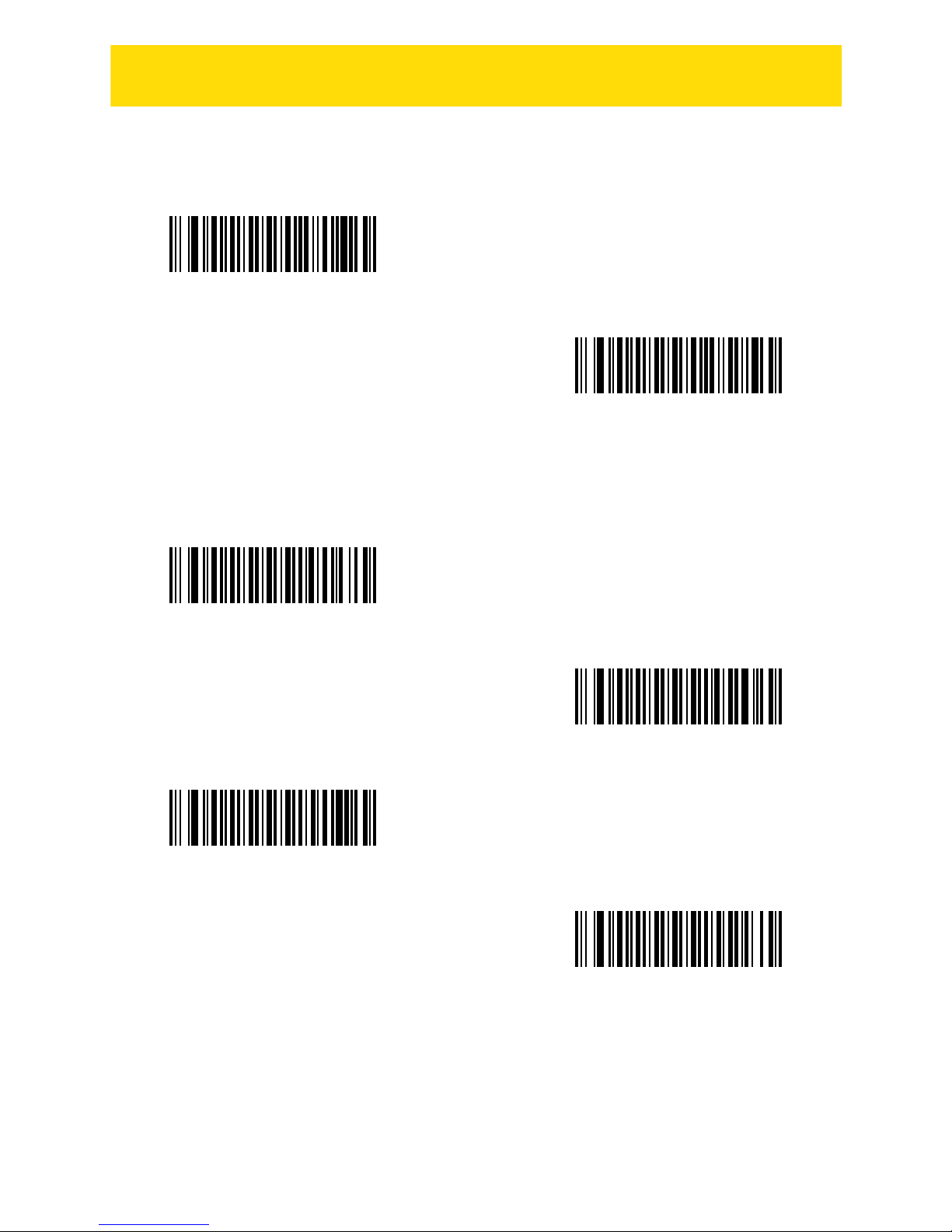

UPC-E Preamble

UPC-E1 Preamble

No Preamble

(<DATA>)

*System Character

(<SYSTEM CHARACTER> <DATA>)

System Character & Country Code

(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)

No Preamble

(<DATA>)

*System Character

(<SYSTEM CHARACTER> <DATA>)

System Character & Country Code

(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
