Weslo PRO 10.8x Bedienungsanleitung

Serial

Number

Decal

USERʼS MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. WLCCEX31910.0

Serial No.

Write the serial number in the

space above for reference.

www.weslo.com

QUESTIONS?

If you have questions, or if parts

are damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 7:30 until 16:30 ET

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

TABLE OF CONTENTS

WARNINGDECA P ACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMB Y ...............................................................................5

HOWTOUSETHEEXERCISEBIKE .........................................................11

MAINTENANCEANDTROUB ESHOOTING ...................................................18

EXERCISEGUIDE INES ...................................................................19

PART IST ..............................................................................22

EXP ODEDDRAWING ....................................................................23

ORDERINGREP ACEMENTPARTS ..................................................BackCover

IMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of

the warning decal(s). If a decal is

missing or illegible, call the tele-

phone number on the front cover of

this manual and request a free

replacement decal. Apply the decal

in the location shown. Note: The

decal(s) may not be shown at actual

size.

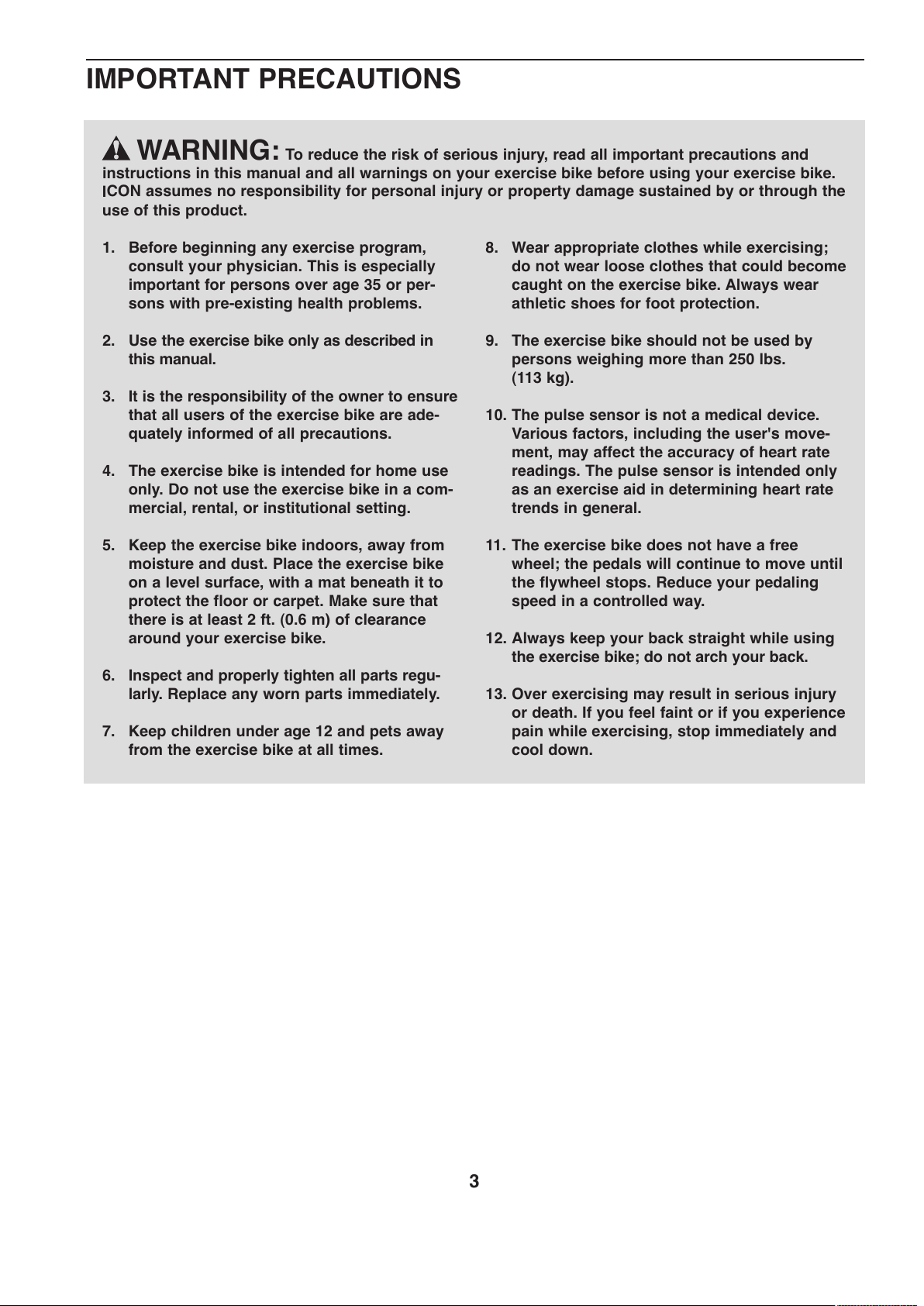

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the exercise bike only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

4. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from

moisture and dust. Place the exercise bike

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is at least 2 ft. (0.6 m) of clearance

around your exercise bike.

6. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the exercise bike at all times.

8. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

9. The exercise bike should not be used by

persons weighing more than 250 lbs.

(113 kg).

10. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. The exercise bike does not have a free

wheel; the pedals will continue to move until

the flywheel stops. Reduce your pedaling

speed in a controlled way.

12. Always keep your back straight while using

the exercise bike; do not arch your back.

13. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

IMPORTANT PRECAUTIONS

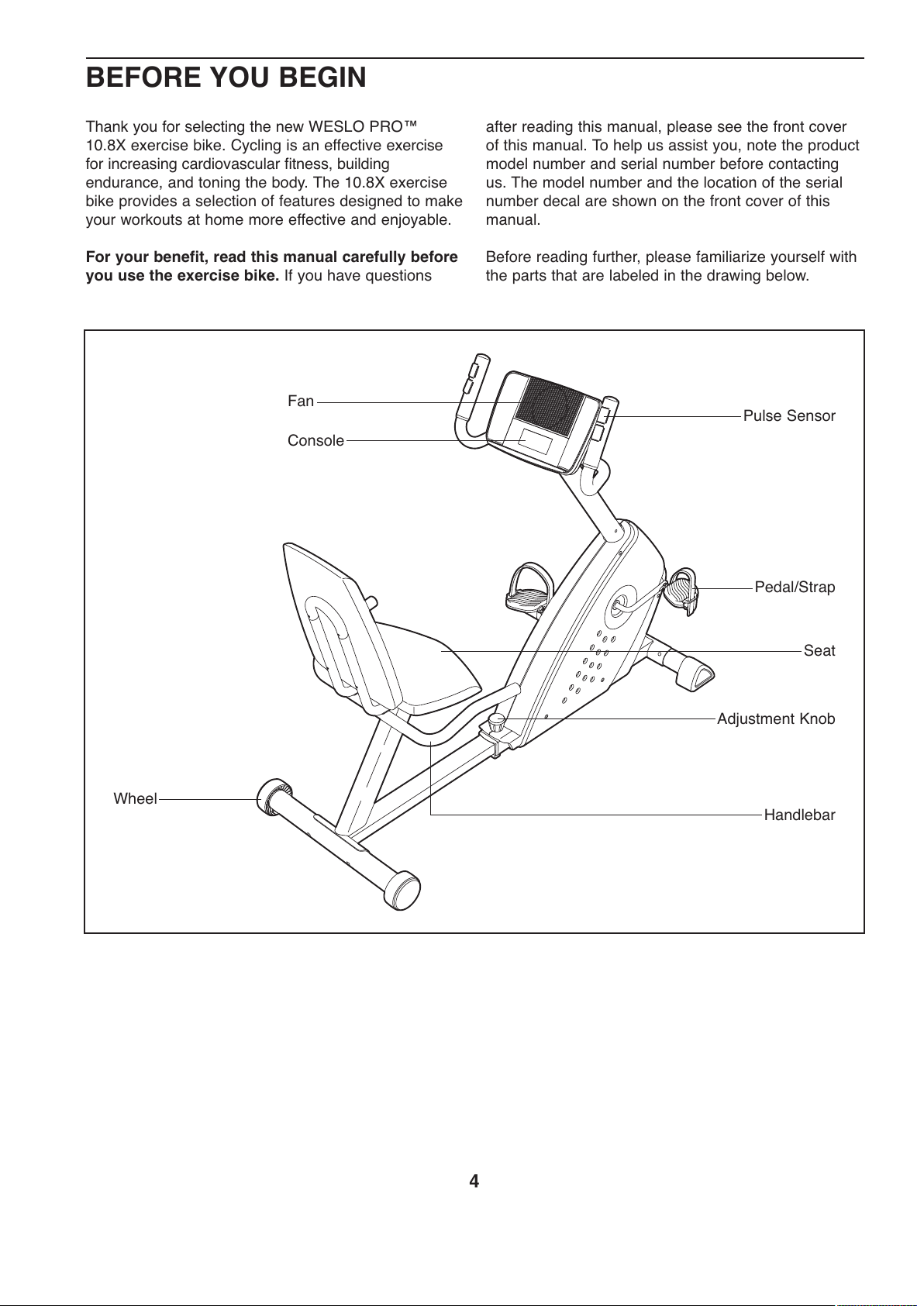

Thank you for selecting the new WES O PRO™

10.8X exercise bike. Cycling is an effective exercise

for increasing cardiovascular fitness, building

endurance, and toning the body. The 10.8X exercise

bike provides a selection of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Seat

Adjustment Knob

Pedal/Strap

Console

Pulse Sensor

Wheel

Fan

Handlebar

BEFORE YOU BEGIN

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver and an

adjustable wrench .

As you assemble the exercise bike, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART IST near the end of this manual. The number

following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check

to see if it has been preassembled.

M10 Locknut

(63)–4

M8 Locknut

(60)–4

M8 Split

Washer (59)–5

M6 Washer

(55)–8

M8 x 25mm Button

Screw (33)–3

M8 x 70mm Button

Bolt (54)–2

M6 Locknut

(72)–4

M10 x 75mm Carriage Bolt (51)–4

M6 x 42mm Button

Screw (49)–4

M6 x 38mm Patch

Screw (48)–4

M6 x 38mm Button

Bolt (69)–4

M4 x 16mm

Screw (52)–4

While another person lifts the front of the Frame

(1), attach the Front Stabilizer (3) to the Frame

with two M10 x 75mm Carriage Bolts (51) and

two M10 ocknuts (63).

3. Attach the Wheels (18) to the Rear Stabilizer (4)

with two M8 ocknuts (60). Then, press a

Wheel Cap (19) onto each Wheel.

Attach the Rear Stabilizer (4) to the Rear Frame

(2) with two M10 x 75mm Carriage Bolts (51)

and two M10 ocknuts (63).

2. Slide the Rear Frame (2) partway out of the

Frame (1), and then tighten the Adjustment

Knob (17) into the Frame.

To make assembly easier, read the

information on page 5 before you begin.

5. Attach the Backrest (5) to the Seat Frame (7)

with four M6 x 38mm Patch Screws (48) and

four M6 Washers (55). Do not tighten the

Patch Screws yet.

4. Attach the Seat Frame (7) to the Handlebar (6)

with two M8 x 70mm Button Bolts (54), two M8

Split Washers (59), and two M8 ocknuts (60).

Do not tighten the Button Bolts yet.

Battery Cover

Batteries

7. The Console (16) can use four 1.5V D batteries

(not included); alkaline batteries are recom-

mended. IMPORTANT: If the Console has

been exposed to cold temperatures, allow it

to warm to room temperature before insert-

ing batteries. Otherwise, you may damage

the console displays or other electronic

components. Remove the battery cover, insert

the batteries into the battery compartment, and

then reattach the battery cover. Make sure to

orient the batteries as shown by the diagram

inside the battery compartment.

To purchase an optional power adapter, call

the telephone number on the cover of this

manual. To avoid damaging the console, use

only a manufacturer-supplied power adapter.

Plug one end of the power adapter into the jack

on the console; plug the other end into an outlet

installed in accordance with all local codes and

ordinances.

6. Have another person hold the Seat Frame (7)

under the Rear Frame (2) as shown.

Attach the Seat Frame (7) and the Seat (12) to

the Rear Frame (2) with four M6 x 42mm Button

Screws (49) and four M6 Washers (55).

See step 4. Tighten the two M8 x 70mm Button

Bolts (54).

See step 5. Tighten the four M6 x 38mm Patch

Screws (48).

9. While another person holds the Console (16)

near the Upright (13), connect the console wire

to the Upper Wire Harness (36). Then, connect

the console pulse wires to the Pulse Wires (71).

Insert the excess wire downward into the

Upright (13).

Tip: Do not pinch the wires. Attach the

Console (16) to the Upright (13) with four M4 x

16mm Screws (52).

Console

Wire

Pulse Wires

8. Identify the eft Pulse Bar (65), which is marked

with a “ eft” sticker.

Have another person hold the eft Pulse Bar

(65) near the left side of the Upright (13). Make

sure that the hexagonal holes are in the indi-

cated location.

Insert the left Pulse Wire (71) into the Upright

(13), and pull it upward out of the top of the

Upright.

Tip: Do not pinch the wires. Slide the eft

Pulse Bar (65) onto the Upright (13). Attach the

eft Pulse Bar with two M6 x 38mm Button

Bolts (69) and two M6 ocknuts (72). Make

sure that the Locknuts are in the hexagonal

holes.

Repeat this step for the Right Pulse Bar (66).

Avoid pinching

the wires

Avoid pinching

the wires

Hexagonal

Holes

Tab

11. Identify the eft Pedal (24), which is marked

with a “ eft” sticker. Firmly tighten the eft

Pedal counterclockwise into the left arm of the

Crank (31).

Tighten the Right Pedal (not shown) clockwise

into the right arm of the Crank. IMPORTANT:

Tighten both pedals as firmly as possible.

After using the exercise bike for one week,

retighten the pedals. For best performance,

keep the pedals tightened.

Adjust the eft Pedal Strap (25) to the desired

position, and press the end of the eft Pedal

Strap onto the tab on the eft Pedal (24).

Adjust the Right Pedal Strap (not shown) in

the same way.

12. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hardware

may be left over after assembly is completed. Place a mat beneath the exercise bike to protect the floor.

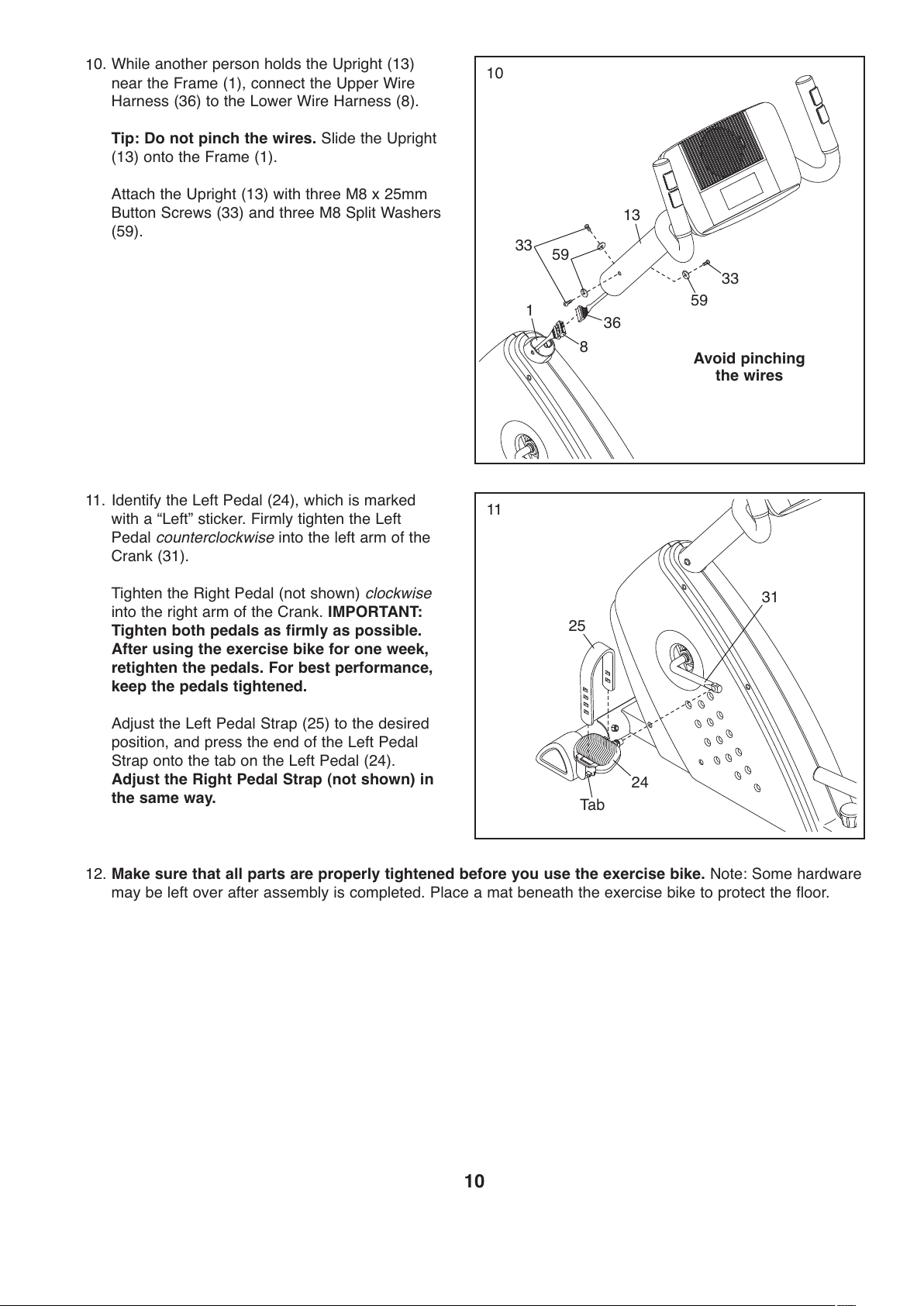

10. While another person holds the Upright (13)

near the Frame (1), connect the Upper Wire

Harness (36) to the ower Wire Harness (8).

Tip: Do not pinch the wires. Slide the Upright

(13) onto the Frame (1).

Attach the Upright (13) with three M8 x 25mm

Button Screws (33) and three M8 Split Washers

(59).

Avoid pinching

the wires

Andere Handbücher für PRO 10.8x

Inhaltsverzeichnis

Andere Weslo Heimtrainer Handbücher

Weslo

Weslo Pursuit T 169 Bike Kurzanleitung

Weslo

Weslo Pursuit T 169 Bike Bedienungsanleitung

Weslo

Weslo Boomerang 203 Bedienungsanleitung

Weslo

Weslo Pursuit 93 Bike Kurzanleitung

Weslo

Weslo PURSUIT S 2.8 Bedienungsanleitung

Weslo

Weslo Vector 303 Bike Bedienungsanleitung

Weslo

Weslo Easy Fit WLIVEX38010.0 Bedienungsanleitung

Weslo

Weslo Pursuit CT 1.5 WLEX31310.0 Bedienungsanleitung

Weslo

Weslo Pursuit 95 Systemhandbuch

Weslo

Weslo Pro CTX Bedienungsanleitung

Weslo

Weslo Pursuit 103 Bike Bedienungsanleitung

Weslo

Weslo Easy Fit WLIVEX85112.0 Bedienungsanleitung

Weslo

Weslo Pursuit 935h Bedienungsanleitung

Weslo

Weslo AERO A5 WLEVEX09040 Bedienungsanleitung

Weslo

Weslo Pursuit R 30 Bike Systemhandbuch

Weslo

Weslo Pursuit 625s Bedienungsanleitung

Weslo

Weslo PRO 10.8x Bedienungsanleitung

Weslo

Weslo Aero 640 Fan Bike Bedienungsanleitung

Weslo

Weslo Pursuit 700s Bedienungsanleitung

Weslo

Weslo Pursuit 250 Fm Bike Bedienungs- und Wartungshandbuch

Weslo

Weslo Pursuit Easy 100 Bedienungsanleitung

Weslo

Weslo Pursuit 720s Bedienungsanleitung

Weslo

Weslo Pursuit T 89 Bike Bedienungsanleitung

Weslo

Weslo Pursuit Sr 9.8 Bike Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Pro-Form

Pro-Form 345 Zlx Bike Benutzerhandbuch

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung

Stamina

Stamina 15-0340A Bedienungsanleitung
