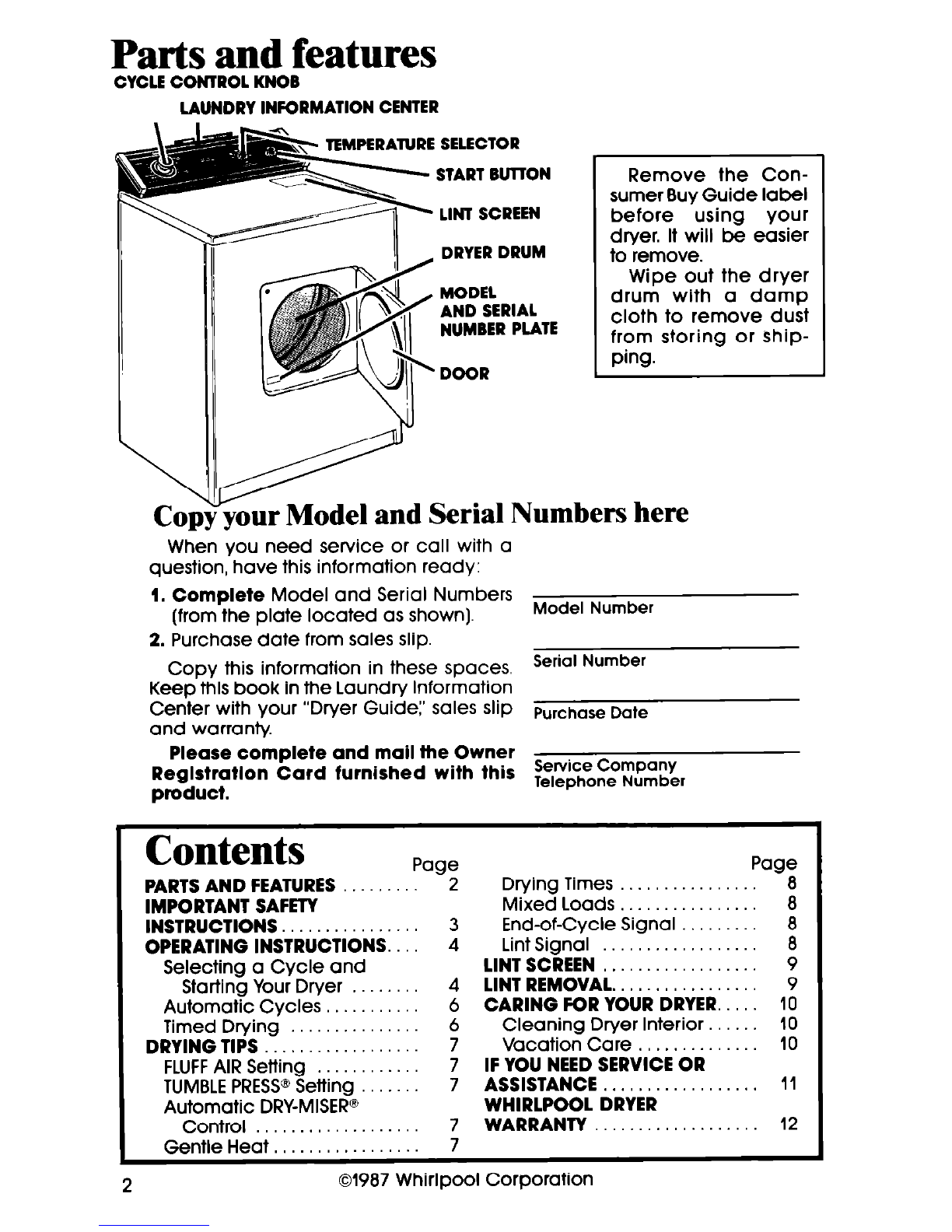

Parts and features

CYCLE CONTROL KNOB

LAUNDRY INFORMATION CENTER

TEMPERATURESELECTOR

START BUllON

LINT SCREEN

DRYER DRUM

MODEL

AND SERIAL

NUMBER PLATE

DOOR

Remove the Con-

sumer Buy Guide label

before using your

dryer. It will be easier

to remove.

Wipe out the dryer

drum with a damp

cloth to remove dust

from storing or ship-

ping.

Copryour Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete

Model and Serial Numbers

(from the plate located as shown). Mode, Number

2. Purchase date from sales slip.

Copy this information in these spaces. Seria’ Number

Keep this book in the Laundry Information

Center with your “Dryer Guide:’ sales slip PurchaseUate

and warranty

Please complete and mail the Owner

Reglstratlon Card furnished with this ~~$B,~$~,$~r

product.

Page

Contents

PARTS AND FEATURES

IMPORTANT SAFETY

INSTRUCTIONS . .

OPERATING INSTRUCTIONS.

Selecting a Cycle and

Starting Your Dryer

Automatic Cycles .

limed Drying

DRYING TIPS

FLUFFAIR Setting .

TUMBLEPRESS@Setting

Automatic DRY-MISER@)

Control .

Gentle Heat. . . . 7

Drying Times

Mixed Loads .

End-of-Cycle Signal . .

Lint Signal . . . .

LINT SCREEN .

LINT REMOVAL. . . . .

CARING FOR YOUR DRYER..

Cleaning Dryer Interior.

Vacation Care . . . .

IF YOU NEED SERVICE OR

ASSISTANCE . . . . .

WHIRLPOOL DRYER

WARRANTY .

Page

. 11

2 01987 Whirlpool Corporation

Addifional Safety lnsf~~cfions and Your ResponsibMfies

ALWAYS shut off the gas valve before

leaving on vacation.

NEVER use or store flammable fluids

(dry-cleaning solvents, gasoline, ker-

osene) in or near your dryer. These sub-

stances give off vapors that can create

a FIRE HAZARD or EXPLOSION.

NEVER operate the dryer if...

it is not working right [i.e. noisy, too hot).

it is damaaed.

ALWAYS unplug the power supply cord

or turn off electrical power before at-

tempting to service the dryer. Shut off

GAS VALVE if yours is a gas dryer.

You are personally responsible for

maklng sure that your dryer...

is properly maintained.

is properly installed and leveled in a

well ventilated room’ on a floor that

can support the weight.

parts are missing (i.e. door latch). . is located in an area where the tem-

all panels are not in place. perature is above 45°F (7.2%).

the lint screen is loose, damaged or

is connected to the proper outlet and

missing. electrical supply.’

is properly connected to fuel and ex-

FOR YOUR SAFETY

haust systems.*

IF YOU SMELL GAS:

is not installed against drapes or

OPEN WINDOWS. curtains.*

2. DON’T TOUCH ELECTRICAL SWITCHES.

is used only for jobs normally ex-

3. EXTINGUISH ANY OPEN FLAME. petted of home clothes dryers.

4. IMMEDIATELY CALL YOUR GAS

is not used by children or anyone un-

SUPPLIER. able to operate it properly.

*See “lnstallatlon Inrtructlons” for

complete Informatlon.

I I’

SUGGESTED SUGGESTED

TYPEOF LOAD CYCLE TEMPERATURE

COTTONS - LINENS

EXTRAHEAVY-Bedspreads, HEAVY

mattress pads, quilts . . . . . . , . . . . . HIGH

HEAVYWEIGHTFABRICS- Towels,

jeans, corduroys, work clothes . . . .

MEDIUMWEIGHTCOTTONS- AUTOMATIC

Sheets, plllowcases, cotton REGULAR PERM’I PRESS

underwear,dlapers . . . . . . . . . . . MED

LIGHTWEIGHTCOTTONS- Batistes, KNITSGENTLE

organdies, lingerie . . . . . . . . . . . . . . . . . LOW

PERMANENTPRESS,SYNTHElICS

ANDBLENDS -

HEAVYWEIGHTFABRICS-Work clothes.

jackets, ralncoats . . . . . . . , . . . . . .: . . . .

MEDIUMWEIGHTFABRICS-Shirk, play

clothes,sheets, slacks. . . . . . . . . . . . .

LIGHTWElGHTFABRICS- Lingerie,

blouses,dresses.......................

AUTOMATIC PERMITPRESS

PERMANENT MED

PRESS MED LOW

KNITS

HEAWWElGHT- Cottons, rayons,

blend&T-shirts, slacks, shirts . . . . . . . .

LIGHTWEIGHT- Synthetics (polyester,

acrylic, etc.] and blends, lingerie,

blouses, dresses . . . . . . . . . . . . . . . . . .

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels) . . . . . . . .

Gauze, lace, etc. . . . . . . . . . . . . . . .

AUTOMATIC MED LOW

PERMANENT

PRESS KNITSGENTLE

LOW

AUTOMATIC

PERMANENT Ex LOW

PRESS

RUBBER,PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER- Pillows, bras,

stulted toys . . . . . . . . . . . . . . . . . . . . . .

PLASTIC- Shower curtains,

tablecloths. . , . . . . . . . . . . . . . . . . . . . .

RUBBER-BACKEDRUGS. . . .

FLUFF

AIR Ex LOW

. Select a CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the STARTButton

The dryer will start tumbling when you

push the STARTButton.

Ifthe STARTButton is pushed when the

Cycle Control Knob is pointing to an

OFFarea, the End-of-Cycle Signal will

sound. Dryer will not start.

Set

TEMPERATURESELECTOR

The Temperature Selector can be set

on any desired temperature or any-

where between 2 temperatures.

To stop and restart

the dryer

TOStop

the dryer, open the door (or

turn the Control Knob to OFF).

r&tart the dryer, close the door,

select Cycle, if necessary, and push

START.

The Cycle Control Knob should point to an OFF area when the dryer is

not In use. If the dryer Is stopped before the cycle Is finlshed, turn the Cycle

Control Knob to an OFF area. 5

The automatic cycles

The automatic cycles allow you to se-

lect the degree of dryness you prefer

for the clothes being dried.

The Control Knob will not move until

the clothes load is almost dry, or the

COOL-DOWN portion of the cycle has

been reached. After COOL-DOWN, the

knob automatically moves to an OFF

area and tumbling stops.

weight cotton items.

The load tumbles

wlthout heat during the last 5 mln-

utes. This helps make the load easier

to handle.

press, knits and other synthetic fab-

rics.

The load tumbles without heat

during the last 10 minutes.

This helps

keep wrinkles from setting in, and

makes the load easier to handle.

Forthe first few loads, set the Control

Knob to point to an * in either auto-

matic cycle. When the dryer stops, feel

the dried items.

l If items are drier than you like, use

a setting to the right of the * the next

time vou drv a similar load.

l If items are not as dry as you like, use

a setting to the left of the * the next

time you dry a similar load.

Timed drying

Usethe TIMEDDRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

l Turn the Control Knob to the number

of minutes you want-from 10to 70.

l The last 5 minutes of this cycle are

without heat-a cool-down time.

This helps make the load easier to

6 handle.

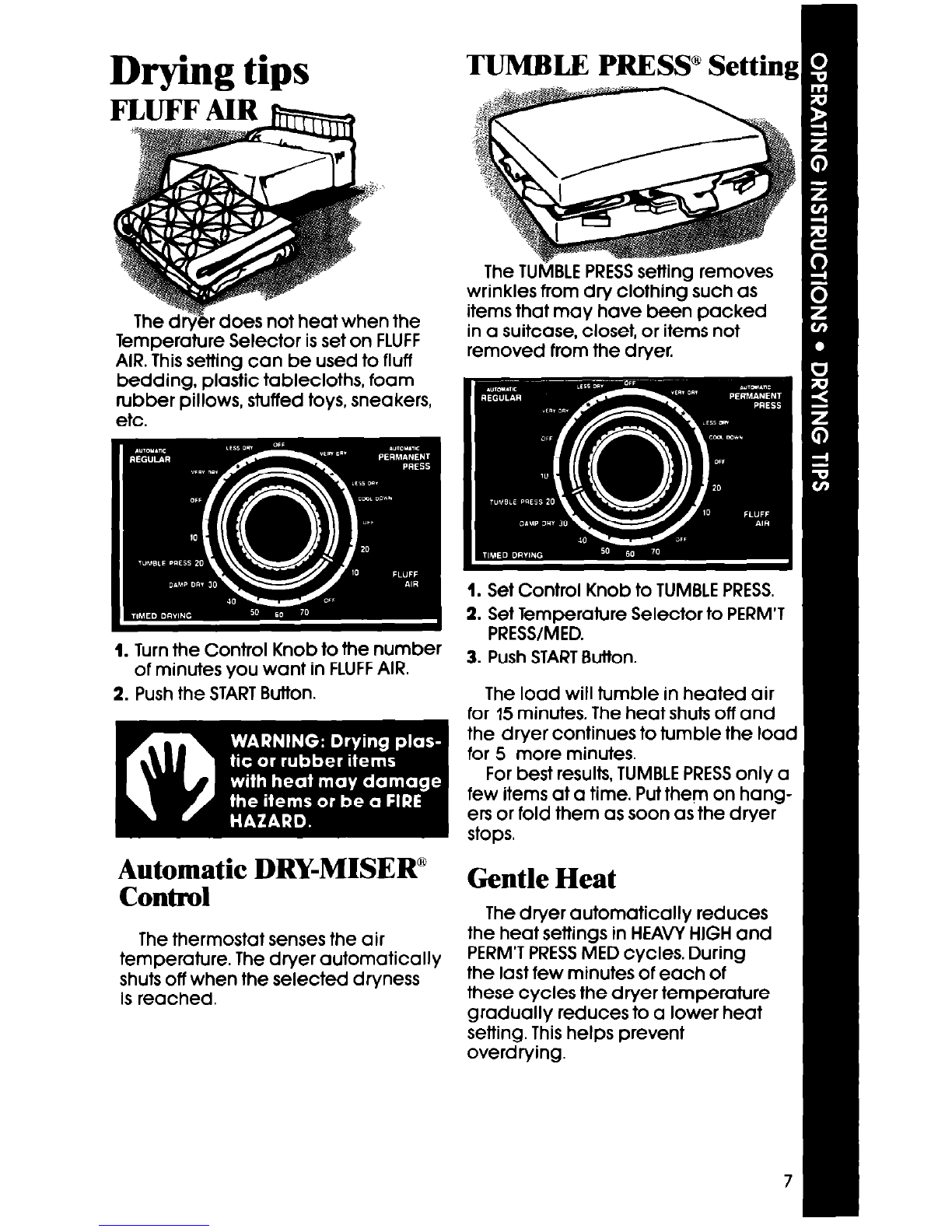

Drying tips

TUMBLE

PRESS”

Settine

The d rdoes not heat when the

Temperature Selector is set on FLUFF

AIR.This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc.

1. Turn the Control Knob to the number

of minutes you want in FLUFFAIR.

2. Push the STARTButton.

The TUkBLEPREii setting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

Set Control Knob to TUMBLEPRESS.

2. Set Temperature Selector to PERMIT

PRESS/MED.

3. Push STARTButton.

The load will tumble in heated air

for 15minutes. The heat shuts off and

the dryer continues to tumble the load

for 5 more minutes.

For best results, TUMBLEPRESSonly a

few items at a time. Putthem on hang-

ers or fold them as soon as the dryer

stops.

Automatic DRY-MISER”

Control

The thermostat senses the air

temperature. The dryer automatically

shuts off when the selected dryness

is reached.

Gentle Heat

The dryer automatically reduces

the heat settings in HEAVYHJGHand

PERMITPRESSMED cycles. During

the last few minutes of each of

these cycles the dryer temperature

gradually reduces to a lower heat

setting. This helps prevent

overdrying.

Drying times Mixed loads

Drying times will vary depending on: When drying a load with different

l amount of moisture in the clothes. kinds and weights of fabrics, use the

. . * .. .. . . . _

l type and weight of the fabric.

l size of the load. cycle suggesrea ror me llgnresr rao-

rics. When the dryer stops, remove dry

items and reset the control.

l room temperature around the dryer.

l temperature of the wash rinse water.

l amount of lint in the lint screen.

l dryer temperature selection.

See in your “Dryer Guide” for

more information.

End-of-cycle signal The dryer sounds a signal to let you know when

the cycle isfinished. The signal cannot be turned

off and is not adjustable.

The signal is helpful when you are drying per-

manent press, synthetics and other items that

should be taken oui as soon as the dryer stops.

&’ f.., signal

Clean lint screen

before each load.

If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone] signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency,

Turn off the dryer and clean the lint screen as

shown on page 9.

Lint screen

Clean the lint screen before each load.

A screen blocked by lint can

increase drying time and may be a FIREHA

Open the lid and pull the lint screen

straight out.

ROLL

the lint off the screen with

your fingers.

DO NOT

rinse or wash the screen.

Push the screen firmlv back into olace.

Lint removal

Lint can gather inside the dryer and create a

FIRE HAZARD. This lint should

be removed at least every 2 to 3 years, or more offen,

deDendlna on drver usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

WARNING:

Avold electrical shock

hazard - unplug power

supply cord or turn off

electrical power.

Avold Injury or damage - do not

put hands Inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric)

or lower access panel (gas].

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art-with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer. 9

Remove i&se and sharp objects

from pockets and cuffs before drying -

pins, buckles, etc.

Close metal

zippers.

Wipe off ail spills

with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never

leave wet or damp laundry

in your dryer.

Sharp or heavy objects

should

never be put on or in the dryer.

Check pockets for bolts, nuts etc.

Some pretreatment products

can

damage dials, consoles and finish.

Do not use these products on or near

your dryer.

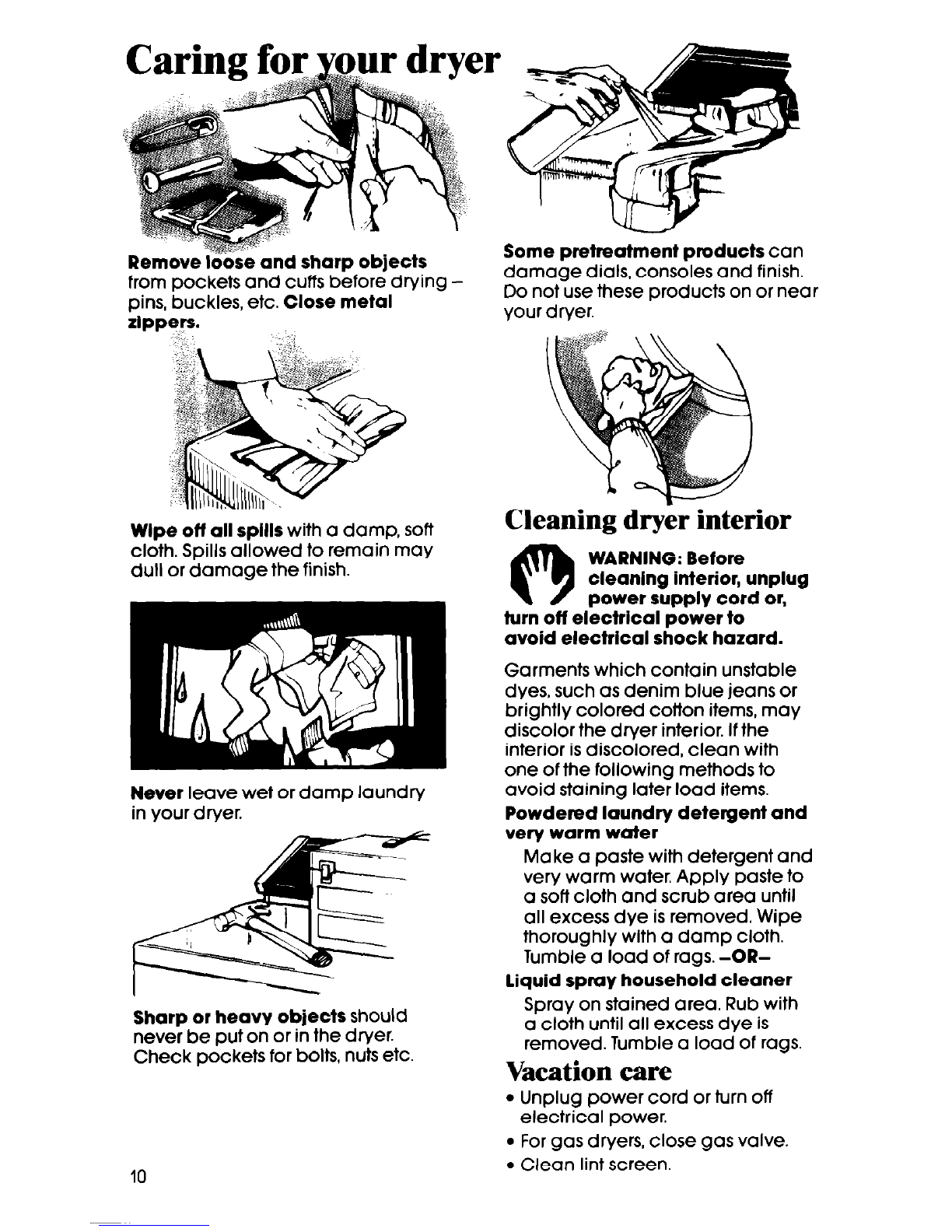

Cleaning dry&=interior

WARNING: Before

cleaning interior, unplug

power supply cord or,

turn off electrical power to

avoid electrical shock hazard.

Garments which contain unstable

dyes, such as denim blue jeans or

brightly colored cotton items, may

discolor the dryer interior. Ifthe

interior is discolored, clean with

one of the following methods to

avoid staining later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to

a soff cloth and scrub area until

all excess dye is removed. Wipe

thoroughly with a damp cloth.

Tumble a load of rags.

-OR-

liquid spray household cleaner

Spray on stained area. Rub with

a cloth until all excess dye is

removed. Tumble a load of rags.

Vacation care

l Unplug power cord or turn off

electrical power.

l For gas dryers, close gas valve.

0 Clean lint screen.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool NTSM1192SKUK Bedienungsanleitung

Whirlpool

Whirlpool AWZ220 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio,- WED5500X Gebrauchsanweisung

Whirlpool

Whirlpool Cabrio,- WED5500X Gebrauchsanweisung

Whirlpool

Whirlpool Cabrio WGD6200S Bedienungsanleitung

Whirlpool

Whirlpool PROD 06SCII Bedienungsanleitung

Whirlpool

Whirlpool LER3422AW0 Bedienungsanleitung

Whirlpool

Whirlpool WED7300XW Bedienungsanleitung

Whirlpool

Whirlpool LE6605XP Bedienungsanleitung

Whirlpool

Whirlpool 1W10287573A Bedienungsanleitung

Whirlpool

Whirlpool W10562348B Bedienungsanleitung

Whirlpool

Whirlpool W10524379C - SP Bedienungsanleitung

Whirlpool

Whirlpool W10110521 Bedienungsanleitung

Whirlpool

Whirlpool WED9051YW Bedienungsanleitung

Whirlpool

Whirlpool WGD9450WL Bedienungsanleitung

Whirlpool

Whirlpool Atlantis 3LWED4815FW Bedienungsanleitung

Whirlpool

Whirlpool LE4905XM Bedienungsanleitung

Whirlpool

Whirlpool AWG 367 Bedienungsanleitung

Whirlpool

Whirlpool Gold ELECTRIC AND GAS DRYER Bedienungsanleitung

Whirlpool

Whirlpool 3XWED5705 Bedienungsanleitung

Whirlpool

Whirlpool LE5700XK Bedienungsanleitung

Whirlpool

Whirlpool W10919522B Bedienungsanleitung

Whirlpool

Whirlpool WED7500VW Handbuch

Whirlpool

Whirlpool LGR4634PQ Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
