ELECTRONIC DRYER

USE AND CARE GUIDE

Table of Contents Table des matières

DRYER SAFETY ............................................................2

CHECK YOUR VENT SYSTEM

FOR GOOD AIR FLOW .................................................4

CONTROL PANEL AND FEATURES ............................5

CYCLE GUIDE...............................................................6

USING YOUR DRYER ...................................................7

DRYER CARE................................................................9

TROUBLESHOOTING.................................................11

WARRANTY.................................................................13

ASSISTANCE OR SERVICE....................BACK COVER

SÉCURITÉ DE LA SÉCHEUSE ...................................14

VÉRIFICATION D’UNE CIRCULATION D’AIR

ADÉQUATE POUR LE SYSTÈME D’ÉVACUATION ..16

TABLEAU DE COMMANDE

ET CARACTÉRISTIQUES ...........................................17

GUIDE DE PROGRAMMES ........................................18

UTILISATION DE LA SÉCHEUSE...............................20

ENTRETIEN DE LA SÉCHEUSE.................................22

DÉPANNAGE. ..............................................................24

GARANTIE...................................................................26

ASSISTANCE OU SERVICE.. COUVERTURE ARRIÈRE

SÉCHEUSE ÉLECTRONIQUE

GUIDE D’UTILISATION ET

D’ENTRETIEN

Para una versión de estas instrucciones en español, visite www.whirlpool.com

You

You can be killed or seriously injured if you don't immediately

can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

DRYER SAFETY

WARNING: For your safety, the information in this manual must be followed to minimize

the risk of re or explosion, or to prevent property damage, personal injury, or death.

– Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this

or any other appliance.

– WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

•If you cannot reach your gas supplier, call the re department.

– Installation and service must be performed by a qualied installer, service agency, or

the gas supplier.

•Clear the room, building, or area of all occupants.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.

If a gas leak is detected, follow the “What to do if you smell gas” instructions.

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Maintain good air ow by:

n Cleaning your lint screen before each load.

n Replace plastic or foil vent material with 4" (102 mm)

diameter heavy, rigid vent material.

n Use the shortest length of vent possible.

n Use no more than four 90° elbows in a vent system;

each bend and curve reduces air ow.

Good Better

n Remove lint and debris from the exhaust hood.

n Remove lint from the entire length of the vent system at

least every 2 years. When cleaning is complete, be sure

to follow the Installation Instructions supplied with your

dryer for nal product check.

n Clear away items from the front the dryer.

Good air ow

Along with heat, dryers require good air ow to efciently

dry laundry. Proper venting will reduce your drying

times and improve your energy savings. See Installation

Instructions.

The venting system attached to the dryer plays a big role in

good air ow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Use automatic cycles for better fabric care and energy savings

Use the Automatic Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Cycles,

drying air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer

shuts off when the load reaches the selected dryness. With Timed Dry, the dryer runs the amount of time set and sometimes

results in shrinkage, wrinkling, and static due to over-drying. Use Timed Dry for the occasional damp load that needs a little more

drying time or when using the drying rack.

WARNING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can result in death

or re.

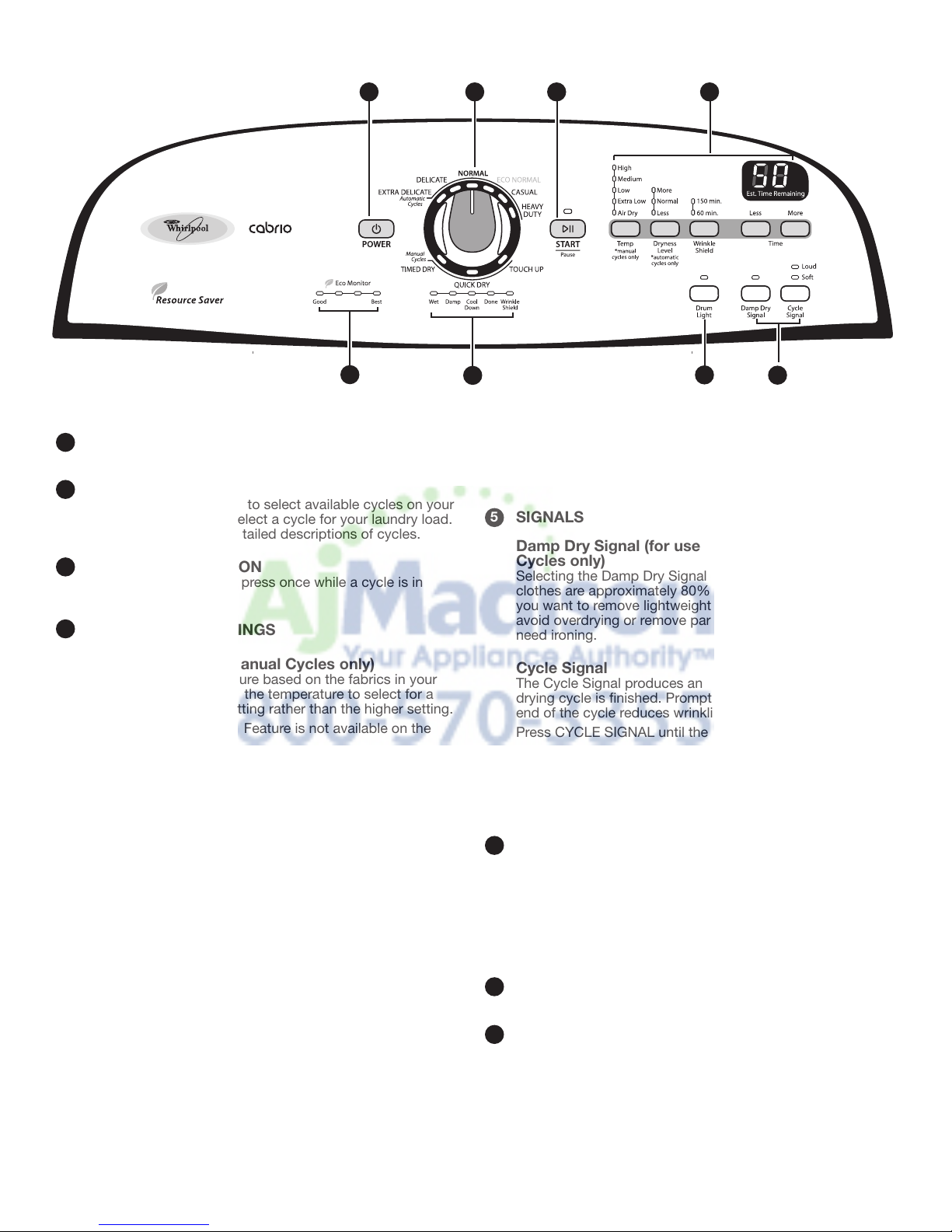

CONTROL PANEL & FEATURES

POWER BUTTON

Press to turn the dryer on and off.

DRYER CYCLE KNOB

Use your Dry Cycle Knob to select available cycles on your

dryer. Turn the knob to select a cycle for your laundry load.

See “Cycle Guide” for detailed descriptions of cycles.

START/PAUSE BUTTON

Press to start a cycle, or press once while a cycle is in

process to pause it.

OPTIONS AND SETTINGS

Temp (for use with Manual Cycles only)

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for a

load, select the lower setting rather than the higher setting.

NOTE: The Air Dry Temp Feature is not available on the

Automatic Cycles.

Dryness Level (for use with Automatic

Cycles only)

Use the Dryness option to select dryness levels for the

Automatic Cycles only.

Wrinkle Shield™ Feature

When you are unable to remove a load of clothes from the

dryer as soon as it stops, wrinkles can form. The WRINKLE

SHIELD™ feature periodically tumbles, rearranges, and

uffs the load to help keep wrinkles from forming.

n Get up to 60/150 minutes for models with two choices,

90 minutes for models with only one choice of heat-

free, periodic tumbling at the end of a cycle. Press the

WRINKLE SHIELD™ button to turn ON or OFF at any

time before the cycle has ended.

Timed Dry (for use with Manual Cycles only)

Will run the dryer for the specied time on the control.

Depending on model, temperature may be selected on

cycle knob or be a separate control.

SIGNALS

Damp Dry Signal (for use with Automatic

Cycles only)

Selecting the Damp Dry Signal will alert you when your

clothes are approximately 80% dry. This is useful when

you want to remove lightweight items in a mixed load to

avoid overdrying or remove partially dry items that may

need ironing.

Cycle Signal

The Cycle Signal produces an audible sound when the

drying cycle is nished. Promptly removing clothes at the

end of the cycle reduces wrinkling.

Press CYCLE SIGNAL until the desired volume (Loud, Soft,

or Off) is selected.

NOTE: When the Wrinkle Shield™ setting is selected

and the Cycle Signal is on, the tone will sound every

20 minutes until the clothes are removed, or the Wrinkle

Shield™ setting ends.

DRUM LIGHT

Select Drum Light to turn on the light inside the dryer drum.

When pressed during a cycle or not running, the Drum Light

turns on and will remain on until DRUM LIGHT is pressed

again, or the door is opened and closed, or the door is left

open for 30 minutes.

Press DRUM LIGHT at any time to turn the drum light ON

or OFF.

CYCLE STATUS LIGHTS

Lights indicate the progress of the drying cycles.

ECO MONITOR

The Eco Monitor shows your estimated energy usage

compared to the other cycles and options.

2 31

Not all features and options are available on all models.

Appearance may vary.

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

AUTOMATIC DRY - Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Gives the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting.

Depending on model, temperature may be selected on cycle knob or be a separate control.

Items to dry: Cycle: Drying

Temperature: Dryness

Level: Default

Time: Available

Options: Cycle Details:

Heavyweight items

towels, jeans

No-iron fabrics,

cottons, perm press,

linens, synthetics

Heavy

Duty

Casual

Eco Normal

Delicate

Extra

Delicate

Normal

High

Low

Medium

Low

Extra Low

Medium

Normal

Damp Dry Signal

Dryness Level

Wrinkle Shield

Damp Dry Signal

Dryness Level

Wrinkle Shield

Damp Dry Signal

Dryness Level

Wrinkle Shield

Damp Dry Signal

Dryness Level

Wrinkle Shield

Damp Dry Signal

Dryness Level

Wrinkle Shield

Damp Dry Signal

Dryness Level

Wrinkle Shield

Use for drying large or heavy items.

Evenly dries large or heavy loads.

For normal light- to medium-weight

fabrics. Drying time varies based on

fabric type, load size, and dryness

setting.

Average size loads of medium weight

items where improved energy is desired.

For gently drying delicate items.

Medium to large loads of mixed fabrics

and items.

Work clothes, casual

wear, mixed cottons,

sheets, corduroys

CYCLE GUIDE — AUTOMATIC CYCLES

CYCLE GUIDE — MANUAL CYCLES

Items to dry: Cycle: Drying

Temperature: Default

Time: Available

Options: Cycle Details:

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

TIMED DRY - Will run the dryer for the specied time on the control. Depending on model, temperature may be selected on cycle

knob or be a separate control.

Any load

Timed Dry

High Heat High N/A Temp

Wrinkle Shield

Time Adjustment

Use for drying large or heavy items.

Setting the Drying Temperature

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for a load,

select the lower setting rather than the higher setting.

Temperature Tips

If your dryer has multiple heat settings:

A High heat setting may be used for drying heavyweight

items such as towels and work clothes.

A Low to Medium heat setting may be used for drying

medium-weight items such as sheets, blouses, dresses,

underwear, permanent press fabrics, and some knits.

An Extra-Low heat setting may be used for drying lightweight

items such as lingerie.

Use a no heat (air dry) setting for foam, rubber, plastic, or

heat-sensitive fabrics.

Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for

various loads, refer to the care label directions.

Lingerie, blouses,

washable knit fabrics

Corduroys, work

clothes

Lingerie, exercise

wear, washable

woolens

Heavyweight items

Small loads and

sportswear

(2 to 3 items)

Mixed loads

Rubber, plastic, heat

sensitive fabrics

Quick Dry

Touch Up

Damp Dry

Air Dry

Medium

Any

No heat

N/A

Temp

Wrinkle Shield

Time Adjustment

Temp

Wrinkle Shield

Time Adjustment

Temp

Wrinkle Shield

Time Adjustment

Temp

Wrinkle Shield

Time Adjustment

For small loads of 2-3 items.

Use to remove wrinkles, including loads left

in the dryer too long. Any timed dry cycle/

manual cycle does not sense the load.

Dries items to a damp level for items that

do not require an entire drying cycle

No-heat drying

NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load.

USING YOUR DRYER

1. Clean the lint screen

Check the lint screen before each load. Pull the lint screen

straight up. Roll lint off the screen with your ngers. Do not rinse

or wash screen to remove lint. Push the lint screen rmly back

into place.

For additional cleaning information, see Dryer Care.

2. Load the dryer

Place laundry in the dryer. Close the door.

Do not overload the dryer; clothes should be able

to tumble freely.

3. Press POWER

Press the POWER button to turn on the dryer.

WARNING

Explosion Hazard

Keep ammable materials and vapors, such as

gasoline, away from dryer.

Do not dry anything that has ever had anything

ammable on it (even after washing).

Failure to follow these instructions can result in death,

explosion, or re.

WARNING

Fire Hazard

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on

it (including cooking oils).

Items containing foam, rubber, or plastic must be dried

on a clothesline or by using an Air Cycle.

Failure to follow these instructions can result in death

or re.

4. Select the desired cycle

Select the desired cycle for your load. See the Cycle Guide

or the display for more information about each cycle.

7. Press START/PAUSE to begin cycle

Press the START/PAUSE button to begin the cycle.

8. Remove garments promptly

after cycle is nished

Promptly remove garments after cycle has completed to

reduce wrinkling. If you will be unable to remove the load

promptly, press the Wrinkle Shield button to turn ON or OFF

at any time before the cycle has ended.

5. Set cycle settings

The default cycle settings will be shown. For some cycles,

you may select alternate settings by pressing the button for

that setting. Time adjusts for Manual Cycles only.

NOTE: Not all options and settings are available with all cycles.

Temp (for use with Manual Cycles only)

Press the TEMP button to change the drying temperature

from the default setting. Press the MORE TIME or LESS TIME

and the time will change by 1-minute intervals. Press and hold

MORE TIME or LESS TIME and the time will change by

5-minute intervals.

Dryness Level (for use with Automatic Cycles only)

You can select a different dryness level, depending on your

load, by pressing the button for More, Normal, or Less.

Selecting More, Normal, or Less automatically adjusts the

dryness level at which the dryer will shut off. Once a dryness

level is set, it cannot be changed without stopping the cycle.

Senses moisture in the load or air temperature and shuts off

when the load reaches the selected dryness level. Gives the

best drying in the shortest time. Drying time varies based on

fabric type, load size, and dryness setting.

NOTE: More Dry removes more load moisture. Normal Dry

is used for a starting point for automatic drying. Less Dry

removes less moisture and used for loads you may want to put

on a hanger to complete drying.

Wrinkle Shield™ feature

n Get up to 60/150 minutes for models with two choices,

90 minutes for models with only one choice of heat-free,

periodic tumbling at the end of a cycle. Press the WRINKLE

SHIELD™ button to turn ON or OFF at any time before the

cycle has ended.

n The WRINKLE SHIELD™ feature is preset to “OFF.” If

selected for other cycles, the WRINKLE SHIELD™ feature

setting will remain “ON” the next time that cycle is selected.

6. Select cycle options (if desired)

Add additional options by pressing the button.

NOTE: Not all options and settings are available with all

cycles.

9. Additional features (on some models)

Select Drum Light to turn on the light inside the dryer drum.

When pressed during a cycle or not running, the Drum Light

turns on and will remain on until DRUM LIGHT is pressed

again, the door is opened and closed, or the door is left open

for 30 minutes.

DRYER CARE

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

Cleaning the lint screen

Every load cleaning

The lint screen is located in the door opening of the dryer.

A screen blocked by lint can increase drying time.

To clean:

1. Pull the lint screen straight up. Roll lint off the screen

with your ngers. Do not rinse or wash screen to

remove lint.

2. Push the lint screen rmly back into place.

IMPORTANT:

n Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

n If lint falls off the screen into the dryer during removal,

check the exhaust hood and remove the lint. See

“Venting Requirements.”

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue

buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until

stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the

dryer interior. These stains are not harmful to your dryer and

will not stain future loads of clothes. Dry these items inside

out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done

by a qualied servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Cleaning the dryer location

Vacation, storage, and moving care

Install and store your dryer where it will not freeze. Because

some water may stay in the hoses, freezing can damage

your dryer. If storing or moving your dryer during freezing

weather, winterize it.

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Steam models only: Shut off water faucet.

3. Steam models only: Disconnect the water inlet hose

from faucet, then drain the hose. Transport hose

separately.

4. Make sure leveling legs are secure in dryer base.

5. Use masking tape to secure dryer door.

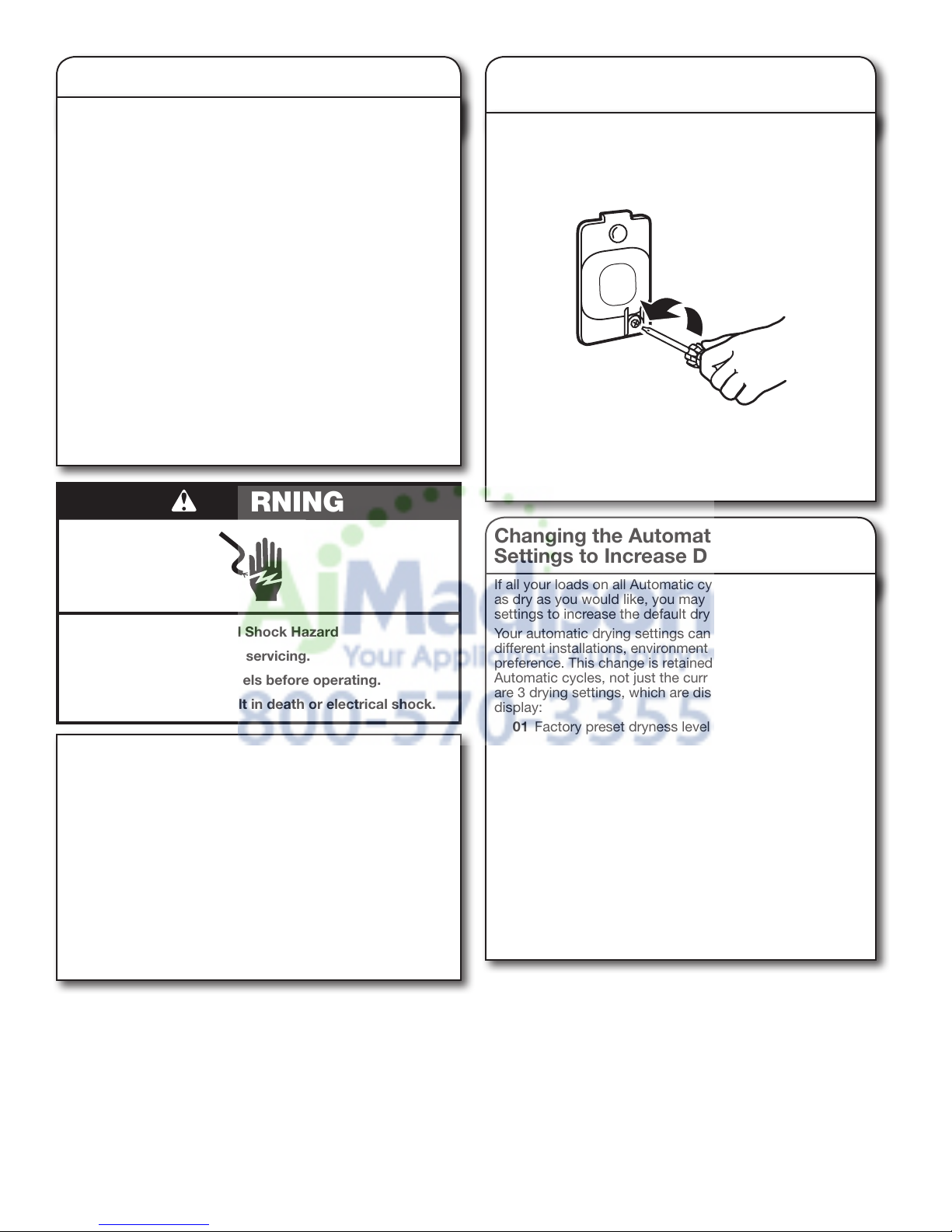

Changing the drum light

(on some models)

1. Unplug dryer or disconnect power.

2. Open the dryer door. Locate the light bulb cover on the

back wall of the dryer. Using a Phillips head screw driver,

remove the screw located in the lower right-hand corner

of the cover. Remove the cover.

3. Turn bulb counterclockwise. Replace the bulb with

a 10-watt appliance bulb only. Replace the cover and

secure with the screw.

4. Plug in dryer or reconnect power.

Changing the Automatic Cycle

Settings to Increase Drying Time

If all your loads on all Automatic cycles are consistently not

as dry as you would like, you may change the default

settings to increase the default dryness level.

Your automatic drying settings can be adjusted to adapt to

different installations, environmental conditions or personal

preference. This change is retained and will affect all of your

Automatic cycles, not just the current cycle/load. There

are 3 drying settings, which are displayed using the time

display:

01 Factory preset dryness level.

02 Slightly drier clothes, 15% more drying time.

03 Much drier clothes, 30% more drying time.

To change the drying settings:

NOTE: The settings cannot be changed while the dryer is

running or paused. The dryer must be in standby mode (the

power button is off) to adjust the default settings.

1. Before starting a cycle, press and hold the TEMP button

for 6 seconds.

2. Press the TEMP button to select the dryness level

shown in the time display: 01, 02, or 03.

3. Press START/PAUSE to save the new dryness level

setting.

For direct-wired dryers:

1. Disconnect power.

2. Disconnect wiring.

3. Steam models only: Shut off water faucet.

4. Steam models only: Disconnect the water inlet

hose from faucet, then drain the hose. Transport

hose separately.

5. Make sure leveling legs are secure in dryer base.

6. Use masking tape to secure dryer door.

Reinstalling the Dryer

Follow the “Installation Instructions” to locate, level,

and connect the dryer.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool WGD49STBW Bedienungsanleitung

Whirlpool

Whirlpool Duet W10049540 Bedienungsanleitung

Whirlpool

Whirlpool 3RAWZ480E Bedienungsanleitung

Whirlpool

Whirlpool ELECTRONIC GAS DRYER Bedienungsanleitung

Whirlpool

Whirlpool MEDB955FW Bedienungsanleitung

Whirlpool

Whirlpool LE6600XP Bedienungsanleitung

Whirlpool

Whirlpool 3LWED4705FW Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9500T Bedienungsanleitung

Whirlpool

Whirlpool 3RAWZ481G Bedienungsanleitung

Whirlpool

Whirlpool Gold GEQ8831LL0 Bedienungsanleitung

Whirlpool

Whirlpool 4GWED4750 Bedienungsanleitung

Whirlpool

Whirlpool 3401083 Bedienungsanleitung

Whirlpool

Whirlpool LE7800XM Bedienungsanleitung

Whirlpool

Whirlpool WGD8300S Bedienungsanleitung

Whirlpool

Whirlpool LGR6646BW2 Bedienungsanleitung

Whirlpool

Whirlpool LE4900XS, LE4930XS, LG4931XS Bedienungsanleitung

Whirlpool

Whirlpool Easy Clean 100 Series Bedienungsanleitung

Whirlpool

Whirlpool LDR3822D Bedienungsanleitung

Whirlpool

Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE Bedienungsanleitung

Whirlpool

Whirlpool WGD94HEX Handbuch

Whirlpool

Whirlpool FFT M22 8X2BS BE Bedienungsanleitung

Whirlpool

Whirlpool W11440958 Bedienungsanleitung

Whirlpool

Whirlpool WED9500E SERIES Bedienungsanleitung

Whirlpool

Whirlpool LGQ8000JQ1 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
