Whispbar K455W Bedienungsanleitung

K455W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4

Revision No: 8D 1

Fitting Kit K455W

MAX kgs (lbs)

W/P WHD

Land Rover

Freelander 2, 5dr SUV 07-12 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV 07-15 CN 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV 12-14 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV Jul 07-Feb 11 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV Jul 07-Feb 11 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV Jul 07-Feb 11 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV Mar 11-Mar 15 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV Mar 11-Mar 15 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Freelander 2, 5dr SUV Mar 11-Mar 15 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

LR2, 5dr SUV 07-+ US 60 kgs (132 lbs) 60 kgs (132 lbs)

Fitting Kit K455W

A B C 1 2 3

Freelander 2, 5dr SUV 07-12 (EU) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV 07-15 (CN) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV 12-14 (EU) 180mm 570mm - 960mm 940mm -

7 1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV Jul 07-Feb 11 (AU) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV Jul 07-Feb 11 (ZA) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV Jul 07-Feb 11 (NZ) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV Mar 11-Mar 15 (AU) 180mm 570mm - 960mm 940mm -

7 1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV Mar 11-Mar 15 (NZ) 180mm 570mm - 960mm 940mm -

7 1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander 2, 5dr SUV Mar 11-Mar 15 (ZA) 180mm 570mm - 960mm 940mm -

7 1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

LR2, 5dr SUV 07-+ (US) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Fitting Kit EN

K455W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K455W

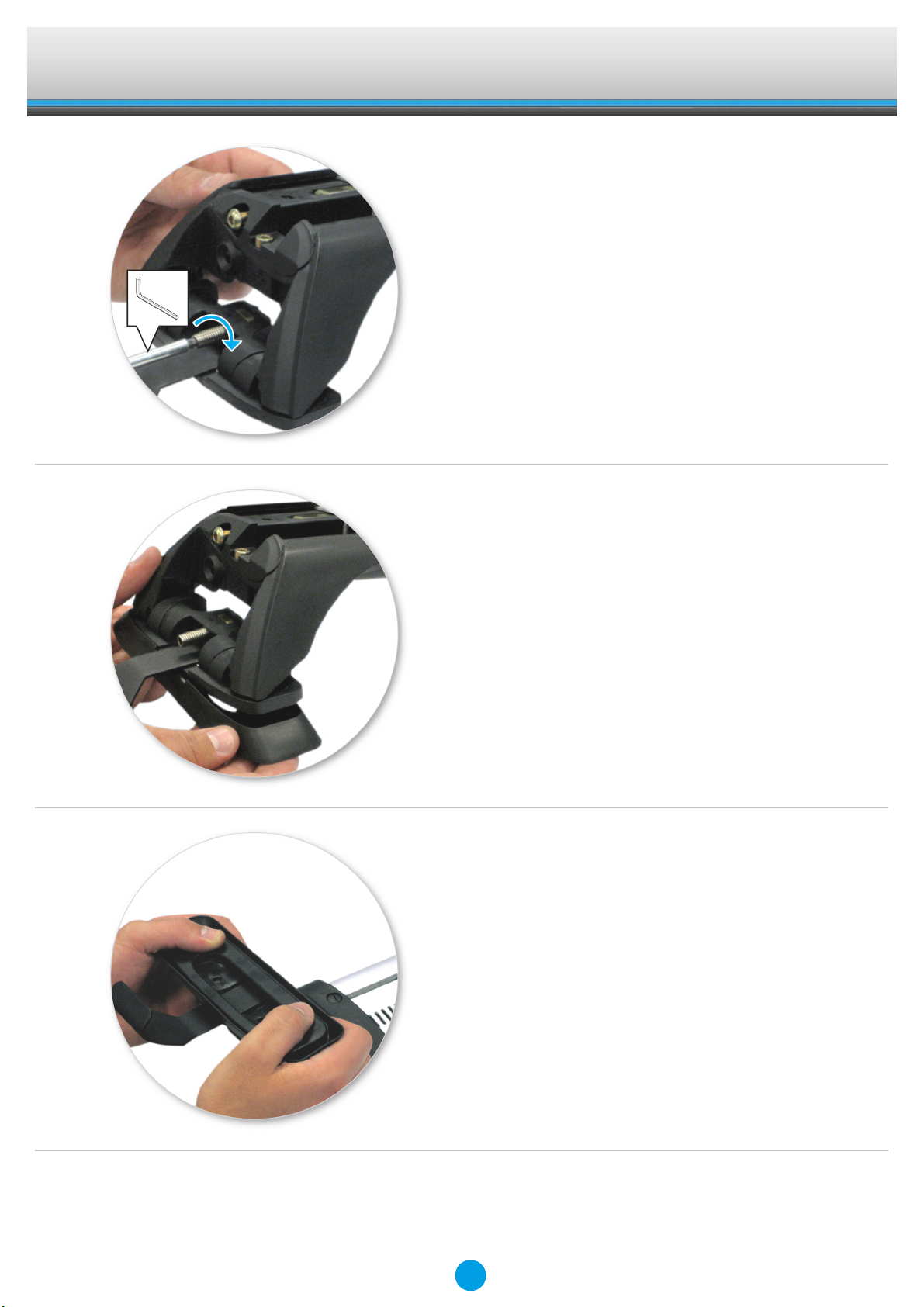

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K455W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A= Clamp

B= Roof line

C= Body rubber

D= Protective strip

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K455W

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K455W

Fitment

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps over rubber door frame mouldings.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K455W

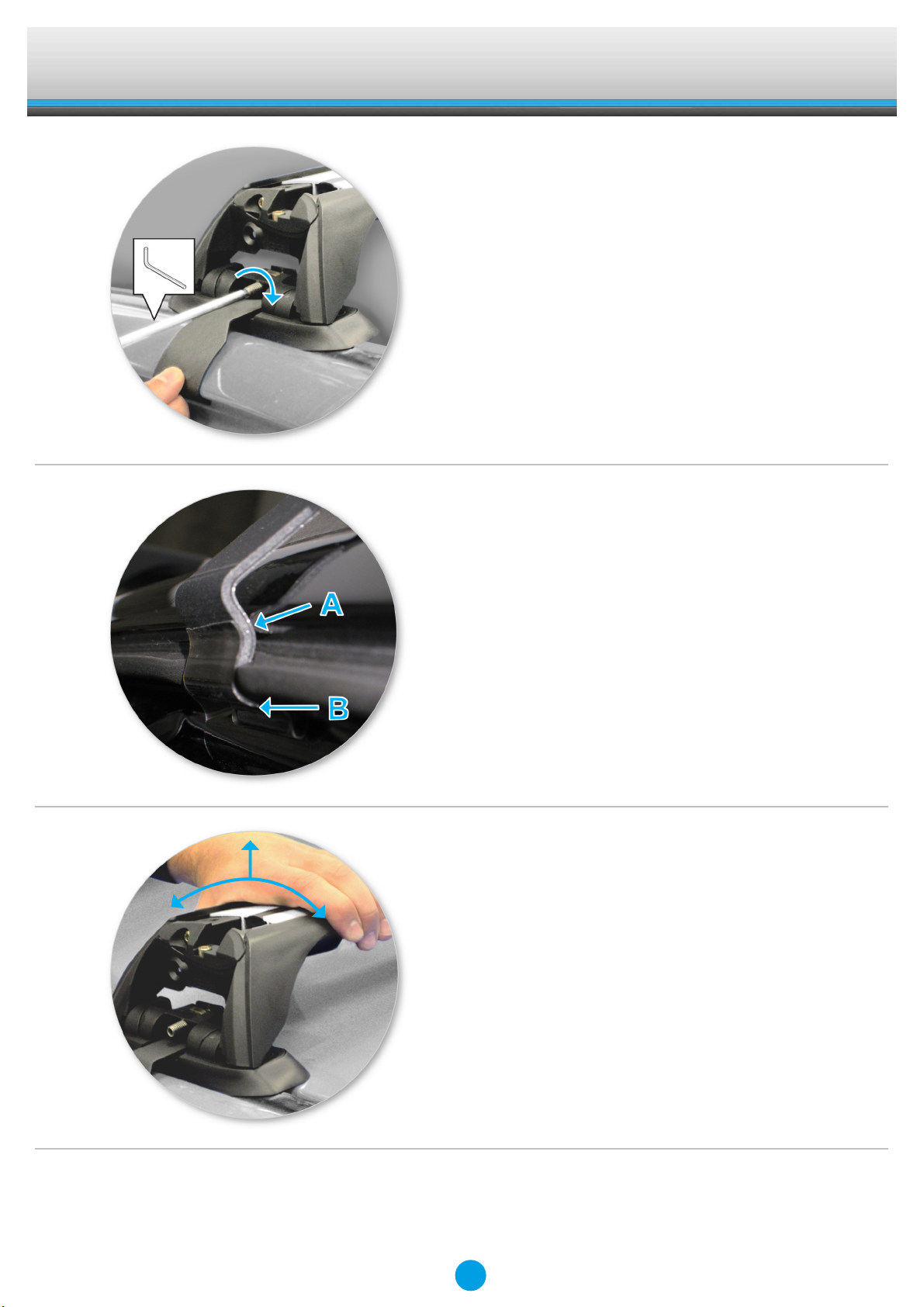

●Tighten locking screw on both legs evenly.

●Final clamp position when tight.

●Just touching point A.

●Pressure applied point B

●Check crossbar is securely attached to the

vehicle.

Fitting Kit EN

K455W

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
