Whispbar K525W Bedienungsanleitung

K525W

Fitting Kit

EN Fitting Instructions for Basic Carrier

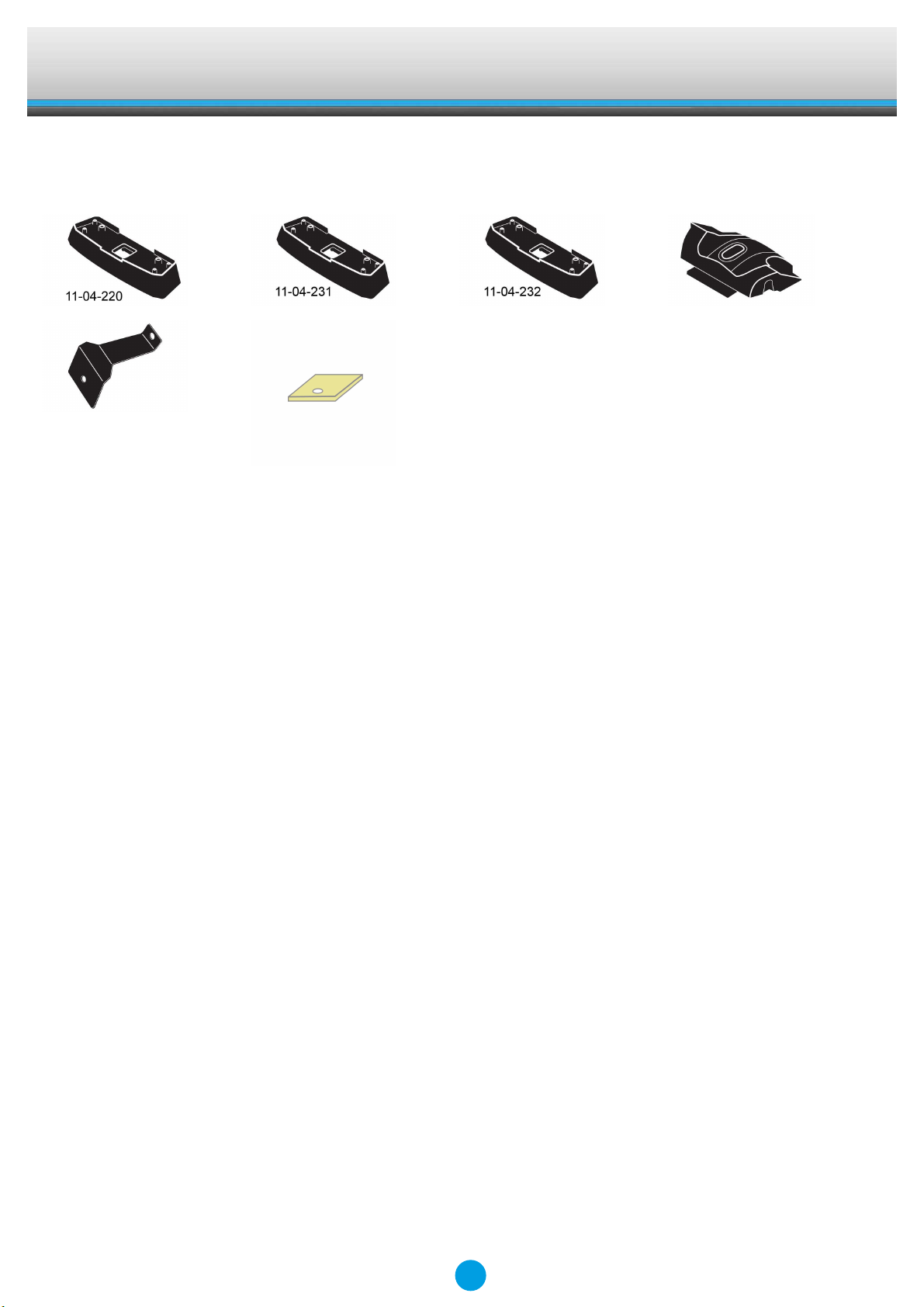

x 2 x 2 x 2 x 2

x 2 x 2 x 1 x 1

Revision No: 4D 1

Fitting Kit K525W

x 2 x 1 x 1 x 2

x 2 x 2

Fitting Kit K525W

MAX kgs (lbs)

W/P WHD

Renault

Clio Mk3, 3dr Hatch 05-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio Mk3, 3dr Hatch 05-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio Mk3, 3dr Hatch 05-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio Mk3, 3dr Hatch 05-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio Mk3, 3dr Hatch 05-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K525W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K525W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K525W

●Apply protective strip as shown.

Trim if required.

●NOTE: FRONT CROSSBAR ONLY

●Remove locking screw.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K525W

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-220

B = 11-04-231

C = 11-04-232

Fitting Kit EN

K525W

●NOTE: FRONT CROSSBAR ONLY

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle.

Fitting Kit EN

K525W

●NOTE: FRONT CROSSBAR ONLY

●Clamps onto anchor points under rubber

door frame mouldings

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Pull back rubber seal to expose fixed points

on vehicle body.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K525W

●Place clamp over the mounting hole

●Fit a fibre washer on each capscrew and

attach clamps to the vehicle body using the

capscrews.

●Tighten locking screw on both legs evenly.

●NOTE: REAR CROSSBAR ONLY

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Store items away in a safe place.
