Whispbar K603W Bedienungsanleitung

K603W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 4 x 8 x 1 x 1

x 4 x 4 x 4 x 4

x 8 x 4

Revision No: 4C 1

Fitting Kit K603W

MAX kgs (lbs)

W/P WHD

Nissan

Navara D40 Double Cab, 4dr Truck 05-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Navara D40 Double Cab, 4dr Ute 05-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Navara D40 Double Cab, 4dr Ute Dec 05-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Navara D40 Double Cab, 4dr Ute Nov 05-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K603W

Items you will require:

●Tape measure

Pen

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

Attention:

●Attaches with permanent mount blocks

riveted to roof. Bar can be removed.

Professional installation advised.

Fitting Kit EN

K603W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type D crossbar

fitted. They also apply to type A, B and C.

●Use keys to remove covers.

Fitting Kit EN

K603W

●Remove Hex Key from right hand cover.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K603W

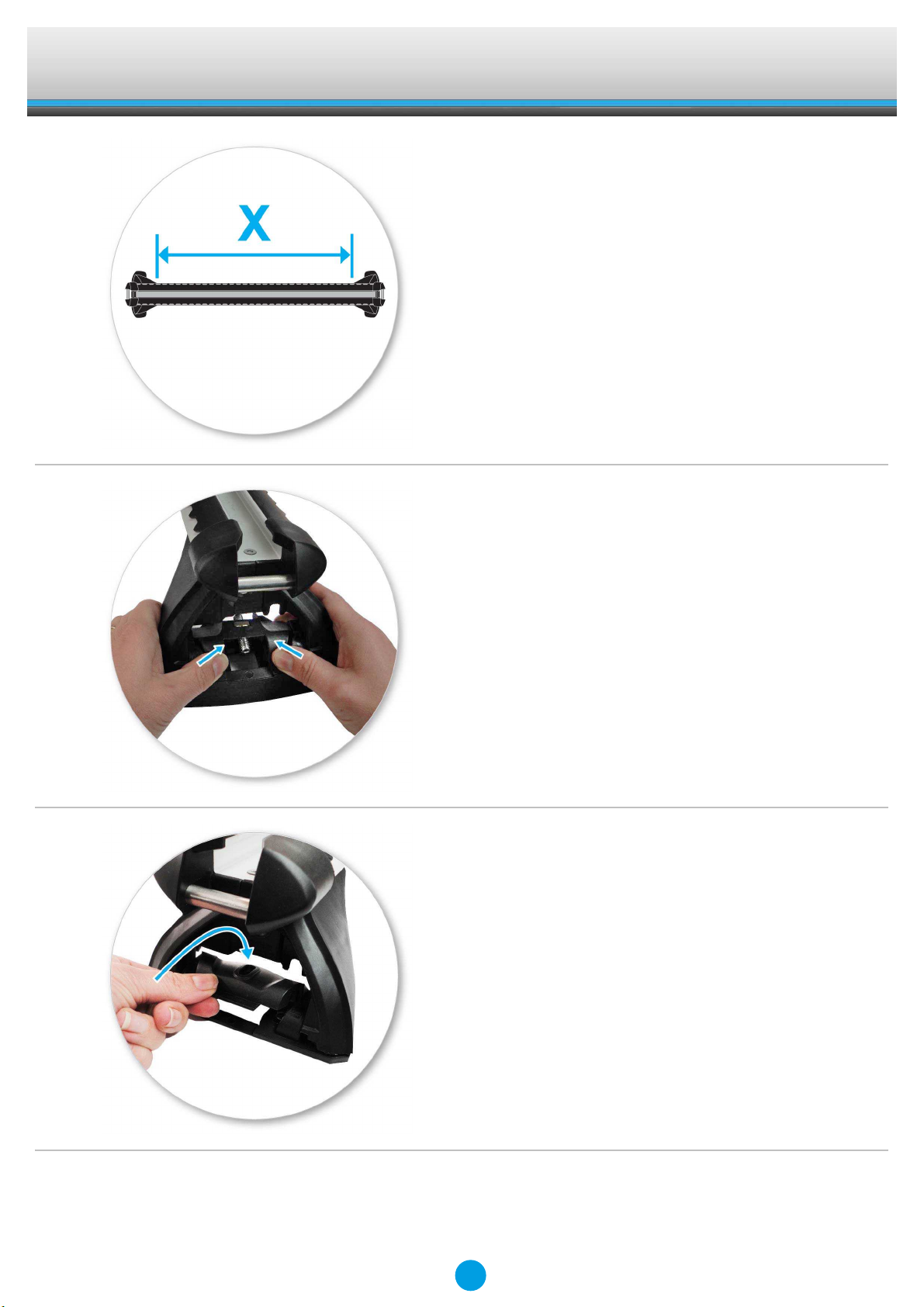

●Adjust crossbar in or out to suit vehicle.

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K603W

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●This setup is applicable for two crossbars

only.

●Recommended crossbar placement is as

shown.

Fitting Kit EN

K603W

●This setup is applicable for one crossbar

only.

●Recommended single crossbar placement

is above door pillar.

●Apply masking tape to vehicle roof in all

four positions.

●Position the permanent mount block so the

inner edge of the block is on the outer edge

of the ditch channel.

Fitting Kit EN

K603W

●With the drill, lightly mark both permanent

mount hole positions while holding the

mount firmly on roof.

●CAUTION: Maximum depth 7mm.

Use 7mm drillstop over supplied 4.9mm

drill bit.

Drill two outside holes at marked positions.

●Remove masking tape.

Fitting Kit EN

K603W

●Treat holes to prevent corrosion.

●Apply neutral cure silicon sealant in and

around drilled holes.

●Install rivets through permanent mount

blocks.
