K671W

Fitting Kit

EN Fitting Instructions for Basic Carrier CAUTION: Professional

installation recommended

DMontageanleitung für Basisträgersystem ACHTUNG! Installation durch

Fachpersonal empfohlen.

ES Instrucciones de montaje para el sistema

de transporte ATENCIÓN: Se recomienda la

instalación por parte de un

profesional.

FInstructions de montage pour Basic Carrier ATTENTION : Il est

recommandé de faire appel aux

services d'un professionnel pour

cette opération.

NO Monteringsanvisning for takstativ Advarsel: Profesjonell

installasjon anbefales.

PT Instruções de Montagem para sistema de

transporte. ATENÇÃO: Aconselha-se a

instalação por profissionais.

RU Установочные Инструкции для

Поперечных Балок ВНИМАНИЕ! Рекомендуется

профессиональная установка.

Revision No: 9J 1

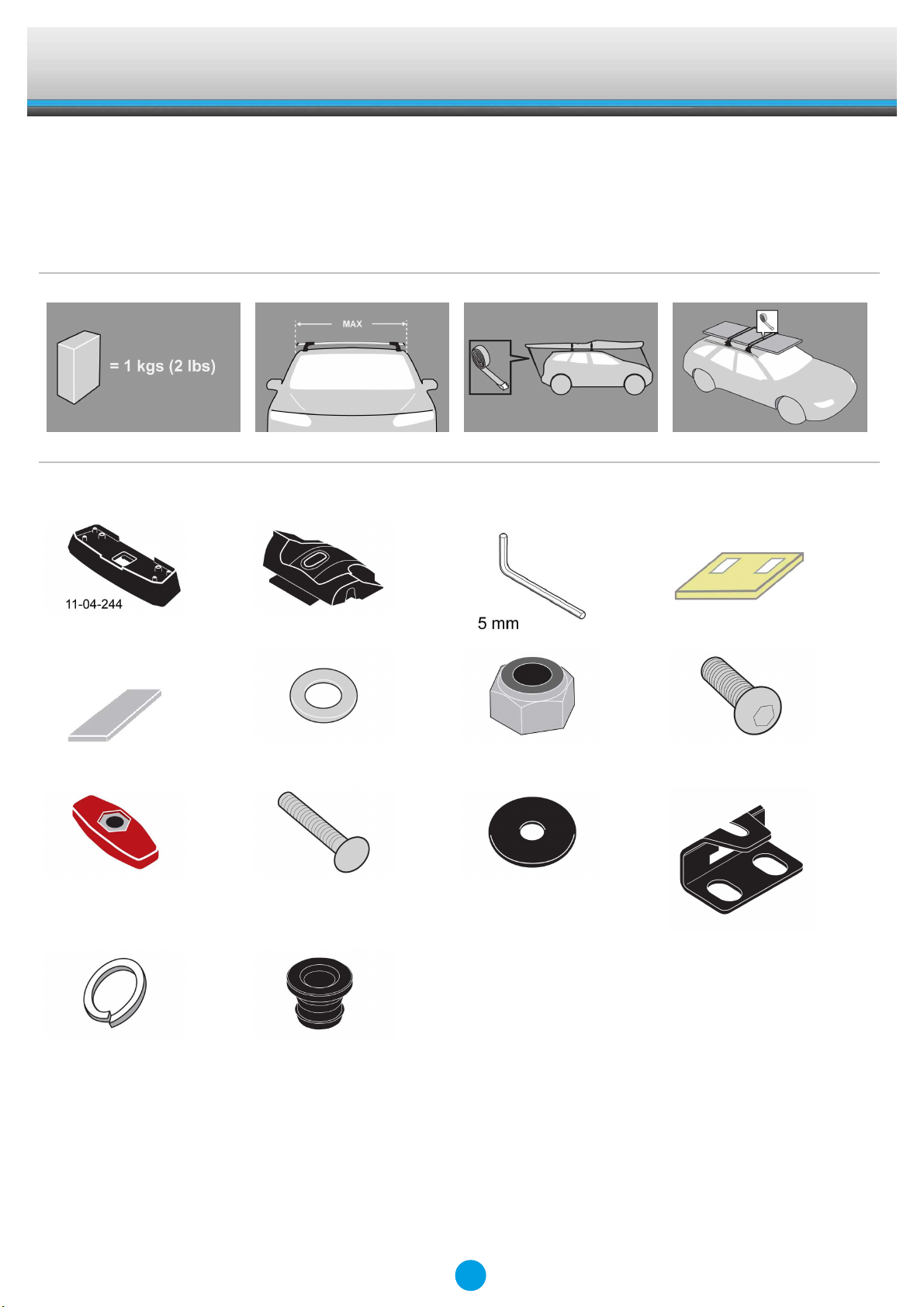

Fitting Kit K671W

x 4 x 4 x 1 x 4

x 8 x 8 x 4 x 4

x 4 x 4 x 4 x 4

x 4 x 4

2

Fitting Kit K671W

MAX kgs (lbs)

W/P WHD

Holden

Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Chevrolet

Colorado Crew Cab LT/LTZ, 4dr Ute 13-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Colorado CrewCab LT/LTZ (Mexico), 4dr Truck 13-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)

Isuzu

D-Max Eiger, 4dr Ute 12-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

D-Max LS Double Cab, 4dr Ute 12-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

D-Max LS-T Crew Cab, 4dr Ute Jul 12-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

D-Max LS-U Crew Cab, 4dr Ute Jul 12-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

D-Max LX Double Cab, 4dr Ute 13-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

D-Max Yukon, 4dr Ute 12-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

3

Fitting Kit K671W

X

A B C 1 2 3

Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ (NZ) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ (AU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

Colorado Crew Cab LT/LTZ, 4dr Ute 13-+ (EU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

Colorado CrewCab LT/LTZ (Mexico), 4dr Truck 13-+ (US) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D-Max Eiger, 4dr Ute 12-+ (EU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D-Max LS Double Cab, 4dr Ute 12-+ (NZ) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D-Max LS-T Crew Cab, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D-Max LS-U Crew Cab, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D-Max LX Double Cab, 4dr Ute 13-+ (ZA) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D-Max Yukon, 4dr Ute 12-+ (EU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

4

Fitting Kit EN

K671W

CAUTION:

●Professional installation recommended.

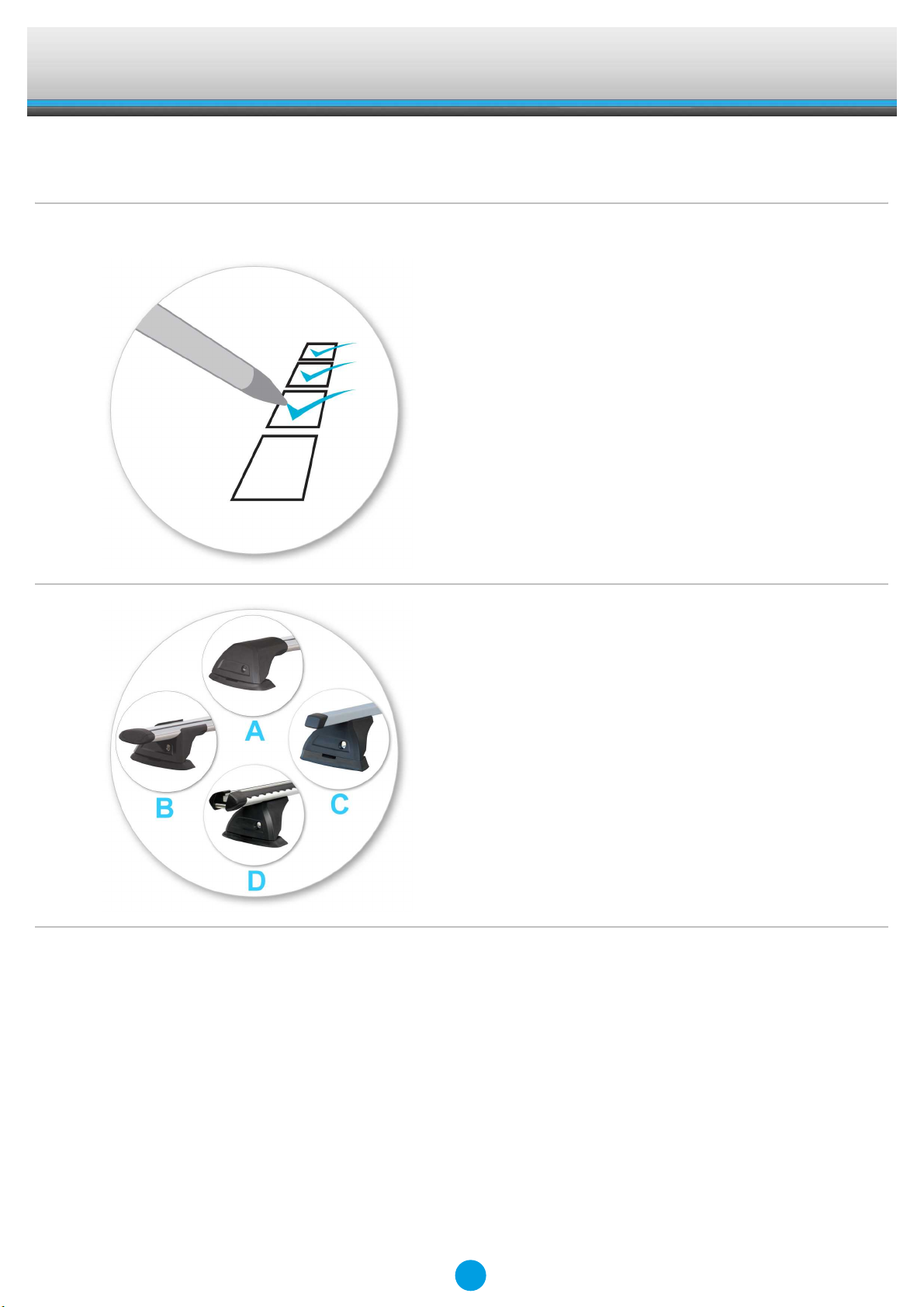

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●This kit fits type A, B, C and D.

5

Fitting Kit EN

K671W

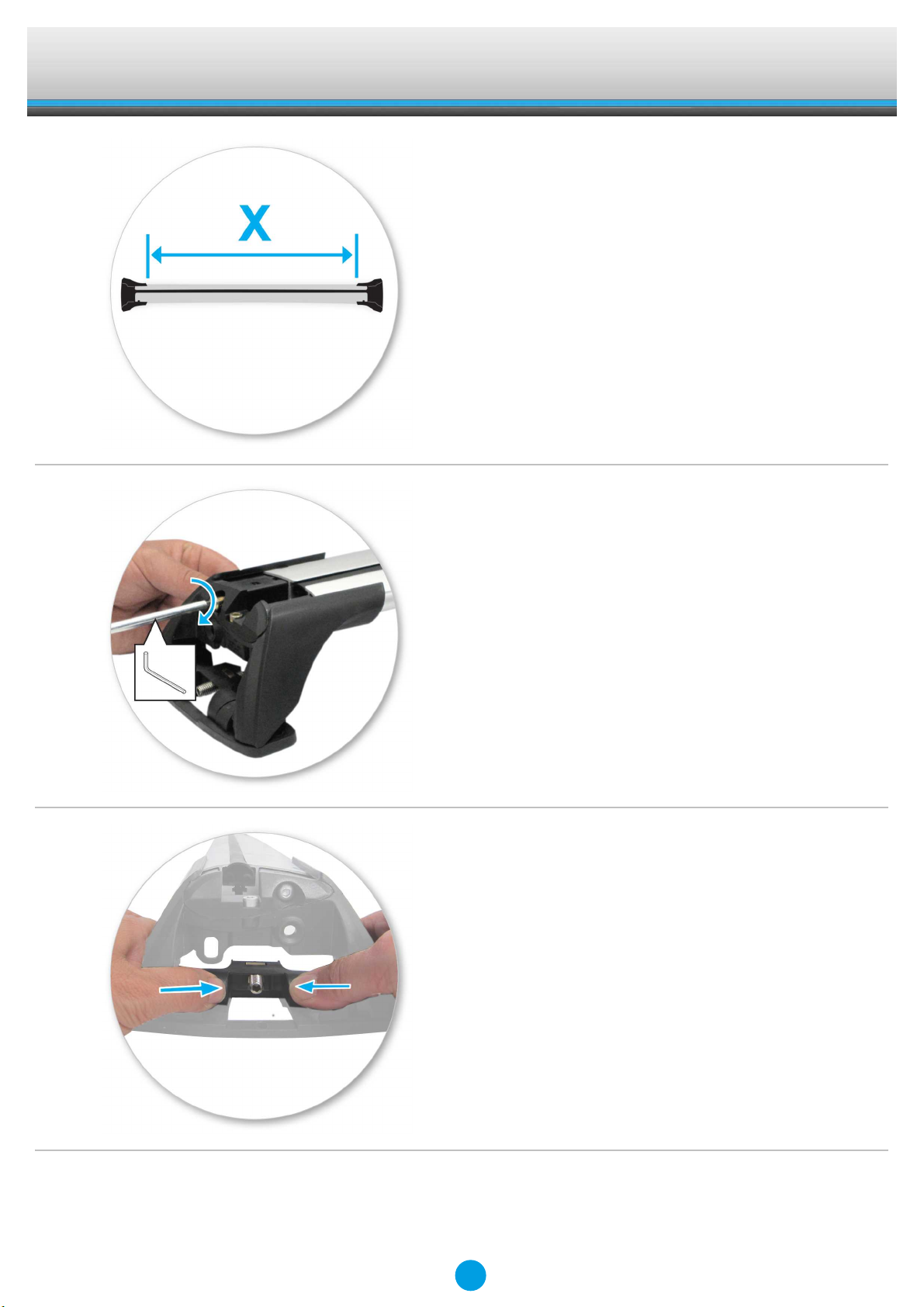

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

6

Fitting Kit EN

K671W

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

7

Fitting Kit EN

K671W

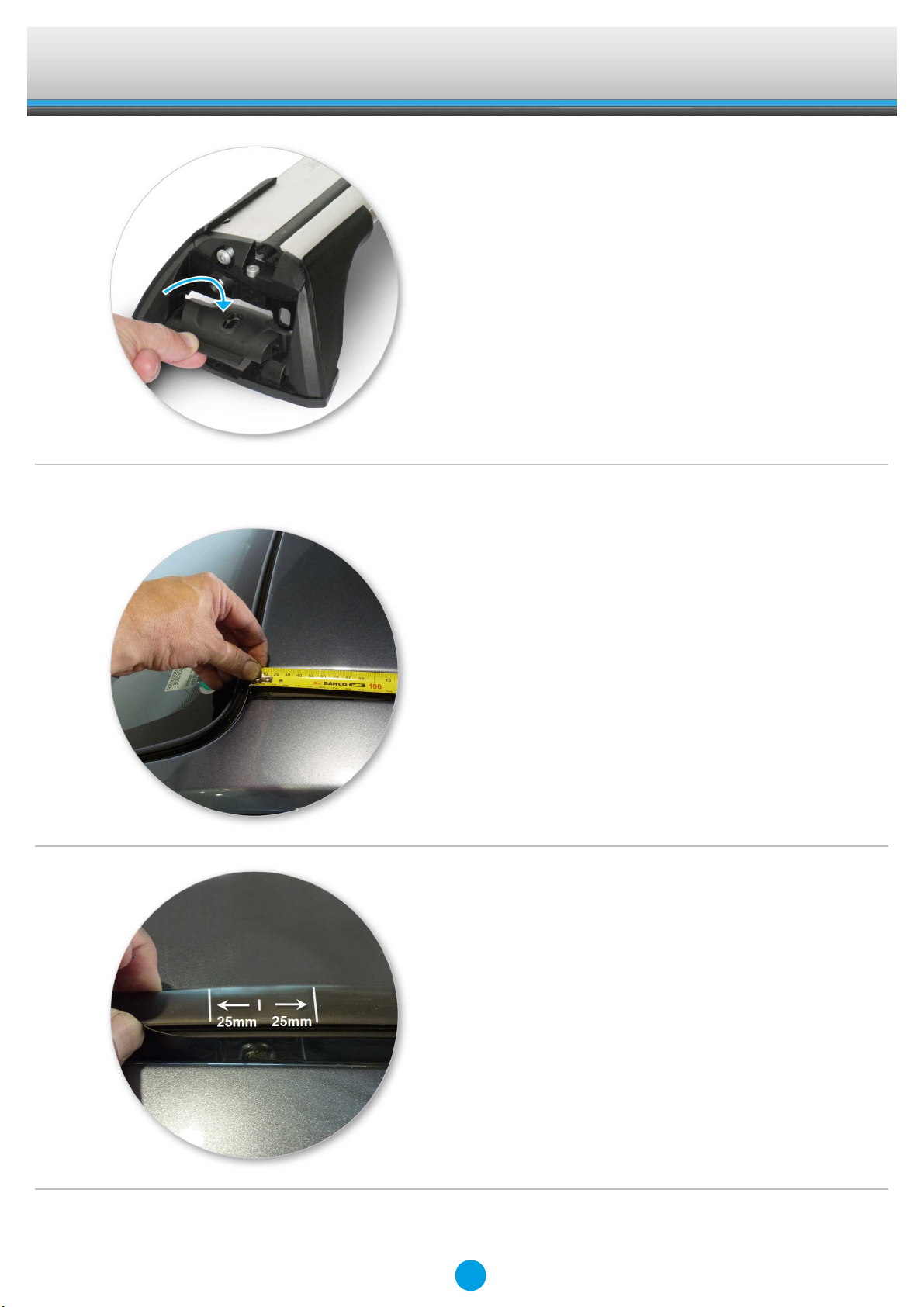

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitment

●There are 4 concealed mounting points

hidden by the vehicles rubber insert on the

roof.

●Measure from the front of the rubber insert

and make a mark at 355mm and 1245mm.

●From these 2 marks measure 25mm

forward and 25mm back and mark a line

across the rubber insert.

●Carefully lift the rubber insert by hand to

reveal the mounting points as shown, only

lift the minimum amount required to reveal

the mounting point.

●Note: Do not use sharp objects or tools to

lift the rubber moulding.

●Note: Take care when lifting the rubber

insert not to kink or bend it.

●Note: The mounting points are covered

with sealant.

8

Fitting Kit EN

K671W

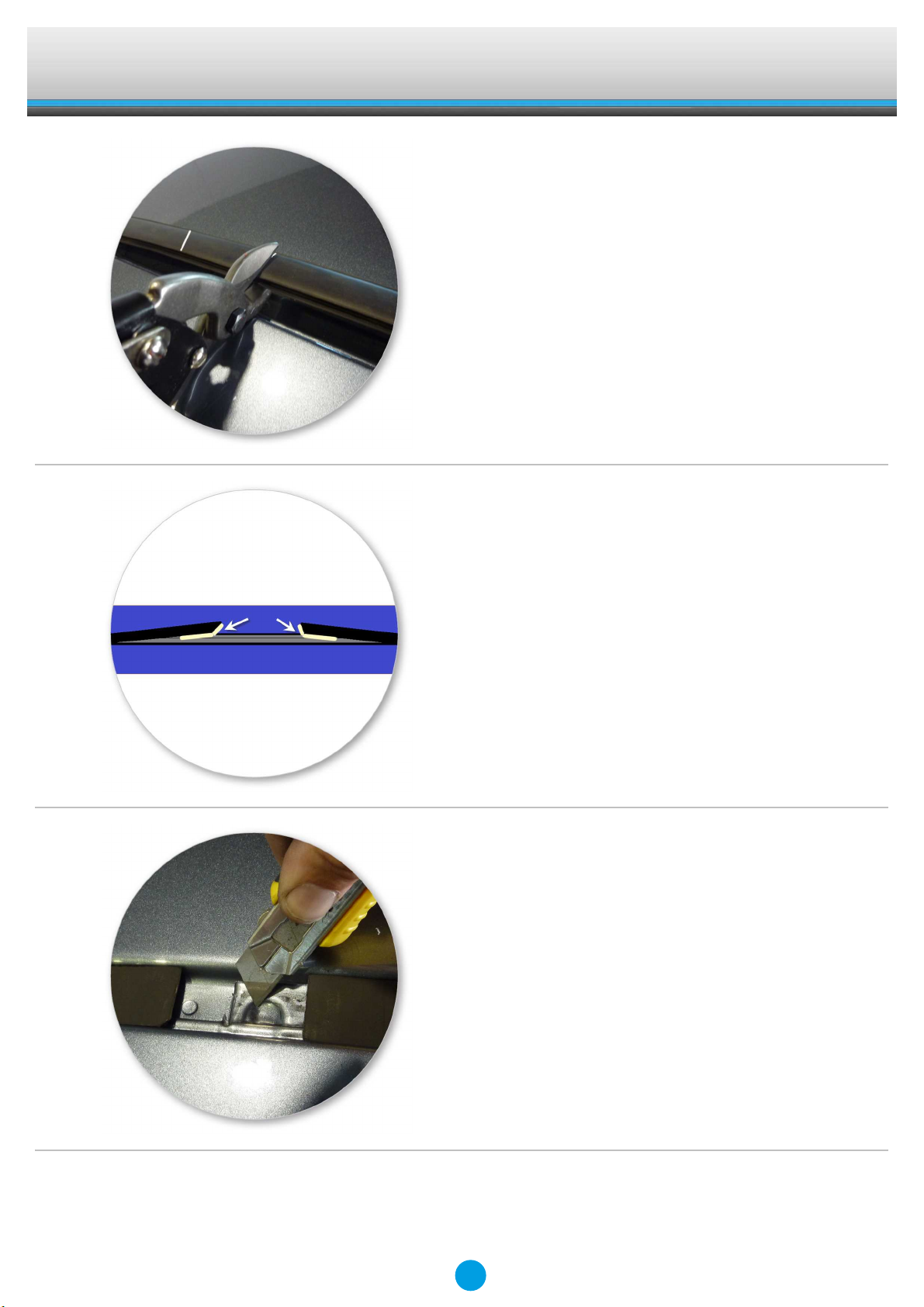

●Now cut the rubber insert at the 2 lines you

marked in the earlier instruction. Once cut

you should end up with 4 x 50mm pieces of

the rubber insert.

●Note: Be careful of sharp edges after

cutting the rubber insert.

●Remove one side of adhesive tape

backing. Apply to underside of rubber

insert as shown. Remove second backing,

then apply downward pressure onto

vehicle.

●To reveal the screw thread in the mounting

points, remove the sealant covering them

with a sharp tool.

9

Fitting Kit EN

K671W

●Remove sealant as shown.

●Apply protective strip as shown.

Trim if required.

●Assemble as shown.

●A = 8mm bolt

B = Spring washer

C = Flat washer

D = Rubber seal

E = Protective strip

●Place rubber seal over bolt thread as

shown.

●Place the clamps into position as pictured

at the 4 points, ensure the clamp is

orientated the right way in the vehicle

channel.

●Using 5mm hex key supplied with this kit,

fully tighten the M8 dome head bolt and

washer supplied to 5Nm (3.7 ft lb) hand

tight.

10
