Whispbar K440W Bedienungsanleitung
K440W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 4 x 4 x 4 x 4
x 1 x 1 x 4 x 1
Revision No: 10J 1
Fitting Kit K440W
MAX kgs (lbs)
W/P WHD
Volkswagen
Caddy Maxi, 5dr Van 08-14 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 08-14 EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 08-14 CN 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 08-Nov 15 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 08-Nov 15 AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 15-+ CN 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 15-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Maxi, 5dr Van 15-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy SWB, 4dr Van 15-+ CN 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy SWB, 4dr Van 15-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy SWB, 4dr Van Dec 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy SWB, 4dr Van Dec 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy SWB, 5dr Van 15-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy SWB, 5dr Van 15-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy SWB, 5dr Van Dec 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy SWB, 5dr Van Dec 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy Trendline, 4dr Van 15-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy Trendline, 5dr Van 10-14 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy Trendline, 5dr Van 10-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy Trendline, 5dr Van 15-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Caddy, 4dr Van 03-14 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy, 4dr Van 04-14 AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy, 4dr Van 04-14 EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy, 4dr Van 04-14 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Caddy, 4dr Van 04-14 CN 75 kgs (165 lbs) 100 kgs (220 lbs)
Renault
Kangoo Maxi, 5dr Van 08-+ AU 75 kgs (165 lbs) 80 kgs (176 lbs)
Kangoo Maxi, 5dr Van 08-+ EU 75 kgs (165 lbs) 80 kgs (176 lbs)
Kangoo Maxi, 5dr Van 08-+ ZA 75 kgs (165 lbs) 80 kgs (176 lbs)
Kangoo Maxi, 5dr Van 08-+ CN 75 kgs (165 lbs) 80 kgs (176 lbs)
Ford
Transit Connect, 5dr Van 02-14 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Transit Connect, 5dr Van 09-14 US 75 kgs (165 lbs) 75 kgs (165 lbs)
2

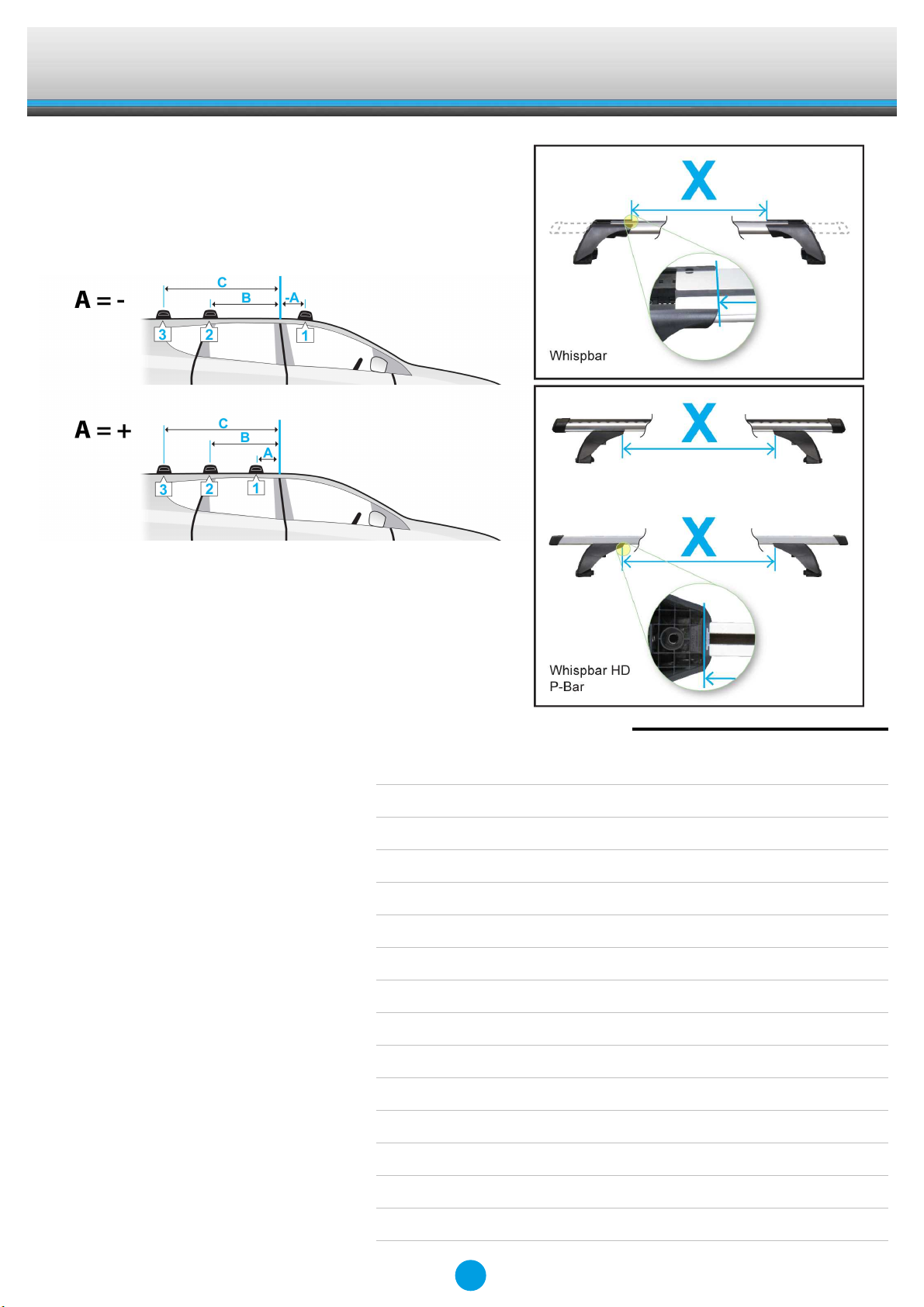

Fitting Kit K440W
X
A B C 1 2 3
Caddy Maxi, 5dr Van 08-14 (ZA) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 08-14 (EU) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 08-14 (CN) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 08-Nov 15 (NZ) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 08-Nov 15 (AU) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 15-+ (AU) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 15-+ (CN) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 15-+ (EU) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 15-+ (NZ) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy Maxi, 5dr Van 15-+ (ZA) - 100mm 860mm 818mm 790mm 782mm
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"
Caddy SWB, 4dr Van 15-+ (CN) 70mm 835mm 1450mm 818mm 790mm 770mm
2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 31 1/8ths" 30 5/16ths"
Caddy SWB, 4dr Van 15-+ (EU) 70mm 835mm 1450mm 818mm 790mm 770mm
2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 31 1/8ths" 30 5/16ths"
Caddy SWB, 4dr Van Dec 15-+ (AU) 70mm 835mm 1450mm 818mm 790mm 770mm
2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 31 1/8ths" 30 5/16ths"
Caddy SWB, 4dr Van Dec 15-+ (NZ) 70mm 835mm 1450mm 818mm 790mm 770mm
2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 31 1/8ths" 30 5/16ths"
Caddy SWB, 5dr Van 15-+ (EU) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
3
Fitting Kit K440W
Caddy SWB, 5dr Van 15-+ (CN) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
Caddy SWB, 5dr Van Dec 15-+ (AU) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
Caddy SWB, 5dr Van Dec 15-+ (NZ) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
Caddy Trendline, 4dr Van 15-+ (ZA) 70mm 835mm 1450mm 818mm 790mm 770mm
2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 31 1/8ths" 30 5/16ths"
Caddy Trendline, 5dr Van 10-14 (AU) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
Caddy Trendline, 5dr Van 10-14 (ZA) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
Caddy Trendline, 5dr Van 15-+ (ZA) 100mm 860mm - 818mm 790mm -
3 15/16ths" 33 7/8ths" - 32 3/16ths" 31 1/8ths" -
Caddy, 4dr Van 03-14 (ZA) - 100mm 860mm 818mm 790mm -
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -
Caddy, 4dr Van 04-14 (AU) - 100mm 860mm 818mm 790mm -
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -
Caddy, 4dr Van 04-14 (EU) - 100mm 860mm 818mm 790mm -
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -
Caddy, 4dr Van 04-14 (NZ) - 100mm 860mm 818mm 790mm -
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -
Caddy, 4dr Van 04-14 (CN) - 100mm 860mm 818mm 790mm -
- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -
Kangoo Maxi, 5dr Van 08-+ (AU) - 1440mm - 905mm 905mm -
- 56 11/16ths" - 35 5/8ths" 35 5/8ths" -
Kangoo Maxi, 5dr Van 08-+ (EU) - 1440mm - 905mm 905mm -
- 56 11/16ths" - 35 5/8ths" 35 5/8ths" -
Kangoo Maxi, 5dr Van 08-+ (ZA) - 1440mm - 905mm 905mm -
- 56 11/16ths" - 35 5/8ths" 35 5/8ths" -
Kangoo Maxi, 5dr Van 08-+ (CN) - 1440mm - 905mm 905mm -
- 56 11/16ths" - 35 5/8ths" 35 5/8ths" -
Transit Connect, 5dr Van 02-14 (EU) - 990mm - 794mm 794mm -
- 39" - 31 1/4ths" 31 1/4ths" -
Transit Connect, 5dr Van 09-14 (US) - 990mm - 794mm 794mm -
- 39" - 31 1/4ths" 31 1/4ths" -
4
Fitting Kit EN
K440W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
5
Fitting Kit EN
K440W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
6
Fitting Kit EN
K440W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
7
Fitting Kit EN
K440W
●Fit rubber pad (supplied with crossbar) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
●Repeat for all legs.
Fitment
●Open or remove fixed-point covers.
●NOTE: Ford and Volkswagen only
8
Fitting Kit EN
K440W
●NOTE: Renault only
●Select grubscrews and screw into the
vehicle's fixed points.
●For additional weather protection, apply
silicon sealant in and around fixed point
hole and grubscrew (sealant not supplied).
●Place M8 washer over grubscrew.
●Fit nut to grubscrew.
●Repeat for all four positions.
●Place crossbar foot over grubscrews.
9
Fitting Kit EN
K440W

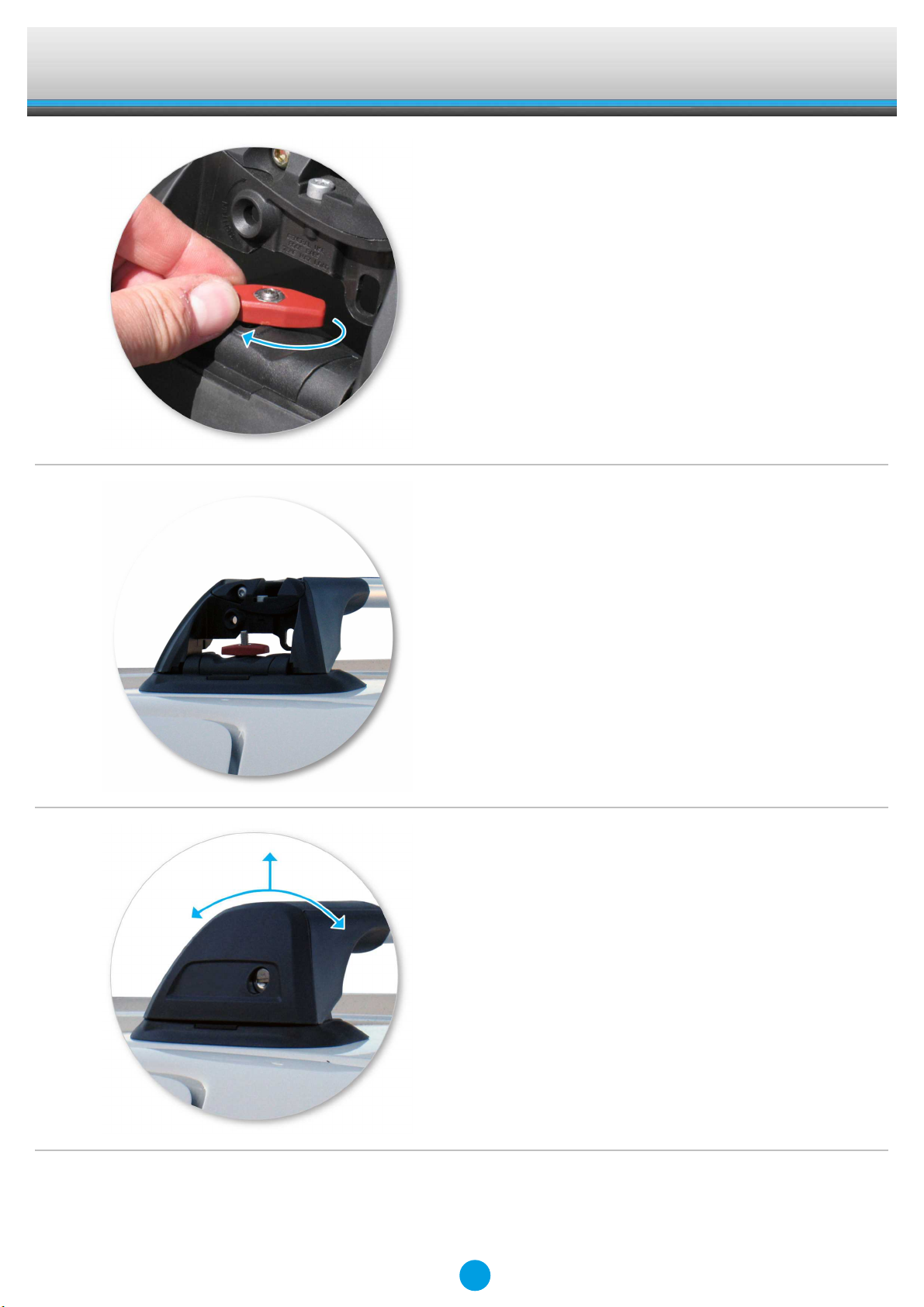

●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all four positions.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
