Whispbar K676W Bedienungsanleitung
K676W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 2 x 2
x 4 x 4 x 8 x 4
x 4 x 4 x 4 x 1
Revision No: 3C 1
Fitting Kit K676W
MAX kgs (lbs)
W/P WHD
Honda
CR-V N/Sport N, 5dr SUV 12-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V SR/EX, 5dr SUV 12-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V SR/EX, 5dr SUV 12-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 12-15 US 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 12-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 12-15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 15-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 15-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 15-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V, 5dr SUV 15-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2

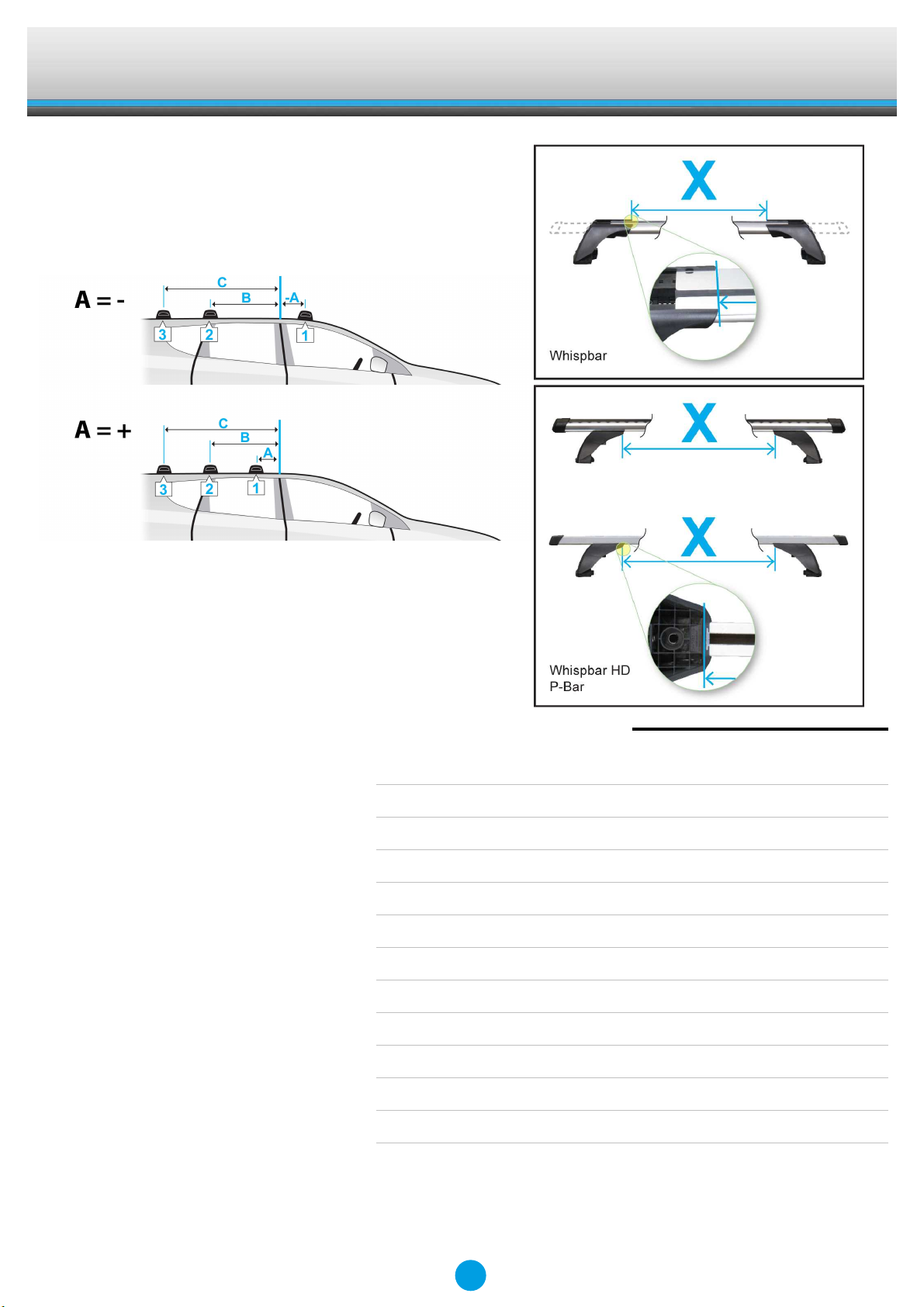

Fitting Kit K676W
X
A B C 1 2 3
CR-V N/Sport N, 5dr SUV 12-15 (NZ) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V SR/EX, 5dr SUV 12-15 (EU) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V SR/EX, 5dr SUV 12-15 (CN) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 12-15 (US) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 12-15 (AU) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 12-15 (ZA) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 15-+ (AU) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 15-+ (CN) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 15-+ (EU) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 15-+ (NZ) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 15-+ (ZA) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
CR-V, 5dr SUV 15-+ (US) 80mm 885mm - 885mm 825mm -
3 1/8ths" 34 13/16ths" - 34 13/16ths" 32 1/2ths" -
3
Fitting Kit EN
K676W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K676W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Clamps onto flush roof rail.
5
Fitting Kit EN
K676W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Remove both pins from each leg. Use
tapered end of spanner located inside left
hand cover to assist.
6
Fitting Kit EN
K676W

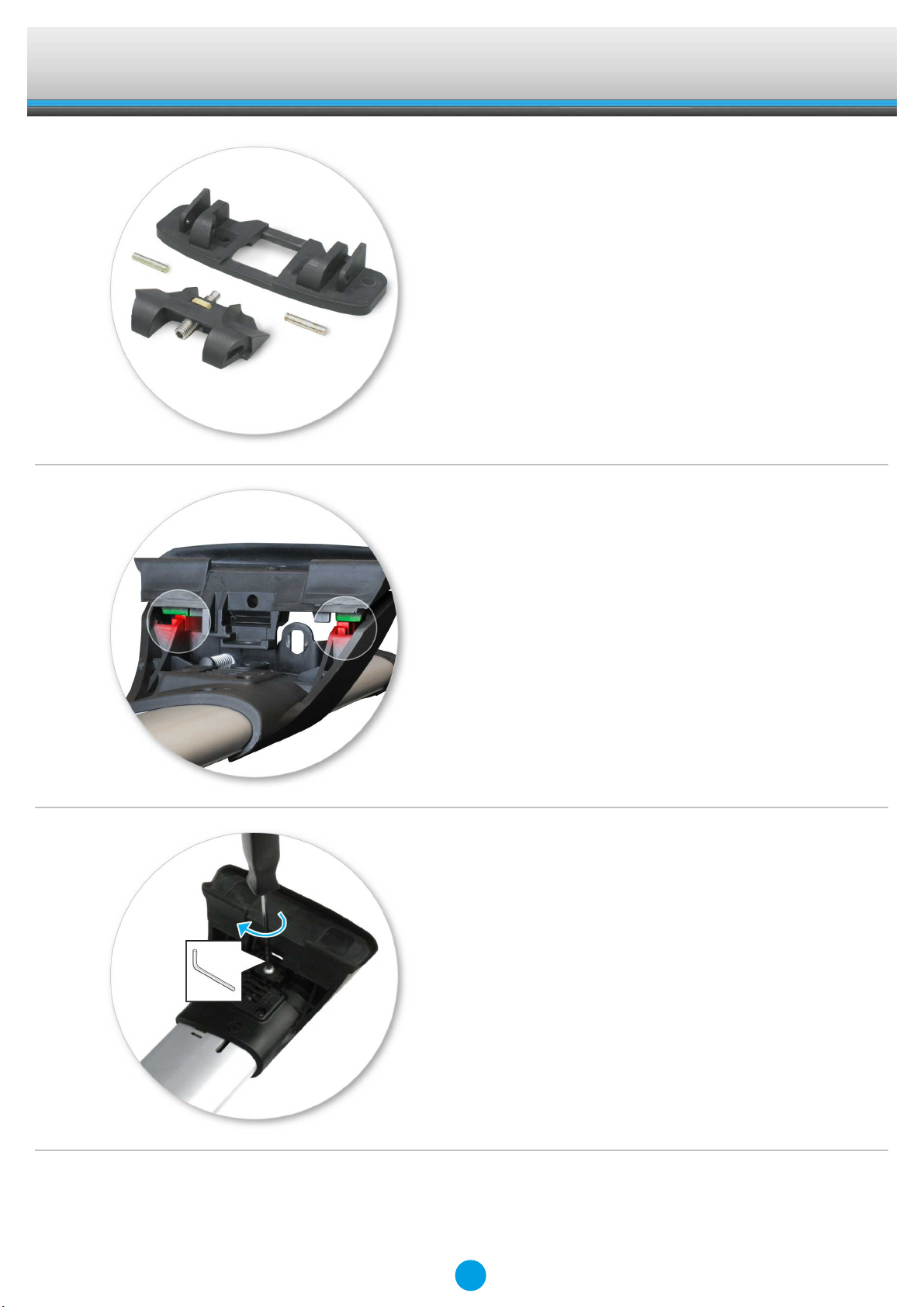

●Detach foot from leg. Store loose parts in a
safe place.
●Repeat for all legs.
●Select four feet assemblies and match the
left and right assemblies to the left and
right roof rack legs.
●Assemble foot from kit into leg by pressing
it down.
●Ensure foot interlocks with leg.
●Using short capscrew and washer, secure
assembly onto leg (use Hex Screwdriver
supplied with crossbar to assist)
●Do not over tighten.
●Repeat for all legs.
7
Fitting Kit EN
K676W
●Use two M5 x 12 mm self tapping screws to
secure the assembly onto the leg.
●Do not over tighten.
Fitment
●Apply protective strip as shown.
Trim if required.
●Open or remove fixed-point covers.
●Place crossbar foot over fixed-point mount.
●Ensure back edge of foot sits flush with the
back edge of vehicle roof rail.
8
Fitting Kit EN
K676W
●Slide clamp through opening in leg.
●Using the Hex Key and the capscrews,
secure the clamps to the vehicle.
●Ensure spring washer is between clamp
and the head of the screw.
●Thread the coach bolt through the clamp
and the leg.
9
Fitting Kit EN
K676W

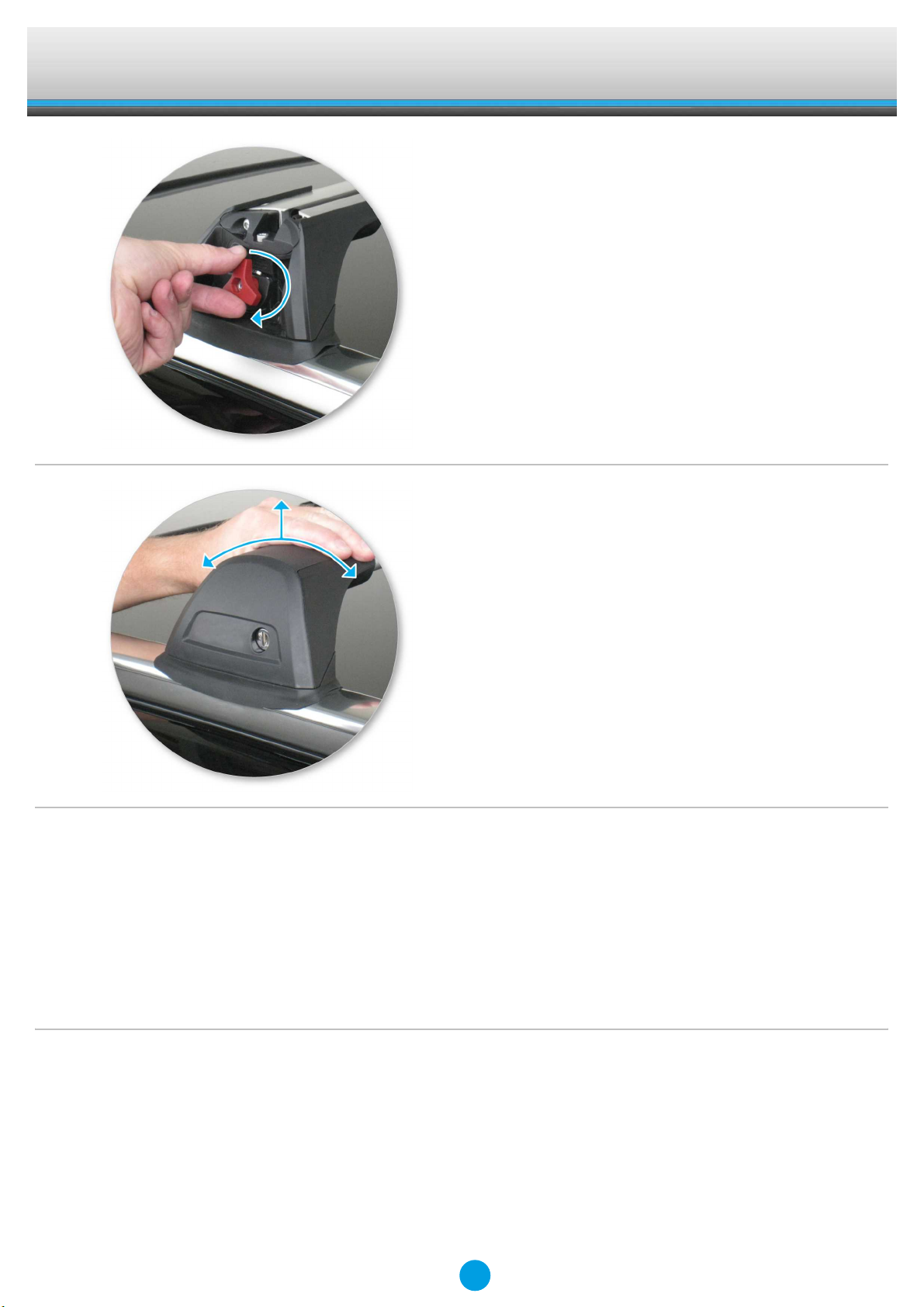

●Tighten the plastic knob.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Do not over tighten.
●Repeat for all four positions.
●Use keys to fit and lock covers
●Check crossbar is securely attached to the
vehicle.
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
