Whispbar K652W Bedienungsanleitung
K652W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 2 x 2 x 2 x 1
x 1 x 4 x 6 x 2
Revision No: 6F 1
Fitting Kit K652W
MAX kgs (lbs)
W/P WHD
Toyota
Aurion, 4dr Sedan 12-Jun 15 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Aurion, 4dr Sedan 12-Jun 15 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Aurion, 4dr Sedan 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Aurion, 4dr Sedan 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Camry, 4dr Sedan 12-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Camry, 4dr Sedan 12-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)
Camry, 4dr Sedan 12-May 15 AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Camry, 4dr Sedan Jun 15-+ AU 60 kgs (132 lbs) 60 kgs (132 lbs)
2
Fitting Kit K652W
X
A B C 1 2 3
Aurion, 4dr Sedan 12-Jun 15 (NZ) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Aurion, 4dr Sedan 12-Jun 15 (AU) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Aurion, 4dr Sedan 15-+ (AU) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Aurion, 4dr Sedan 15-+ (NZ) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Camry, 4dr Sedan 12-+ (NZ) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Camry, 4dr Sedan 12-+ (US) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Camry, 4dr Sedan 12-May 15 (AU) -300mm 370mm - 890mm 835mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 32 7/8ths" -
Camry, 4dr Sedan Jun 15-+ (AU) -300mm 370mm - 890mm 845mm -
-11 -13/16ths" 14 9/16ths" - 35 1/16ths" 33 1/4ths" -
3
Fitting Kit EN
K652W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K652W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K652W

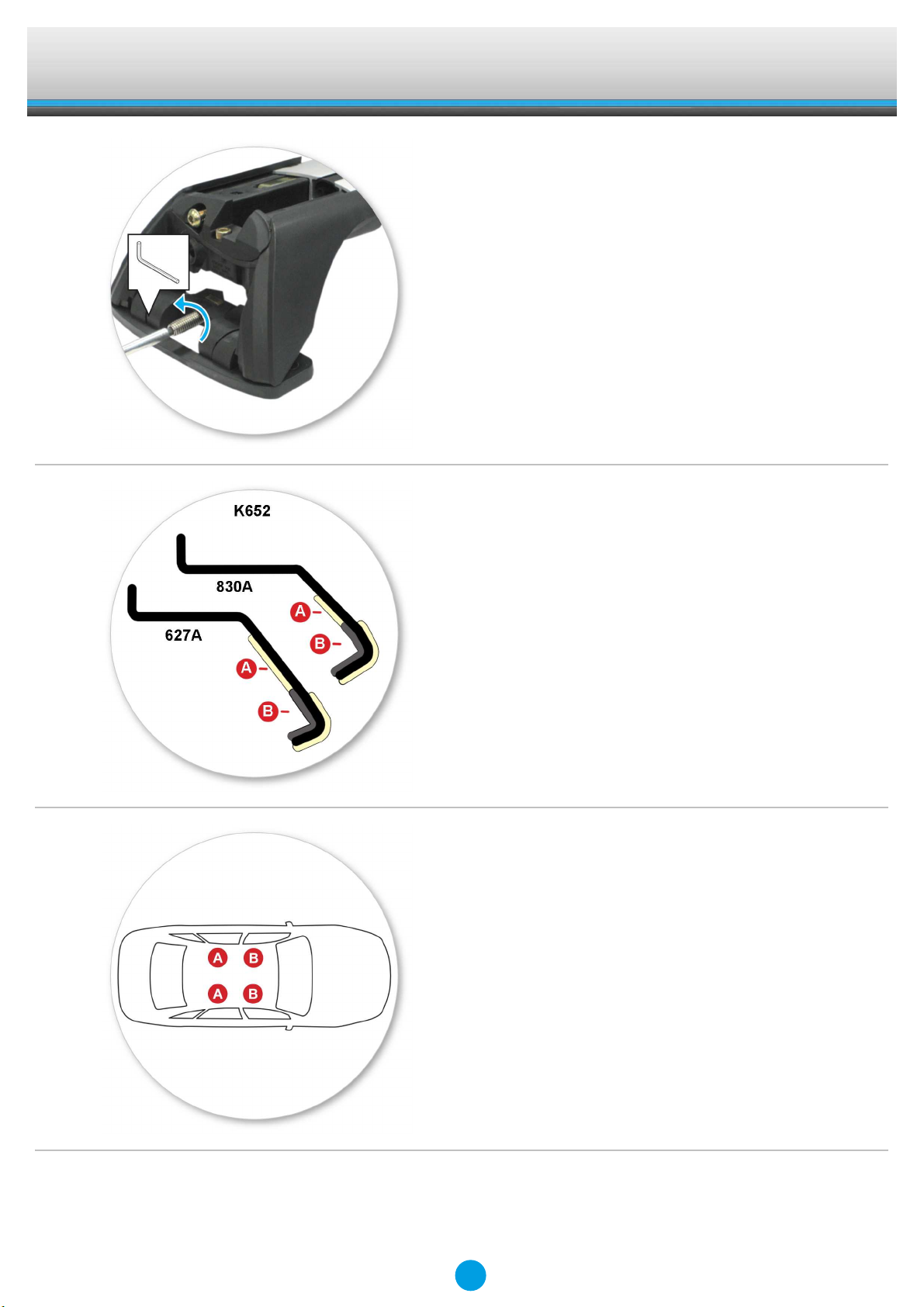

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 627A
B = 830A
6
Fitting Kit EN
K652W
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
7
Fitting Kit EN
K652W
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-243
B = 11-04-254
C = 11-04-255
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
8
Fitting Kit EN
K652W
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 2.5 Nm (1.8 ft lb)
hand tight.
9
Fitting Kit EN
K652W
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
