K698W

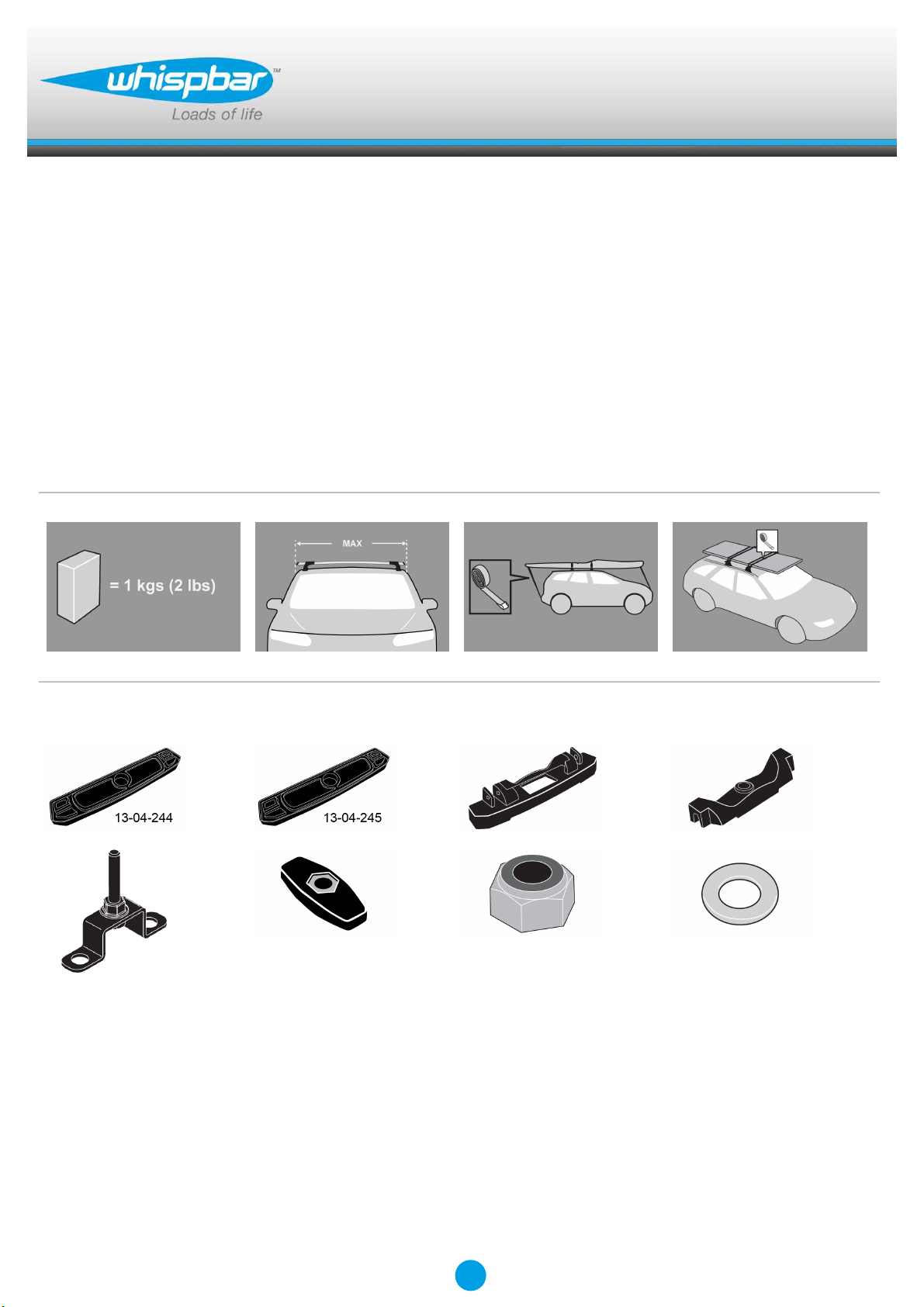

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 4

x 4 x 4 x 8 x 8

Revision No: 3B 1

Fitting Kit K698W

MAX kgs (lbs)

W/P WHD

Hyundai

i30 Tourer, 5dr Wagon 13-17 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

i30, 5dr Estate 13-17 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

i30, 5dr Wagon 13-17 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K698W

A B C 1 2 3

i30 Tourer, 5dr Wagon 13-17 (AU) -180mm 620mm - 862mm 808mm -

-7 -1/16ths" 24 7/16ths" - 33 15/16ths" 31 13/16ths" -

i30, 5dr Estate 13-17 (EU) -180mm 620mm - 862mm 808mm -

-7 -1/16ths" 24 7/16ths" - 33 15/16ths" 31 13/16ths" -

i30, 5dr Wagon 13-17 (NZ) -180mm 620mm - 862mm 808mm -

-7 -1/16ths" 24 7/16ths" - 33 15/16ths" 31 13/16ths" -

Fitting Kit EN

K698W

Items you will require:

●12mm Socket

13mm Socket

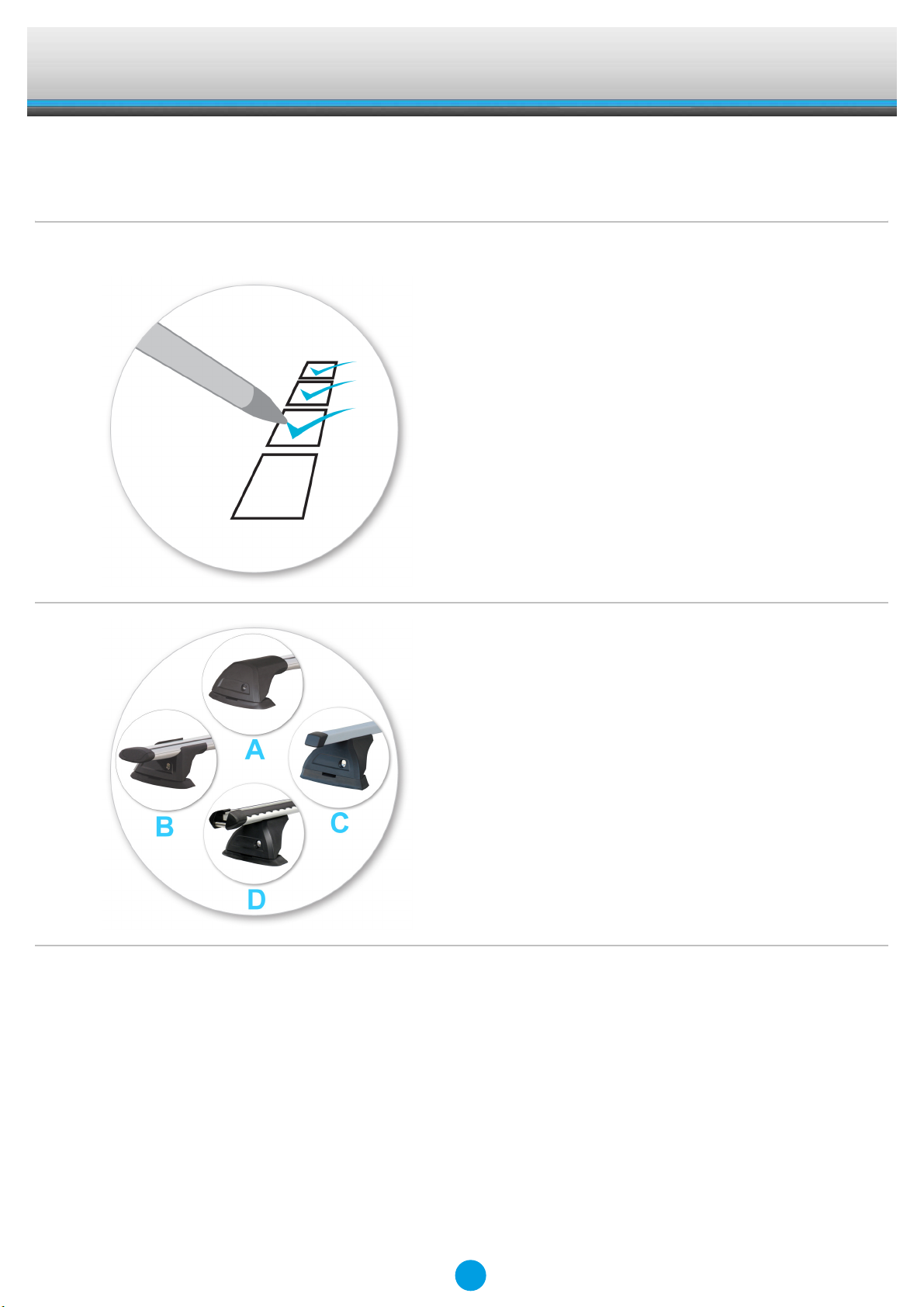

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Fitting Kit EN

K698W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K698W

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K698W

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Assemble foot from kit into leg.

Fitting Kit EN

K698W

●Insert pins through foot into leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Refer to the top side of the pad for the part

number.

Fitting Kit EN

K698W

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 13-04-244A

B = 13-04-245A

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitment

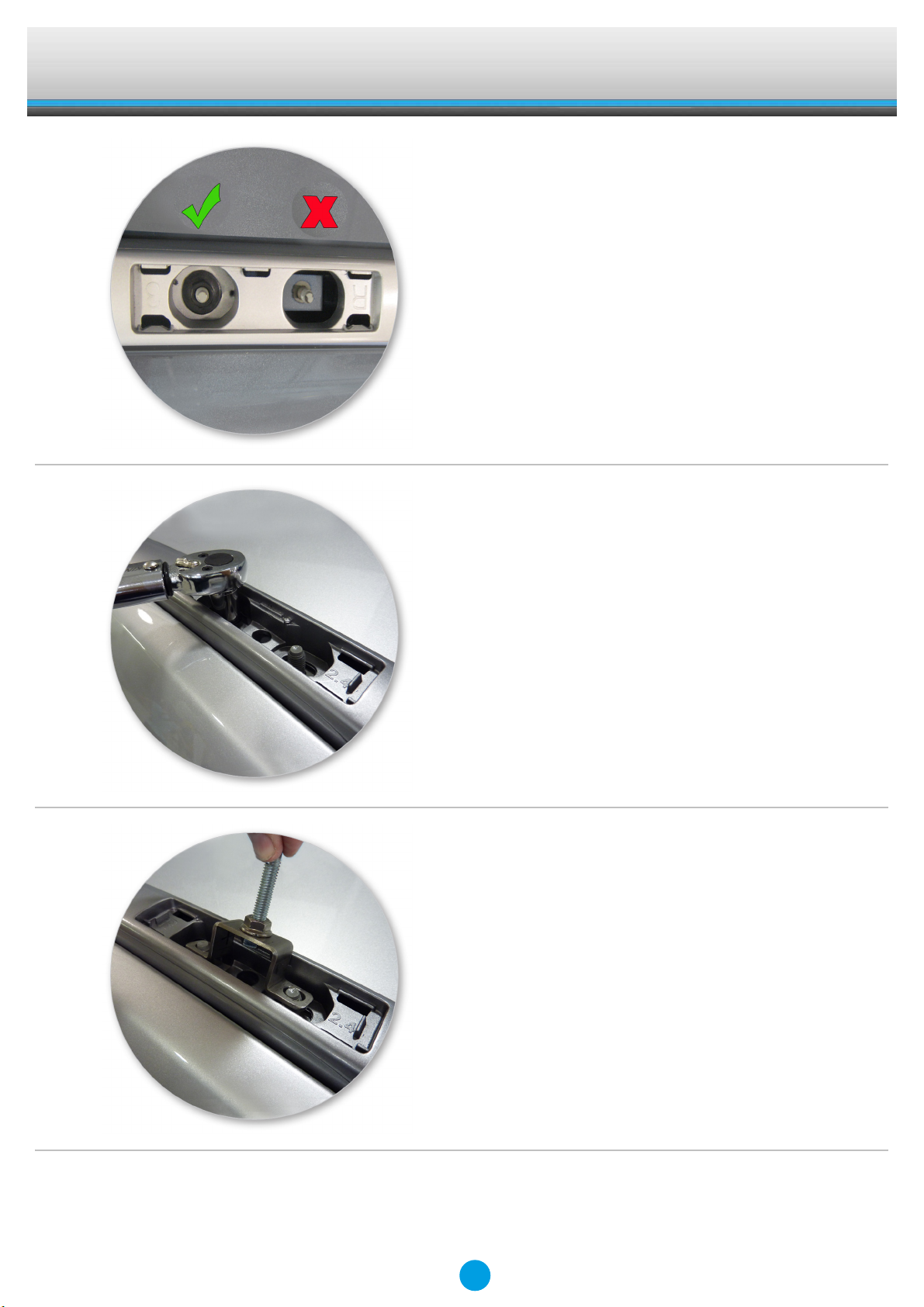

●Open or remove fixed-point covers.

Fitting Kit EN

K698W

●Locate stud with the nut attached.

●Using a 12mm socket, remove existing nut.

●Install bracket ensuring the short leg sits

over the existing nut position.
