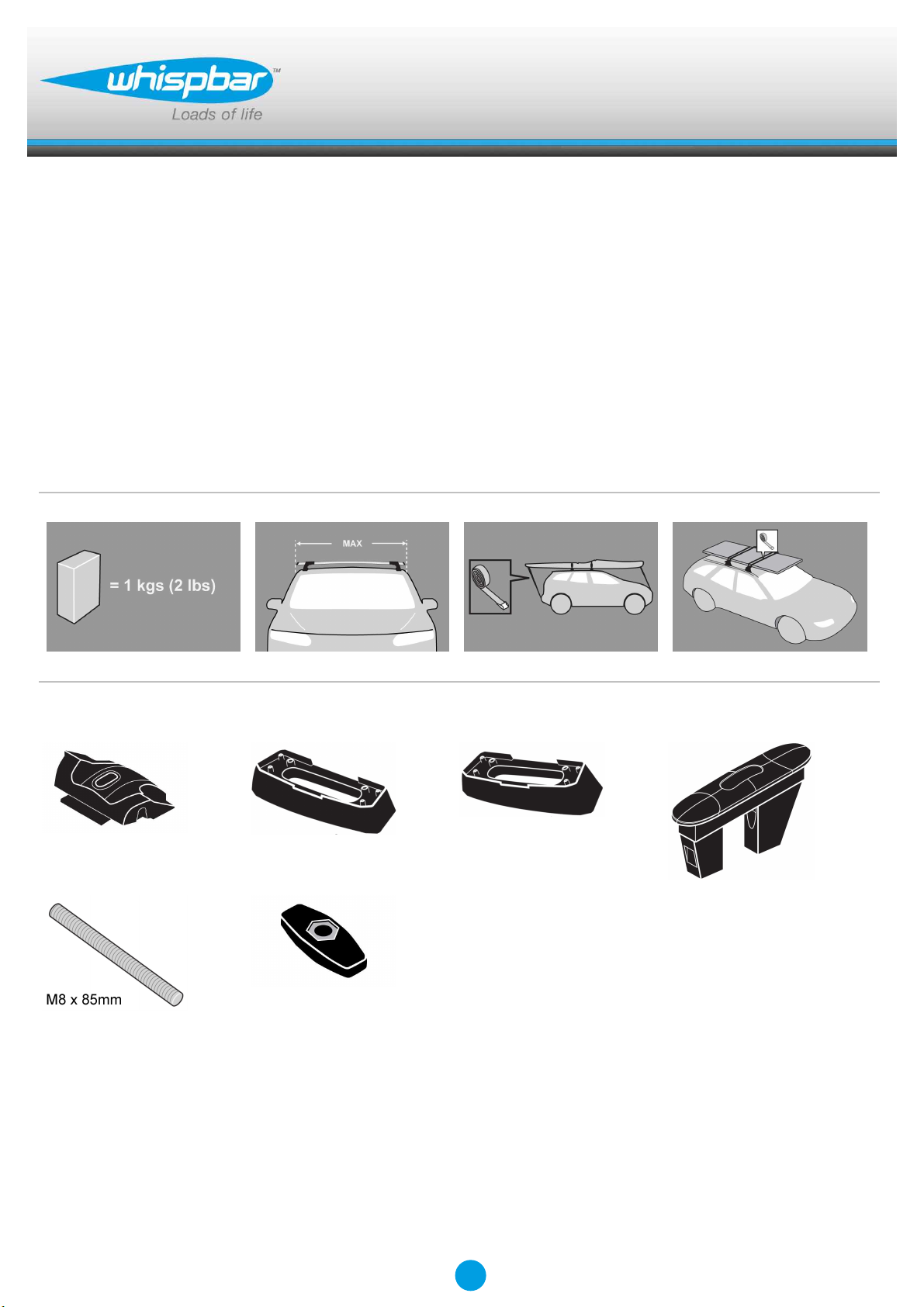

K846W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 2 x 4

x 4 x 4

Revision No: 3C 1

Fitting Kit K846W

MAX kgs (lbs)

W/P WHD

Mercedes

C-Class Glass Roof, 2dr Coupe 12-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

C-Class Glass Roof, 2dr Coupe 12-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

C-Class Glass Roof, 2dr Coupe 12-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

C-Class Glass Roof, 2dr Coupe 12-15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

C-Class Glass Roof, 2dr Coupe 12-15 US 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class Glass Roof, 2dr Coupe 09-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class Glass Roof, 2dr Coupe 09-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class Glass Roof, 2dr Coupe 09-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class Glass Roof, 2dr Coupe 09-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class Glass Roof, 2dr Coupe 09-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K846W

X

A B C 1 2 3

C-Class Glass Roof, 2dr Coupe 12-15 (NZ) -430mm 325mm - 795mm 790mm -

-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -

C-Class Glass Roof, 2dr Coupe 12-15 (AU) -430mm 325mm - 795mm 790mm -

-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -

C-Class Glass Roof, 2dr Coupe 12-15 (EU) -430mm 325mm - 795mm 790mm -

-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -

C-Class Glass Roof, 2dr Coupe 12-15 (ZA) -430mm 325mm - 795mm 790mm -

-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -

C-Class Glass Roof, 2dr Coupe 12-15 (US) -430mm 325mm - 795mm 790mm -

-16 -15/16ths" 12 13/16ths" - 31 5/16ths" 31 1/8ths" -

E-Class Glass Roof, 2dr Coupe 09-+ (NZ) -380mm 370mm - 790mm 790mm -

-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -

E-Class Glass Roof, 2dr Coupe 09-+ (AU) -380mm 370mm - 790mm 790mm -

-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -

E-Class Glass Roof, 2dr Coupe 09-+ (EU) -380mm 370mm - 790mm 790mm -

-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -

E-Class Glass Roof, 2dr Coupe 09-+ (ZA) -380mm 370mm - 790mm 790mm -

-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -

E-Class Glass Roof, 2dr Coupe 09-+ (US) -380mm 370mm - 790mm 790mm -

-14 -15/16ths" 14 9/16ths" - 31 1/8ths" 31 1/8ths" -

3

Fitting Kit EN

K846W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●This kit fits type A, B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K846W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

5

Fitting Kit EN

K846W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K846W

Fitment

●Open or remove fixed-point covers.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

7

Fitting Kit EN

K846W

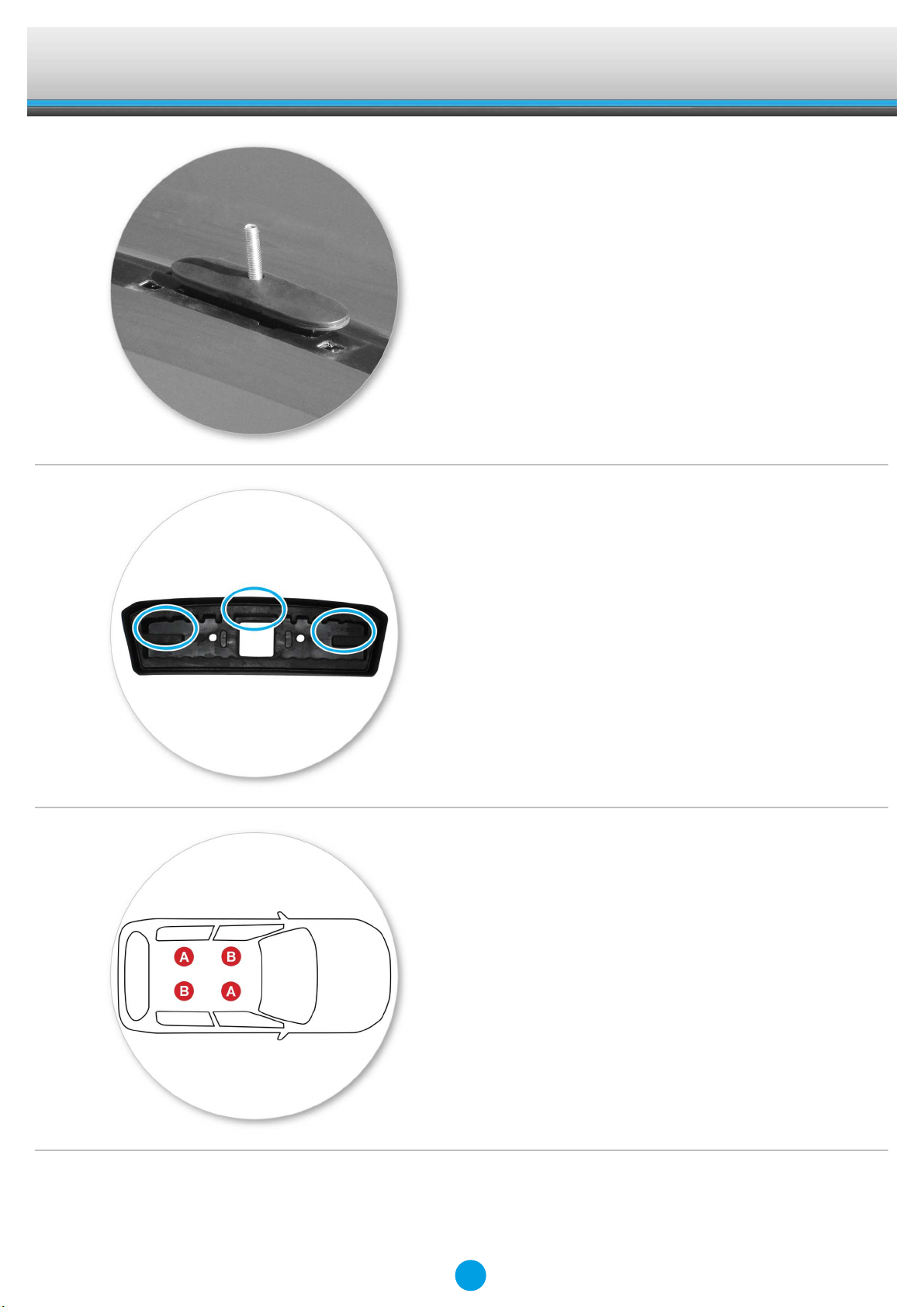

●Place load support over grubscrew as

shown.

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●It is important to put the pads in the correct

position on the vehicle.

●Pad Part Number:

A = 235 A

B = 236 A

8

Fitting Kit EN

K846W

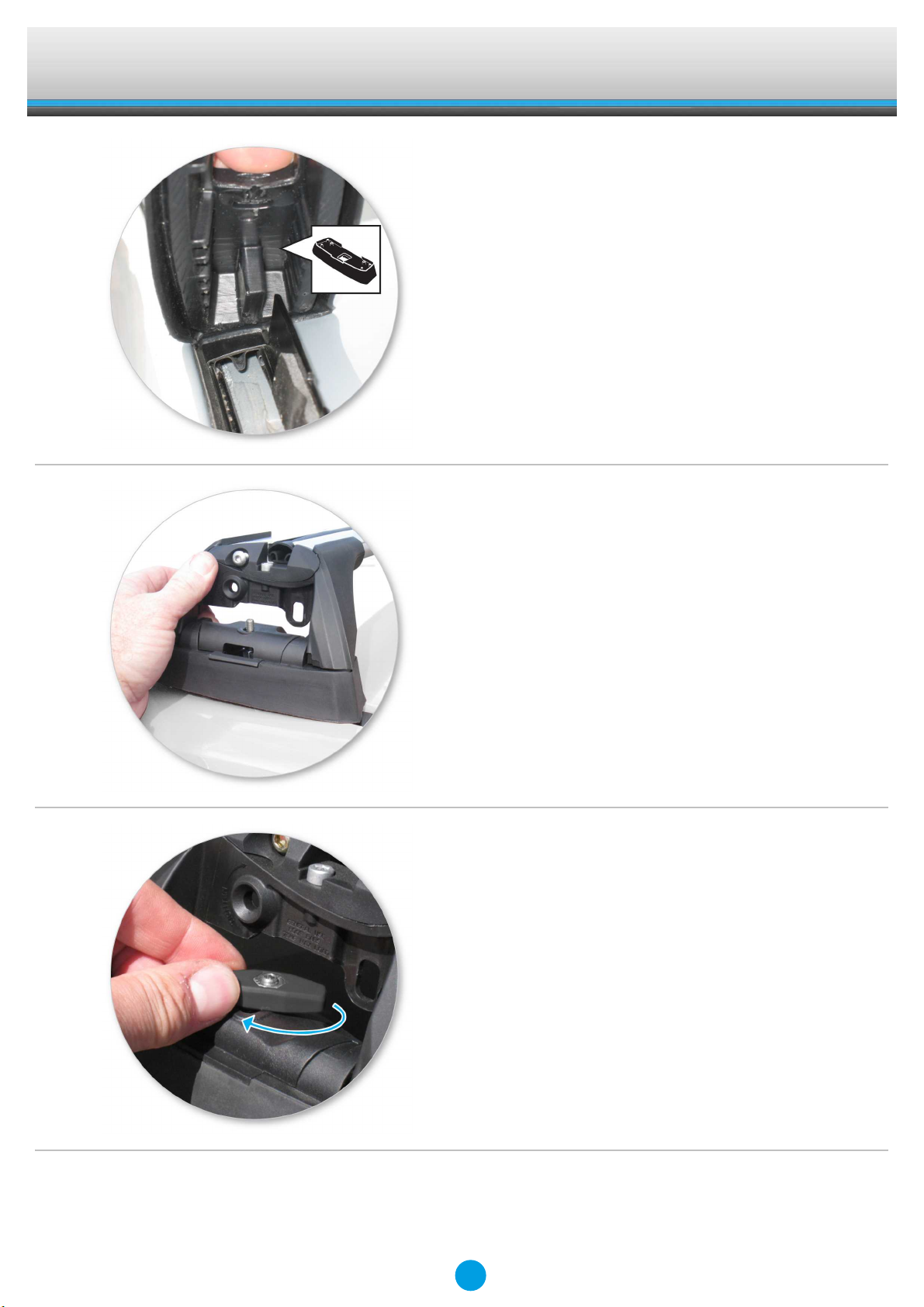

●Ensure the fixed-point covers sit vertically

in the recess in the pads.

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

9

Fitting Kit EN

K846W

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
