Whispbar K704W Bedienungsanleitung

K704W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 4 x 2 x 2 x 4

x 4 x 1 x 4 x 4

x 4 x 8

Revision No: 4D 1

Fitting Kit K704W

MAX kgs (lbs)

W/P WHD

Tesla

Model S w/ Pano roof, 5dr Hatch 12-14 US 75 kgs (165 lbs)

Model S, 5dr Hatch 12-+ CN 75 kgs (165 lbs)

Model S, 5dr Hatch 12-May 15 EU 75 kgs (165 lbs)

Model S, 5dr Hatch 15-+ AU 75 kgs (165 lbs)

Fitting Kit K704W

A B C 1 2 3

Model S w/ Pano roof, 5dr Hatch 12-14 (US) -195mm 685mm - 1023mm 926mm -

-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -

Model S, 5dr Hatch 12-+ (CN) -195mm 685mm - 1023mm 926mm -

-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -

Model S, 5dr Hatch 12-May 15 (EU) -195mm 685mm - 1023mm 926mm -

-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -

Model S, 5dr Hatch 15-+ (AU) -195mm 685mm - 1023mm 926mm -

-7 -11/16ths" 26 15/16ths" - 40 1/4ths" 36 7/16ths" -

Fitting Kit EN

K704W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●This kit fits type A, B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K704W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Fitting Kit EN

K704W

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Apply protective strip to roof of the vehicle

as shown.

Trim if required.

Fitting Kit EN

K704W

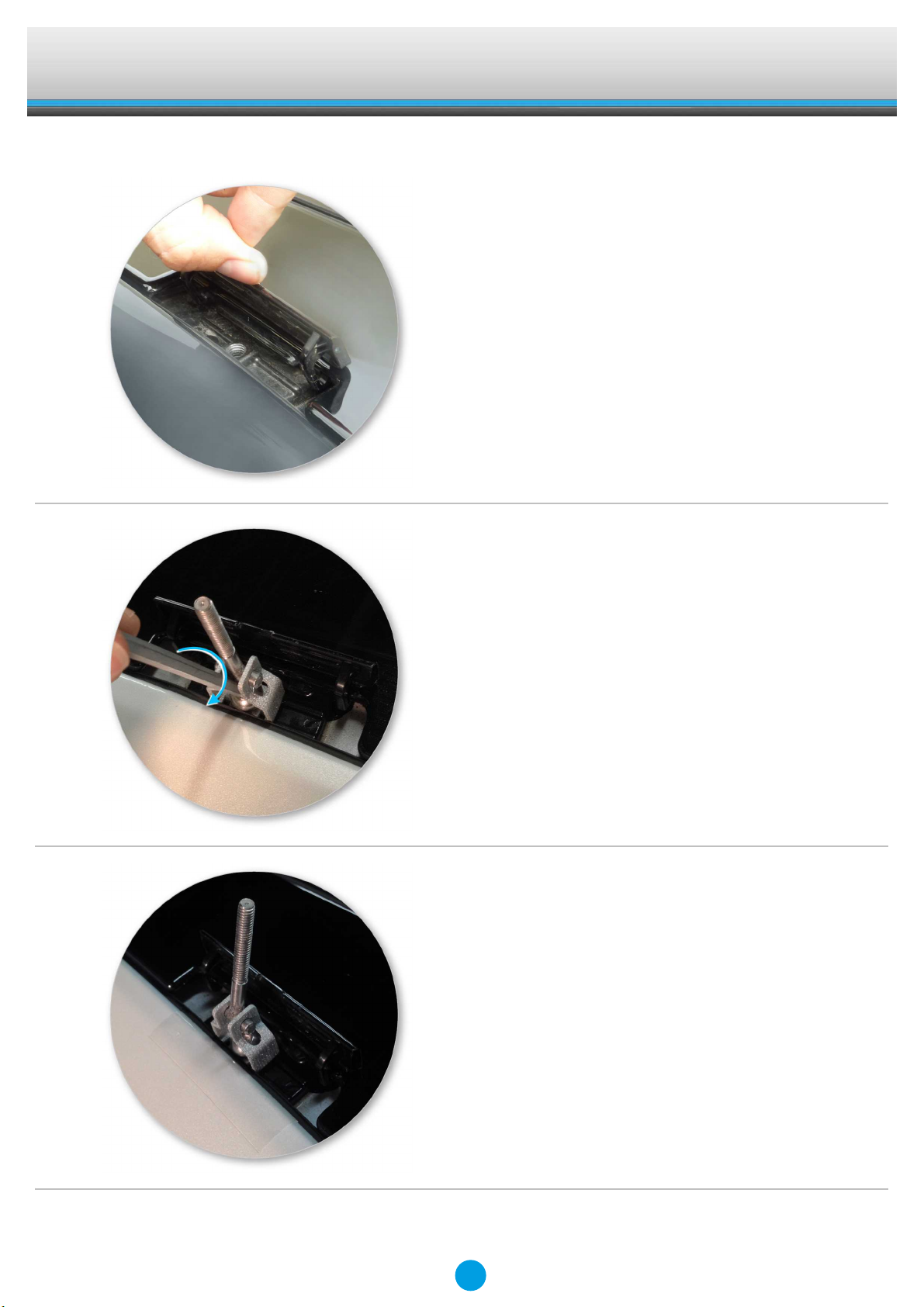

Fitment

●Open or remove fixed-point covers.

●Ensure rubber gasket is pulled away from

fixed point block when installing clamp.

●Place clamp into position as pictured.

●Ensure spring washer is between clamp

and the head of the screw.

●Using 5mm Hex Key supplied with this kit,

fully tighten to 5Nm (3.7 ft lb) hand tight.

●Repeat for all four positions.

●Assemble as shown.

Fitting Kit EN

K704W

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●It is important to put the pads in the correct

position on the vehicle.

●Pad Part Number:

A = 235A

B = 236A

●Fit pad carefully over fixed point and clamp

screw.

●Ensure the fixed-point covers sit vertically

in the recess in the pads.

Fitting Kit EN

K704W

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

Fitting Kit EN

K704W

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
