Whispbar K747W Bedienungsanleitung

K747W

Fitting Kit

EN Fitting Instructions for Basic Carrier

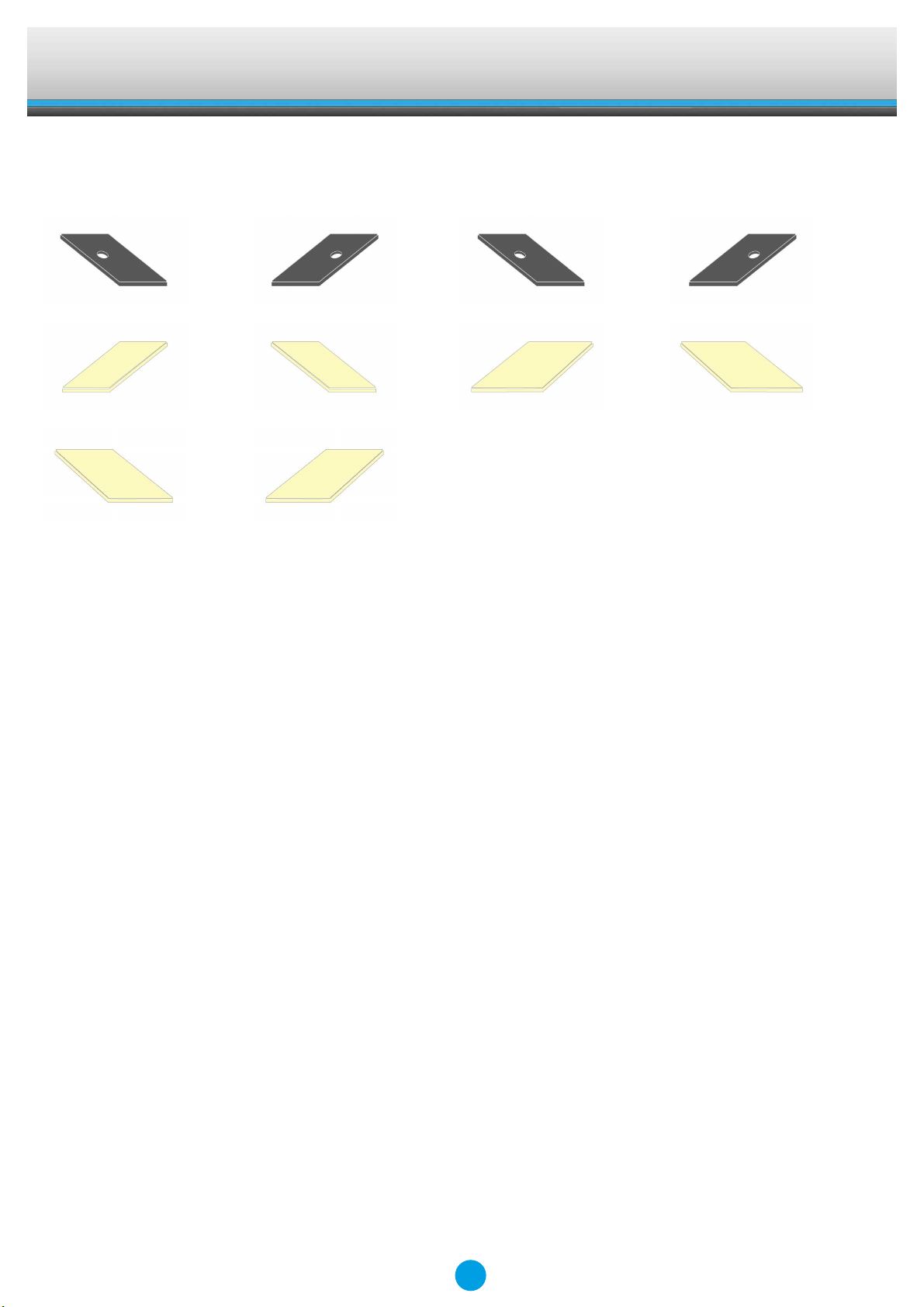

x 1 x 1 x 1 x 1

x 1 x 1 x 1 x 1

Revision No: 2B 1

Fitting Kit K747W

x 1 x 1 x 1 x 1

x 1 x 1 x 1 x 1

x 2 x 2

2

Fitting Kit K747W

MAX kgs (lbs)

W/P WHD

Volvo

V40, 5dr Hatch Feb 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

V40, 5dr Hatch Feb 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

V40, 5dr Hatch Feb 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

V40, 5dr Hatch May 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

V40, 5dr Hatch May 12-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

3

Fitting Kit K747W

X

A B C 1 2 3

V40, 5dr Hatch Feb 13-+ (NZ) -256mm 500mm - 885mm 773mm -

-10 -1/16ths" 19 11/16ths" - 34 13/16ths" 30 7/16ths" -

V40, 5dr Hatch Feb 13-+ (AU) -256mm 500mm - 885mm 773mm -

-10 -1/16ths" 19 11/16ths" - 34 13/16ths" 30 7/16ths" -

V40, 5dr Hatch Feb 13-+ (ZA) -256mm 500mm - 885mm 773mm -

-10 -1/16ths" 19 11/16ths" - 34 13/16ths" 30 7/16ths" -

V40, 5dr Hatch May 12-+ (EU) -256mm 500mm - 885mm 773mm -

-10 -1/16ths" 19 11/16ths" - 34 13/16ths" 30 7/16ths" -

V40, 5dr Hatch May 12-+ (CN) -256mm 500mm - 885mm 773mm -

-10 -1/16ths" 19 11/16ths" - 34 13/16ths" 30 7/16ths" -

4

Fitting Kit EN

K747W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

5

Fitting Kit EN

K747W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

6

Fitting Kit EN

K747W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 117A

B = 118A

C = 119A

D = 120A

7

Fitting Kit EN

K747W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

8

Fitting Kit EN

K747W

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 250

B = 251

C = 295

D = 296

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

●Make sure the pad fits into the holes

underneath the foot.

9

Fitting Kit EN

K747W

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

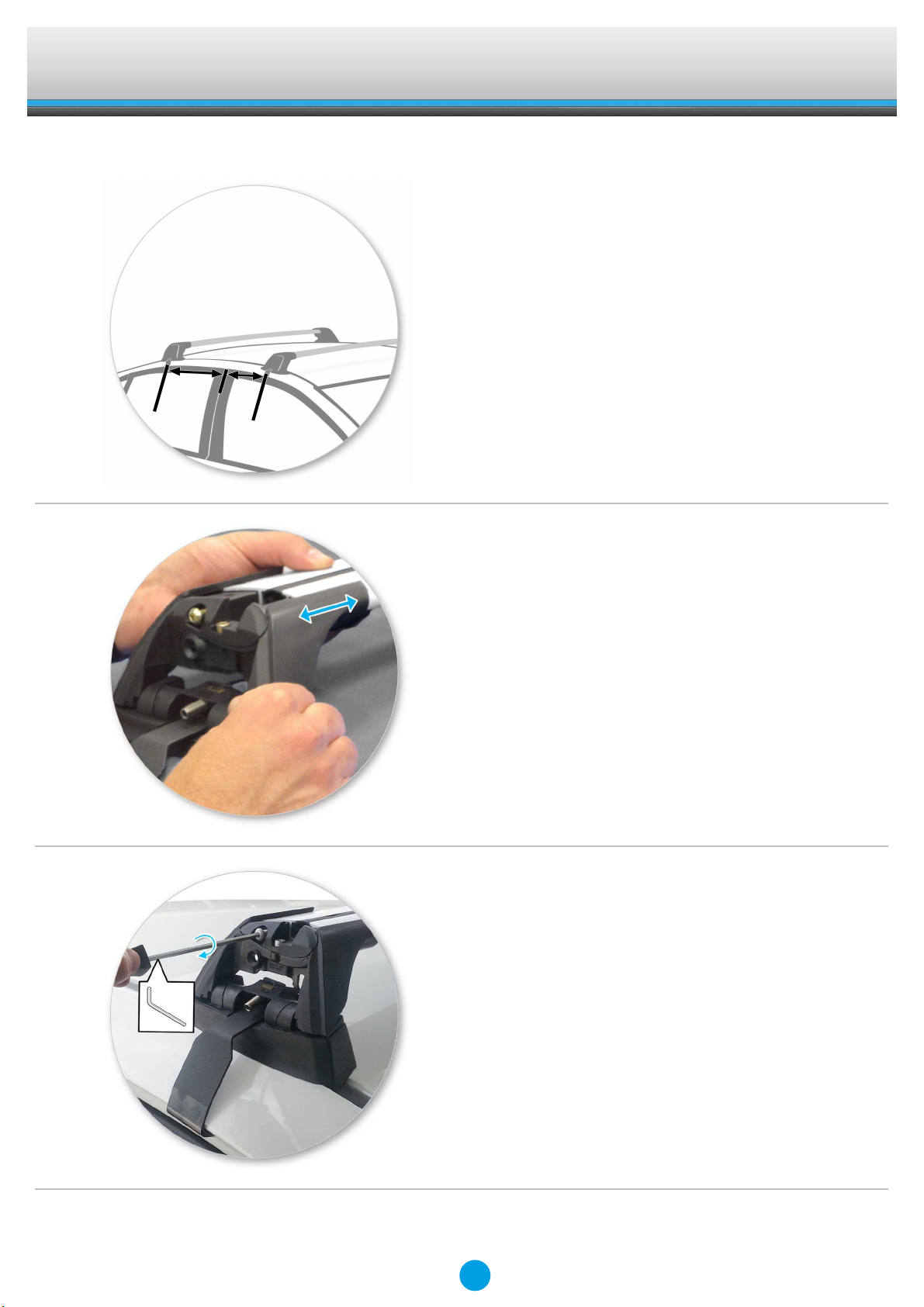

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.
