Whispbar K958W Bedienungsanleitung

K958W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 1 x 4

Revision No: 3C 1

Fitting Kit K958W

MAX kgs (lbs)

W/P WHD

Audi

Q7, 5dr SUV 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Q7, 5dr SUV 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Q7, 5dr SUV 15-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Q7, 5dr SUV 15-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Fitting Kit K958W

A B C 1 2 3

Q7, 5dr SUV 15-+ (NZ) 30mm 810mm - 995mm 965mm -

1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -

Q7, 5dr SUV 15-+ (AU) 30mm 810mm - 995mm 965mm -

1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -

Q7, 5dr SUV 15-+ (EU) 30mm 810mm - 995mm 965mm -

1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -

Q7, 5dr SUV 15-+ (ZA) 30mm 810mm - 995mm 965mm -

1 3/16ths" 31 7/8ths" - 39 3/16ths" 38" -

Fitting Kit EN

K958W

First Time Installation

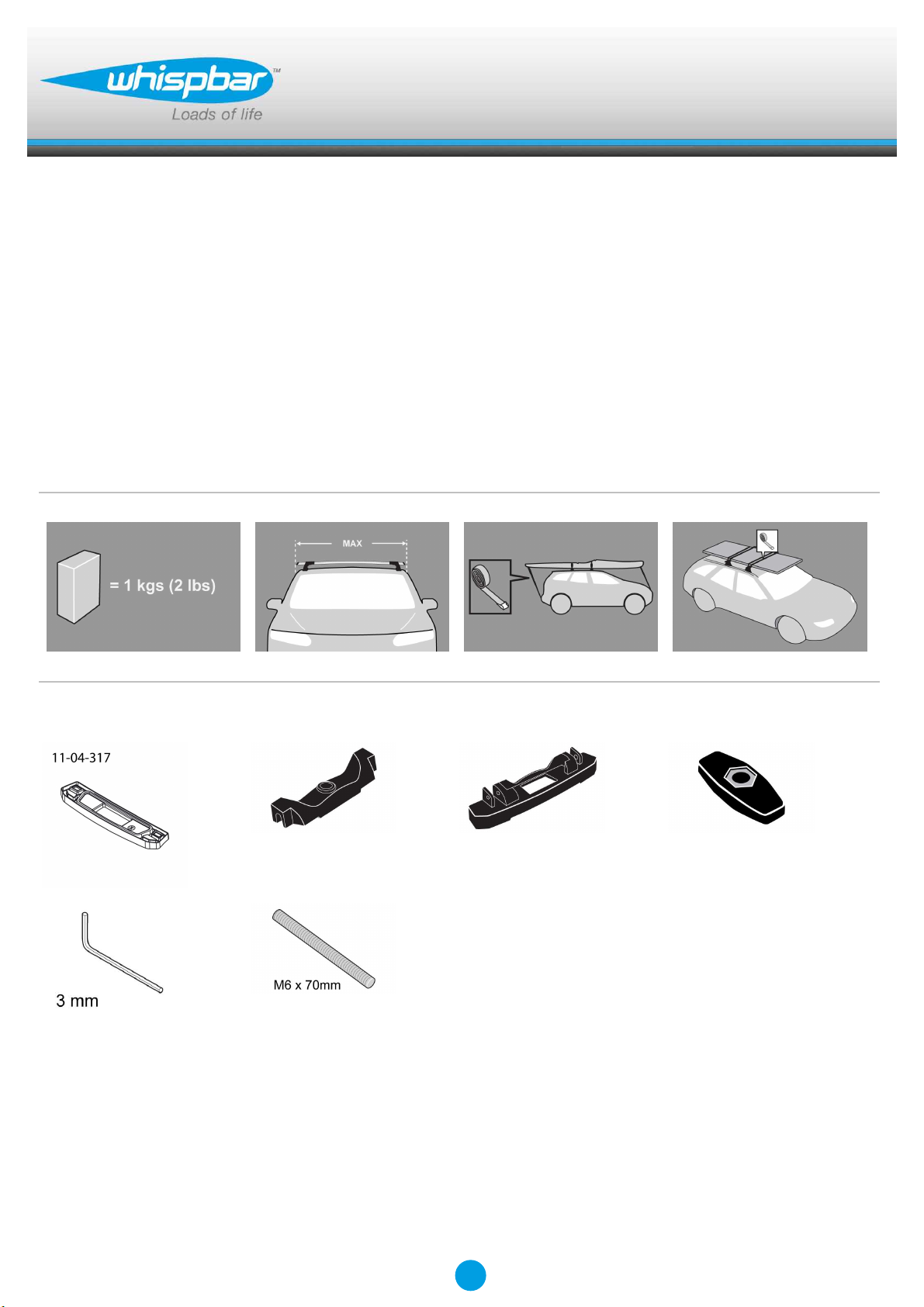

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K958W

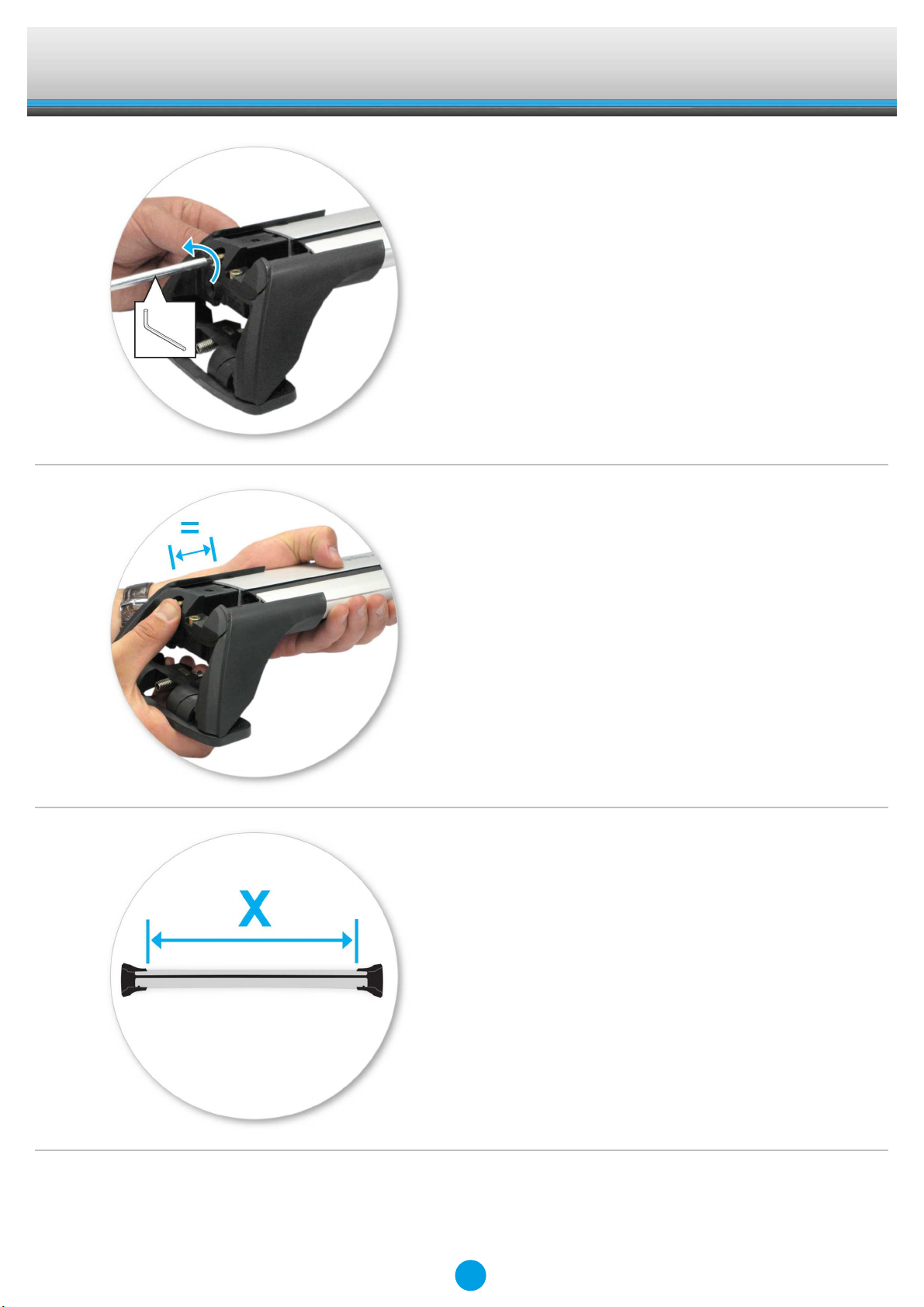

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K958W

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

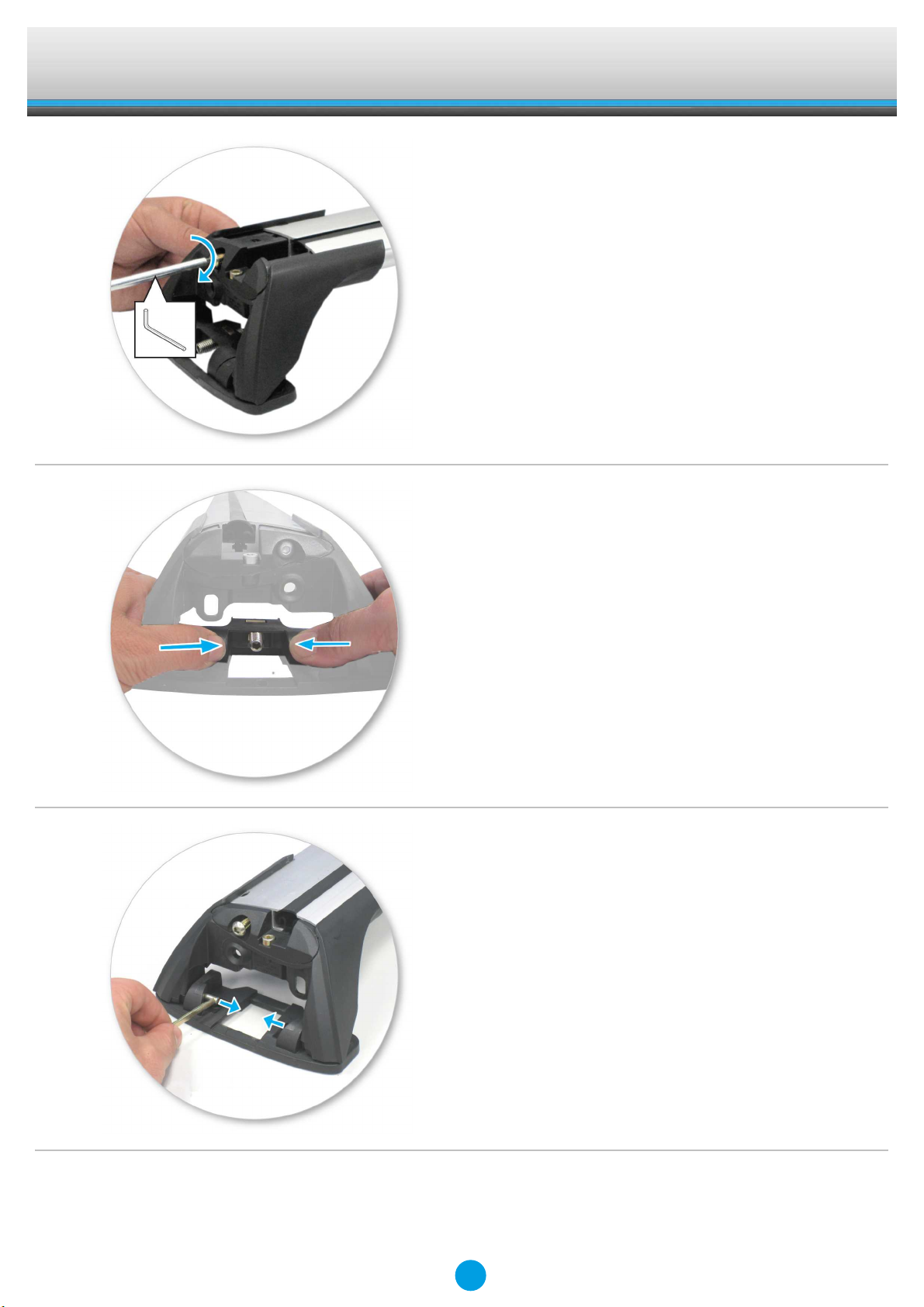

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K958W

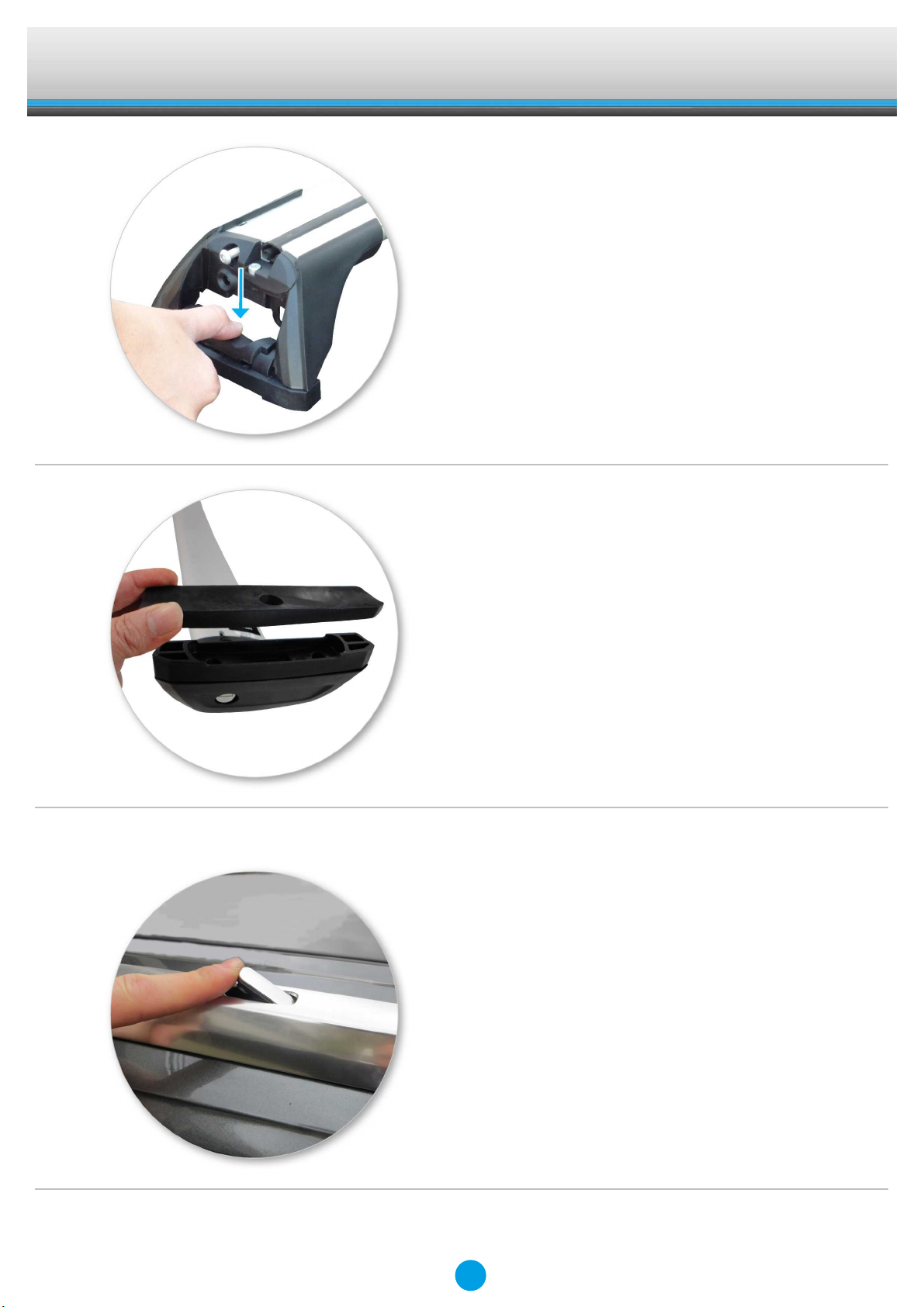

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Assemble foot from kit into leg.

●Insert pins through foot into leg.

Fitting Kit EN

K958W

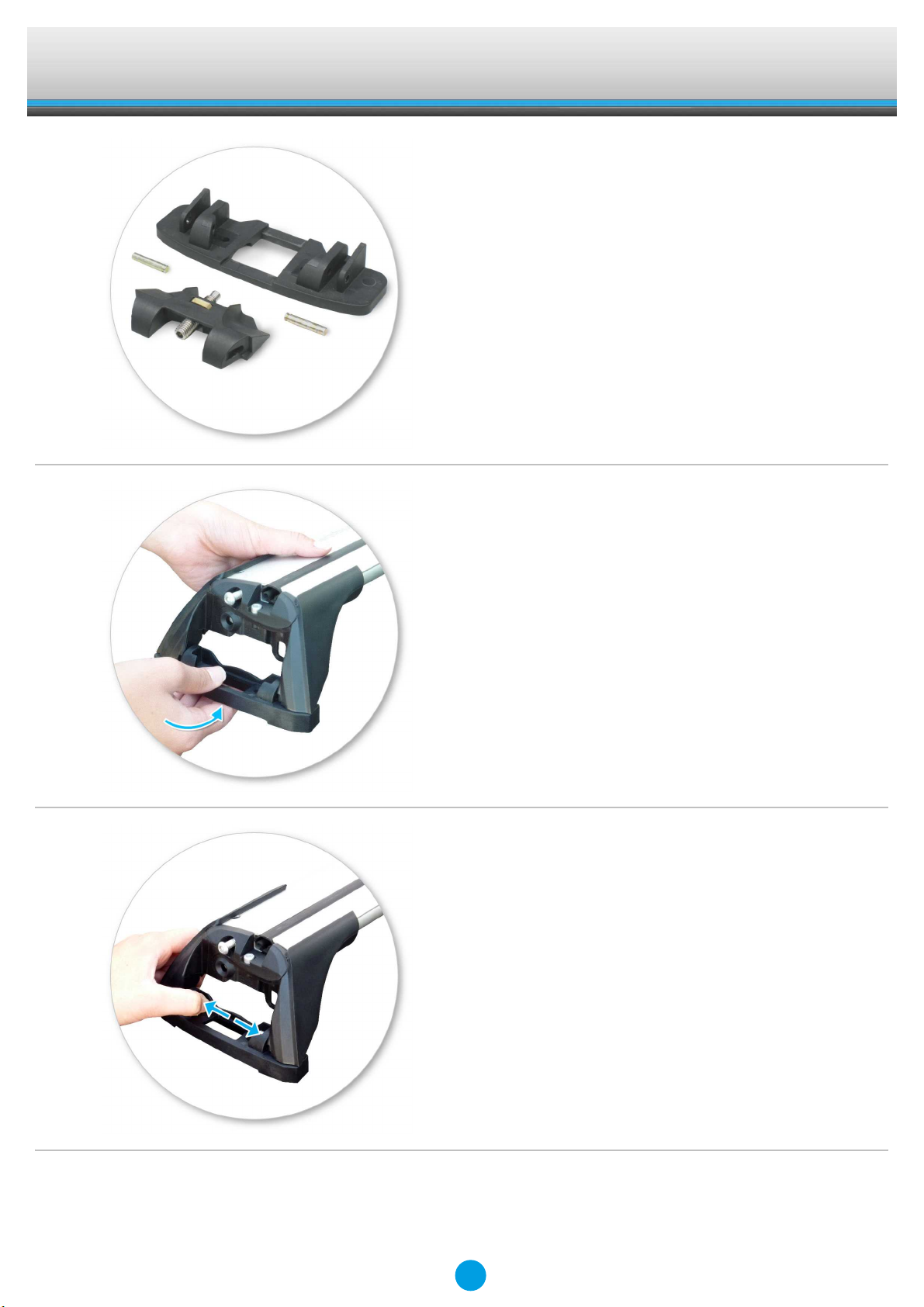

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitment

●Open fixed-point covers.

Fitting Kit EN

K958W

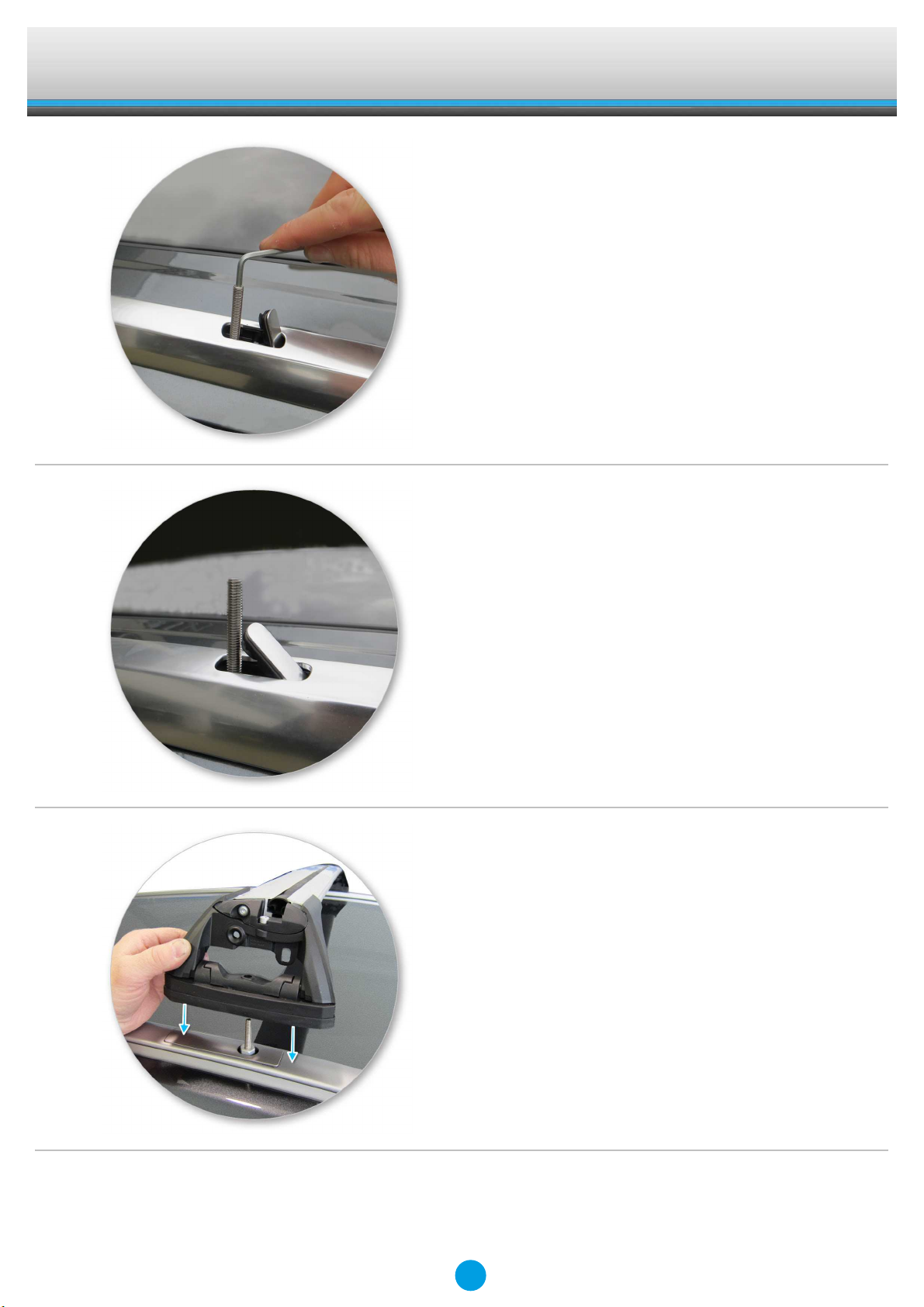

●Select grubscrews and screw into the

vehicle's fixed points.

●Repeat for all four positions.

●Make sure fixed point cover is in position

as shown.

●Place crossbar foot over grubscrews.

Fitting Kit EN

K958W

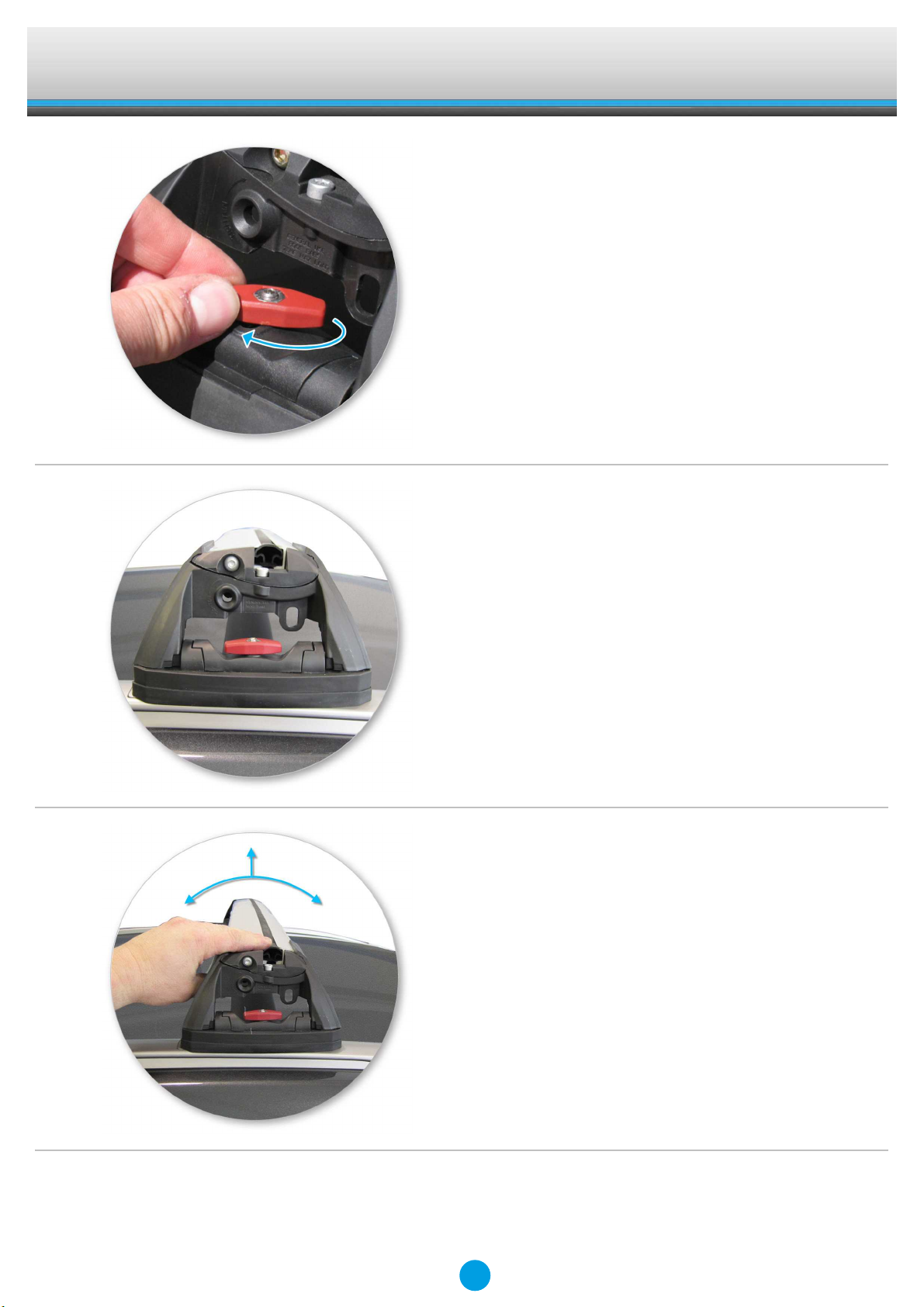

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.
