Whispbar K776W Bedienungsanleitung

K776W

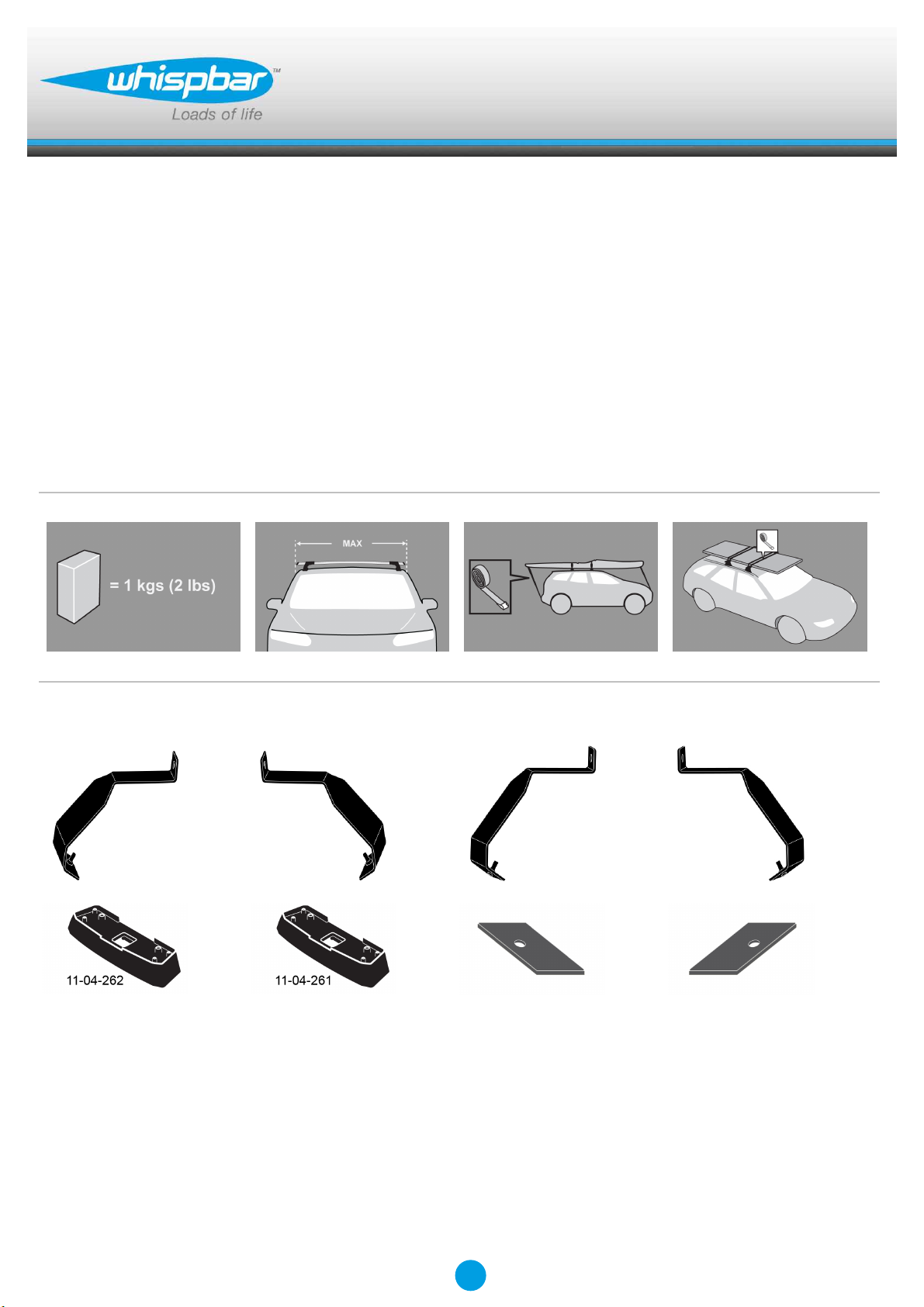

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 2 x 2 x 1 x 1

Revision No: 1A 1

Fitting Kit K776W

x 1 x 1 x 1 x 1

x 1 x 1

Fitting Kit K776W

MAX kgs (lbs)

W/P WHD

Peugeot

508, 4dr Sedan 11-+ EU 70 kgs (154 lbs) 70 kgs (154 lbs)

508, 4dr Sedan 11-+ ZA 70 kgs (154 lbs) 70 kgs (154 lbs)

508, 4dr Sedan 11-+ AU 70 kgs (154 lbs) 70 kgs (154 lbs)

508, 4dr Sedan 11-+ NZ 70 kgs (154 lbs) 70 kgs (154 lbs)

Fitting Kit K776W

A B C 1 2 3

508, 4dr Sedan 11-+ (EU) -310mm 400mm - 903mm 875mm -

-12 -3/16ths" 15 3/4ths" - 35 9/16ths" 34 7/16ths" -

508, 4dr Sedan 11-+ (ZA) -310mm 400mm - 903mm 875mm -

-12 -3/16ths" 15 3/4ths" - 35 9/16ths" 34 7/16ths" -

508, 4dr Sedan 11-+ (AU) -310mm 400mm - 890mm 870mm -

-12 -3/16ths" 15 3/4ths" - 35 1/16ths" 34 1/4ths" -

508, 4dr Sedan 11-+ (NZ) -310mm 400mm - 890mm 870mm -

-12 -3/16ths" 15 3/4ths" - 35 1/16ths" 34 1/4ths" -

Fitting Kit EN

K776W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K776W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K776W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Clear

B = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 229A

B = 230A

C = 231A

D = 232A

Fitting Kit EN

K776W

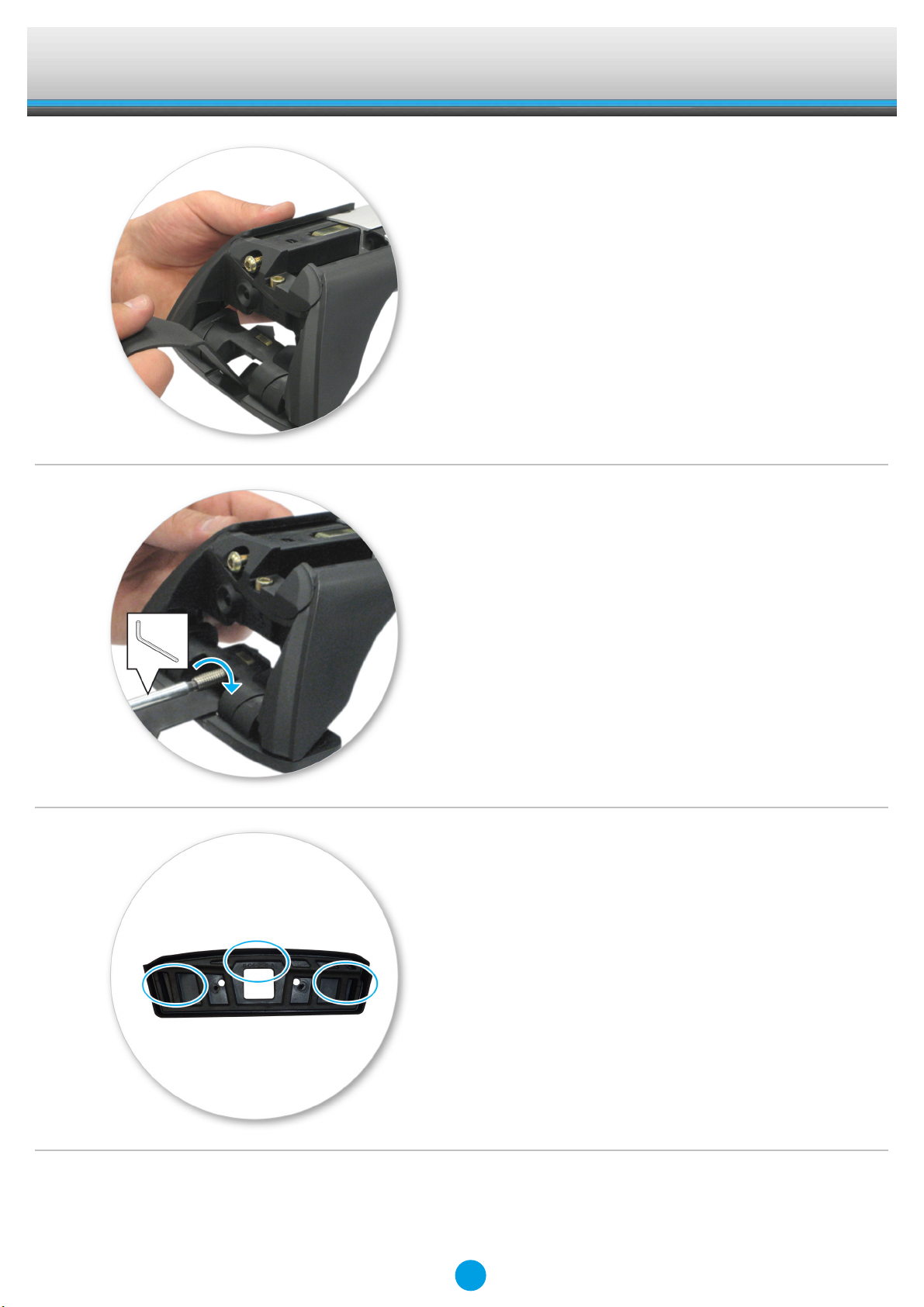

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K776W

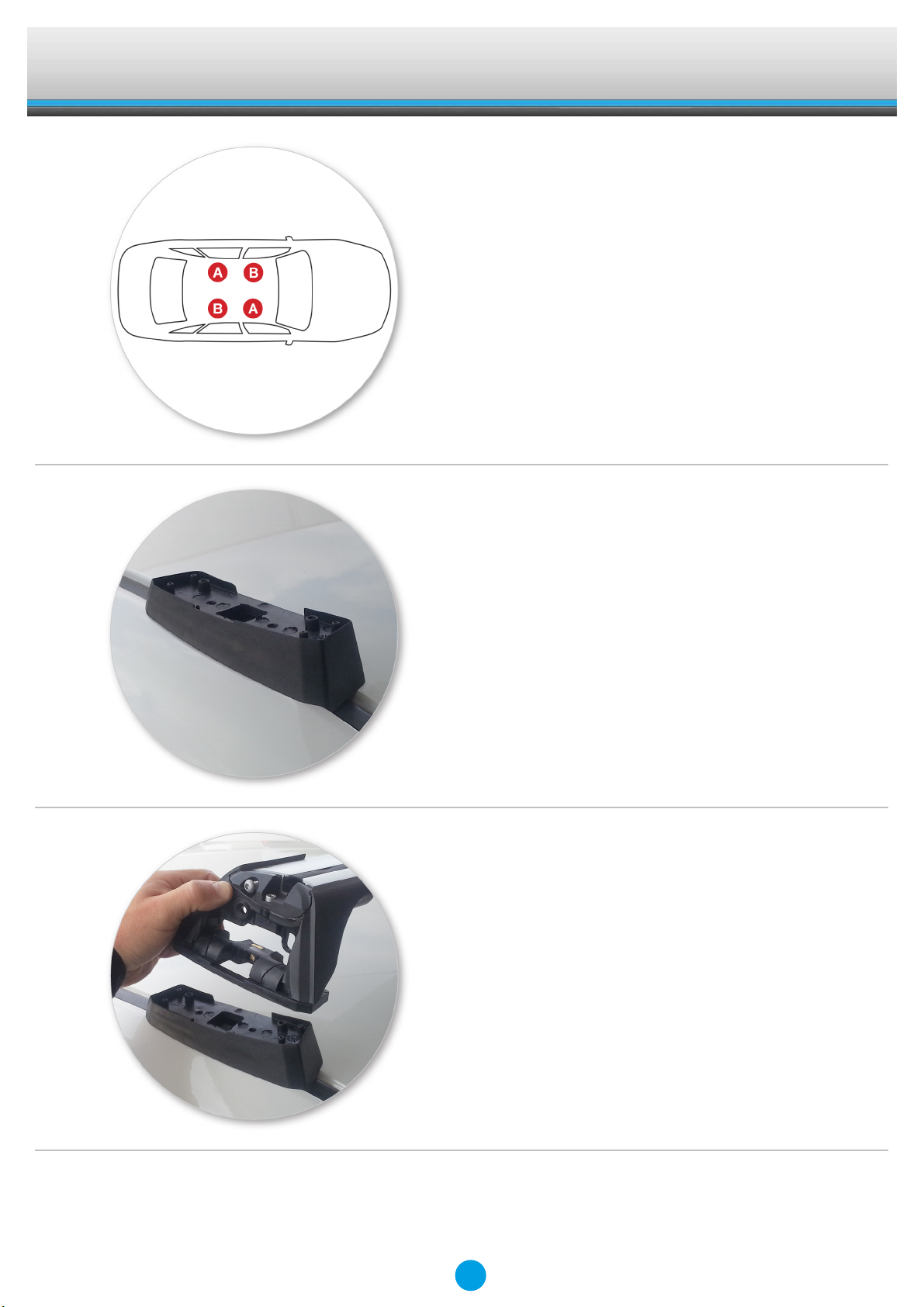

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 261

B = 262

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K776W

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.
