Wilson Electronics 801101 Bedienungsanleitung

Signal Booster

Installation

Guide

Mobile Wireless

Single Band

Signal Booster

Contents:

How it Works ...................................1

Before Getting Started............................2

Installing a Wilson Electronics Outside Antenna ........3

Installing a Wilson Electronics Signal Booster. . . . . . . . . . 4

Installing the Low-Profile Antenna ...................5

Powering Up a Wilson Electronics Signal Booster . . . . . . 6

Warnings and Recommendations ...................7

Understanding the Signal Booster Lights . . . . . . . . . . . . . 8

About Wilson Electronics..........................9

Guarantee and Warranty .........................10

Signal Booster Specifications . . . . . . . . . . . . . .Back Cover

Wilson

Electronics, Inc.

Note: This manual contains important safety and operating information.

Please read and follow the instructions in this manual. Failure to do so

could be hazardous and result in damage to your signal booster.

1Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Installation Instructions for the Following Wilson Electronics Signal Boosters:

Mobile Wireless Single Band Cellular Signal Booster

Model #801101

FCC ID: PWO824WV IC: 4726A-824WV

Mobile Wireless Single Band iDEN Signal Booster

Model #804002

FCC ID: PWO806WV IC: 4726A-806WV

The term “IC” before the radio certification number only signifies that

Industry Canada technical specifications were met.

Inside this Package

How it Works

Your new Wilson Electronics signal booster has been carefully engineered to significantly

improve the performance of your cell phone or cellular data card in mobile applications.

Together with an outside antenna (sold separately), the signal booster’s state-of-the-art

technology is designed to increase your signal up to 10 times, reduce disconnects and

dropouts, and increase data communication rates needed for 3G technologies.

The outside antenna will collect the cell tower signal and send it through the cable to the

signal booster. The signal is then boosted and sent to the inside antenna. Your cell phone

or data card then communicates with the improved signal. When the cell phone or data card

transmits, the signal goes through the inside antenna, is boosted by the signal booster and

broadcast back to the cell tower through the outside antenna.

Wilson Electronics manufactures a wide variety of antennas to help you customize your

signal booster for your specific application. Several are shown below. See your dealer or

visit www.wilsonelectronics.com.

Wireless

Signal Booster

DC plug-in

power cable

NMO

Mount

301104

Magnet

Mount

301103 Trucker

Mount

301101

Mini

Magnet

301113 Marine

Antenna

301130

Low-profile

antenna

NOTE: Use of this signal booster

with an antenna gain higher than

5.12 dBi is in violation of FCC

regulations for which the

offender is fully liable. All

Wilson mobile antennas are

5.12 dBi or less in the 800

MHz band.

Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Before Getting Started

This guide will help you properly install Wilson Electronics single-band, mobile wireless signal

booster. It is important to read through all of the installation steps for your particular

application prior to installing any equipment. Read through the instructions, visualize

where all the equipment will need to be installed and do a soft installation before mounting

any equipment. If you do not understand the instructions in full, seek professional help, or

contact Wilson Electronics Technical Support at 866-294-1660.

Warning: In a wireless installa-

tion, do not plug the signal booster directly

into the cell phone or data card using an

antenna adapter. It will damage the signal

booster.

Outside

Antenna

Inside

Antenna

Signal booster

DC Power

Supply

Cell Phone

PDA

Notebook

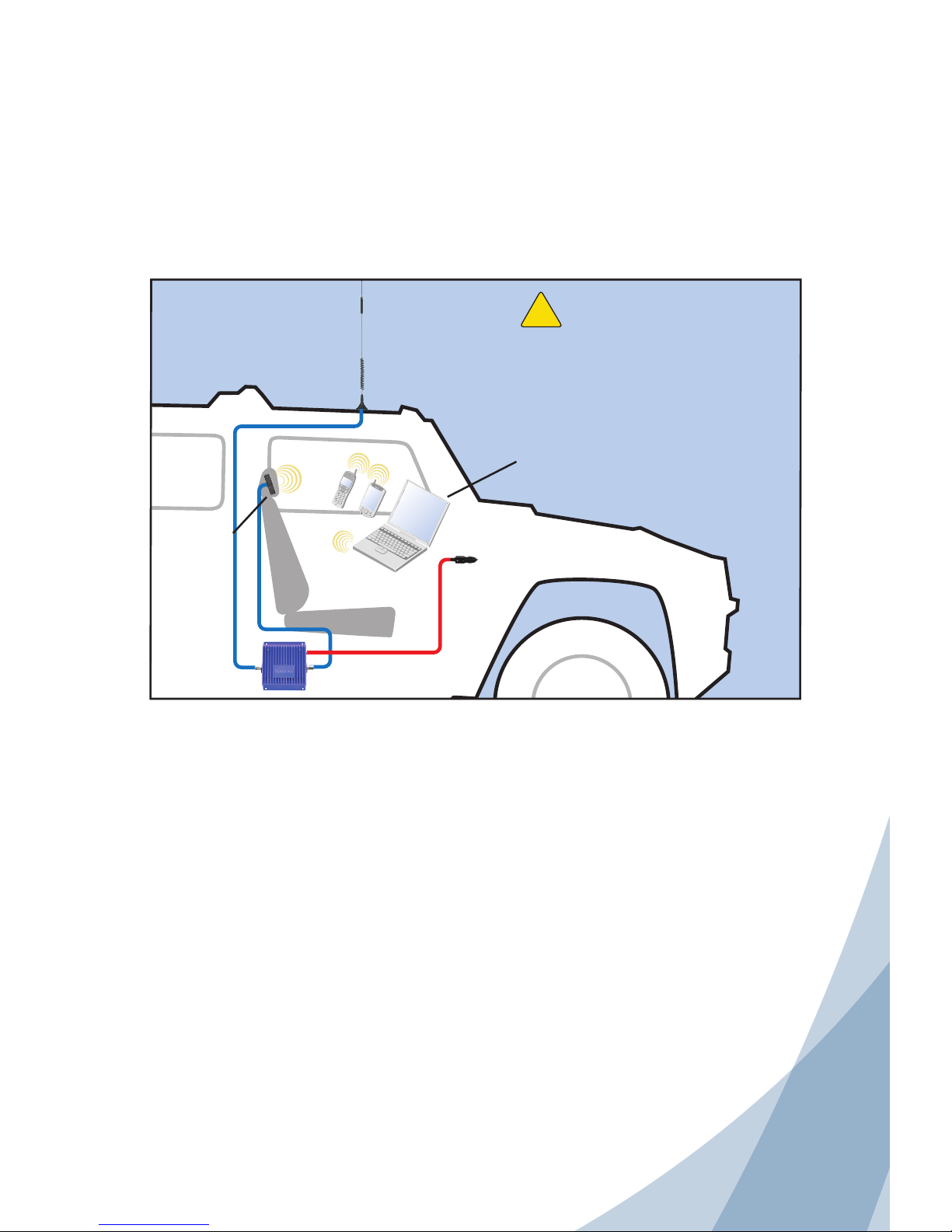

Installation Diagram

3Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Installing a Wilson Electronics Outside Antenna

To receive the best cell signal, select a location in the center of the vehicle’s roof at least

20 inches away from any other antennas and free of obstructions.

Follow the specific antenna installation instructions included with the outside antenna

(sold separately).

The outside antenna must be installed

vertically. Signal performance will be

degraded if the antenna is not vertical.

The antenna cable may run through the

door to the signal booster.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

For a more professional-looking installation,

run the antenna cable under the door seal.

Carefully pull down the door seal. Run the

cable through the seal and push the seal

back into place. This prevents constant

wear and tear on the cable as the door

opens and closes.

Optional Magnet-

Mount Antenna

Shown

Part #301103

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Warning:

The outside antenna must be installed with a separation of at least 20 inches from any

of the vehicle’s occupants or nearby persons and must not be located or operating in

conjunction with any other antenna or signal booster.

Do not use any type of glass-mount antenna with this signal booster. The outside and

inside antennas must be shielded from each other to prevent oscillation.

Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Installing a Wilson Electronics Signal Booster

Warning: Do not plug in the DC power

supply until the outside and inside antenna

cables are attached to the signal booster.

Select a location to install the signal booster

that is away from excessive heat, direct

sunlight or moisture and that has proper

ventilation.

Recommended installation locations are:

• Under the seat

• Under the dash

Run the cable from the outside antenna and

attach it to the FME-Male connector labeled

“outside antenna” on the signal booster.

Attach the inside antenna cable to the FME-

Male connector labeled “inside antenna” on

the signal booster.

5Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Installing the Low-Profile Antenna

Install the low-profile inside antenna 8-12

inches from where the cell phone or cellular

data card will be used.

Place the inside antenna on the side of the

driver’s seat for maximum performance.

Install the inside antenna at least 8 inches,

but not more than 12 inches, from where

the cell phone or cellular data card will be

used.

Install the inside antenna at the same angle

as the cell phone when held in use, or place

next to the laptop’s cellular data card. This

will maximize the signal strength.

For a more professional-looking installation,

the low-profile antenna may be slid under

the seat cover or leather, high on the

driver’s seat.

Warning: Do not install the low-profile

antenna within 4 inches of metal. (Metal found

inside the vehicle’s seat will not affect the

antenna’s performance.)

Signal Booster

Warning: The inside antenna must be

installed with a separation of at least 8 inches

from all persons and must not be located in

conjunction with any other antenna or signal

booster.

Low-profile

Antenna

Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Powering up a Wilson Electronics Signal Booster

Make sure both the outside and inside

antenna cables are connected before

powering up the signal booster.

Connect the DC plug-in power supply

cable to the signal booster marked “Power”

and insert the large end into DC power

socket (the vehicle DC power adapter

outlet.)

The signal booster may remain on all the

time. However, leaving the signal booster

on in a vehicle when it is not running can

discharge the battery in a day or two.

A good option is to power the signal booster

through the ignition switch so the signal

booster is turned on and off with the vehicle.

NOTE: The aluminum casing of a Wilson signal booster will adjust very quickly to the ambient

temperature of its environment. For example, in the summer, when the inside of a car can reach 140

degrees Fahrenheit, the signal booster temperature may be 150 degrees or higher. The casing will

be hot to the touch, similar to a metal door handle or a steering wheel. Such high temperatures will

not damage the signal booster, nor do they pose a fire risk to the vehicle. As recommended in these

instructions, install the signal booster in a location with adequate ventilation, such as under the seat or

under the dashboard. Keep the area free of items that could block air flow to the signal booster.

IMPORTANT: Do not power up the signal

booster unless antenna cables are attached

to signal booster.

Distance between antennas

through a sunroof must be

5 feet or more.

Carefully insert the power cable.

Warning: Use only the power

supply cable provided in this package.

The power supply must be 12 V DC.

Separation of inside and outside antennas is very important. The metal roof of the vehicle

acts as a barrier and helps shield the two antennas from each other, preventing oscillation.

If the vehicle has a sunroof, it is important to separate the inside and outside antennas by at least

five feet. This prevents the signal booster from overloading or oscillating.

7Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Warnings and Recommendations

Warning: In a wireless installation, do not plug the signal booster directly into the

cell phone or cellular data card using an antenna adapter. It will damage

the cell phone or cellular data card.

Warning: Do not install the inside antenna within 4 inches of metal. (Metal found

inside the vehicle’s seat will not affect antenna performance.)

Warning: Do not use any type of glass-mount antenna with this signal booster.

The outside and inside antennas must be shielded from each other to

prevent oscillation.

Warning: Do not plug in the DC power supply until the outside and inside antenna

cables are attached to the signal booster.

Warning: RF Safety: The inside antenna must be installed with a separation of at

least 8 inches from all persons and must not be located in conjunction

with any other antenna or signal booster.

Warning: RF Safety: The outside antenna must be installed with a separation

of at least 20 inches from any of the vehicle’s occupants or nearby

persons and must not be located or operating in conjunction with any

other antenna or signal booster. All roof-mount antennas should be

centrally located on the roof of the vehicle. Mirror-mount antennas

should mounted as high above the roof line as possible and leave at

least 20 inches of separation from any persons near or around the

vehicle. Use of a cellular signal booster with an antenna gain higher

than 5.12 dBi is in violation of FCC regulations for which the offender is

fully liable. All Wilson Electronics mobile antennas are 5.12 dBi or less

in the 800 MHz band.

Warning: The inside antenna must be installed with a separation of at least 8

inches from all persons and must not be located in conjunction with

any other antenna or signal booster.

Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Understanding the Signal Booster Lights

Power Indicator Light

Shows green when the unit is turned on.

Signal Indicator Light

A green light indicates normal operation.

An orange light indicates overload from the cell tower. The signal booster has

temporarily shut down and will automatically reset.

A red light indicates that oscillation has been detected. The inside and outside

antennas are too close to one another. Increase the antenna separation distance,

then remove and replace the DC power cable to reset the light. If it still shows red,

repeat the procedure.

Power Indicator Light

(located on the side)

Signal Indicator Light

(located on the back)

9Contact Wilson Electronics Tech Support with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

About Wilson Electronics

Wilson Electronics, Inc. has been a leader in the wireless communications industry for

nearly 40 years. The company designs and manufactures signal boosters, antennas and

related components that significantly improve cellular telephone signal reception and

transmission in a wide variety of applications, both mobile and in-building.

With extensive experience in antenna and signal booster research and design, the

company’s engineering team uses a state-of-the-art testing laboratory, including an

anechoic chamber and network analyzers, to fine-tune antenna designs and performance.

For its signal boosters, Wilson Electronics uses a double electrically insulated RF enclosure

and cell tower simulators for compliance testing.

All products are engineered and assembled in the company’s 55,000-square-foot

headquarters in St. George, Utah. Wilson Electronics has product dealers in all 50 states

as well as in countries around the world.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wilson Electronics Extender Handbücher

Wilson Electronics

Wilson Electronics Tri-Band 4G-A Bedienungsanleitung

Wilson Electronics

Wilson Electronics Weboost AM100-PRO Bedienungsanleitung

Wilson Electronics

Wilson Electronics iDEN 800 MHz 274080 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Bedienungsanleitung

Wilson Electronics

Wilson Electronics PRO 70 PLUS SELECT Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460113 MobilePro Bedienungsanleitung

Wilson Electronics

Wilson Electronics SLEEK 2B5225 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE X RV Bedienungsanleitung

Wilson Electronics

Wilson Electronics WEBOOST DRIVE X OTR Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE X Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics 2B1216 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A500 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460061 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics PRO Series Bedienungsanleitung

Wilson Electronics

Wilson Electronics AG Pro Quint 461104 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE X Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE 4G-X OTR 470210R Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Connect 4G-X 471104R Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Bedienungsanleitung

Wilson Electronics

Wilson Electronics 801105 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
