Wilson Electronics 4000R Bedienungsanleitung
NEED HELP? wilsonpro.com 866.294.1660
User Manual
In-Building Multi-Antenna Signal Booster
With Extended Dynamic Range
WILSON PRO
4000R
A Wilson Electronics Brand
Package Content 1
About The WilsonPro 4000R 2
Key Features 4
Competitive Advantages 5
Post Install Setup 7
Status Screen 8
Port/Band Status Screens 10
Enable/Disable Ports 12
Safety Guidelines 13
Warranty 17
_____
Index
1
WILSON PRO 4000R IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER
________

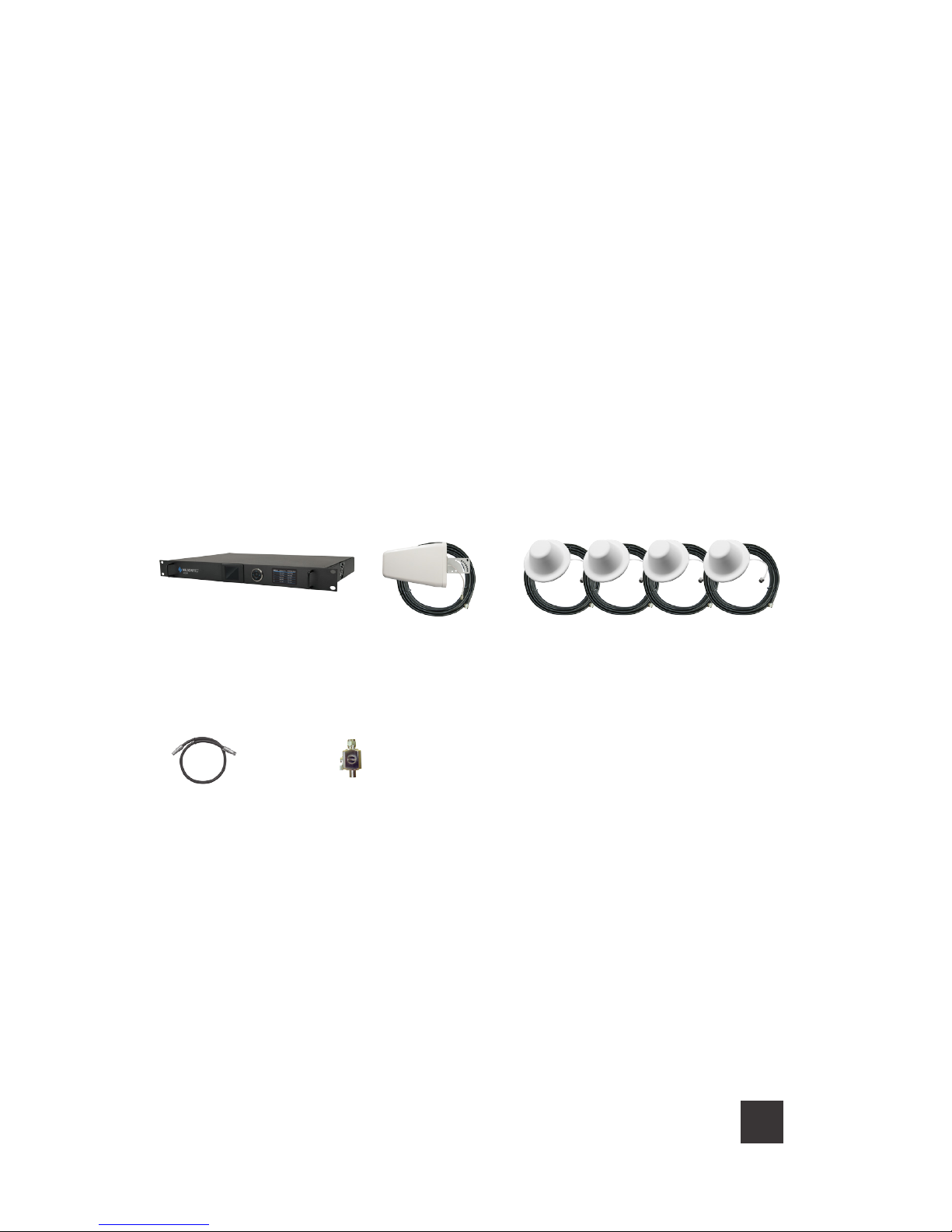

Package
Content
WilsonPro
4000R
2’ Wilson
400
Lightning Surge
Protector
Wide Band Directional
Antenna + 75’
Wilson 400 Cable
4 Qty. Dome
Antenna + 4 Qty. 100’
Wilson 400 Cable
Kit 460231
2IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER WILSON PRO 4000R
Easy Rack-Mounted
Installation
Neat and clean installation while leaving
the unit easily accessible.
Onboard Software For
Better Control
Each indoor antenna path is
independently and automatically
controlled with onboard software,
ensuring great connectivity throughout
large spaces and multi-story buildings.
Color LCD For Easier
Access
Unlike other boosters, the WilsonPro
4000R has a color LCD screen
with four-way navigation, allowing
integrators to have easy and eective
control of the product.
Extended Dynamic
Range For Continuous
Connectivity
XDR allows the booster to never shutdown
due to too strong of a signal. No matter how
strong, the booster will never overpower and
shutdown.
WilsonPro 4000R
3
WILSON PRO 4000R IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER
The WilsonPro 4000R is the first
rack mounted, cell booster to
incorporate four separate signal
amplifiers feeding multiple indoor antennas. The 4000R literally delivers
the power of four boosters in a single rack mount unit, and provides cell coverage for
up to 100,000 square feet of indoor space, or even more depending on the strength
of the incoming signal from the tower.
Designed to provide enhanced in-building cellular coverage for commercial and
large residential spaces, the WilsonPro 4000R amplifies weak cell signals to provide
reliable voice and data coverage – including 4G – to inside spaces where signals may
not penetrate.
Like all WilsonPro cellular signal boosters, the WilsonPro 4000R features cell
site protections that auto-detect and prevent any cell tower interference. Wilson
Electronics quality and an industry-leading three-year warranty make the 4000R a
clear choice for the professional technology integrator.
The 4000R Literally Delivers The Power Of Four Boosters
4IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER WILSON PRO 4000R
Easy rack-mounted installation: The 4000R is intended to fit into
an existing server rack. This design allows for a neat and clean
installation while leaving the unit easily accessible.
Onboard Software for Better Control: Each indoor antenna path is
independently and automatically controlled with onboard software,
ensuring great connectivity throughout large spaces and multi-story
buildings. Since all ports are independently controlled, each can
adjust its gain level up or down as required by the conditions of the
immediate signal environment without disrupting coverage from any
other antenna.
Extended Dynamic Range (XDR) for continuous connectivity: Gives
the 4000R much greater tolerance than any competing booster for
a strong incoming signal from the tower. XDR lets the 4000R system
work with an incoming signal stronger than any competing booster
and never shuts down.
Color LCD for Easier Access: Unlike other boosters, the Wilson
4000R has a color LCD screen with four-way navigation, allowing
integrators to have easy and eective control of the product.
____________
Key Features
5
WILSON PRO 4000R IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER
Highest Downlink Power: Up to +12dB more downlink power than
the competition allows for stronger signal in environments where
the incoming signal is weak. The benefit is a stronger signal sent to
the inside antennas, providing larger coverage area from a single
booster.
Highest Uplink Power: This allows for a stronger signal transmitted
to the tower, up to +3dB more than the competition, providing greater
user capacity and increased range from the cell site.
Lower Overload and Shutdown Threshold: No matter how strong
the outside signal, the WilsonPro 4000R never shuts down. This is a
huge benefit in strong signal environments like cities and locations
close to a carrier tower.
Intelligent Control: WilsonPro cellular boosters automatically adjust
signal gain while still providing even signal coverage throughout the
building.
Sophisticated Software: Cellular signals are constantly fluctuating.
The software is always monitoring signal levels and making
immediate adjustments as needed, allowing the booster to operate at
maximum gain consistently.
___________
Competitive
Advantages
6IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER WILSON PRO 4000R
Outside Directional
Antenna
Inside Panel
Antenna(s)
__________
Installation
Diagram
7
WILSON PRO 4000R IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER
__________
Post Install
Setup
The WilsonPRO 4000R is designed with advanced internal programming, which allows
it to automatically adjust for a variety of conditions, while still boosting weak signals.
Once the AC power cable and antenna cables are connected, turn the unit on by
toggling the power switch located near the AC power receptacle, located at the rear
of the unit.
Power Switch
8IN-BUILDING MULTI-ANTENNA SIGNAL BOOSTER WILSON PRO 4000R
The 4000R takes about 20 seconds to boot up. Once boot up is complete, the status
screen will appear, showing the amplification and status of each port and band.
A solid green light indicates that a
band/port is operating correctly with
maximum allowable gain.
A solid yellow light indicates band/
port gain reduction because of an
oscillation condition. Reposition
antennas (more separation between
indoor and outdoor antennas, and
pointed in opposite directions) and
reboot (power cycle) the 4000R
for maximum performance. When
adequate separation is achieved, the
yellow lights will return to green upon
reboot. Note that when the light is
yellow, the band/port is operational;
however, performance is reduced.
____________
Status Screen
System Status Screen
Splash Screen
Lights Description
