Products Covered: AC Series Floor Boxes, P Series Device Plates for Power, and C Series Device Plates for Communication.
NOTE: Products are suitable for use in air handling spaces in accordance with Sec. 300-22(C) of the National Electrical Code.
Step 1
Determine box location on panel and cut the following size hole:
Step 2
Field Wiring – Power: Pull 1/2" [12.7mm] or 3/4" [19.1mm]
trade size flexible conduit through raised floor panel and
attach to box with conduit fitting. Wire receptacles according
to NEC and local codes.
Step 4
Place device plate in box. Position bottom of plate
behind stops in floor of box. Roll plate into position
and mount with screws provided.
NOTE: Communication window cover required
only if box is all power wiring, or if using
conduit to supply communications cabling
(See Step 7).
Step 3
Remove screw from receptacle mounting strap.
Reinsert screw through the power device plate
and receptacle strap and attach with #6-32
hex nut.
AC Box Model Use Power Device Plate Series
AC8840 P8840-(suffix)
AC8850 P8850-(suffix)
AC8104 P8104-(suffix)
AC8104-90-MS Consult Factory
AC8105 P8105-(suffix)
AC10105-2 P10105-(suffix)
AC10105-2-AT P10105-(suffix)
AC10105-2-90-UB P10105-(suffix)
Bottom Stop
Communication
Window Cover
AC Raised Floor Box
INSTALLATION INSTRUCTIONS
Installation Instruction No.: IJ0175 R4 – Updated November 2006
Wiremold / Legrand electrical systems conform to and should be
properly grounded in compliance with requirements of the current
National Electrical Code or codes administered by local authorities.
All electrical products may present a possible shock or fire
hazard if improperly installed or used. Wiremold / Legrand electrical
products may bear the mark as UL Listed and/or Classified and should
be installed in conformance with current local and/or the National
Electrical Code.
IMPORTANT: Please read all instructions
before beginning.
AC Box Model Panel Cutout Dimensions
AC8840 8" x 8" [203mm x 203mm]
AC8850 8" x 8" [203mm x 203mm]
AC8104 8" x 10" [203mm x 254mm]
AC8104-90-MS 8" x 10" [203mm x 254mm]
AC8105 8" x 10" [203mm x 254mm]
AC10105-2 10" x 10" [254mm x 254mm]
AC10105-2-AT 10 1/8" x 10 1/8" [257mm x 257mm]
AC10105-2-90-UB 10" x 10" [254mm x 254mm]

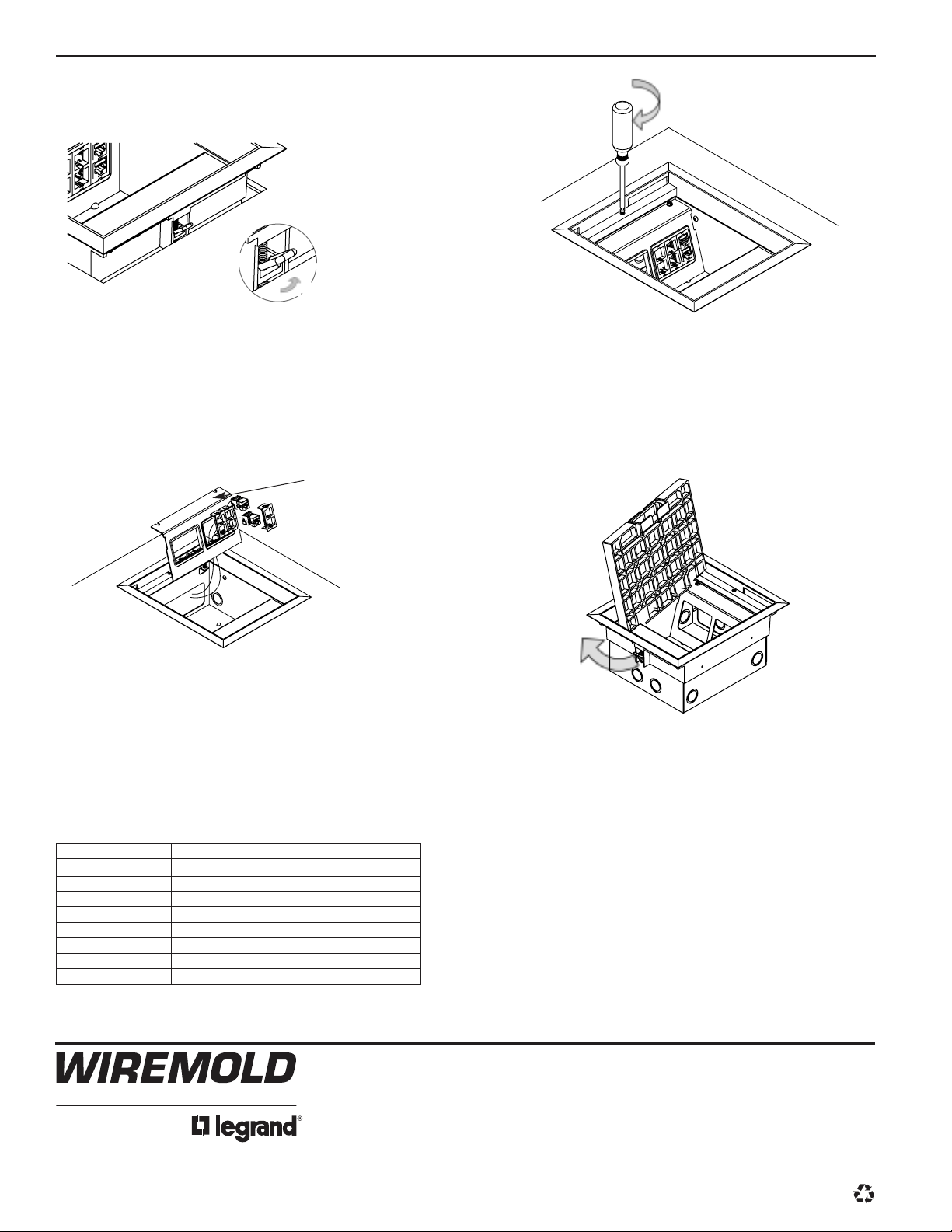

Step 5
Insert box through panel. Toggle should pivot up,
allow box to pass through opening, and return to
horizontal orientation, locking underneath floor
panel. Toggle will require lowering if insufficient
clearance inhibits operation.
Step 6
Tighten flange screws until toggle is snug against
underside of panel.
Step 8
Reinstall lid (if removed).
Prewired Boxes:
Boxes may be specified and prewired with
Walkerflex®Modular Wiring System. Follow
the installation instructions supplied with
the Walkerflex System to connect power
cables to the box.
Step 7
Field Wiring – Communication: Low voltage cables may
be pulled through a bushing in one of the communication
device plates, or may be attached to a device that is
mounted to the plate. The communication window cover
does not need to be attached behind a compartment
used for low voltage. Where required by local codes,
connect conduit to the communication window cover.
Type CMP communications plenum cable is required in
raised floor plenums when wiring methods as described
in NEC Article 300.22 are not followed.
AC Box Model Use Power/Communication Plate Series
AC8840 C8840-(suffix) or C8004P-(suffix)
AC8850 C8850-(suffix) or C8005P-(suffix)
AC8104 C8104-(suffix) or C8004P-(suffix)
AC8104-90-MS Consult Factory
AC8105 C8105-(suffix) or C8005P-(suffix)
AC10105-2 C10105-(suffix) or C10105P-(suffix)
AC10105-2-AT C10105-(suffix) or C10105P-(suffix)
AC10105-2-90-UB Consult Factory
Wiremold / Legrand
U.S. and International:
60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX 860-232-2062 • Outside U.S.: 860-233-6251
Canada:
570 Applewood Crescent • Vaughan, Ontario L4K 4B4
1-800-723-5175 • FAX 905-738-9721
IJ0175 R4 1106
© Copyright 2006 Wiremold / Legrand All Rights Reserved
Communication
Device Plate
