Smart wall outlet Aqara Smart Socket ZigBee Version

User manual and warranty card

Overview

Smart wall outlet Aqara Smart Socket ZigBee Version is a smart socket, that

uses the ZigBee wireless protocol, does not change the interior of the house, it

is more safe to use, it synchronizes with devices that have the function of the

Aqara multifunctional gateway (hereinafter simply "gateway"), remote control,

turn on or off at a set time, view energy statistics, etc.

* This product can only be used within the premises, it is recommended that

the installation be installed by professionals. Before installation, turn off the

main switch, after installation, turn on the main switch, and connect a smart

wall outlet to the gateway using the mobile application "Mi Home" (for more

details, see "Installation method" and "Adding a device").

1 – Indicator

2 – Button

XIAOMI-MI.COM

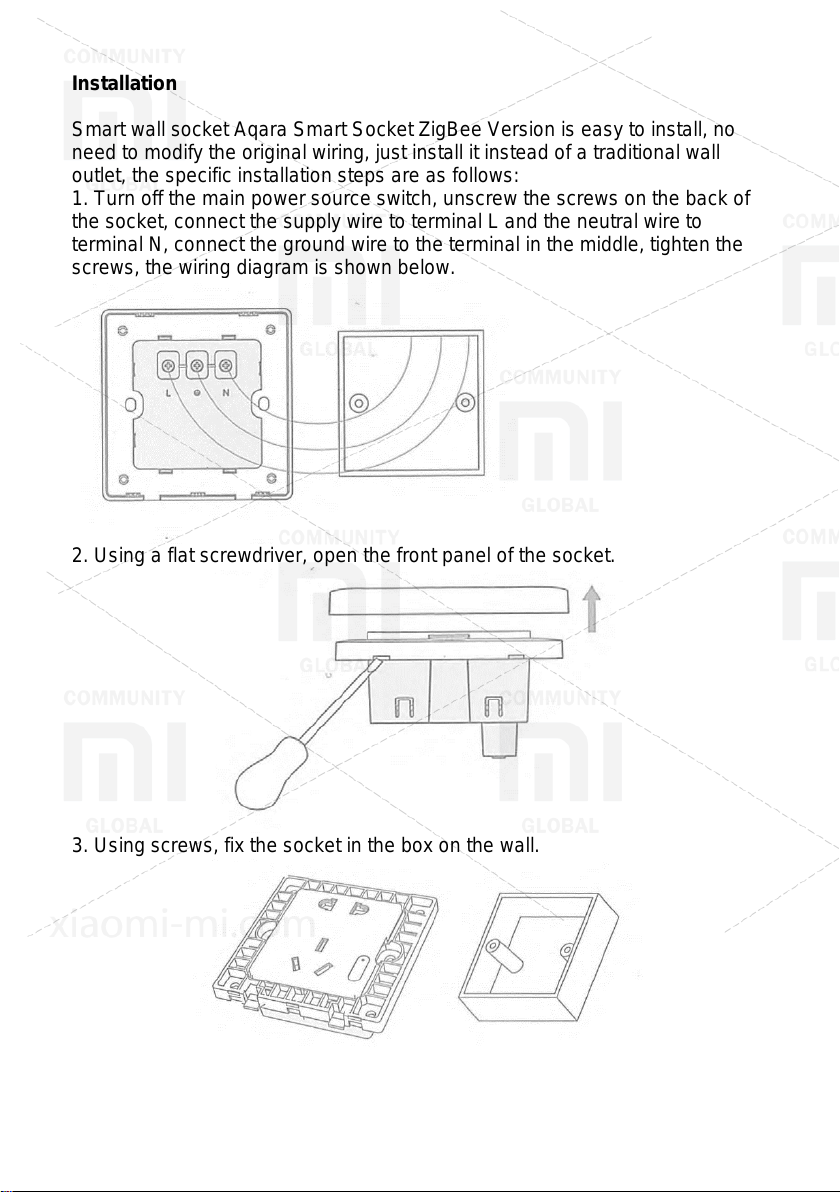

Installation

Smart wall socket Aqara Smart Socket ZigBee Version is easy to install, no

need to modify the original wiring, just install it instead of a traditional wall

outlet, the specific installation steps are as follows:

1. Turn off the main power source switch, unscrew the screws on the back of

the socket, connect the supply wire to terminal L and the neutral wire to

terminal N, connect the ground wire to the terminal in the middle, tighten the

screws, the wiring diagram is shown below.

2. Using a flat screwdriver, open the front panel of the socket.

3. Using screws, fix the socket in the box on the wall.

XIAOMI-MI.COM

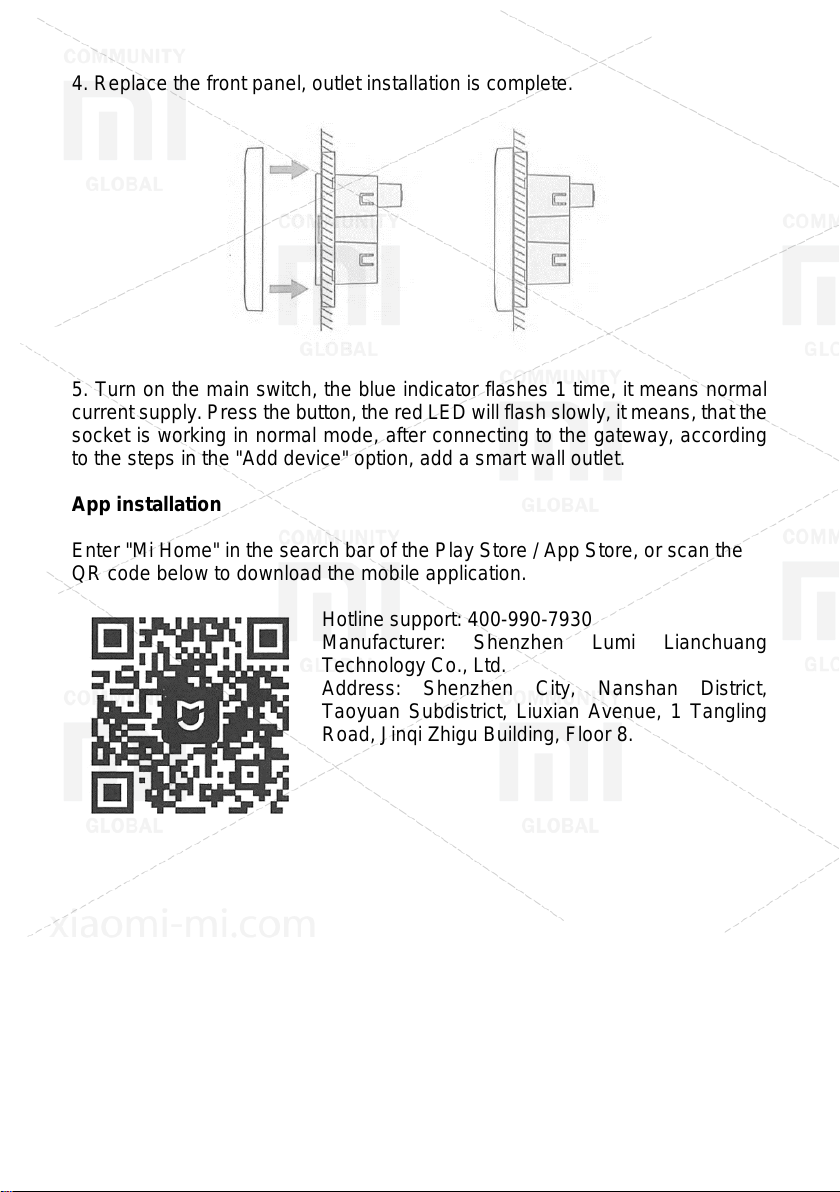

4. Replace the front panel, outlet installation is complete.

5. Turn on the main switch, the blue indicator flashes 1 time, it means normal

current supply. Press the button, the red LED will flash slowly, it means, that the

socket is working in normal mode, after connecting to the gateway, according

to the steps in the "Add device" option, add a smart wall outlet.

App installation

Enter "Mi Home" in the search bar of the Play Store / App Store, or scan the

QR code below to download the mobile application.

Hotline support: 400-990-7930

Manufacturer: Shenzhen Lumi Lianchuang

Technology Co., Ltd.

Address: Shenzhen City, Nanshan District,

Taoyuan Subdistrict, Liuxian Avenue, 1 Tangling

Road, Jinqi Zhigu Building, Floor 8.

XIAOMI-MI.COM

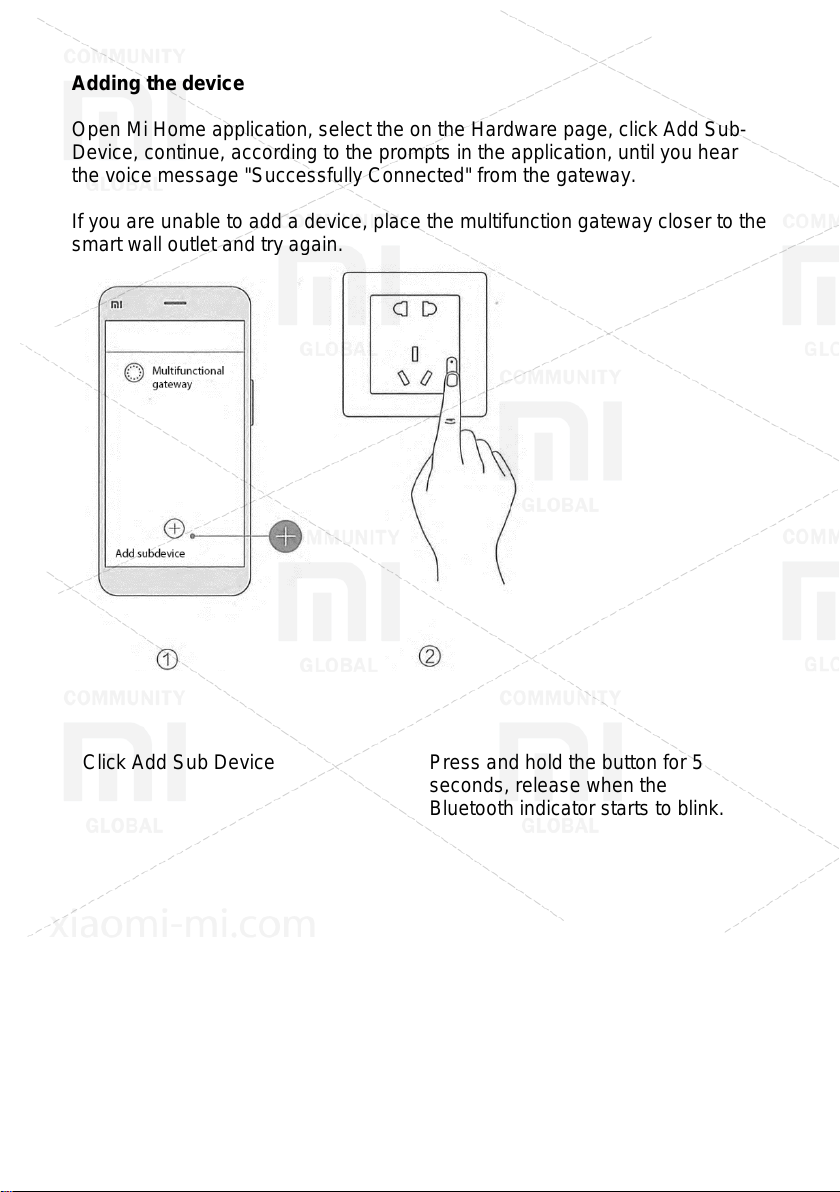

Adding the device

Open Mi Home application, select the on the Hardware page, click Add Sub-

Device, continue, according to the prompts in the application, until you hear

the voice message "Successfully Connected" from the gateway.

If you are unable to add a device, place the multifunction gateway closer to the

smart wall outlet and try again.

Click Add Sub Device

Press and hold the button for 5

seconds, release when the

Bluetooth indicator starts to blink.

XIAOMI-MI.COM

Main parameters

Model:

QBCZ11LM

Dimensions:

86 × 86 × 45mm

Wireless interface:

ZigBee

Input voltage:

100 - 250V ~, 50Hz

Maximum load:

10A / 2500W

Working temperature:

- 10 - + 50 ° C

Operating Humidity:

Relative humidity 5% -95%, without condensation.

Device Support:

Based on Android 4.4 / iOS 8.0 and higher.

Indicator explanation

Indicator

Device status

Slow flashing red

Failed to establish network connection or

connection failure

Fast flashing blue

The process of connecting the outlet to

the network

Constant blue light

The socket is connected to the mains, the

network is in normal condition

Fast flashing red

Fault, overheating, overload

Constant red light

Phase and zero are reversed

Synchronization Feature Recommendations

You can synchronize a smart wall outlet with even more "smart" devices of

the "smart house" ecosystem

1. Remote switch monitors the outlet, carrying out remote control;

Remote switch (attachment to

double-sided scotch tape)

Smart wall outlet Aqara Smart

Socket ZigBee Version

XIAOMI-MI.COM

Synchronization Feature Recommendations

2. When a person returns home, the appliance automatically turns on; when

a person leaves home, the appliance automatically turns off.

Aqara Door

Sensors

Aqara Human Body

Sensor

Smart wall outlet

Aqara Smart Socket

ZigBee Version

Name and content of harmful substances in the product

Component

name

Harmful substances

(Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE)

Plastic

housing

O O O O O O

Hard plastic

Metal

Resistor

This table is created in accordance with the provisions of the standard

SJ / T 11364.

O: the content of the harmful substance in all the homogeneous

materials of this component is within the requirements of the

standard GB / T 26572.

X: the content of this harmful substance in at least one of the homogeneous

materials of this component exceeds the limits of the requirements of the

standard GB / T 26572.
