Yakima BigStack Bedienungsanleitung

BigStack

IMPORTANT WARNING

IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER

ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO

OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR

TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ

AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION

OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE

AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A

PROFESSIONAL INSTALLER.

BIGSTACK (2X)

ADJUSTMENT

KNOB (2X)

HEAVY DUTY STRAP (2X)

BAIL (2X)

Steel Hook (2X)

Plain Strap (2X)

Plastic Tube (2X)

Buckle

Strap (2X)

T-BOLT (2X)

PAD (4X)

BOW STERN TIE DOWN

MiniMuM Crossbar spread 24”

For FaCtory raCks: Check fitlist notesfor your vehicle’s crossbar spread.

Install both pads.

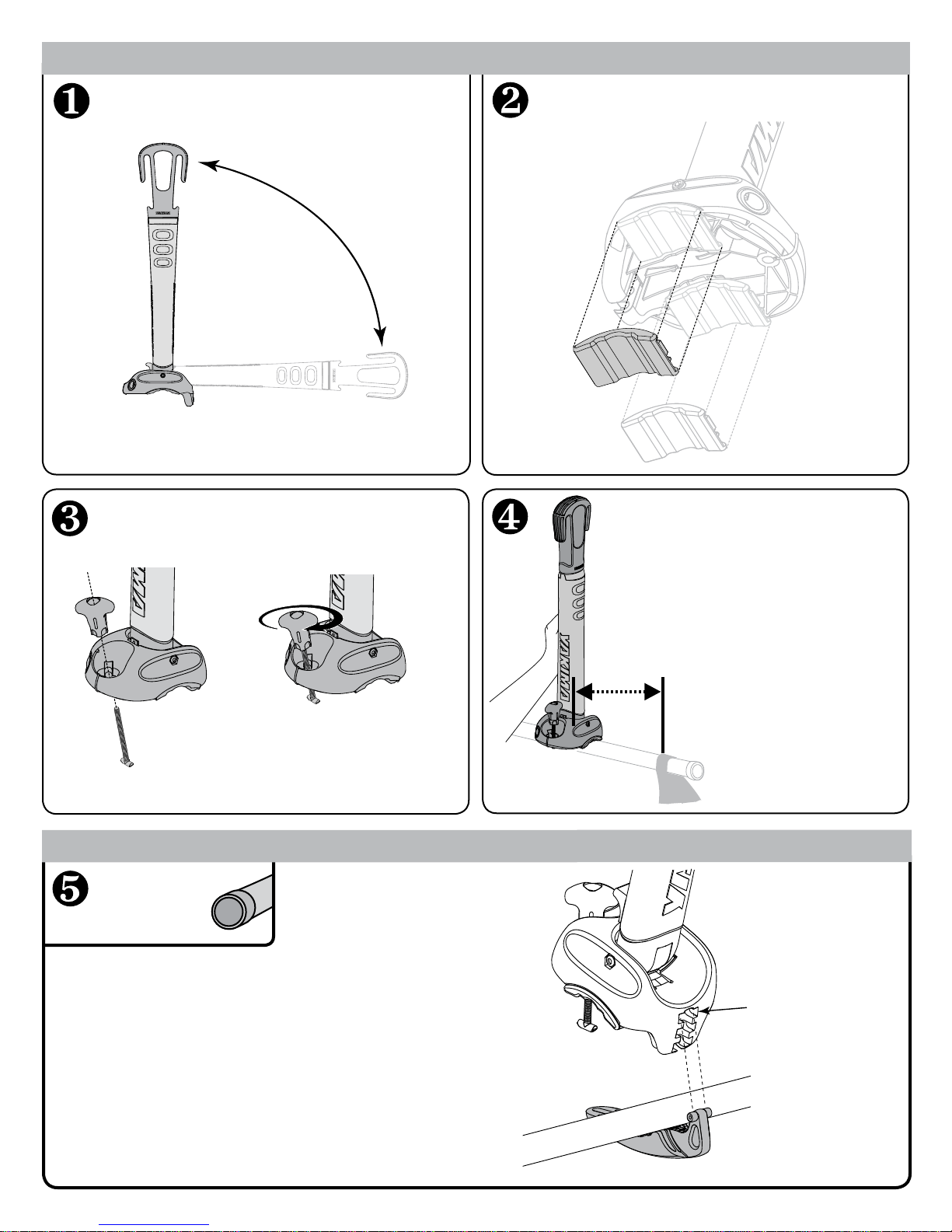

prepare For installation

Rotate the BigStack to its upright

position. It will lock into place.

NOTE: Use the red release button on the

base when you wish to fold the mast down.

Insert t-bolt through BigStack

base and adjustment knob.

Screw adjustment knob

onto t-bolt. Turn knob

three full turns.

ROUND

BAR

ONLY

Snap bail to base,

around crossbar.

Top notch for

Round Bars.

install bigstaCk on Crossbars

Distance from

the BigStack to

the tower should

equal the width

of your kayak (or

kayaks) on edge.

Determine position of BigStack

on the crossbar before

proceeding to step 5.

90°

NOW COMPLETELY

TIGHTEN THE BIGSTACK

USING FIRM PRESSURE.

INSTALL SECOND BIGSTACK

Install BigStacks so that

the lock housings face

same side of vehicle.

Repeat Steps 1 through 7 to

install second BigStack.

FACTORY

BAR

ONLY

Insert t-bolt

through bail. Rotate t-bolt.

Choose best position

for most secure grip.

SQUARE

BAR

ONLY

Upper notch for

Square Bars.

Snap bail to base,

around crossbar.

Snap bail to base,

around crossbar.

Install BigStacks so that

they are offset and fold

toward each other.

1 2 3

Loop strap

under crossbar

at least once.

Loop strap

inboard of

crossbar tower.

Distance of BigStack

from crossbar tower

is exactly the width of

kayak(s) on edge.

Follow these Four rules when strapping kayak(s):

get ready to load your boat(s)

LOAd The bOAT— TIe IT dOWN WITh sTRAPs

to load strap with

bigstaCk in down position:

Pass strap

through hole.

Raise mast

to upright

position.

Continue tying

boats as shown

on following

pages.

CAUTION: BigStacks may require re-

positioning to avoid vehicle contact.

CAUTION: BigStacks may need to be

adjusted to be offset to allow for folding

masts down when not in use.

Additional straps may be required for more than 2 kayaks.

NOT RECOMMENDED

Always tie down the bow and stern. See step 12

for proper bow stern tie down procedure.

• Insert end of strap

into buckle as

shown.

TIGHTEN STRAPS:

• To tighten straps,

hold and pull.

• Secure extra strap.

ConneCt

and tighten

• Hook the strap at the

top of the BigStack.

• Slide buckle up so

that it hangs at top

edge of boat.

ADDED SECURITY:

• Pass strap inboard under

crossbar.

• Pass strap under boat

around base of BigStack.

• Pass under crossbar again

and attach to buckle.

NOTE: Straps are to be inside of towers. If straps

are to be outside of tower due to tower/bar

position, use STRAP CAPS (Yakima part number

8005015) to prevent straps from sliding off the end

of the crossbars.

CONTINue TO LOAd The bOAT— TIe IT dOWN WITh sTRAPs

Strap outside

of tower.

Use Strap Cap.

Yakima part number 8005015

(sold separately).

LOOP STRAP AROUND

BIGSTACK POST.

Cross lines and set

aside.

LOAD BOAT.

• Bring straps up and over boat.

• Hang to the side.

to load strap with

bigstaCk in upright

position:

Attach buckle strap to boat.

Attach strap to grab handle or

rescue bar and pull tight.

Attach hook to plain

strap loop.

Slide plastic tube to protect vehicle

at contact point.

NOTE: Twisting the strap will

help reduce wind vibration.

Insert end of plain strap

into buckle.

(press tab)

Adjust strap tension by

pulling plain end.

• Apply even

pressure to front

and rear straps.

• Bind up and tie off

any excess strap.

Hook the strap to a metal

surface on the bumper, tow

loop, or frame hole using

hook.

Failure to secure front and rear of long loads to ends of vehicle

can result in property damage, personal injury, or death.

bow stern tie down attaChMent

Lines on adjustment knob and BigStack

base must be aligned to lock.

Align

install sks loCks

aCCording to loCk

instruCtions

(Purchased separately).
