Yakima Whispbar K807W Bedienungsanleitung

K807W

Fitting Kit

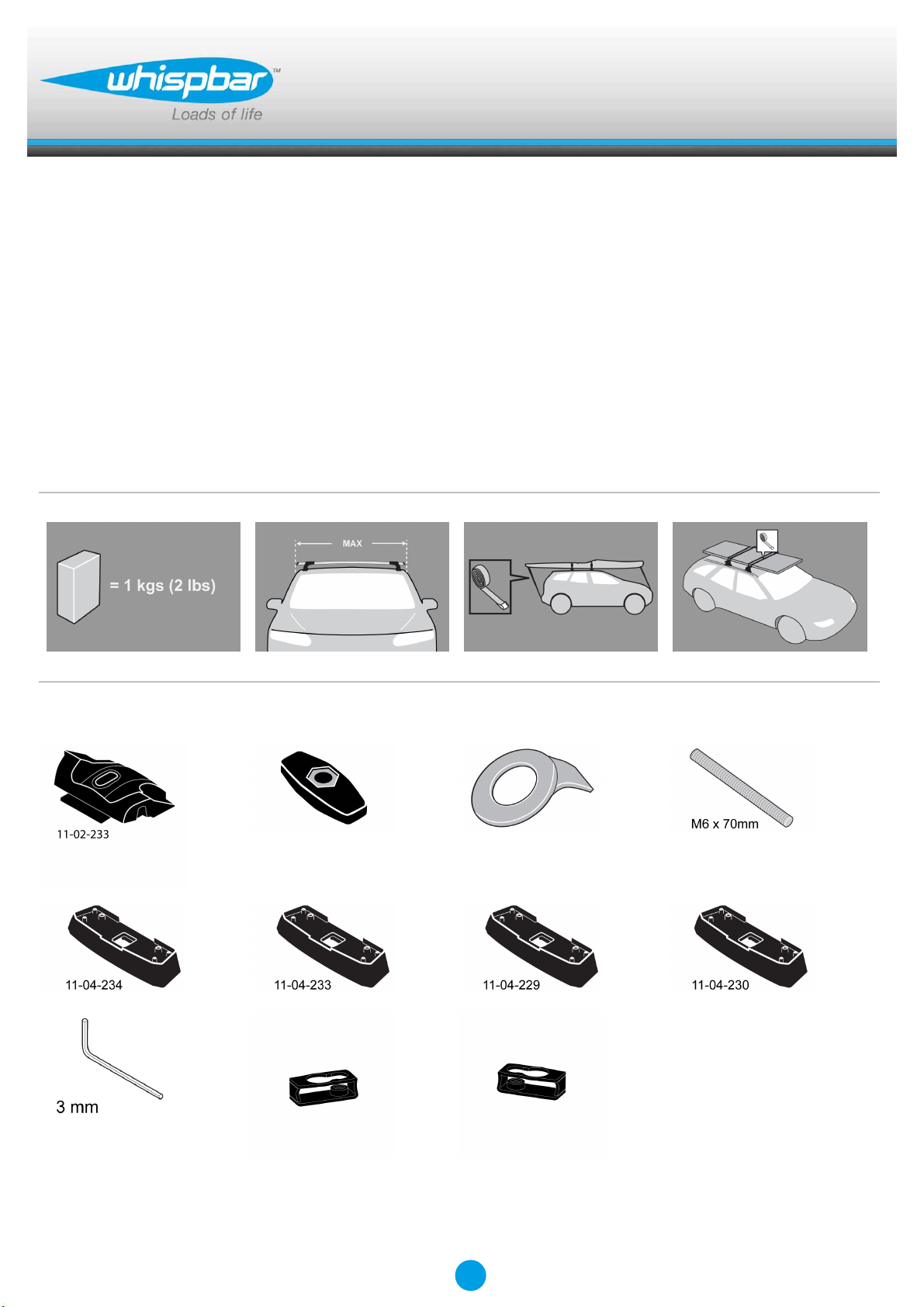

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 1 x 1 x 1 x 1

x 1 x 2 x 2

Revision No: 3C 1

Fitting Kit K807W

MAX kgs (lbs)

W/P WHD

Citroen

C3, 5dr Hatch 09-16 EU 70 kgs (154 lbs) 70 kgs (154 lbs)

C3, 5dr Hatch 10-+ NZ 70 kgs (154 lbs) 70 kgs (154 lbs)

C3, 5dr Hatch 10-+ AU 70 kgs (154 lbs) 70 kgs (154 lbs)

C3, 5dr Hatch 10-+ ZA 70 kgs (154 lbs) 70 kgs (154 lbs)

Fitting Kit K807W

A B C 1 2 3

C3, 5dr Hatch 09-16 (EU) -305mm 370mm - 790mm 705mm -

-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -

C3, 5dr Hatch 10-+ (NZ) -305mm 370mm - 790mm 705mm -

-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -

C3, 5dr Hatch 10-+ (AU) -305mm 370mm - 790mm 705mm -

-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -

C3, 5dr Hatch 10-+ (ZA) -305mm 370mm - 790mm 705mm -

-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -

Fitting Kit EN

K807W

Important

●Only suitable for models with Trap Door

option on roof strip

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Fitting Kit EN

K807W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K807W

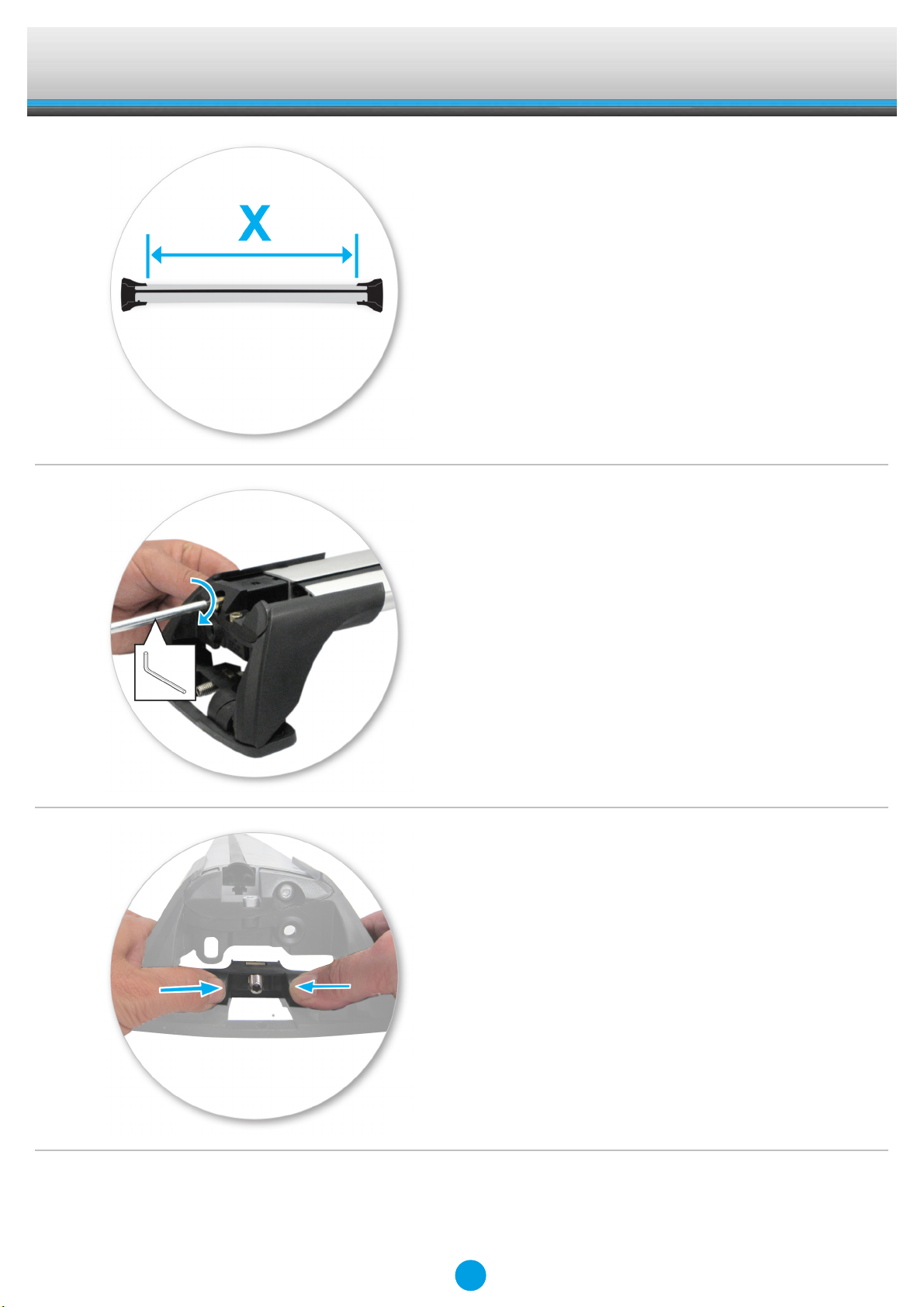

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K807W

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-229

B = 11-04-230

C = 11-04-233

D = 11-04-234

Fitting Kit EN

K807W

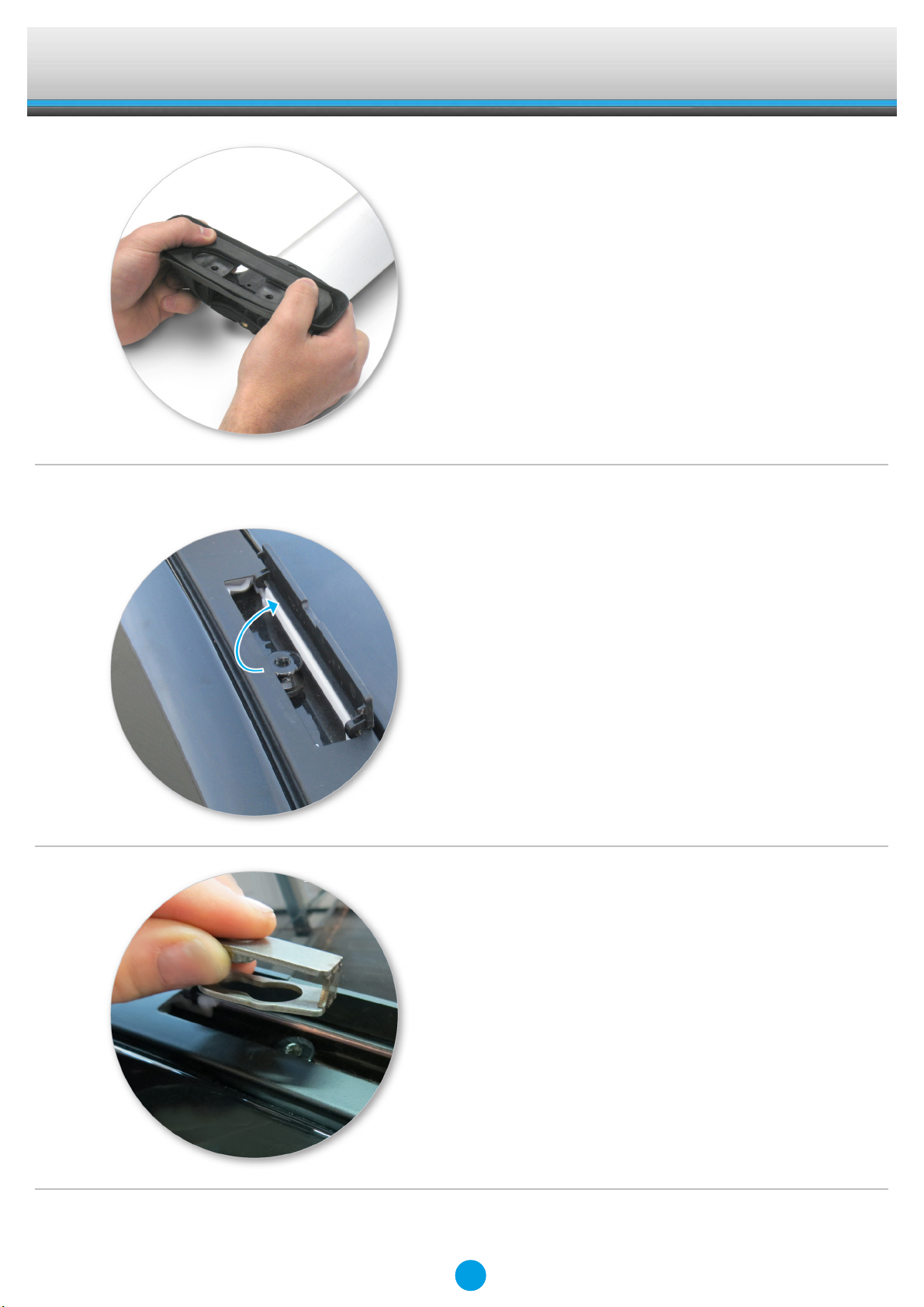

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Open or remove fixed-point covers.

●Place mounting block into position as

shown.

●Right = A539

Left = A393

Fitting Kit EN

K807W

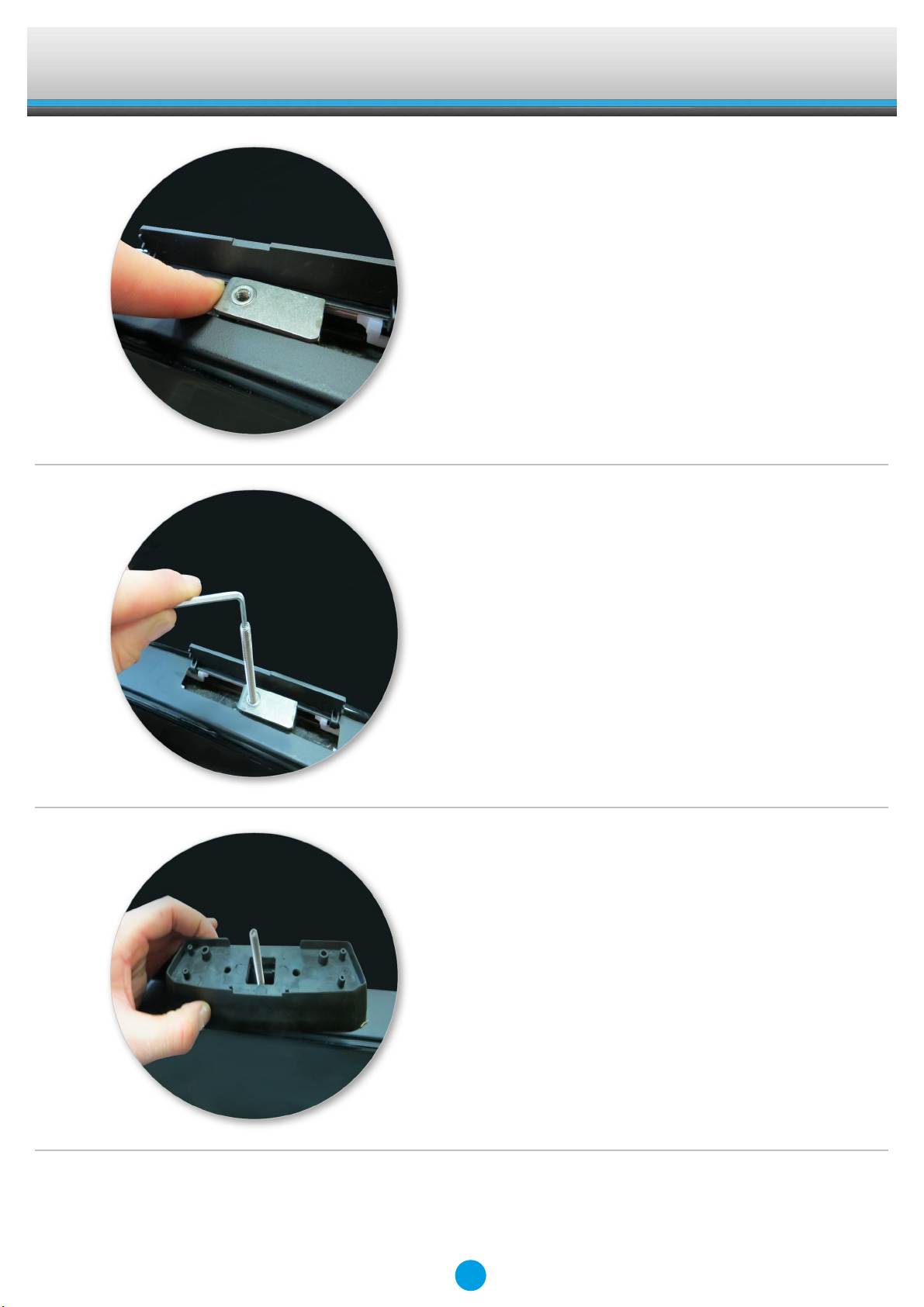

●Slide mounting block to front, so the thread

is above mounting point.

●Insert grubscrew and tighten (make sure

that the grubscrew is above the mounting

point) .

●Place pad over grubscrew.

Fitting Kit EN

K807W

●Mount crossbars over clamps.

●Ensure the pads are in the correct position

and the clamp threads pass through the

crossbar feet.

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.
