Yakima FoldClick 2 Bedienungsanleitung

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 1/16

FoldClick 2

16.3 kg

FoldClick 3

19.0 kg

50 kg 33.7 kg 31.0 kg

60 kg 43.7 kg 41.0 kg

70 kg 53.7 kg 51.0 kg

80 kg 63.7 kg 61.0 kg

Max

FoldClick

MAX 2100 mm

MAX 100 mm (4”)

MAX 30 kg MAX 58 kg

FoldClick 2

FoldClick 3

< 1.8 m

50 mm

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 2/16

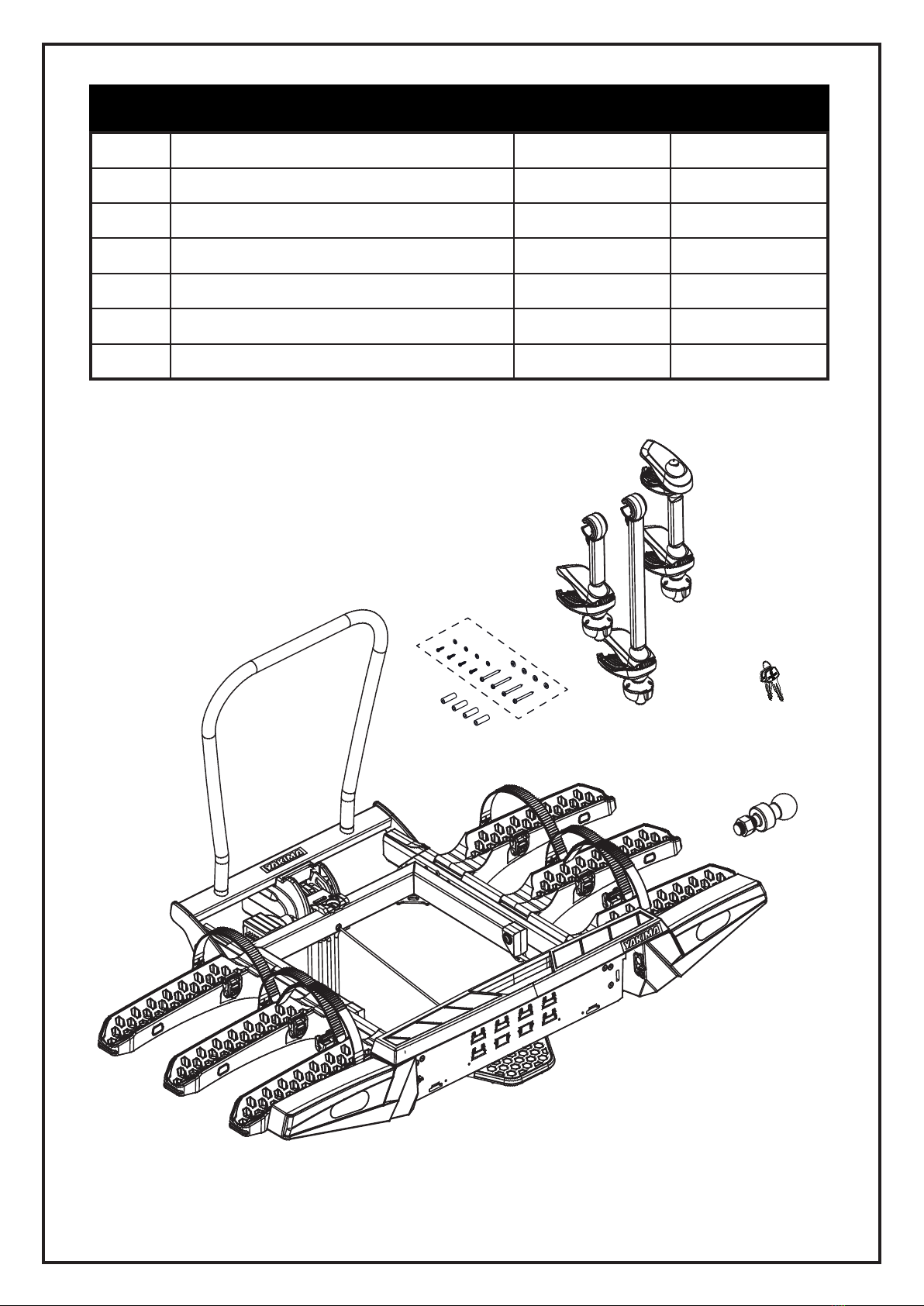

ITEM COMPONENT FOLDCLICK 2FOLDCLICK 3

1. FoldClick Bike Assembly x1 x1

2. Bike Frame Grabs x2 x3

3. Tow Ball 50 mm x1 x1

4. Number Plate Fasteners x16 x16

5. Number Plate Spacer x4 x4

6. Bike Carrier Key Set x1 x1

KIT CONTENTS

NOTE - FoldClick 3 pictured for illustrative purposes

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 3/16

COMPATIBLE TOW BALLS

INCOMPATIBLE TOW BALLS

Ensure you have

removed the tow

ball cover

Ensure you

have removed

any Shin

Guards

+50 MM ≥

Height from base to center of ball to be 50 mm+

75 MM >

AND

75 MM ≤

Tongue width less than 75 mm

65 MM ≥

Height from base to center of ball to be 65 mm+

Distance from center of ball to end of lat

base to be 70 mm+

70 MM ≥

TROUBLESHOOTING

Duo and Multi Ball

tow balls

Quick change style tow balls Tow balls with welded supports

or tabs often interfere with the

plastic covers on the carrier.

Tongue width greater than 75 mm

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 4/16

RED

GREEN

Click!

1. 2.

VERTICAL

INSTALLATION

1INSTALL SUPPLIED TOW BALL

Install supplied Tow Ball

to your hitch receiver.

Tighten to 200 Nm.

PLACE FOLDER CARRIER

ONTO TOW BALL

Ensure the carrier remains folded

when placing on tow ball.

UNFOLD

CARRIER

Once the carrier

is vertically

positioned on

the tow ball as

pictured, unfold

the carrier

until a “click”

is heard.

NOTE - Ensure

the lock is in

the unlock

position and

the indicator

window is

completely

green.

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 5/16

2. 3.

Click!

Number Plate Spacers must be used

to comply with local regulations.

UNFOLD LIGHTS AND WHEEL TRAYS

Unfold lights and wheel trays until a “click” is heard.

ATTACH NUMBER PLATE

Using the supplied Number Plate Spacers and Fasteners,

secure your number plate to the carrier.

NOTE - Press levers to unfold lights

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 6/16

7 Pin Plug

12 V 24 V

TILT CARRIER

Using one foot on the carrier pedal while holding onto the carrier

hoop, press to tilt carrier to gain access to the light plug.

CONNECT LIGHT PLUG

Connect carrier light plug to

your hitch power supply.

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 7/16

Click!

REPOSITION CARRIER

Holding onto the carrier hoop, return the carrier to its

horizontal position until a “click” is heard.

LOCK CARRIER

Lock the carrier to tow ball using the keys provided.

Use caution when opening

and closing tailgate.

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 8/16

MIN 22 mm

MAX 80 mm

ATTACH FRAME GRABS

Press knob of Frame Grabs to expand frame holders (1) and attach to

carrier hoop (2).

Attach frame clamp to your bike frame and rotate knob clockwise to secure (3).

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 9/16

1. 2. 3.

FoldClick 2

FoldClick 3

MULTI BIKE CONFIGURATION

Load heaviest bikes irst and lock bikes to carrier.

SECURE BIKE WITH WHEEL STRAPS

Secure bikes to carrier using the wheel straps and buckles.

6100009518_8002495_8002496_ 9802406_ 9802407-Rev2.0 10/16

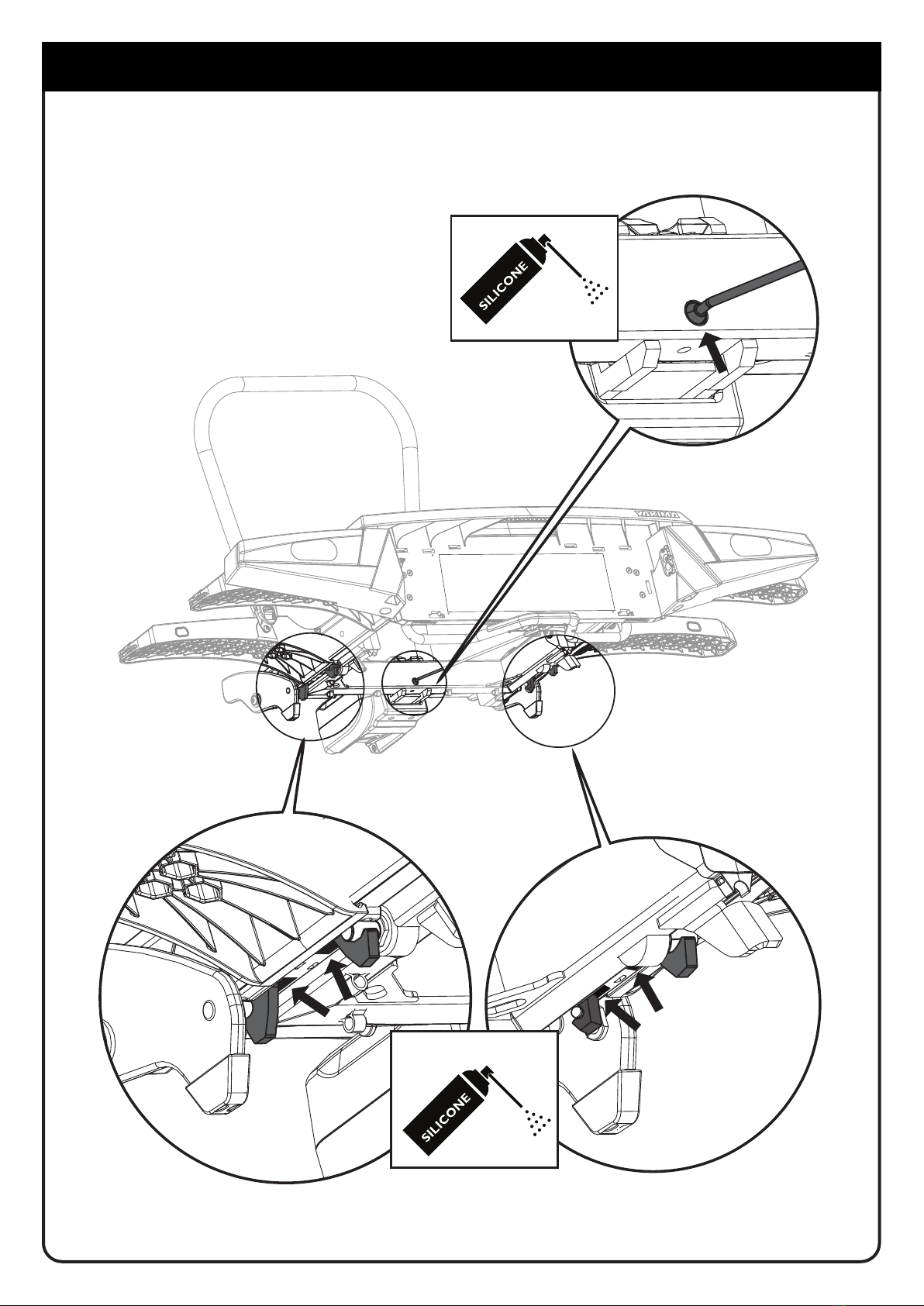

Recommended maintenance to be performed at least every 12 months.

MAINTENANCE
