Yakima HighRoller Bedienungsanleitung
HigHRolleR
SNAP AROUND
3X
BASEPLATE BOLTS
(SHORTER)
2X
HEX KEY
1X
WHEELTRAY BOLT
(LONGER)
1X
WHEEL STRAP
1X
THUMBWHEEL 2X
BASEPLATE COVER
2X
Baseplate
Wheel Grip
small hoop
adjuster KnoB
red Button
BiG hoop
SNAP AROUND (3X)
rear Wheel tray
HEX BOLTS 2X
(optional MightyMount attachments)
CROSSBAR SPREADS
• Up to 2 HighRollers: 16” (41cm)
minimum crossbar spread
• More than 2 HighRollers: 18” (46cm)
minimum crossbar spread
• Maximum crossbar spread is 46”
(117cm)
+
1033349G-2/21
+
HATCH INTERFERENCE:
HighRoller can face opposite direction
when there is hatch interference.
Remove the
tabs with
scissors or
pliers.
Loosen the tabs in the
SnapArounds by bending
them repeatedly.
MIGHTYMOUNTS:
• Attach 2 MightyMounts on the rear bar
and 1 on the front bar.
• If your MightyMounts require bar caps,
install them now. Metal bar caps should
be applied to back crossbar (front of bike
mount). Refer to this diagram in place of
your MightyMount instructions.

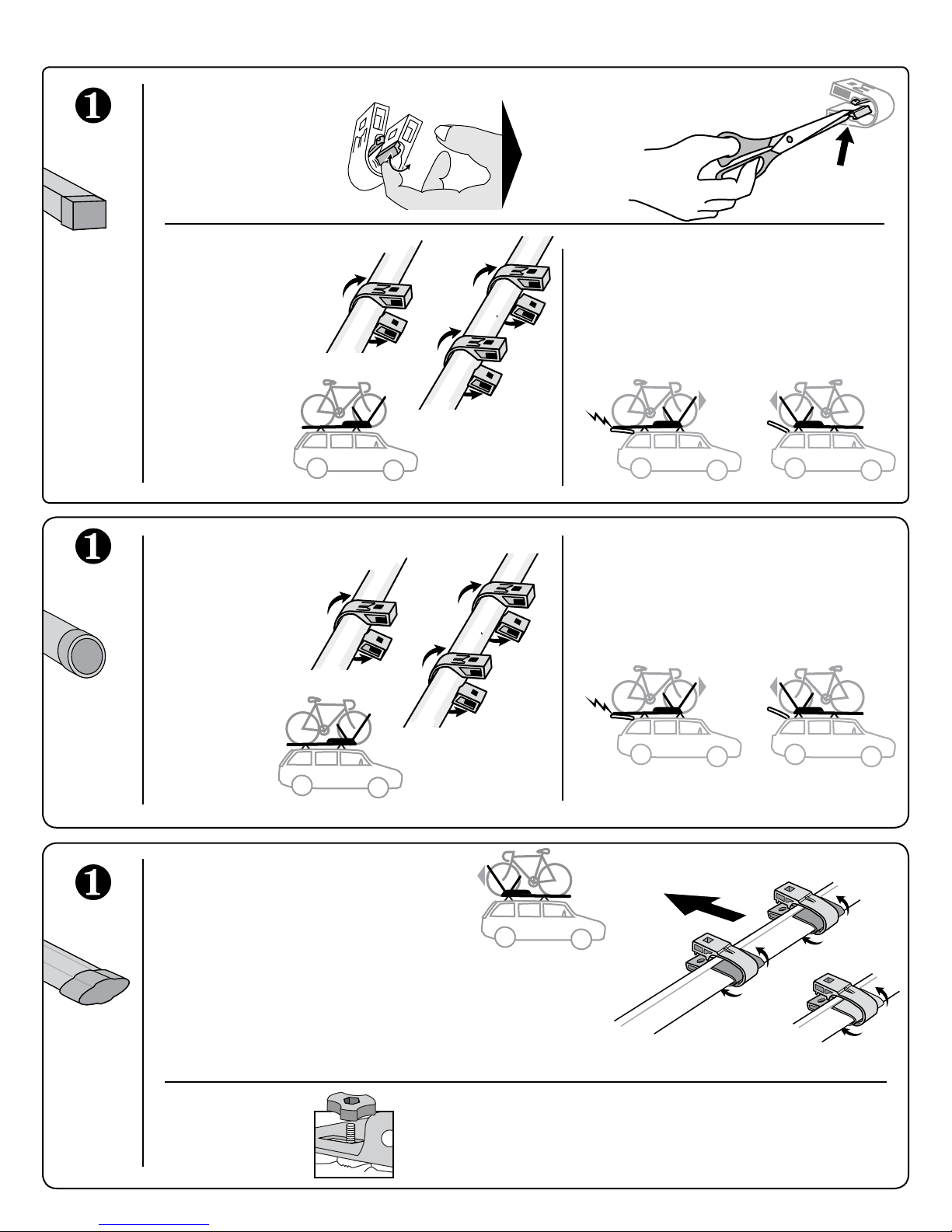

Do you have - square - rounD - or oTher - crossbars?
OTHER
SQUARE
UNIVERSAL
MIGHTYMOUNT
#03590
Follow the Universal MightyMount
instructions and refer to this instruction for
correct installation.
• Attach 1
SnapAround on rear
bar for wheeltray.
• Attach 2
SnapArounds
on front bar for
baseplate.
HATCH INTERFERENCE:
HighRoller can face opposite direction
when there is hatch interference.
ROUND
• Attach 1
SnapAround on rear
bar for wheeltray.
• Attach 2
SnapArounds
on front bar for
baseplate.
MightyMounts purchased separately
(refer to the YAKIMA Fit List for correct
MightyMounts for your vehicle).
REAR OF VEHICLE
1033349G-3/21
Slide wheeltray bolt into
rear end of wheeltray. SECURE WITH
HEX KEY.
Align bolt to hole...
Position mount anywhere
on crossbars.
Lift both hoops until they stop. Remove baseplate cover. Press sides and lift to expose bolt holes.
If you position the front mount straddling a tower, the
wheel tray can attach to either side of the rear tower.
Insert short
baseplate bolts
through bottom of
SnapArounds into
baseplate.
LOOSELY ATTACH
THUMBWHEELS.
MightyMount users:
• Remove embedded nut
in thumbwheel.
• Push hex bolt into top of
knob until fully seated.
• Insert hexogaonal bolts
through thumbwheels
into baseplate.
•LOOSELY ATTACH
THUMBWHEELS.
MightyMount users:
Remove embedded nut in
MightyMount.
1033349G-4/21
Move big hoop forward.
DO NOT USE MOUNT
WITH WHEELS
UNDER 20" (51cm)
Slide wheel grip until it
aligns to your tire size.
Open wheel grip handle.
The wheel grip
handle must align to
a number before it
will close.
ATTACH WHEEL STRAP
• Insert one end of
strap into slot on far
side of Wheeltray.
• Leave other end free.
Tighten Thumb Wheels. Replace baseplate covers.
(They should snap into place).
Find the tire size of
your front wheel.
Small hoop should lay flat.
Some downhill
tires may require
a higher setting.
While holding small hoop,
press red button.
1033349G-5/21
CLOSE THE STRAP.
Lift bike and place front
wheel in front hoop.
Smaller hoop should
compress against tire. If
wheel moves, tighten more.
Pull the strap through wheel
spokes.
• Insert strap end behind buckle.
•TIGHTEN strap by repeatedly lifting buckle.
• DO NOT OVERTIGHTEN.
CHECK TIRE FOR TIGHT FIT.
Do not let the strap
push against the
valve stem.
CENTER TIRE IN WHEELGRIP.
TIGHTEN
ADJUSTMENT KNOB.
Roll bicycle forward in front tray. Lift small hoop to rest against tire.
Lock your HighRoller
between towers on
crossbar
when not in use.
See your lock
instructions for
installing lock. Loop
cable around frame
and insert silver post
into lock housing.
• If not tight, loosen strap.
• Adjust position of strap and strap
base until strap rests against rim.
• TIGHTEN strap again.
Keep strap centered
on small wheels.
1033349G-6/21
BEFORE DRIVING AWAY:
CHECK THE REAR WHEEL.
Tighten the strap if needed. OFF-ROAD
DRIVING
is not
recommended
and could
result in
damage to
your vehicle
or your bike.
CHECK THE FRONT WHEEL.
If it is loose or it moves, be sure knob
is tight and wheel is centered!
CHECK THE HEX KEY AND THE
OBLONG KNOBS.
If they are loose, tighten them.
If there is
contact, check
wheel setting.
CHECK FRONT WHEEL
ATTACHMENT TO
BICYCLE FORK.
MAKE SURE YOUR
TIRES ARE FILLED
TO RECOMMENDED
PRESSURE FOUND ON
THE TIRE.
DO NOT OVERTIGHTEN
THE STRAP!
To release rear strap,
push tab in buckle.
Roll back and lift bike out.
Lower both hoops when
not in use.
SUPPORT BIKE.
Lay hoop flat.
UNLOAD BIKE: FRONT WHEEL
Loosen
adjustment knob
until small hoop
is loosened.
SUPPORT SMALL HOOP.
Press red button.
Small hoop
will lower.
WARNING
BE SURE ALL HARDWARE
IS SECURED ACCORDING
TO INSTRUCTIONS.
ATTACHMENT
HARDWARE CAN LOOSEN
OVER TIME. CHECK
BEFORE EACH USE, AND
TIGHTEN IF NECESSARY.
• There must be adequate clearance for
installing accessory locks.
• If the accessory lock housing comes
in contact with the vehicle, even after
loading the rack, do not install them.
YAKIMA ACCESSORY LOCKS
CAN LOCK THE MOUNTS TO
THE RACKS
(lock housings purchased
separately)
REAR HATCH
Some longer loads may
prevent the rear hatch
from fully opening.
ALWAYS USE
CAUTION WHEN
OPENING YOUR HATCH.
DO NOT TRANSPORT BICYCLES WITH
ATTACHED BABY SEATS, PANNIERS, WHEEL
COVERS, FULL BIKE COVERS OR MOTORS.
WEIGHT LIMITS
Follow the YAKIMA Fit List or your owner’s manual for
your rack’s weight limit. Do not exceed the factory
weight limit of your vehicle’s racks.
Maximum rack’s weight is 165 lbs. (75 kg) unless otherwise noted.
IF YOU REMOVE YOUR CARRIER, FOLLOW
INSTRUCTIONS TO INSTALL.
Follow safety checks in accessory
instructions before every installation.
BIKE WEIGHT LIMIT:
MaxIMuM bIKe WeIghT Is 50 Lbs. (23 Kg).
