Yakima GEAR BOXES Bedienungsanleitung

1033524A-1/15

RocketBox 15s.........................35 lbs. / 15 kg

RocketBox 11...........................35 lbs. / 15 kg

RocketBox 16...........................42 lbs. / 19 kg

GEAR BOXES

RocketBox 16

RocketBox 11

RocketBox 15s

Part #1033524 Rev.A

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL

YAKIMA RACKS AND

ACCESSORIES BE PROPERLY

AND SECURELY ATTACHED

TO YOUR VEHICLE. IMPROPER

ATTACHMENT COULD RESULT

IN AN AUTOMOBILE ACCIDENT,

AND COULD CAUSE SERIOUS

BODILY INJURY OR DEATH TO

YOU OR TO OTHERS. YOU ARE

RESPONSIBLE FOR SECURING

THE RACKS AND ACCESSORIES

TO YOUR CAR, CHECKING

THE ATTACHMENTS PRIOR

TO USE, AND PERIODICALLY

INSPECTING THE PRODUCTS

FOR ADJUSTMENT, WEAR, AND

DAMAGE. THEREFORE, YOU

MUST READ AND UNDERSTAND

ALL OF THE INSTRUCTIONS AND

CAUTIONS SUPPLIED WITH

YOUR YAKIMA PRODUCT PRIOR

TO INSTALLATION OR USE. IF

YOU DO NOT UNDERSTAND ALL

OF THE INSTRUCTIONS AND

CAUTIONS, OR IF YOU HAVE

NO MECHANICAL EXPERIENCE

AND ARE NOT THOROUGHLY

FAMILIAR WITH THE

INSTALLATION PROCEDURES,

YOU SHOULD HAVE THE

PRODUCT INSTALLED BY A

PROFESSIONAL INSTALLER

SUCH AS A QUALIFIED GARAGE

OR AUTO BODY SHOP.

NO PRE-ASSEMBLY REQUIRED

MAXIMUM LOAD LIMITS:

box contents

DO NOT EXCEED

YOUR RACK’S

WEIGHT LIMIT!

Check with your Yakima

dealer or on the internet,

go to “Choose my Rack”

at YAKIMA.com, for your

vehicle’s load limits.

box weight rack weight

(if appropriate)

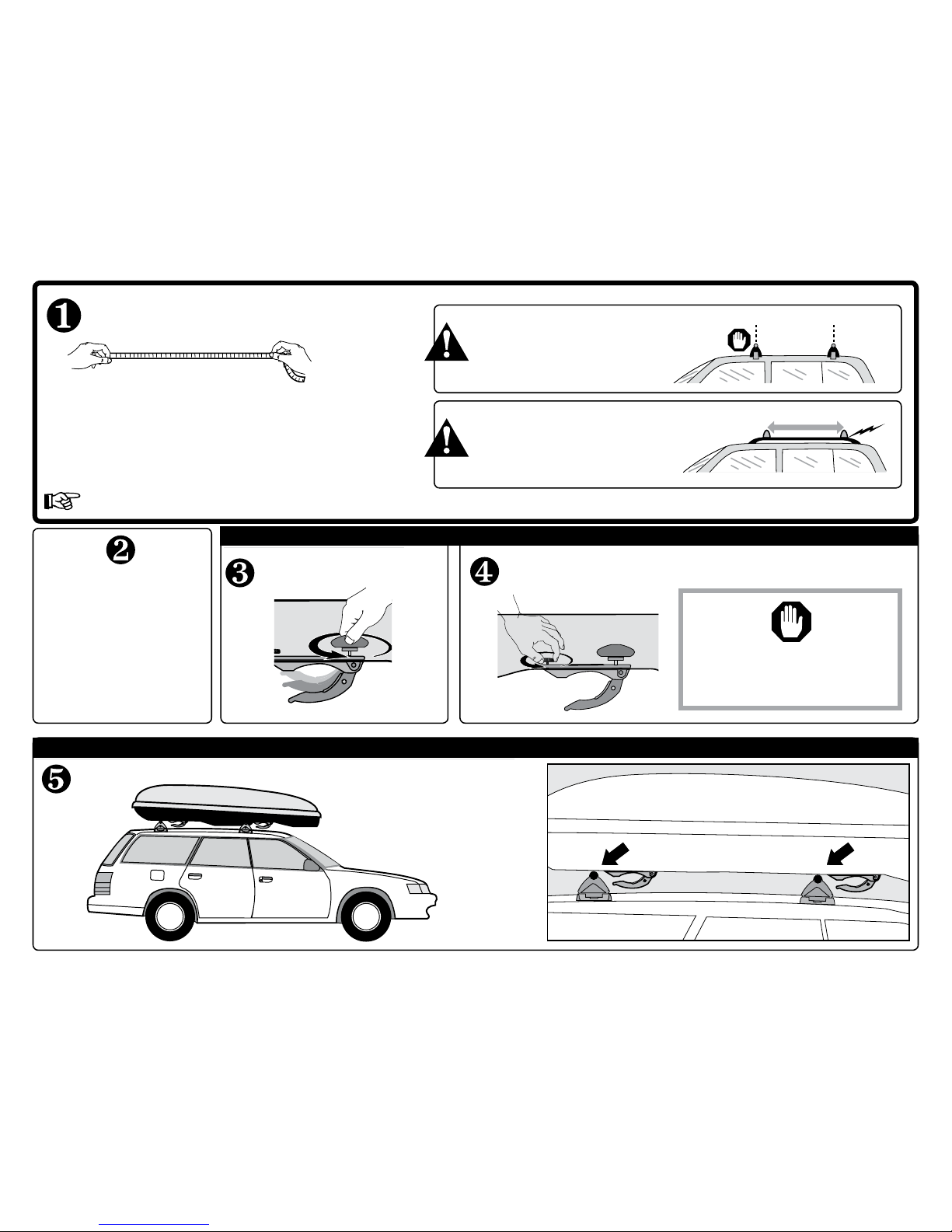

1033524A-2/15

Loosen red knobs and open

clamps. Do not remove knobs.

Place box on vehicle with

clamps in front of crossbars.

A friend could help with this.

Loosen track thumb wheels 1/2

turn. Do not remove wheels.

REMOVING THUMBWHEELS

WILL CAUSE DISASSEMBLY OF

LEVER/CLAMP MECHANISM.

OPEN THE BOX

(Use the key to

unlock the box).

• TO OPEN THE BOX, unlock it.

• With the key still inserted,

raise the lid.

The key cannot be removed

while the box is open.

BARS THAT MOVE:

TIGHTEN YOUR CROSSBARS IF

YOU LOOSENED THEM.

If your vehicle has a fairing, remove the fairing prior to box installation.

Q TOWERS:

NEVER REPOSITION

THE TOWERS!

CROSSBAR SPREAD

RocketBox 16 ....................30" - 36" (76 - 91 cm)

RocketBox 11.....................30" - 36" (76 - 91 cm)

RocketBox 15s ..................24" - 36" (61 - 91 cm)

INSIDE THE BOX:

LOAD CARGO BOX ONTO VEHICLE:

1033524A-3/15

Adjust box on top of car.

Measure from towers for reference.

IF POSSIBLE, POSITION BOX TO

AVOID INTERFERENCE WITH BACK

HATCH AND/OR SUNROOF.

OPEN LID TO GAIN ACCESS TO KNOBS.

Tighten knobs to

engage clamps. TIGHTEN ALL

THUMB WHEELS.

• Check clamp opening for crossbar clearance.

• Loosen red knob further if necessary.

Slide clamps along tracks

(inside box) to engage crossbars.

1033524A-4/15

180°

• The box should not slide

on the bars.

• Open the box and tighten

red knobs if necessary.

CHECK INSTALLATION BEFORE DRIVING AWAY

CLOSE THE BOX:

Pull the lid down.

LOCK THE BOX FOR A

SECURE CLOSURE!

UNLOCK / OPEN LOCK NOT LOCKED! *

TO OPEN THE BOX, unlock it. With the key still inserted, raise

the lid. The key cannot be removed while the box is open.

• Overstufﬁng the box

will prevent closure.

• Check the closure by

pushing up on the lid.

• To lock the box, turn

key all the way to the

right until horizontal.

Remove key. * See 11a below.

• Push the core completely into the housing.

• Turn the key to a horizontal position.

• Hold the core with the tip of your thumb

and pull out control key. The lock should

remain in the housing.

REPLACEMENT LOCK FOR SAME-KEY-SYSTEM® USERS:

Yakima SKS® locks purchased separately. (If you wish to install matched-key locks; keep this instruction for replacement lock installation).

• Insert lock key and rotate the lock to

align lock depression with point on rim.

• REMOVE lock key.

• Insert control key (from kit purchased

separately).

Remove key

with lock

attached.

Insert control key into the

new lock, and install.

Keep the depression

aligned to the point.

Make sure

installation is secure

by tugging at box.

1033524A-5/15

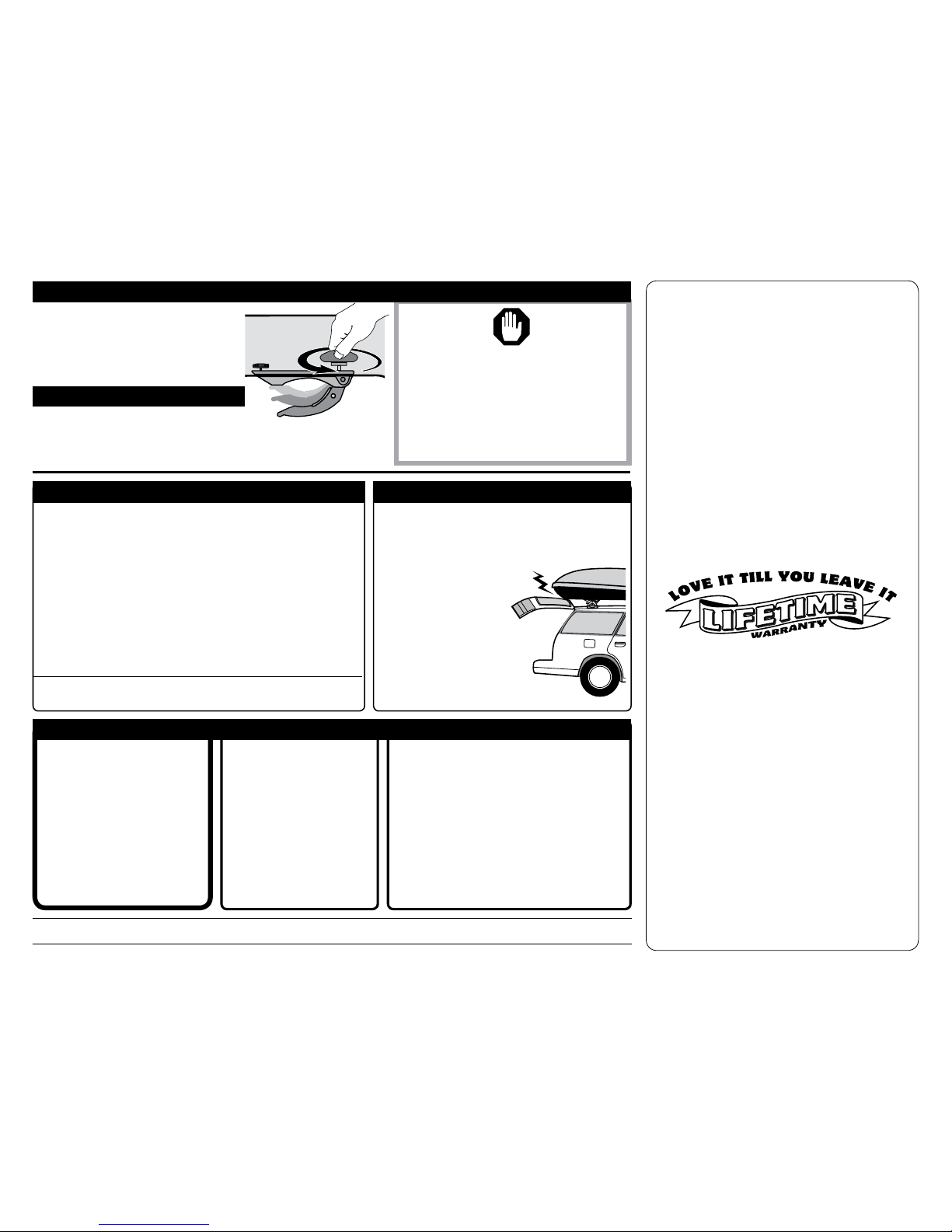

KEEP THESE INSTRUCTIONS

On some vehicles,

hatch interference

is unavoidable.

Use caution when

opening your hatch.

IF YOUR VEHICLE

HAS A REAR HATCH:

BE SURE ALL HARDWARE IS

SECURED ACCORDING TO

INSTRUCTIONS. FAILURE TO

PERFORM SAFETY CHECKS

BEFORE DRIVING AWAY

CAN RESULT IN PROPERTY

DAMAGE, PERSONAL INJURY,

OR DEATH.

ATTACHMENT

HARDWARE CAN

LOOSEN OVER TIME.

CHECK AND TIGHTEN

IF NECESSARY,

BEFORE EACH USE.

Periodically

check the knobs

inside the box

and tighten if

necessary.

• Do not remove or adjust thumb

wheels.

• Simply loosen red knobs and

remove box from crossbars. To retain the adjustments for

your vehicle, leave thumb

wheels tightened.

REMOVING THUMBWHEELS

WILL CAUSE DISASSEMBLY OF

LEVER/CLAMP MECHANISM.

BOX CARE:

Use a clean soft cloth. Wash with mild soap and water.

Polish with automotive type wax and UV protectant to

prevent color fade.

LOCK MAINTENANCE:

Spray a small amount of lubricant into lock mechanism

once a month.

AUTOMATIC CAR WASHES:

Do not enter car wash with box installed on vehicle.

KEEP YOUR SECOND KEY IN A SAFE PLACE!

CARE AND MAINTENANCE CAUTION

TO REMOVE CARGO BOX:

READ THESE WARNINGS!

IF YOU NEED FURTHER

TECHNICAL ASSISTANCE

OR REPLACEMENT PARTS

Contact your dealer, or visit

www.yakima.com, or call

(888)925-4621

Monday through Friday,

7:00 AM to 5:00 PM, PST

THIS PRODUCT IS COVERED

BY YAKIMA’S

“LOVE IT TILL YOU LEAVE IT”

LIMITED LIFETIME WARRANTY

TO OBTAIN A COPY OF THIS WARRANTY, GO

ONLINE TO

WWW.YAKIMA.COM OR EMAIL US AT

YAKWARRANTY@YAKIMA.COM

OR CALL (888) 925-4621

• With gear box adjusted to your vehicle,

simply reload onto car, tighten red

knobs and check for tightness.

TO REINSTALL:
