Zagg pro keys Einrichtungshandbuch
Online Manual
pro keys (2020)
1
Warranty Registration
Your ZAGG Pro Keys wireless keyboard and detachable case
comes with a one-year manufacturer’s warranty. In order to
activate the warranty, you must register your Pro Keys as well
as keep your purchase receipt. If you purchased your Pro
Keys from ZAGG.com, ZAGG has already registered it and
has a copy of your proof of purchase.
Need more help? Please see our FAQ section at: www.zagg.
com/faq
See the important Health and Safety information on page 12 before
using this product.
2
INSERTING YOUR DEVICE
1
2
fn ctrl
1. Holding your device in landscape mode with the volume
control buttons facing up, press the top half of your device
into the case and apply light pressure to snap it snuggly into
place.
2. Press the bottom half of your device into the case and check
each corner to make sure your device is seated properly.
3
1
2
fn ctrl
3. Once your device has been inserted into the case, attach the
case to the keyboard by setting the case in one of the two
cradles on the keyboard (above the keys).
4. Place the top of the magnetized, foldable back flap against
the top of the back of the case. You’ll feel it magnetically snap
into place. This should create a triangular stand at the base of
the flap that props up your tablet in the case.
5. To detach the case from the keyboard, simply pull the
magnetized back flap away from the case.
6. To remove your device from the case, hold on to the top lip of
the case and press against the back of the case. Then, grasp
the exposed side of your device and lift/pull it away from the
cover.
4
1. To detach the case from the keyboard, simply pull the
magnetized back flap away from the case.
2. To remove your device from the case, hold on to the top lip
of the case and press against the back of the case. Then,
grasp the exposed side of your device and lift/pull it away
from the cover.
REMOVING YOUR DEVICE
1
2
fn ctrl
5
1. To turn your Pro Keys on, press the Power button located
at the top right corner of the keyboard. A green LED will
light briefly.
2. To turn your Pro Keys o, press and hold the Power button
for three seconds. A red LED will flash indicating it has
turned o.
POWERING ON AND OFF
1
2
fn ctrl
6
PAIRING YOUR PRO KEYS
Your Pro Keys keyboard can pair with up to two devices at once.
Pairing your Pro Keys is easy. Just follow these instructions.
1
2
fn ctrl
1. Ensure your device’s Bluetooth® is on.
2. Press and hold Pro Key’s Bluetooth 1 or 2 keys for three
seconds. A blue LED on the Power button will begin pulsing,
indicating your Pro Keys is in pairing mode.
3. Your device will display “ZAGG Pro Keys” as an available
pairing option. Select it and complete any other pairing steps
based on your device.
4. To pair your Pro Keys to another device, repeat steps 2 and 3.
To toggle between devices, simple press 1 or 2.
5. Once paired, the Blue LED on the power button will stop
pulsing and fade to o. Once begun, if the Pro Keys doesn’t
complete pairing after 60 seconds, it will abort the process. If
this happens, repeat steps 2 and 3.
7
1. To activate your device’s keyboard once disconnected, press
the Keyboard Hide/Show button.
2. Turn o the Bluetooth® connection from your device.
3. Turn your Pro Keys keyboard o.
Removing the the tablet in the case from the grooves above the keyboard will
disconnect Bluetooth, and the virtual keyboard will appear on the iPad.
DISCONNECTING YOUR KEYBOARD
Your Pro Keys features a case that protects your device even when
it’s not connected to your keyboard. When you’d like to use the
case without the keyboard, there are three ways you can switch to
your onscreen keyboard.
1
2
fn ctrl
8
1. Plug the Type-C connector into the charging port on the
keyboard.
2. Plug the regular USB connector into any 5V USB outlet. A red
LED will light to indicate your keyboard is charging. This LED
will turn o when your keyboard is fully charged.
Normal use is approximately one hour of use per day without the backlit feature.
Using the backlit feature will impact battery life and require more frequent
charging.
CHARGING YOUR KEYBOARD
Your Pro Keys features a case that protects your device even when
it’s not connected to your keyboard. When you’d like to use the
case without the keyboard, there are three ways you can switch to
your onscreen keyboard.
1
2
fn ctrl
9
BATTERY LIFE

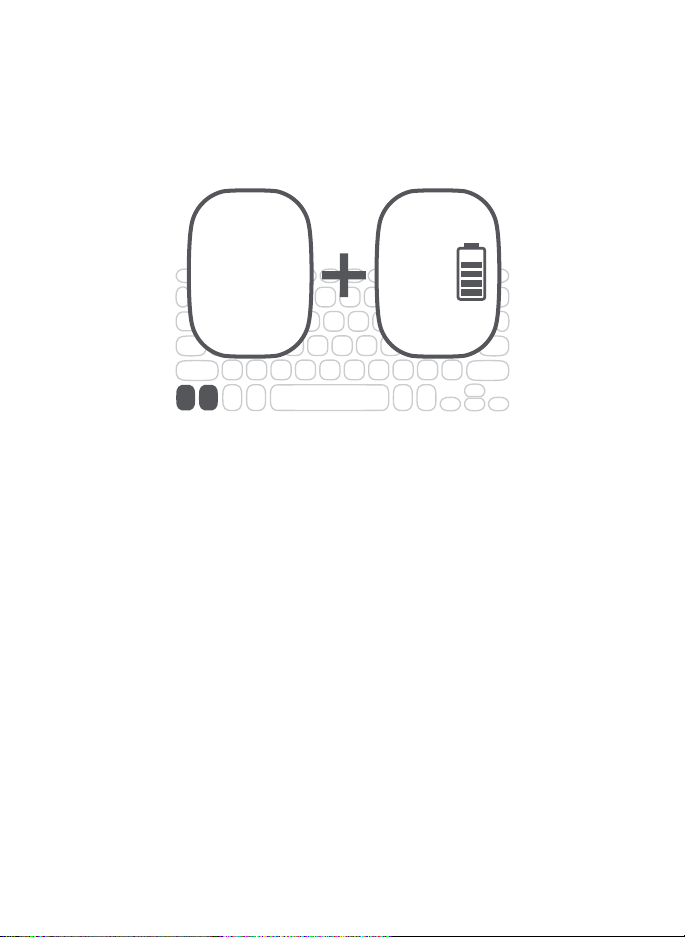

To check your Pro Keys’ battery life, press fn + the battery key. The
LED light will flash one of the following three ways:
• 3 green flashes = 50% or more battery life
• 3 yellow flashes = 25-49% battery life
• 3 red flashes = less than 25% battery life
1
2
fn ctrl
