ZAVIO Outdoor IR Mini Dome
Quick Installation Guide
1
Quick Installation Guide
Please follow the installation steps below to set up your IP Camera.
Check the package contents with the list below. See P.1
Physical overview. See P.2
I/O Terminal Block Circuit. See P.3
I/O Terminal Block Pin Definition. See P.3
LED Indicator Definition. See P.3
Power mode. See P.4
Installation of hardware and connection of all cables. See P.4
Windows: Go to Zavio website and download Camera Installation Tool. See P.7
Access the IP Camera using Camera Installation Tool. See P.8
MAC OS: using Safari Browser. See P.11
Lighting environment. See P.13
Change language of the web interface. See P.13
Application of IP Camera. See P.14
Package Contents
Camera
IP Camera
Quick Installation Guide
Brief product information and quick installation
Accessory
Alignment Sticker, screw pack for wall and
ceiling mounting, desiccant.
Software
The following software and information are available online:
-Video Management Software
-Camera Installation Tool
-User manuals
-Camera Language Packs
You may download the above at http://www.zavio.com/downloads.php or you
may scan the below QR-Code.
To activate Video Management Software, please enter the license key below.
2
Physical overview
Built-in Microphone
Dome bubble
Top cover
Lens
MicroSD/SDHC/SDXC
Reset
Power LED Indicator
Network LED Indicator
External I/O connector
Internal microphone
Light Sensor
IR LEDs
3
I/O Terminal Block Circuit
Note: Please use the supplied waterproof RJ45 connector and seal all connectors tightly to avoid moisture.
I/O Terminal Block Pin Definition
Pin Color
Definition
Description
Max. V/A
R
Red
+ 12VDC
12V DC
1.2W
B
Black
Digital
Output 1
Uses an NPN transistor with the emitter connected to the
GND pin. If used with an external relay, a diode must be
connected in parallel with the load for protection against
voltage transients.
100 mA
24V
Y+B
Yellow+Black
Audio
Line In
Connect the wires of the audio input device to GND (Pin 4)
and AUDIO.IN (Pin 1).
-
W+B
White+Black
Audio
Line Out
Connect the wires of the audio output device to GND (Pin 4)
and AUDIO.OUT (Pin 2).
-
G+B
Grey+Black
Digital
Input 1
Connected to GND to activate, or leave floating
(or unconnected) to deactivate.
30V DC
Brown+B
Brown+Black
Ground
-
LED Indicator
LED
Color
Indication
Network
Blue
Solid blue when network is established.
Blink blue when there is network activity.
4
Power
Red
Solid red for booting up process
Blue
Solid blue for booting up completion
Purple
Blink purple during: (a) firmware upgrade, (b) reset
button pressed for at least 5 sec to factory default.
Unlit
When reset button is pressed or when power off.
Power Mode
PoE Mode
Power Requirement
PoE (IEEE802.3af) with Class 3
Power Consumption
4.95 W
Adaptor Mode
Power Requirement
12V/1A Adaptor
Power Consumption
5.0 W
Install the hardware and connect all cables
A. RJ45 waterproof connector
1) Make sure all components are assembled as shown on the below graph.
2) Check that the ethernet port and the waterproof main body are tightly fasten.
3) Please use the supplied waterproof RJ45 connector and seal all connectors
tightly to avoid moisture.
B. Wall and ceiling mounting
1) Attach the alignment sticker to the wall/ceiling. Drill two holes into the wall -
two for screws and one for cable.
2) Align the screw holes on the metal base to the two plastic anchors on the
wall/ceiling, insert the supplied screws to the hole and secure them.
5
6
C. Connect all cables
E1. Without Power over Ethernet (PoE) connection
1. Connect the power adaptor to the IP Camera.
2. Use a standard RJ-45 network cable and connect the IP Camera to a
hub/switch/router.
E2. Power over Ethernet (PoE)
1. Use a standard RJ-45 network cable and connect the IP Camera to a
PoE-enabled hub/switch/router.
D. To adjust the view angle- 3 axis mechanism design
1) Turn the lens module right and left to your desired pan position.
2) Turn the lens module up and down to your desired tilt position.
3) Turn the lens module to adjust the image orientation to satisfied angle.
7
Important:
Make sure the IR LEDs are not blocked by the housing as it will affect the IR performance.
If the image is upside down, please use the image rotate function in Video Setting.

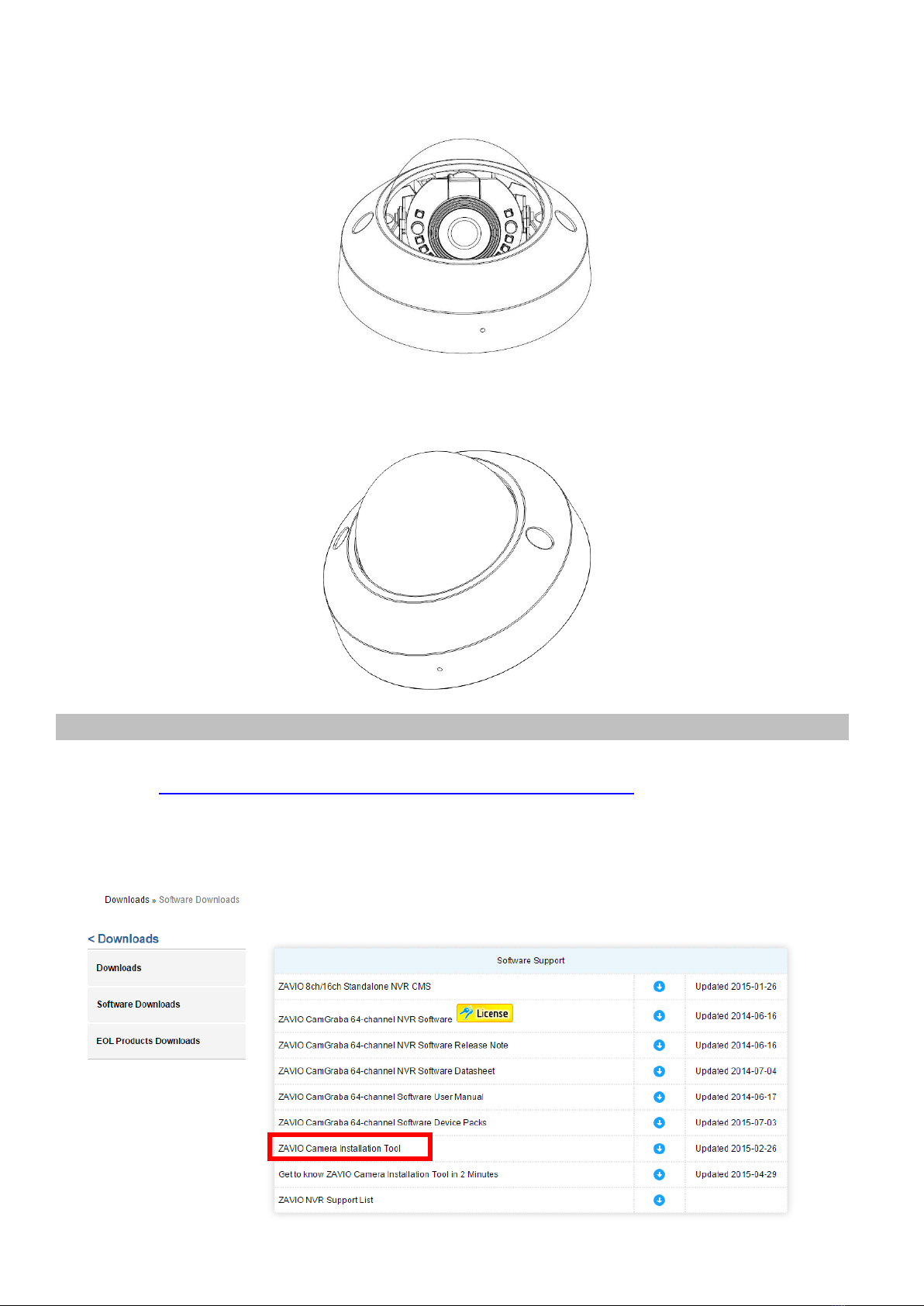

E. Completion
Fix the tamper-proof screws using supplied special hex. Be careful do not scratch
the cover glass. Clean the dome bubble to remove the dust and finger print.
Windows: Go to Zavio Website and download Camera Installation Tool
Please go http://www.zavio.com/softwaredownloads.php download “Camera
Installation Tool”. And follow the installation process to complete the
installation.
8
Access the IP Camera using Camera Installation Tool
1. Please check two settings before using Camera Installation Tool.
a. Browser’s Internet Properties →Security→Default Level
b. Browser’s Internet Properties →Privacy →Uncheck Pop-up Blocker
9
2. Click the Camera Installation Tool Icon on your desktop. The main page will
show up listing all active camera and video server devices. Select the
desired IP cameras from the list and click Link to IE.
3. Enter Username and Password to login to the IP Camera.
(Default is admin / admin)
