Zebex Z-5652 Bedienungsanleitung

2D Image Hands-Free Scanner1

Z-5652

2D Image Scan Module i

USER’S MANUAL

Revision History

Changes to the original manual are listed below:

Version Date Description of Version

1.0 08/19/2016 Initial release

2D Image Scan Module

USER’S MANUAL

Important Notice

No warranty of any kind is made in regard to this material, including, but not limited to, implied

warranties of merchantability or fitness for a particular purpose. We are not liable for any errors

contained herein or incidental or consequential damages in connection with furnishing,

performance or use of this material.

No part of this document may be reproduced, transmitted, stored in a retrieval system, transcribed,

or translated into any language or computer language in any form or by any means electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without express written consent

and authorization.

We reserve the right to make changes in product design without reservation and without

notification. The material in this guide is for information only and is subject to change without

notice.

All trademarks mentioned herein, registered or otherwise, are the properties of their various

respective owners.

Guidance for Printing

This manual is in A5 size. Please double check your printer setting before printing it out.

Adjustments: Do not attempt any adjustments or alteration of this product. Do not remove the

protective housing of the scanner. There are no user-serviceable parts inside.

Optical: The use of optical instruments with this product will increase the eye hazard. Optical

instruments include binoculars, magnifying glasses, and microscopes but do not include normal eye

glasses worn by the user.

CAUTION: Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

For CE-countries

This scanner is in conformity with CE standards. Please note that an approved, CE-marked power

supply unit should be used in order to maintain CE conformance.

2D Image Scan Module iii

USER’S MANUAL

Table of Contents

Introduction .........................................................................................................................1

Unpacking.....................................................................................................................2

Outline .........................................................................................................................3

Installing the Device .....................................................................................................4

Using Mounting Screw .........................................................................................4

Connection...................................................................................................................5

Power Connection................................................................................................5

Scanner Operation ...............................................................................................................7

Setting Up the Scanner.................................................................................................8

Scan Test.......................................................................................................................8

Programming the Scanner ...........................................................................................9

How to Scan in Different Mode..................................................................................10

Presentation Mode ............................................................................................10

Continue Scan Mode..........................................................................................10

Manual Scan.......................................................................................................11

Sleep Mode ................................................................................................................12

Beeper Indication.......................................................................................................13

LED Indication ............................................................................................................13

USB Virtual COM........................................................................................................14

Trouble Shooting ........................................................................................................15

Maintaining the Scanner....................................................................................................16

Cleaning the Scan Window ........................................................................................16

Dimension ..................................................................................................................17

Connector and Pin Out...............................................................................................19

2D Image Scan Module 1

USER’S MANUAL

Introduction

Lighting speed without compromising performance, the scanner features a powerful 2D

engine that easily decodes most 1D and 2D barcodes with intuitive aiming accuracy. It

also excels at reading barcodes on smart phone screens and barcodes that are poorly

printed. It is the perfect solution for medical industry, retail stores, smart phone

applications, and the banking industry.

• High speed and reliable performance on all common 1D and 2D codes

• Captures barcodes on mobile phone, tablet, or computer screens

• Highly flexible design for easy mounting

2D Image Scan Module

USER’S MANUAL

Unpacking

The hands-free scanner package contains:

2D image scan module with selected

interface cable

Power adapter

(only for specific RS-232 cables as

optional accessory)

Quick Guide

Please leave this user’s manual within easy access for persons

using the scanner.

If any contents are damaged or missing, please contact your

dealer immediately.

2D Image Scan Module 3

USER’S MANUAL

Outline

# Description Function

1 Trigger Button Push to scan

2 Speaker Exit For beep tone indication

3 LED Indicator For status indication

4 Scan Window Read barcodes

5 Tripod Socket For mounting the device on camera tripod

6 Mounting holes For mounting the device

2 5

2D Image Scan Module

USER’S MANUAL

Installing the Device

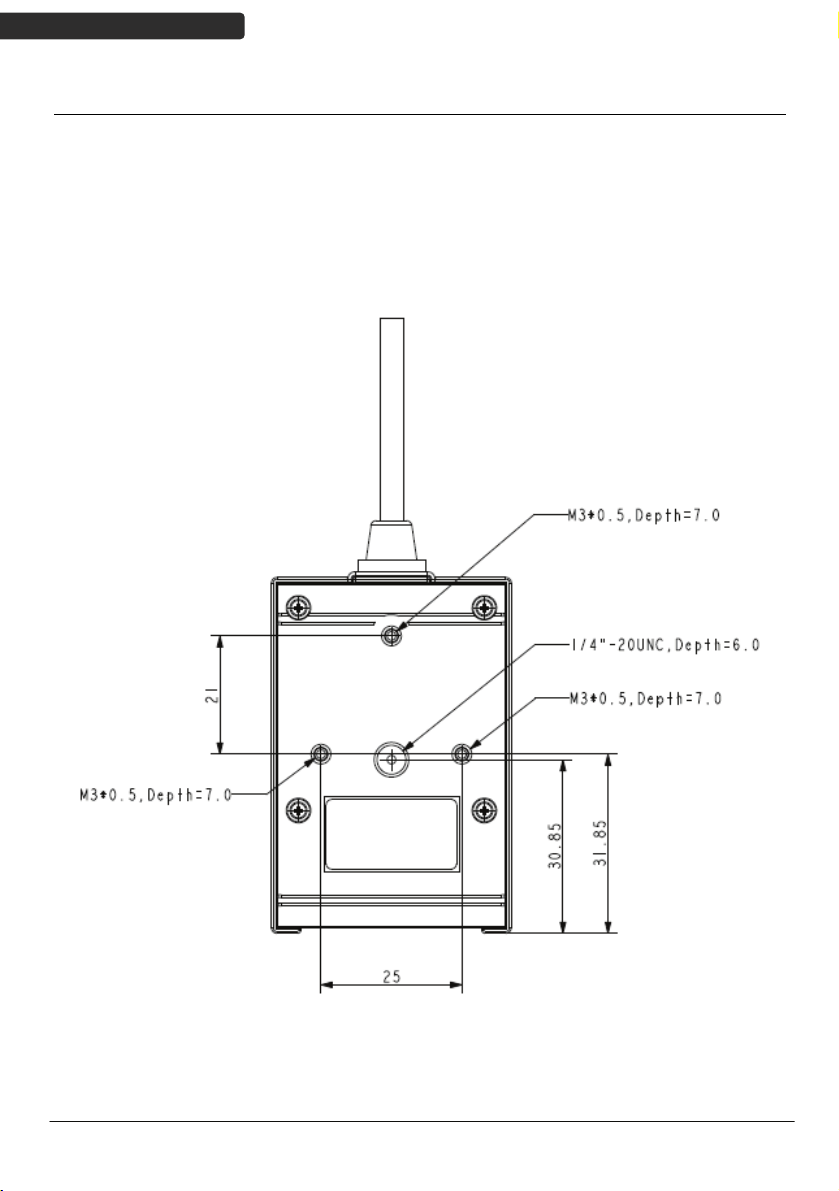

Using Mounting Screw

The device is reserved with 3 mounting holes for permanent fixture if required. Refer to

the figure below for detailed information.

Unit: mm(inch)

Mounting screw holes
