ZKTeco AL30Z Bedienungsanleitung

Installation Guide

AL30Z & AL40Z

Version: 1.1

Note: To ensure proper functioning of the lock, use

the correct set of screw C as per your door thickness.

16.5mm

30mm

35mm

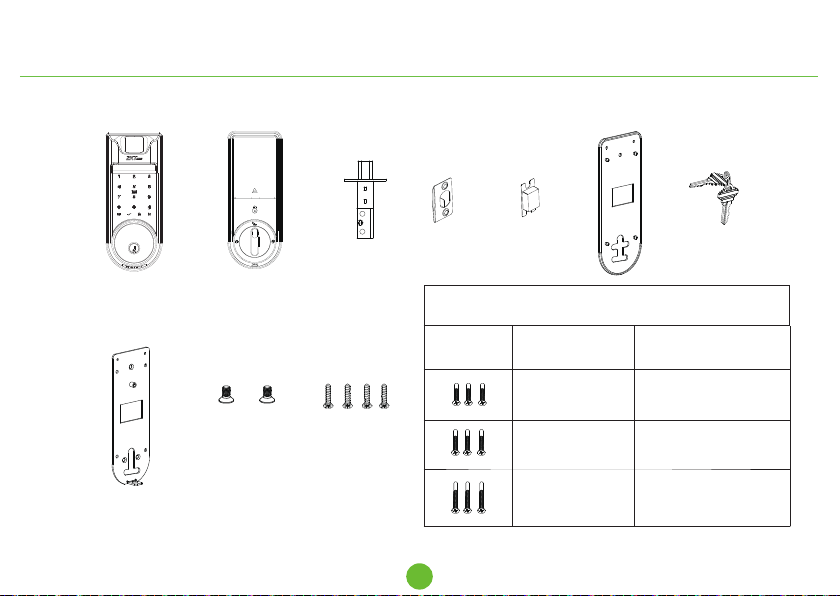

1. What’s In the box

Outdoor unit Indoor unit

Latch

Gasket

Strike

box

Mounting

plate

Screw A Screw B

Keys

Screw C For door thickness

Strike

plate

Screw length

35-40mm

40-50mm

50-53mm

Outdoor unit

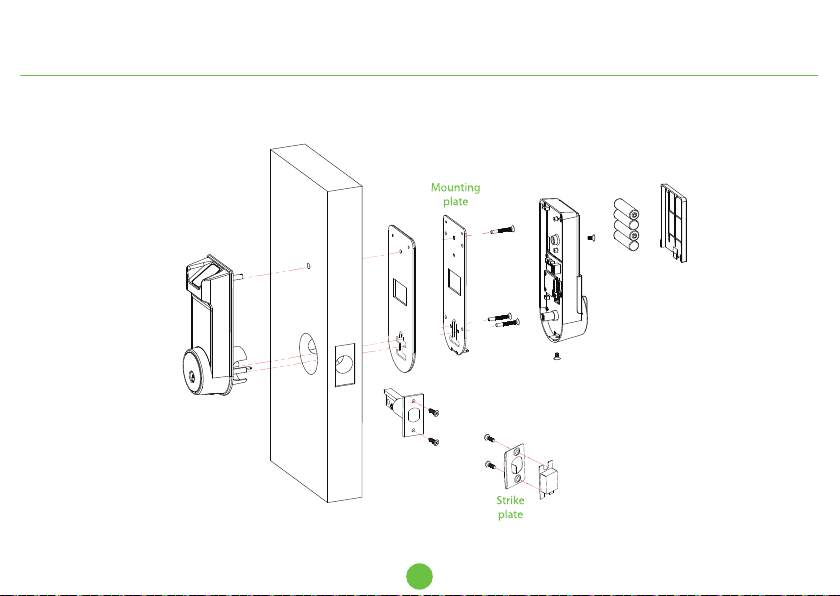

2. Installation Diagram (AL30Z)

Battery cover

Latch

Screw B

Door

Screw C

Gasket

Strike box

AAAlkaline

Screw A

(not included)

Battery

unit

Indoor

Left inward Right inward

Left outward Right outward

Door opening direction recognition.

3. Installation steps

Important notes.

The handle of the door is determined by the swing (handing) direction of the door. Below is the graphical

representation of handing in reference to your location outside the room.

Please read all the in this manual or call customer care before returning the product to the store.

Whenever you install this lock on any door, you must perform the initialization process just after the

installation as described in Initialization step on page 10.

Standpoint

instructions

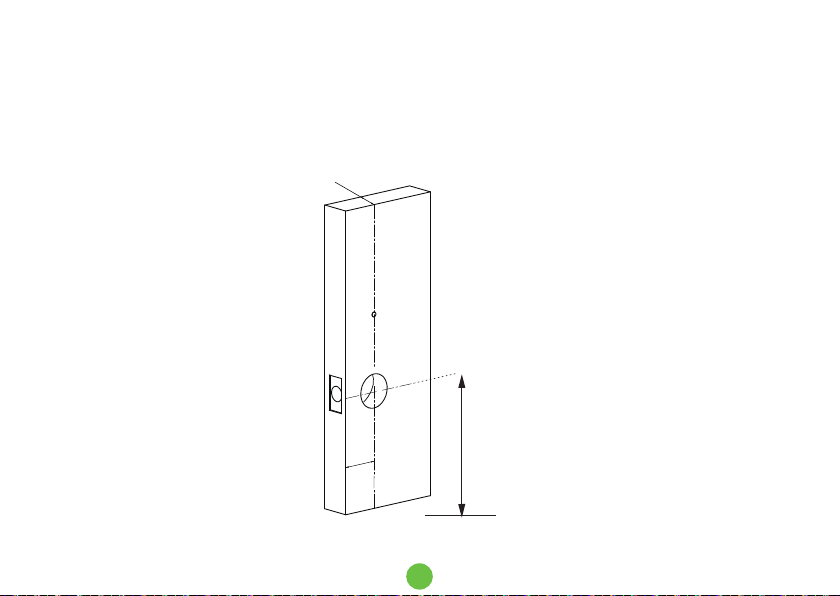

Drilling holes in the door.

1. Paste the installation template at a desired handle height.

2. Mark the holes and start drilling the holes.

Handle center-line

35mm - 53mm

60mm

60mm backset

Press the bolt inside the latch Pull-out the faceplate

70mm backset

Adjust the backset of the lock to 70mm (if needed).

By default, the metal wire runs over the center as shown:

Backset is the distance from the edge of the door to the center of the hole drilled on the door.

The default backset is 60mm, if you want to change the backset to 70mm backset, grasp body and twist

faceplate as shown below:

By default, the metal wire runs over the center as shown:

Rotate the faceplate Rotate it back

Before installing the latch,

make sure the latch bolt is in

extended (Locked) position

and the UP arrow direction is

facing upwards.

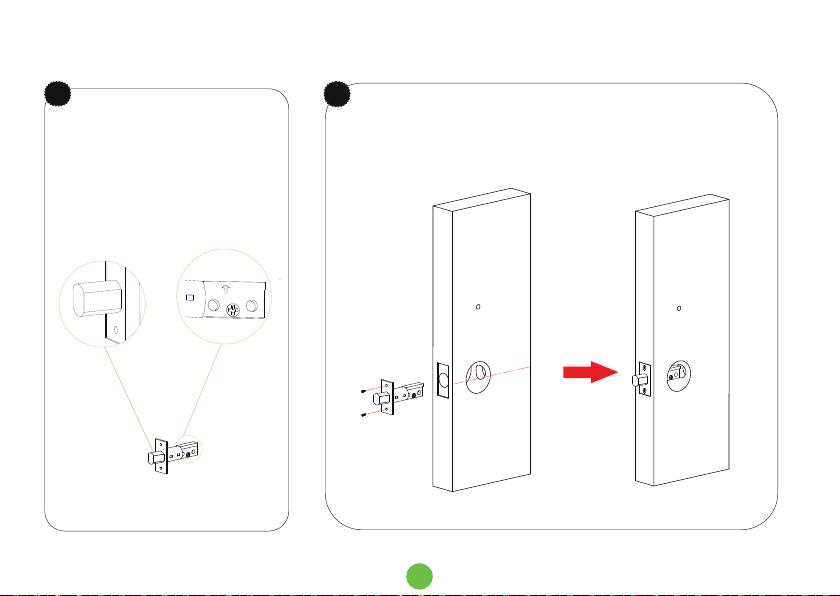

Installing the latch.

Secure the latch by inserting the screws B.

Installing outdoor unit on the door.

Firstly route the cable under the bolt through the

drilled hole. Then attach the outdoor unit to the

door by inserting it through the drilled hole.

Note:

If the direction of the door is right hand,the rotate

the highlighted spindle to the extreme right and if

the door is left hand then rotate it to the extreme

left.

Turn left

Left open

Right open

Turn right

Before inserting the unit inside the door, make sure

the highlighted spindle is in the vertical position as

shown.

Installing mounting plate with gasket on the door.

Attach the mounting plate to the gasket and route

the cable through the hole on the mounting plate

and gasket.

Place the gasket and mounting plate on to

the door and use screws C to secure them.

1 2

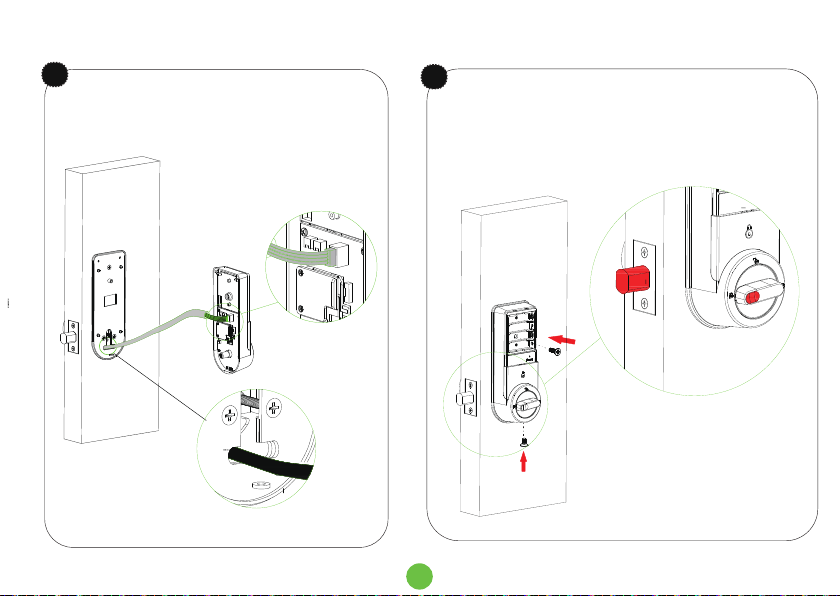

Installing the indoor unit.

Connect the cable connector to the port on

indoor unit.

Place the indoor unit properly on the mounting plate,

push and adjust the excess cable to the left. Then use

screws A to secure indoor unit. The knob dot must be in

direction of bolt.

Adjust and push the

cable to the left.
