ZKTeco SpeedFace-V5L Bedienungsanleitung

Quick Start Guide

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between

the actual product and the written information in this manual.

SpeedFace - V5L[TI]

Overview

Thermal Imaging Temperature

Detection Module

Flash

Camera & Palm Collector

5" touchscreen

Reset

Speaker

Magnetic Tamper

Switch

Microphone

Fingerprint Sensor

RS232

RS485

485B

485A

GND

TXD

RXD

GND

TXD2

RXD2

RS232

GND

12V

+12V

GND

IWD0

IWD1

WD0

WD1

TX+

RX+

TX-

RX-

AUX

AL+

AL-

NC1

COM

NO1

BUT

GND

SEN

GND

Lock

Alarm

Exit Button

Sensor

Auxiliary

input

Ethernet

Power in

Wiegand

out

Note: Not all products have the function with , the real product shall prevail.

Recommended Palm Gestures

Note:

1. Place your palm within 30-50 cm of the device.

2. Place your palm in the palm collection area, such that the palm is placed parallel

to the device.

3. Make sure to keep space between your ﬁngers.

KEEP EFFECTIVE

DISTANCE OF

30-50 cm

KEEP SPACES

BETWEEN

YOUR FINGERS

DO NOT KEEP

YOUR FINGERS

DO NOT KEEP

PALM OUTSIDE

COLLECTION AREA

DO NOT KEEP

YOUR FINGERS

FOLD/CURLED

Installation Environment

INSTALL INDOORS

ONLY

Please refer to the following recommendations for installation.

AVOID DIRECT

SUNLIGHT

AND EXPOSURE

AVOID INSTALLATION

NEAR

GLASS WINDOWS

AVOID USE OF ANY

HEAT SOURCE

NEAR THE DEVICE

KEEP EFFECTIVE

DISTANCE OF

0.3-2m

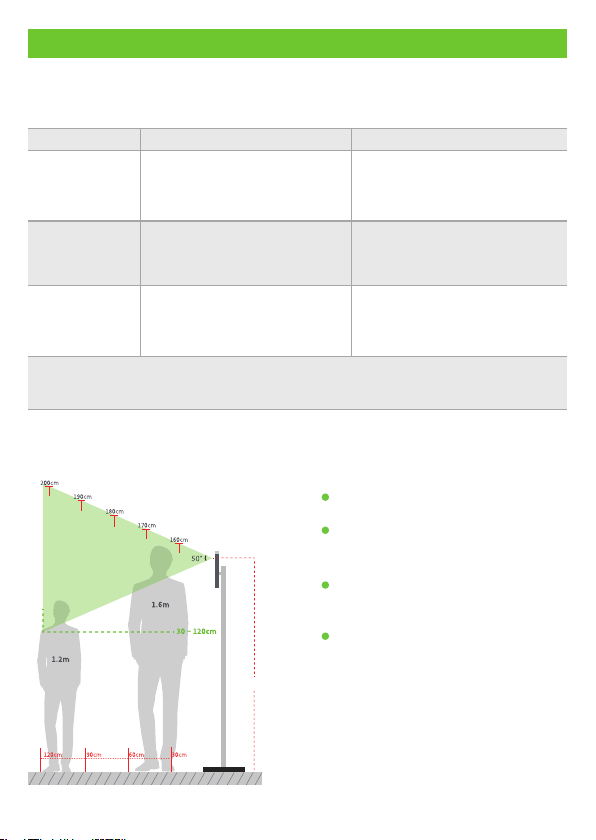

Recommended Standing Position

Forehead Temperature Detection

Installation height: 1.55m

FOV (Field Of View) of the thermal

imaging device: 50°

Temperature detection distance:

0.3m to 1.2m

Height of the face adapted for

detection: 1.2m to 2m

155CM

Specification Standard value Remark

Operating

Environment

Distance

(between face

and device)

Measurement

Accuracy

Indoor, Avoid wind, Avoid

direct sunlight,

16°C to 35°C (60.8°F to 95°F)

30 to 120cm (0.98ft to 3.94ft)

±0.3°C (±0.54°F)

The recommended operating

temperature is 25°C (77°F)

The recommended distance

is 80cm (2.62ft)

This value is tested at a distance

of 80cm or 2.63ft under 25°C

(77°F) environment.

Notes: The temperature measurement data is only for reference, and not for any

medical purposes.

Installation Requirements

The installation requirements and indications associated with the device are given

below:

Indoor constant Temperature

Environment

Standalone Installation

Device Installation

TCP/IP

Alarm Smoke

detector

Lock

Exit button

Door sensor

Card

reader

1 2 3

1.5m

①

②

Attach the mounting template sticker to the wall, and drill holes according to the

mounting paper. Fix the back plate on the wall using wall mounting screws.

①

②Attach the device to the back plate.

③Fasten the device to the back plate with a security screw.

Power Connection

12V DC

GND

12V

Recommended power supply

Ethernet Connection

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].

Note: In LAN, IP addresses of the server (PC) and the device must be in the same

network segment when connecting to ZKBioAccess MTD software.

6RJ 45

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

TX+

TX-

RX+

RX-

1) 12V ± 10%, at least 3000mA.

2) To share the power with other devices, use a power supply with higher current

ratings.

Lock Relay Connection

The system supports both Normally Opened Lock and Normally Closed Lock.

The NO Lock (normally opened when powered) is connected with 'NO1' and

'COM' terminals, and the NC Lock (normally closed when powered) is connected

with 'NC1' and 'COM' terminals. The power can be shared with the lock or can be

used separately for the lock, as shown in the example with NC Lock below:

1) Device not sharing power with the lock 2) Device sharing power with the lock

Normally Closed Lock

FR107

AUX

GND

SEN

GND

BUT

NO1

COM

NC1

AL+

AL-

+12V

GND

DC12V

+12V

GND

FR107

AUX

GND

SEN

GND

BUT

NO1

COM

NC1

AL+

AL-

DC12V

Normally Closed Lock

DC12V

Door Sensor, Exit Button & Alarm Connection

AUX

GND

SEN

GND

BUT

NO1

COM

NC1

AL+

AL-

Door Sensor

ExitButton

Alarm's power switch

Alarm

Smoke Detector

TXD

RXD

GND

RS232

Reader

485+

485-

GND

RXD

GND

TXD

RS232

Reader

RS485

Reader

RXD2

TXD2

GND

RXD

TXD

GND

485A

485B

RS485 and RS232 Connection

Wiegand Reader Connection

Wiegand Reader

Access controller

+12V

IWD1

IWD0

GND

WD1

WD0

Wiegand card reader connects to the top 4 pins of the wiegand terminal and the last

two pins are used by the Access controller, as shown in the following figure. It sends the

credentials to the device via wiegand communication.

The RS485 and the RS232 lets user connect to multiple readers to the device. Two RS232

and one RS485 can be connected to the terminal, as shown in the figure below.

User Registration

Method 1: Register on the device

When there is no super administrator set in the device, click on to enter the menu.

Add a new user and set User Role to Super Admin, then the system will request for the

administrator’s veriﬁcation before entering the menu. It is recommended to register a

super administrator initially for security purposes.

Click on > [ ] > [ ] to register a new user. The options include User Mgt. New User

entering the user ID and Name, setting User Role, registering Palm, Fingerprint, Face,

Password, Badge (optional), and adding User Photo.

Main Menu

User Mgt. User Role COMM. System

Data Mgt.Personalize Attendance

Autotest System Info

Access Control

User Mgt.

New User

All Users

Display Style

Welcome

2020-03-05 14:31

Thursday

2020-03-05

Enroll Face

Enrolled Successfully

Palm Registration

Enrolled Successfully

*****

New User

User ID

Name

User Role

Palm

Fingerprint

Face

Password

User Photo

Access Control Role

Normal User

Mike

Method 2: Register on ZKBioAccess MTD software

Please set the IP address and cloud service server address in the Comm. Menu option

on the device.

2. Click [Add] in operation column, a new window will pop-up. Select Icon type, Area,

and Add to Level from each dropdowns and click [OK] to add the device.

3. Click [Personnel] > [Person] > [New] and fill in all the required fields to register

a new users in the software.

4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices]

to synchronize all the data to the device including the new users.

For more details, please refer to the ZKBioAccess MTD User Manual.

1. Click [Access] > [Access Device] > [Device] > [Search Device] to search the device

on the software. When an appropriate server address and port is set on the device,

the searched devices are displayed automatically.

Searc h De vice

Searc h No device found ? Do wnload Search Tools to Local D is k

Device Type Serial Numb er

Total Progress Searc hed devices count :1

IP Address

IP Address MAC Address Subne t Ma sk Gateway Addres s Serial Number Device Type Set Server Operations

192.1 68 .213.79 255.2 55 .255.0 192.168.213.1 Add

The c ur rent systen communication port is 6609, please make sure the device is set correc tly.

Refresh New D el ete Export Search D ev ice Device Control Set up View and Get Device Info Co mm unication

Step 1

Step 2

Step 3

Add

Device Name

Icon Type

Area

Add to Level

Clear Data in the Device when Adding

[Clear Data in the Device when Adding] will delete data in the device(except event

record), please use with caution!

OK Cancel

192.168.213.79

Door

Area Name

Step 4
