Zoom H5 Bedienungsanleitung
Quick Guide
You must read the Usage and Safety Precautions before use.
© 2020 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
Product names, registered trademarks and company names in this document are the property of their respective
companies.
All trademarks and registered trademarks in this document are for identification purposes only and are not intended to
infringe on the copyrights of their respective owners.
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this manual and the specifications of the product could be changed without notice.
The Operation Manual can be downloaded from the ZOOM website (www.zoom.jp/docs/h5).
This page has files in PDF and ePub formats.
The PDF file format is suitable for printing on paper and reading on a computer.
The ePub format can be read with electronic document readers and is designed for reading on
smartphones and tablets.

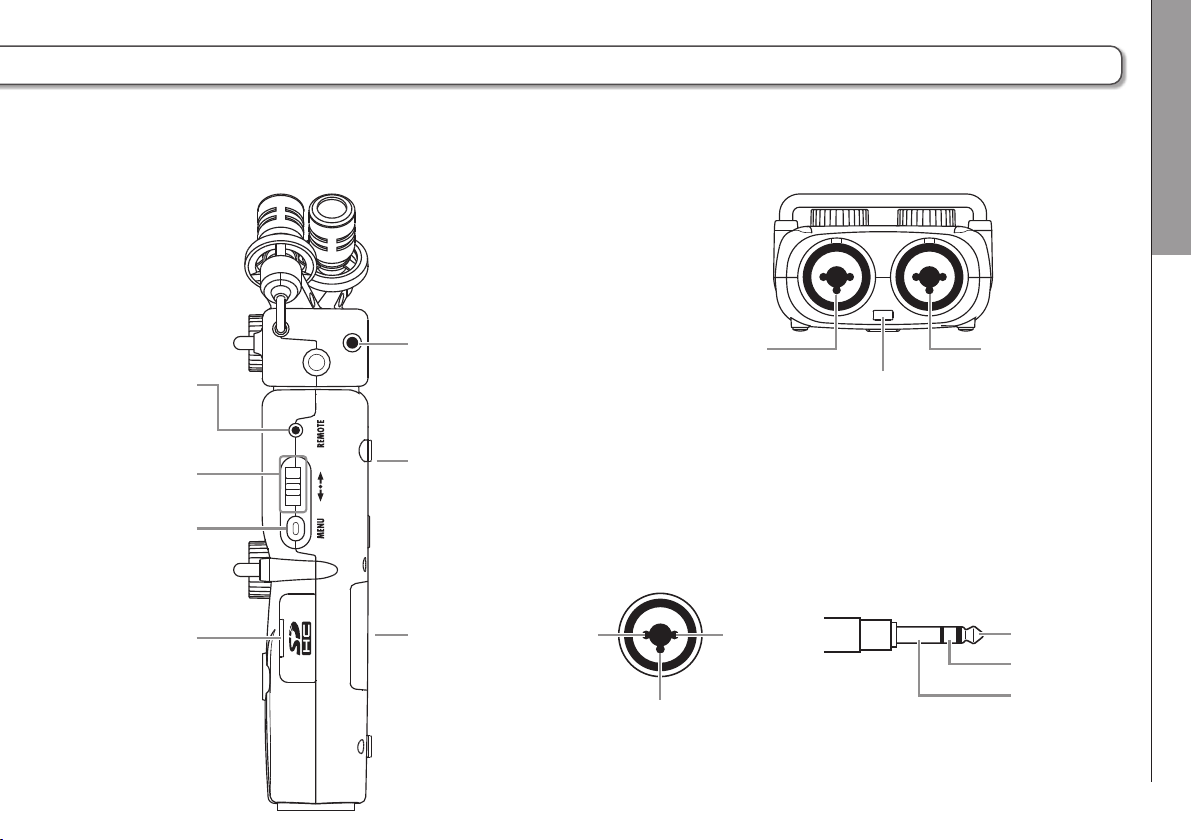

Names of parts
02
Left Front
Input volume L/R
Input volume 1
VOLUME button
PHONE jack
LINE OUT jack
POWER/HOLD
switch
USB port
(Mini-B) Track buttons & indicators
(L, R, 1, 2)
Input volume 2
XY mic
STOP button
Display
PLAY/PAUSE button
Back
button
Forward
button
REC button &
indicator
Names of parts
Names of parts
03
H5 Handy Recorder
12
3
Right/Back Bottom
XLR TRS
MIC/LINE input jack
(supports plug-in power)
Battery cover (back)
Speaker (back)
Scroll button
Up/down: Select
menu items
Press: Confirm
menu selection
MENU button
Press:
Open menu,
Return to last screen
SD card slot
REMOTE jack
1: GND
2: HOT
3: COLD
TIP: HOT
RING: COLD
SLEEVE: GND
Input 1
Strap attachment hole
Input 2
Preparations Supplying power/Loading an SD card
04
Supplying power/Loading an SD card
Supplying power
1. Turn the power off and then remove the battery
cover.
Push down
and open
2. Install the batteries.
3. Replace the battery cover.
NOTE
• Use alkaline batteries or rechargeable NiMH batteries.
• Use MENU > SYSTEM > BATTERYTYPE to set the type of
battery so that the amount of remaining battery charge
can be shown accurately.
HINT
AC power can also be used by connecting a dedicated AC
adapter (ZOOM AD-17) to the USB port.
Preparations
Loading an SD card
1. Turn the power off and then open the SD card slot
cover.
2. Insert the SD card into the slot.
To eject an SD card:
Push the card further into the slot and then pull it out.
NOTE
Before using SD cards that have just been purchased or
that have been formatted on a computer, they must be
formatted by the .To format an SD card, use MENU >
SD CARD > FORMAT.
Preparations Turning the power on and off
05
H5 Handy Recorder
Turning the power on and off
Turning the power on
1. Slide to .
NOTE
• If “No SD Card!” appears on the display, confirm that
the SD card is inserted properly.
• If “Card Protected!” appears on the display, the SD card
write-protection is enabled. Slide the lock switch on the
SD card to disable write-protection.
Turning the power off
1. Slide to .
NOTE
Keep sliding the switch until "Goodbye SeeYou!" appears.
Using the hold function
The has a hold function that disables the buttons in
order to prevent accidental operation during recording.
Activating the hold function
1. Slide to HOLD.
NOTE
A remote control can still be used even when the hold
function is active.
Deactivating the hold function
1. Slide to the center.
Preparations Setting the date and time
06
1. Press .
2. Use to select
“SYSTEM”, and
press .
3. Use to select
“DATE/TIME”, and
press .
Setting the date and time
4. Change the setting.
■Changing settings
Move cursor: Move up and down
Change item value: Press , then
move
up and down
Confirm change: Press
5. Press
This completes setting the date and time.
By setting the date and time, the recorder can store the recording date and time in files.
*The first time you turn it on after purchase, you must set the
date and time.
*
Preparations Connecting mics/other devices to Inputs 1/2
07
H5 Handy Recorder
Connecting mics
Connect dynamic mics and condenser mics to the Input 1/2
XLR jacks.
Connecting instruments and other devices
Connect keyboards and mixers directly to the Input 1/2TRS
jacks.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects
device.
Lapel mic
Shotgun mic
Lapel mic
L/R
1 2

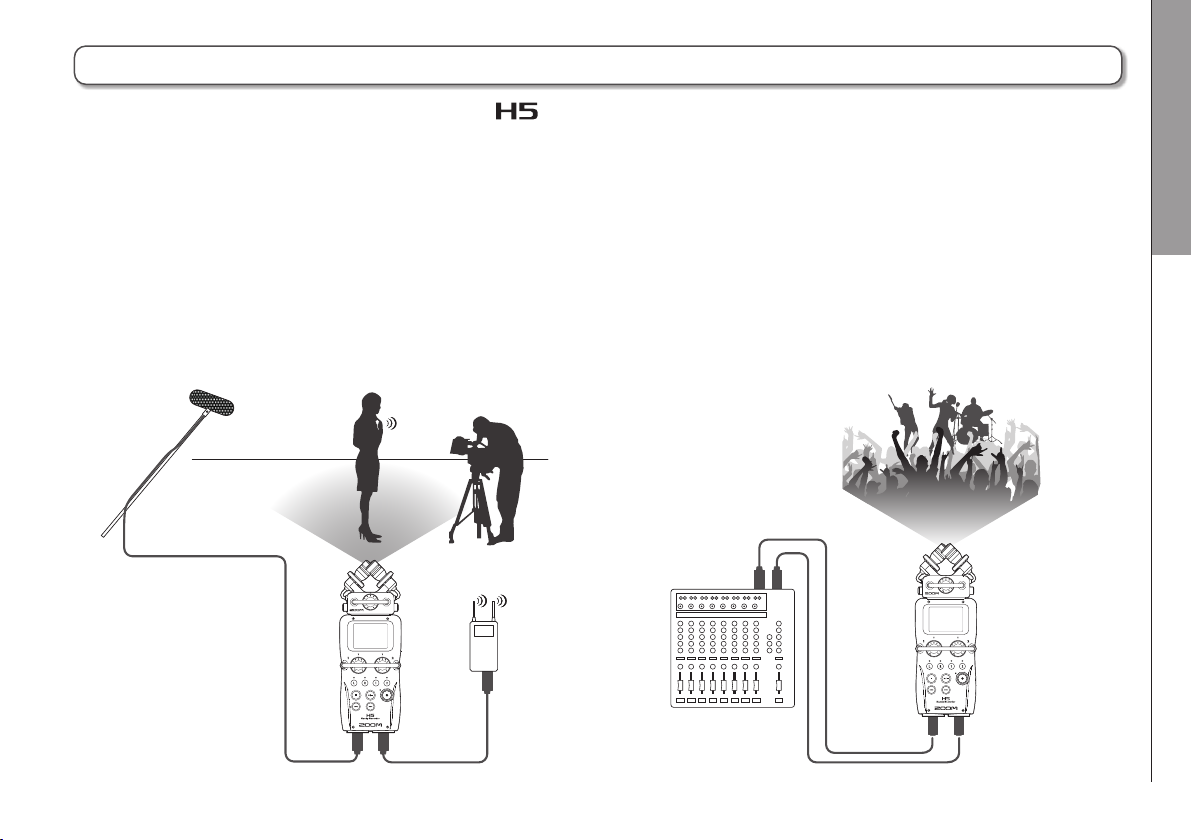

In addition to the L/R inputs from the XY mic, the also has Inputs 1/2.These can be used together to record up to 4
tracks at the same time.
You can connect mics, instruments and other devices to Inputs 1/2.
PA mixer
L/R
1 2
Connecting mics/other devices to Inputs 1/2
Preparations Display overview
08
Display overview
Home/Recording Screen
MULTI FILE Mode STEREO FILE Mode
PAD and inputs affected
Phantom power voltage and
Inputs affected
Folder name
Track L/R
Recording format
(During use as an audio interface,
computer or iPad setting shown)
Stopped
Status icon
Recording
LO CUT
MS STEREO
MATRIX
COMP/
LIMITER
Counter (remaining
recordable time)
Battery charge indicator
Clip
indicator
Name of input capsule
connected to L/R inputs
Paused
Level meter
(Recording input level)
Backup recording
ON
Track 1/2
After pressing
name of project playing
(when recording, name of
recorded project)
Full
Empty
After pressing
name of file playing
(when recording, name of
recorded project)
Preparations Display overview
09
H5 Handy Recorder
Playback Screen
MULTI FILE Mode STEREO FILE Mode
Key control
A-B repeatPlayback speed
Folder name
Stereo track
Playback format
Level meter
(playback level)
Status icon Counter (elapsed
or remaining
playback time)
Name of playing
project
Name of playing file
Mono track
Playing
Paused
Clip
indicator
Battery charge indicator
Name of input capsule
connected to L/R inputs
Recording Recording process
10
Recording process
Connect Turn power
on
Prepare to
record Record Playback
and check
Overdub
and edit
• Connect the XY mic.
• Connect mics,
instruments and
other equipment to
INPUTS 1/2.
1. Set the recording mode
• Select MULTI FILE mode or STEREO FILE mode.
The file types and formats of recordings differ
according to the mode selected.
• You can also make settings for automatic
recording, pre-recording, backup recording, low
cut, the compressor/limiter and the metronome,
for example.
2. Select the recording tracks
• Use the track buttons to select tracks. When the
selected track indicator lights red, the input signal
can be monitored.
• In MULTI FILE mode, you can also press both
INPUT 1 and 2 track buttons at the same time to
use them as a stereo track (stereo link).
3. Adjust input levels
• For each input, use
• Adjust them so that the level meter stays near
−12 dB when the loudest sound is input.
• You can, for example, also adjust the side mic level
(when using an MS capsule).
• Start recording:
• Stop recording:
• You can also
make mark settings.
• Pause recording:
•Start playback:
• Stop playback:
• Make settings for marks, AB
repeat, playback speed,
playback pitch, playback
mode, and the project mixer
as desired.
• You can also, for
example, overdub,
mix down to a
stereo file and
check project/file
information.
Recording follows the process shown below.
When using the MULTI FILE mode, recording and playback data is handled in units called projects.
In STEREO FILE mode, this data is handled in file units.
Recording
