ABBA CD45 Bedienungsanleitung

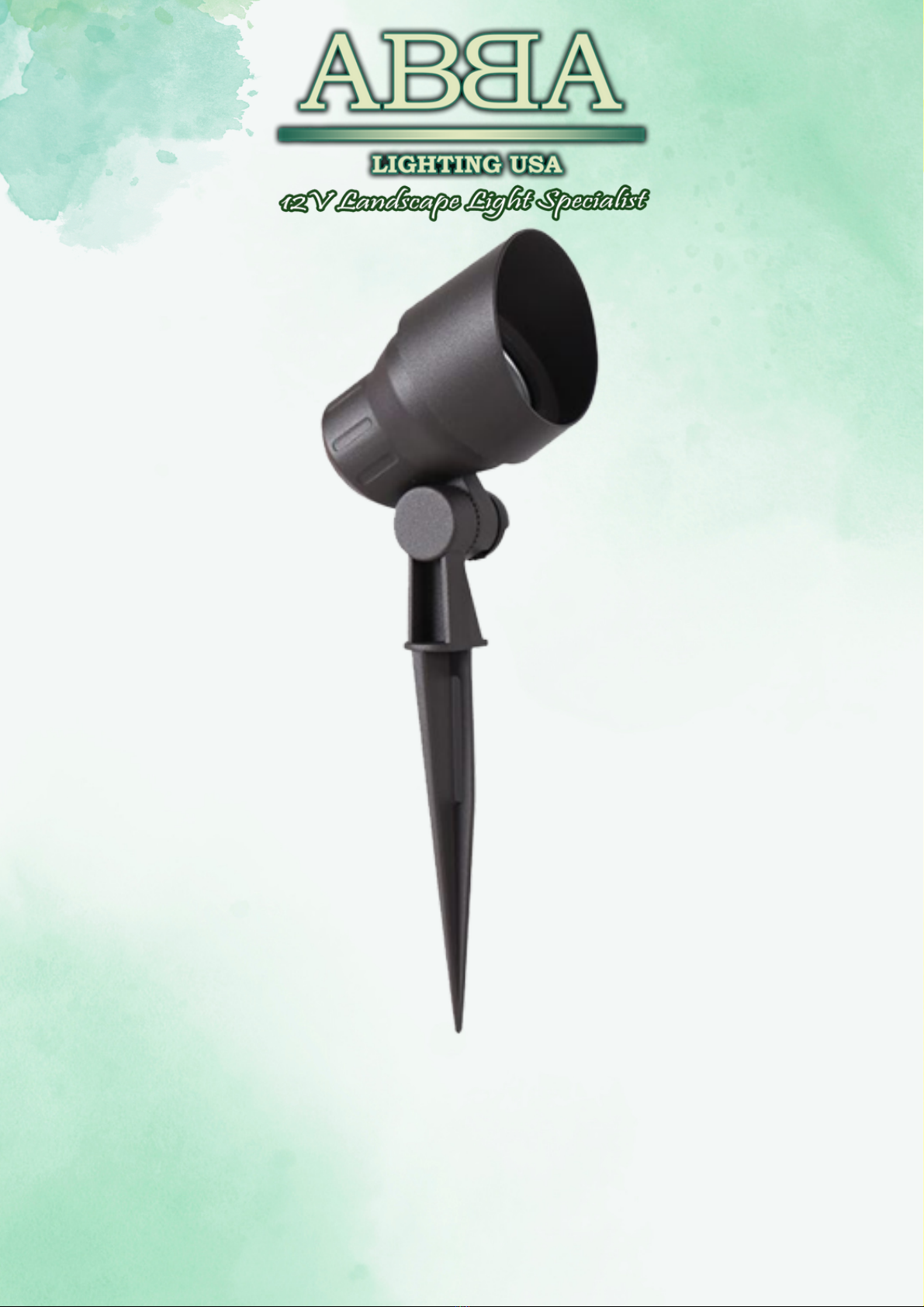

CD45

www.ABBALightingUSA.com

INSTALLATION GUIDE

IMPORTANT SAFETY INSTRUCTIONS

LIGHTEN LAMP IS HOT!

WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS:

Please exercise caution when using the lamp, as it tends to HEAT up rapidly.

We recommend taking necessary safety measures to ensure optimal usage.

For your safety, please refrain from touching the HOT lens, guard, or enclosure.

We recommend waiting for the product to cool down before handling it.

To prevent any fire hazards, please ensure that the lamp is kept away from

materials that may easily catch fire. We appreciate your cooperation in

maintaining a safe and secure environment.

RATED VOLTAGE 12V AC/DC

Congratulations on your purchase of this high-quality product! We want to ensure

that you have the best possible experience with it, so we kindly ask that you take a

moment to carefully read and follow all instructions before assembly, installation,

and use. By doing so, you'll not only guarantee correct function and safety, but also

optimize the full potential of this exceptional product. Thank you for choosing us as

your trusted provider of top-notch products - we truly appreciate your business!

WARRANTY

We stand behind the quality of our product and offer a 2-year warranty from the date of purchase.

Please note that the warranty is valid from the date of purchase, not from the date of installation.

Kindly ensure that you keep the proof of purchase as it will be required for any warranty claims.

Warranty will be void if there is any damage due to improper usage or

modification to the fixture.

Failure to comply with the instruction in this manual may increase the risk of

damage or injury and will void warranty.

For safety reasons, we recommend that only a qualified professional install

this electrical product.

Before attempting to install this unit, ensure all power connections are off for

your own safety.

www.ABBALightingUSA.com

Do not instal within 10 feet of a pool, spa or fountain

CAUTION:

Fixture(s) must be installed in accordance with all local codes and ordinances.

INSTALLATION INSTRUCTION

Before installation, please ensure that

the power is turned off for your safety.

To ensure optimal performance and safety,

it is important to use our fixtures ONLY with

a low voltage landscape transformer. This

transformer reduces the voltage from 120V

to 12V, making it safe and suitable for

outdoor use.

When installing the fixture(s), please follow

these instructions carefully:

1.

2. Using a suitable main cable connector

for direct burial, attach the fixture(s) wires.

We recommend using WN12 waterproof

wire nuts (sold separately) for optimal

connectivity.

3. For a secure and stable mounting, dig a

small hole and insert the spike into the

ground, ensuring it is vertical and firm.

4.Adjust the light angle to your preference,

ensuring optimal illumination.

5.Once the fixture(s) are securely installed,

turn on the power and enjoy the enhanced

lighting experience!

We strongly recommend that the main

cable from the transformer be buried

underground for safety reasons.

Additionally, please be sure to avoid

exceeding the maximum wattage on the

fixture(s) to prevent any damage or

hazards.

WN12 (Sold separately)

Main Line

Connect the wires using

www.ABBALightingUSA.com
