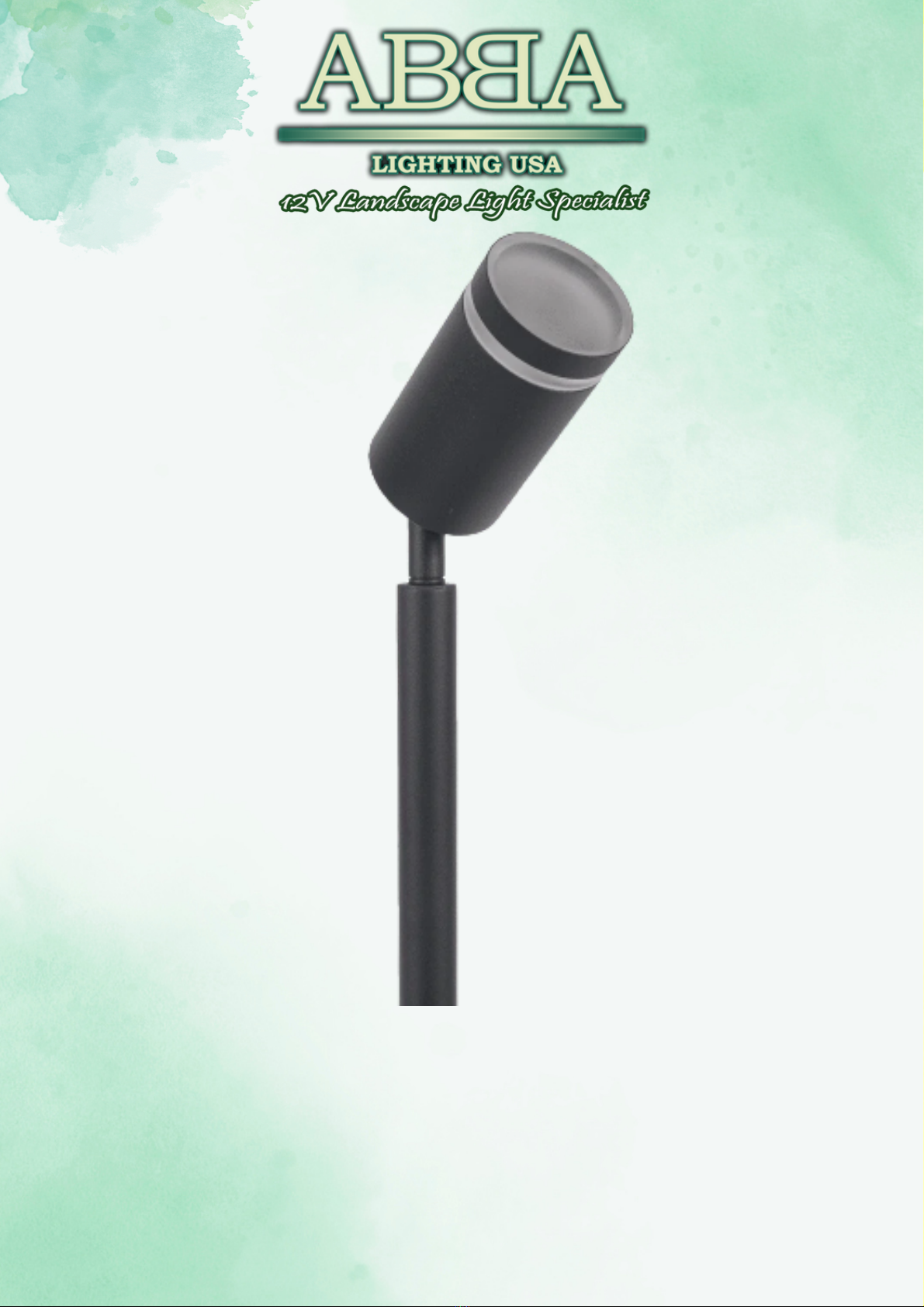

ABBA SPS03 Bedienungsanleitung

SPS03

www.ABBALightingUSA.com

INSTALLATION GUIDE

IMPORTANT SAFETY INSTRUNCTIONS

LIGHTEN LAMP IS HOT!

WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS:

Do not touch HOT lens, guard or enclosure.

Keep lamp away from materials that may burn.

Do not touch the lamp any time. Use soft cloth.

Lamp gets HOT quickly!

RATED VOLTAGE 12 AC/DC

Thank you for purchasing this quality product. To ensure correct function and

safety, Please read and follow all instructions carefully before assembly,

installation and before using this product.

WARRANTY

This fixture is covered by a 2 year warranty. The warranty is from the date of

purchase, not the date of installation. Please keep the proof of purchase

Warranty will be void if there is any damage due to improper usage or

modification to the fixture.

Failure to comply with the instruction in this manual may increase the risk of

damage or injury and will void warranty.

It is recommended only qualified persons to install this electrical product.

Before attempting to install this unit, ensure all power connections are off for

your own safety.

www.ABBALightingUSA.com

Do not instal within 10 feet of a pool, spa or fountain

CAUTION:

fixture(s) must be installed in accordance with all local codes and ordinances.

INSTALLATION INSTRUCTION

fixture(s) should be used "ONLY" with

low voltage landscape power units

that do not exceed 25A, 15V.

The main cable from power units

should be buried for less than 6 inches

under the ground level.

1. Please ensure the light cable wires

input are 12v ac/dc.

2. Turn off power before installation.

3. Attach the fixture(s) wires to the

main cable connector suitable for

direct burial and use waterproof wire

nuts. WN12 (Sold separately).

4. Put the spike into the ground. Try to

make firm vertical mounting.

5. Remove the lens from the fixture.

6. Insert the bulb with the correct

wattage.

CAUTION: Do not exceed maximum

wattage on the fixture.

7. Place the lens back onto the fixture.

8. Adjust the light angle.

9. Turn on the power.

www.ABBALightingUSA.com

WN12 (Sold separately)

Main Line

Connect the wires using
