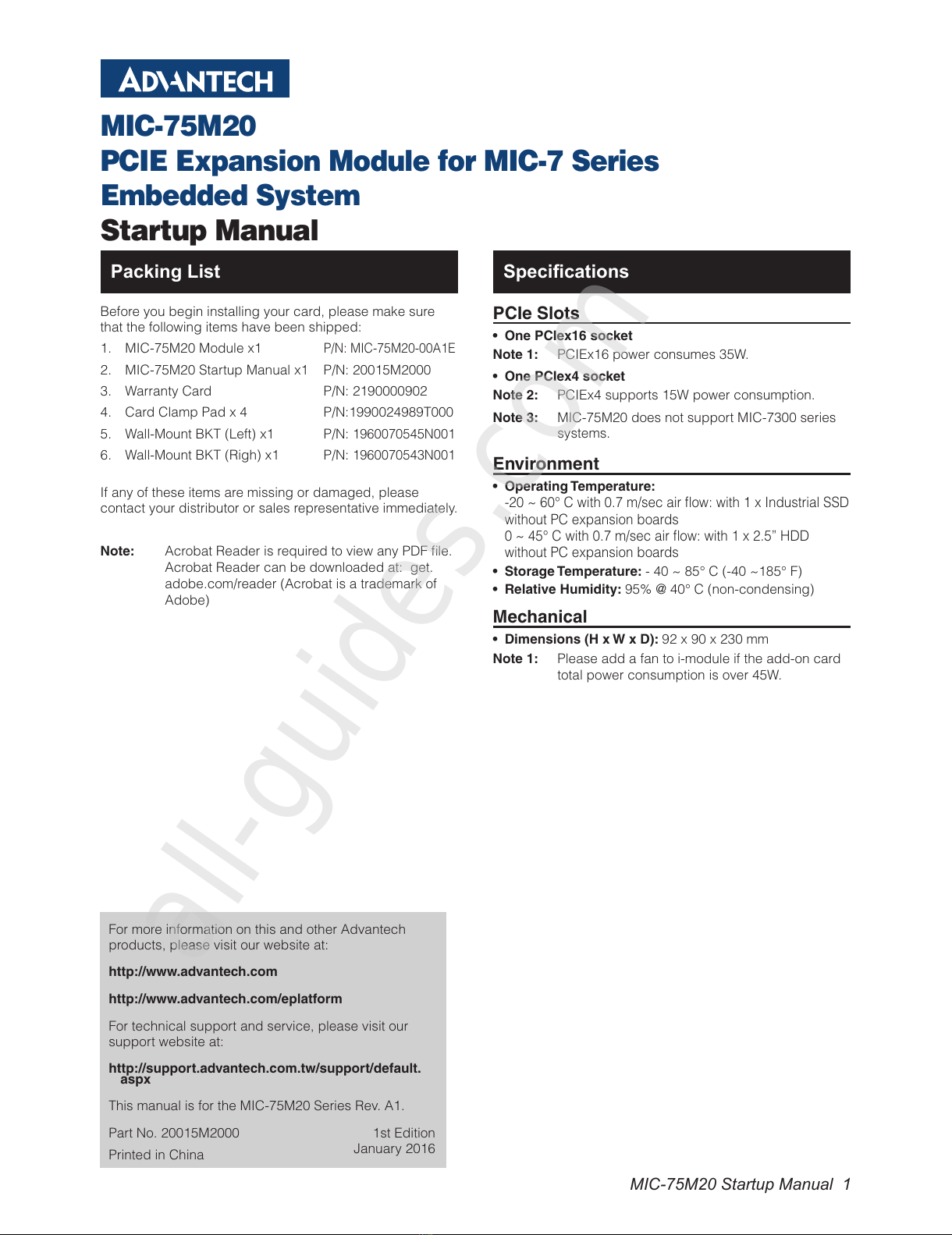

MIC-75M20 Startup Manual 1

Before you begin installing your card, please make sure

that the following items have been shipped:

1. MIC-75M20 Module x1

P/N: MIC-75M20-00A1E

2. MIC-75M20 Startup Manual x1 P/N: 20015M2000

3. Warranty Card P/N: 2190000902

4. Card Clamp Pad x 4 P/N:1990024989T000

5. Wall-Mount BKT (Left) x1 P/N:

1960070545N001

6. Wall-Mount BKT (Righ) x1 P/N:

1960070543N001

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75M20

PCIE Expansion Module for MIC-7 Series

Embedded System

Startup Manual

PCIe Slots

• One PCIex16 socket

Note 1: PCIEx16 power consumes 35W.

• One PCIex4 socket

Note 2: PCIEx4 supports 15W power consumption.

Note 3: MIC-75M20 does not support MIC-7300 series

systems.

Environment

• Operating Temperature:

-20 ~ 60° C with 0.7 m/sec air ﬂow: with 1 x Industrial SSD

without PC expansion boards

0 ~ 45° C with 0.7 m/sec air ﬂow: with 1 x 2.5” HDD

without PC expansion boards

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical

• Dimensions (H x W x D): 92 x 90 x 230 mm

Note 1: Please add a fan to i-module if the add-on card

total power consumption is over 45W.

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/default.

aspx

This manual is for the MIC-75M20 Series Rev. A1.

Part No. 20015M2000

Printed in China

1st Edition

January 2016

All manuals and user guides at all-guides.com

all-guides.com

2 MIC-75M20 Startup Manual

2. Undo 6x screws of MIC-75M20.

3. Remove i-door cover by MIC-7500 bottom cover and

assemble and secure cover in i-module’s bottom cover.

4. Assemble MIC-75M20 and MIC-7 series device and

secure 4x screws.

The table below lists the functions of each of the connec-

tors.

PCIE x 16 Socket

PCIEx4 Socket

12V Extral Power

FAN CON 1 & 2

5V Extral Power

Connectors

No. Item Function

1 SATAPWR1 4 Pin Power connector (5V)

2 PWR2 4 Pin Power connector (12V)

3 FAN 1 4 Pin FAN connector

4 FAN 2 4 Pin FAN connector

5 PCIEx4_1 PCIEx4 Socket

6 PCIEx16_1 PCIEx16 Socket

System Installation

MIC-7 series i-module can assemble with all MIC-7 series

IPC system.

1. Undo MIC-7 series system screws and remove the

bottom cover.

Simple Maintenance Process

Jumpers and Connectors

Simple Maintenace Process (Cont.)

All manuals and user guides at all-guides.com

MIC-75M20 Startup Manual 3

Note: MIC-75M20 has 2 bolts which must be aligned

with the holes on the device.

5. Replace the cover and secure with screws.

Note: The chassis cover has a notch designed in and

it must mate with the hook on the chassis.

Chassis Cover

Chassis hook

FAN Installation (Optional)

MIC-75M20 supports two 4x4CM fan spaces. If you want

to install high perfornamce expansion cards, (For example:

graphics or a PoE card) or total power consumption is over

45W, please install a fan for thermal issues. A fan is an op-

tional module. If your system needs a fan module, please

contact your distributor or sales representative.

Fan Module P/N: 98R1752000E.

Fan Connector

1. Undo fan 1 & 2 covers.

2. Secrue fan protection nets with 4 screws.

3. Assemble and secure the fan in the chassis with 4

screws.

4. Plug the fan power cable into the connector on the

backplane board.

FAN Filter Installation

If your system has a fan installed, we recommend you to

replace the system fan ﬁlter at regular intervals to ensure

the stability of the system cooling.

1. Undo the system cover and remove the old fan ﬁlter.

2. Change new fan ﬁlter and replace system cover with screws.

Simple Maintenance Process

(Cont.)

Simple Maintenance Process (Cont.)

All manuals and user guides at all-guides.com

4 MIC-75M20 Startup Manual

PCIE x 16 Socket

PCIEx4 Socket

12V Extral Power

FAN CON 1 & 2

5V Extral Power

197.20

192

123

230

235.20

123

IO Connectors

System Dimensions
