MIC-75G20-10B1 Startup Manual 1

Before you begin installing your i-Module, please make sure

that the following items have been shipped:

1. MIC-75G20 i-Module x 1 P/N: MIC-75G20-

10B1

2. 4-pin Phoenix connector x 2 P/N: 1652003234

3. SATA cable (30 cm) x 1 P/N: 1700017838

4. SATA cable (40 cm) x 1 P/N: 1700020978-01

5. HDD BP power cable x 1 P/N: 1700024985-01

6. GPU power cable P/N: 1700023022-01

(6 to 6/8 pin) x 2

7. Mounting bracket (L) P/N: 1960005359T00A

8. Mounting bracket (R) P/N: 1960094392N013

9. Screw for mounting bracket x 6 P/N: 1930007259-01

10. MIC-75G20 Startup Manual x 1 P/N: 20415G2011

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

le. Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe).

PCIe Slots

• One PCIe x16 socket

• One PCIe x4 socket

MIC-75G20-10B1

GPU Card Expansion i-Module for MIC-7 Series

Embedded System

Startup Manual

Environment

• Operating Temperature:

-10~60 °C (35W CPU w/ industrial

wide-temp. RAM/SSD)

• Storage Temperature: -40~85 °C (-40~185 °F)

• Relative Humidity: 95% @ 40 °C (non-condensing)

Mechanical

• i-Module Dimensions: i-Module Dimension (W x H x D):

130 x192 x 385 mm

• With MIC-7 Series: With MIC-7 series (W x H x D): 207 x

192 x 385 mm

Note: Width will be increased by 4 mm with MIC-77xx.

Connectors

No. Item Function

1 DCIN1 24VDC in

2 PPCIE1 PCIe x16 slot

3 PPCIE2 PCIe x4 slot

4 SATAPWR1 4-pin SATA power connector (5V)

5SATA1 SATA signal connector

6 GPUPWR1 6-pin power connector for GPU card

(12V, 17A)

7 GPUPWR2 6-pin power connector for GPU card

(12V, 17A)

8 DC12VOOUT1 4-pin power connector (12V, 5A)

9 SYSFAN1 4-pin fan connector

10 SYSFAN2 4-pin fan connector (reserved)

11 LED GPU card power status

Specications(Cont.)Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

This manual is for MIC-75G20-10 Rev. B1.

Part No. 20415G2011

Printed in China

2nd Edition

August 2023

I/O Connectors

Specications

2 MIC-75G20-10B1 Startup Manual

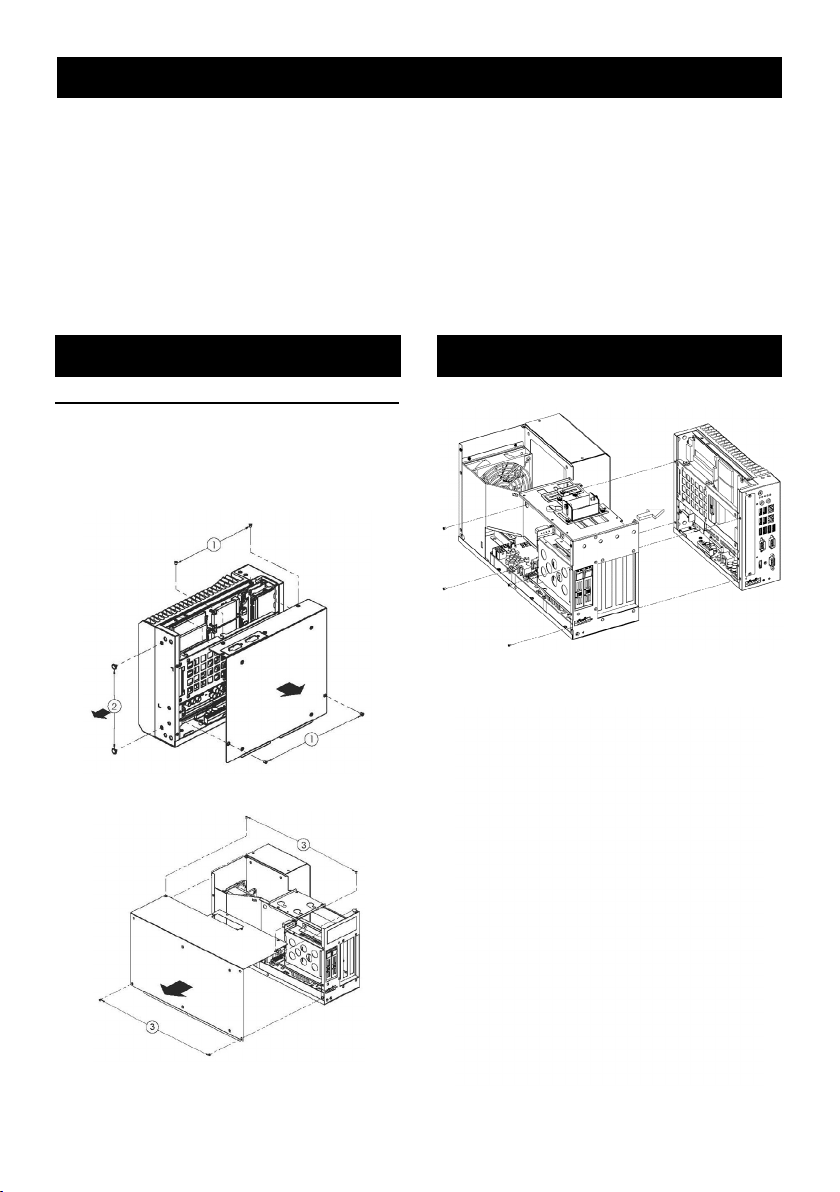

System Installation

MIC-75G20 can be assembled with all MIC-7 series IPC

systems.

1. Undo the MIC-7 series system screws and remove the

bottom cover.

2. Remove the 2 dust covers (IMPORTANT!).

3. Undo the 4 screws on MIC-75G20.

Simple Maintenance Process

Front View

4. Align MIC-75G20 and MIC-7 and secure the 4 screws.

5. Assemble the MIC-75G20 cover and secure with 6

screws.

6. Reassemble the cover and secure with screws.

SimpleMaintenanceProcess(Cont.)

MIC-75G20-10B1 Startup Manual 3

1. Undo the 5 screws on the top of the GPU card bracket

module.

2. Remove the adapter bracket to make space for the

GPU card.

3. Release screw groups 1, 2, 3, and 4 for further GPU

card installation.

Memo: If the GPU card has two screw holes on the rear

side, please follow the assembly instructions. If not, please

skip steps 4 and 5.

4. Undo the screws in group 5 to remove the GPU rear

bracket.

5. Assemble the GPU rear bracket to the GPU with 2

screws and reassemble the chassis with the group 5

screws.

Memo: The GPU rear bracket can be adjusted to t the

di󰀨erent heights of GPU cards by releasing the screws in

group 5.

6. After the GPU card has been installed, secure 2 screws

to the bracket of the GPU.

7. Secure the GPU to the adjustable GPU card bracket

module with 5 screws.

8. Secure the GPU card by adjusting the GPU card

bracket module.

GPUCardBracketAssembly

GPUCardBracketAssembly(Cont.)

4 MIC-75G20-10B1 Startup Manual

9. Release screw group 1 to adjust bracket A to the opti-

mal position to attach the GPU card.

10. Release screw group 2 to adjust bracket A to optimal

height to secure the GPU Card.

11. Release screw group 3 to adjust bracket B to the opti-

mal position to clamp the GPU card.

12. Release screw group 4 to adjust the bracket B width to

secure the front and back side of the GPU Card.

PowerSupplyCablingGuide

GPUCardBracketAssembly(Cont.)

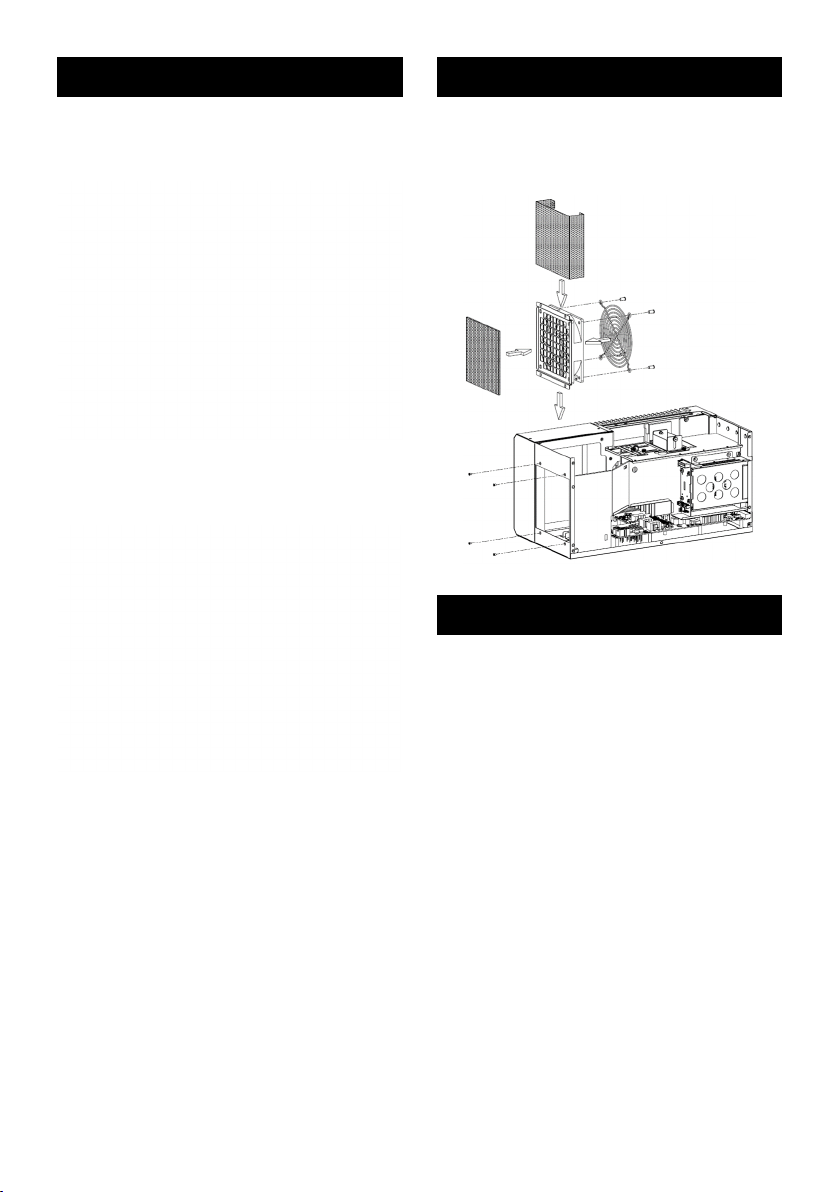

It is recommended to replace the fan lter regularily to

ensure the stability of system cooling.

1. Undo the system cover and remove the old fan lter.

2. Change to a new fan lter and reassemble the system cover

with screws.

Fan Filter Replacement

MIC-75G20-10B1 Startup Manual 5

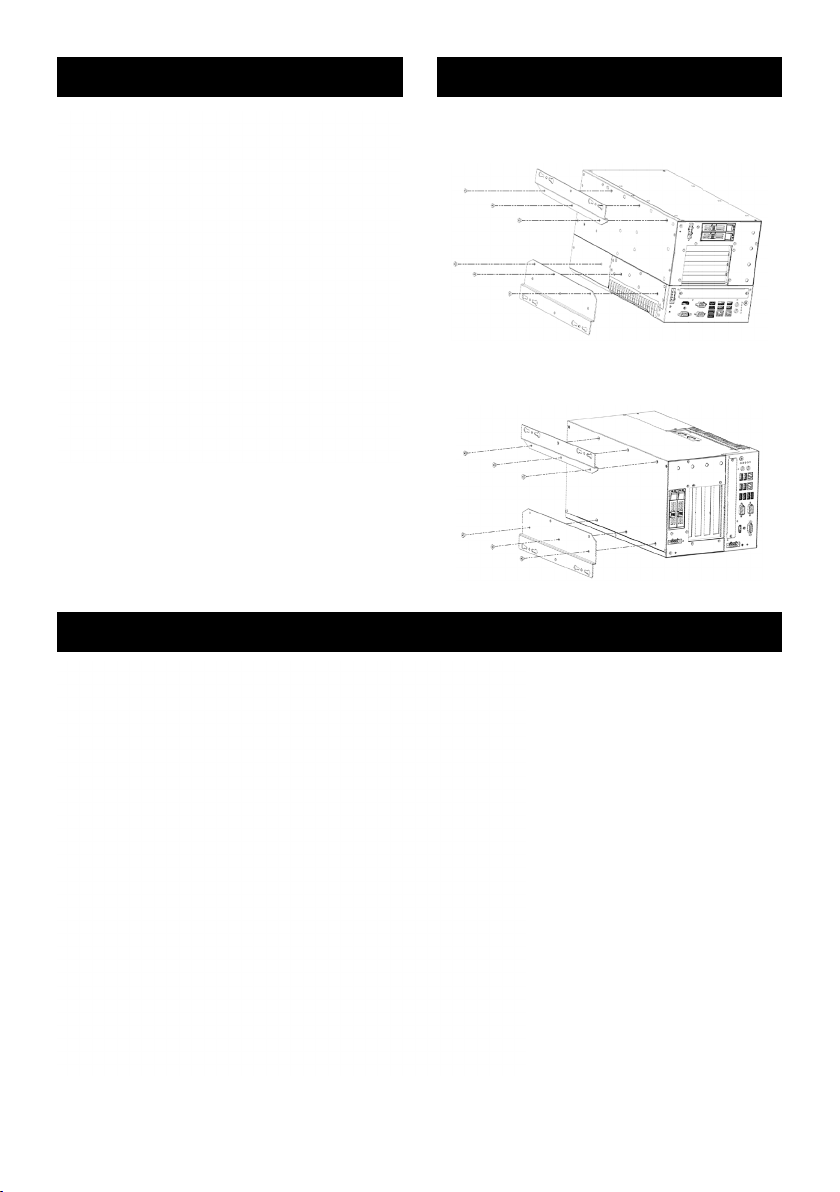

1. Type 1: Secure 1 x mounting bracket (L)

(1960005359T00A) and 1 mounting bracket (R)

(1960094392N013) with 6 screws (1930007259-01).

2. Type 2: Secure 1 mounting bracket (L)

(1960005359T00A) and 1 mounting bracket (R)

(1960094392N013) with 6 screws (1930007259-01).

MountingBracketAssembly

PowerSupplyCablingGuide(Cont.)

* Width is 207 mm with MIC-77xx installed.

System Dimensions
