Advantech ICR-3241 Bedienungsanleitung

LTE Industrial Router

ICR-3241

USER MANUAL

ICR-3241

2022 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or

by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval

system without written consent. Information in this manual is subject to change without notice, and does not

represent a commitment on the part of Advantech.

Advantech Czech s.r.o. shall not be liable for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of

trademarks or other designations in this publication is for reference purposes only and does not constitute an

endorsement by the trademark holder.

ICR-3241

Used symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL license

Source codes under GPL license are available at https://icr.advantech.cz/source-code

address.

Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Document No. MAN-0044-EN, revision from November 17, 2022. Released in the Czech Republic.

ICR-3241

Contents

1 Product Overview 2

1.1 Product Introduction ................................. 2

1.2 Product Usage Examples .............................. 3

1.3 Hardware Overview ................................. 5

1.4 Product Versions ................................... 6

1.5 Order Codes ..................................... 7

1.6 Product Revisions .................................. 7

1.7 Package Contents .................................. 8

1.8 Product Dimensions ................................. 9

1.9 Mounting Recommendations ............................ 10

1.10 Wall Mounting ..................................... 11

1.11 DIN Rail Mounting .................................. 12

1.12 Product Label ..................................... 13

2 Hardware Functionality 14

2.1 SIM Card Slots .................................... 14

2.2 Antennas ....................................... 15

2.3 Ethernet Interfaces .................................. 15

2.4 Power Supply ..................................... 16

2.5 Low Power Mode ................................... 17

2.6 Serial Interfaces and I/O Port ............................ 18

2.7 LED Status Indication ................................ 20

2.8 Reset Functions ................................... 21

3 First Use 22

3.1 Powering up the Router ............................... 22

3.2 Router Conﬁguration ................................. 22

4 Technical Parameters 24

4.1 Basic Parameters ................................... 24

4.2 Standards and Regulations ............................. 25

4.3 Type Tests and Environmental Conditions ..................... 26

4.4 Parameters of Cellular Module ........................... 27

4.5 Parameters of GNSS ................................. 27

4.6 Technical Parameters of WiFi ............................ 28

4.7 Parameters of Bluetooth ............................... 28

4.8 System Conﬁguration ................................ 29

Appendix A: Troubleshooting 30

iii

ICR-3241

Appendix B: Customer Support 33

Appendix C: Regulatory & Safety Information 34

Appendix D: Related Documents 36

ICR-3241

List of Figures

1 Access to the Internet from LAN .......................... 3

2 Backed up Access to the Internet .......................... 3

3 Using VPN Tunnel .................................. 4

4 Serial Gateway .................................... 4

5 Hardware Overview of the Router .......................... 5

6 Version without WiFi and GNSS ........................... 6

7 Version with WiFi and GNSS ............................ 6

8 Basic dimensions of the router box ......................... 9

9 Basic dimensions of the router box ......................... 9

10 Rotated Wall Mounting Clips ............................. 11

11 Removing from the DIN rail ............................. 12

12 Label Example .................................... 13

13 SIM Cards Insertion ................................. 14

14 Ethernet Connector Pinout .............................. 15

15 Power connector ................................... 16

16 Connection of power supply ............................. 16

17 Serial + I/O connector ................................ 18

18 Functional scheme of the binary interface ..................... 19

19 Resetting the Router ................................. 21

20 Router’s Web Interface ................................ 23

ICR-3241

List of Tables

1 Hardware Overview of the Router .......................... 5

2 Router versions .................................... 6

3 Order Codes Overview ................................ 7

4 HW Revisions History ................................ 7

5 Contents of package ................................. 8

6 Ethernet Connector Pinout Description ....................... 15

7 Connection of power connector ........................... 16

8 Connection of RS485 ................................ 18

9 Connection of I/O ................................... 18

10 Connection of RS232 ................................ 18

11 Status indication ................................... 20

12 Basic parameters ................................... 24

13 Standards and regulations .............................. 25

14 Type tests and environmental conditions ...................... 26

15 Technical parameters of cellular module ...................... 27

16 Technical parameters of GNSS ........................... 27

17 Technical parameters of WiFi ............................ 28

18 Technical parameters of Bluetooth ......................... 28

19 Other technical parameters ............................. 29

ICR-3241

1. Product Overview

1.1 Product Introduction

ICR-3241 is an industrial cellular router intended for the North American market (NAM). This

router is an ideal device for wireless communication in mobile networks that make use of LTE

and WCDMA technology. Due to the high speed of data transfer up to 150 Mbps (download)

and up to 50 Mbps (upload) is this router an ideal solution for specialized M2M devices and IoT

as well as for wireless connection of trafﬁc and security camera systems, individual computers,

LAN networks, automatic teller machines (ATM) and other self-service terminals.

The standard conﬁguration includes two Ethernet 10/100 ports, serial line RS232, RS485,

one binary input and one output. The device also has two readers for 3 V and 1.8 V SIM

cards, which are located on the left panel of the router. The router can be equipped with

a WiFi module, but this must be part of the initial conﬁguration – it cannot be assembled to the

router at some point in the future. The router can be provided only in a metal casing.

Conﬁguration of the router may be done via a password-protected Web interface. Web in-

terface provides detailed statistics about the router’s activities, signal strength, detailed system

log etc. The router supports the creation of VPN tunnels using IPSec, OpenVPN and L2TP

to ensure safe communication. DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS,

backup primary connection and many other functions are supported.

The router provides diagnostic functions which include automatically monitoring the PPP

connection, automatic restart in case of connection losses, Low Power Mode, and a hardware

watchdog that monitors the router status. The user may insert Linux scripts which are started

on various actions. It is possible to create up to four different conﬁgurations for the same

router. These conﬁgurations can be switched whenever necessary via Web interface, SMS or

binary input status. The router can automatically upgrade its conﬁguration and ﬁrmware from

your central server. This allows for mass reconﬁguration of numerous routers at the same

time.

The router also supports additional software like R-SeeNet for permanent trafﬁc monitoring

of routers.

Examples of possible applications

•mobile ofﬁce

•ﬂeet management

•security system

•telematic

•telemetric

•remote monitoring

•vending and dispatcher machines

ICR-3241

1.2 Product Usage Examples

The router is primarily intended for these four basic situations:

I. Access to the Internet from LAN

Figure 1: Access to the Internet from LAN

II. Backed up access to the Internet (from LAN)

Figure 2: Backed up Access to the Internet

ICR-3241

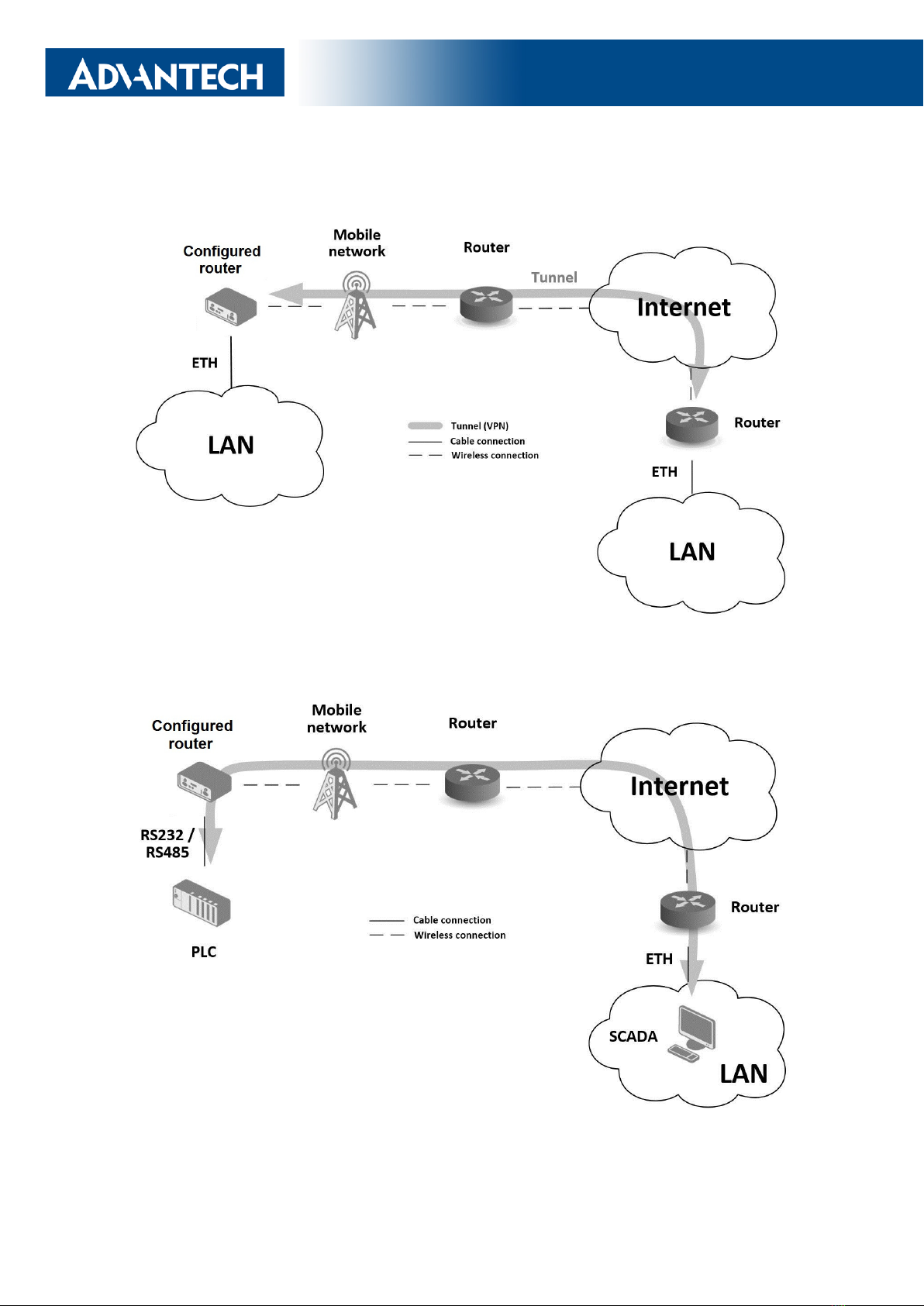

III. Secure networks interconnection or using VPN

Figure 3: Using VPN Tunnel

IV. Serial Gateway

Figure 4: Serial Gateway
