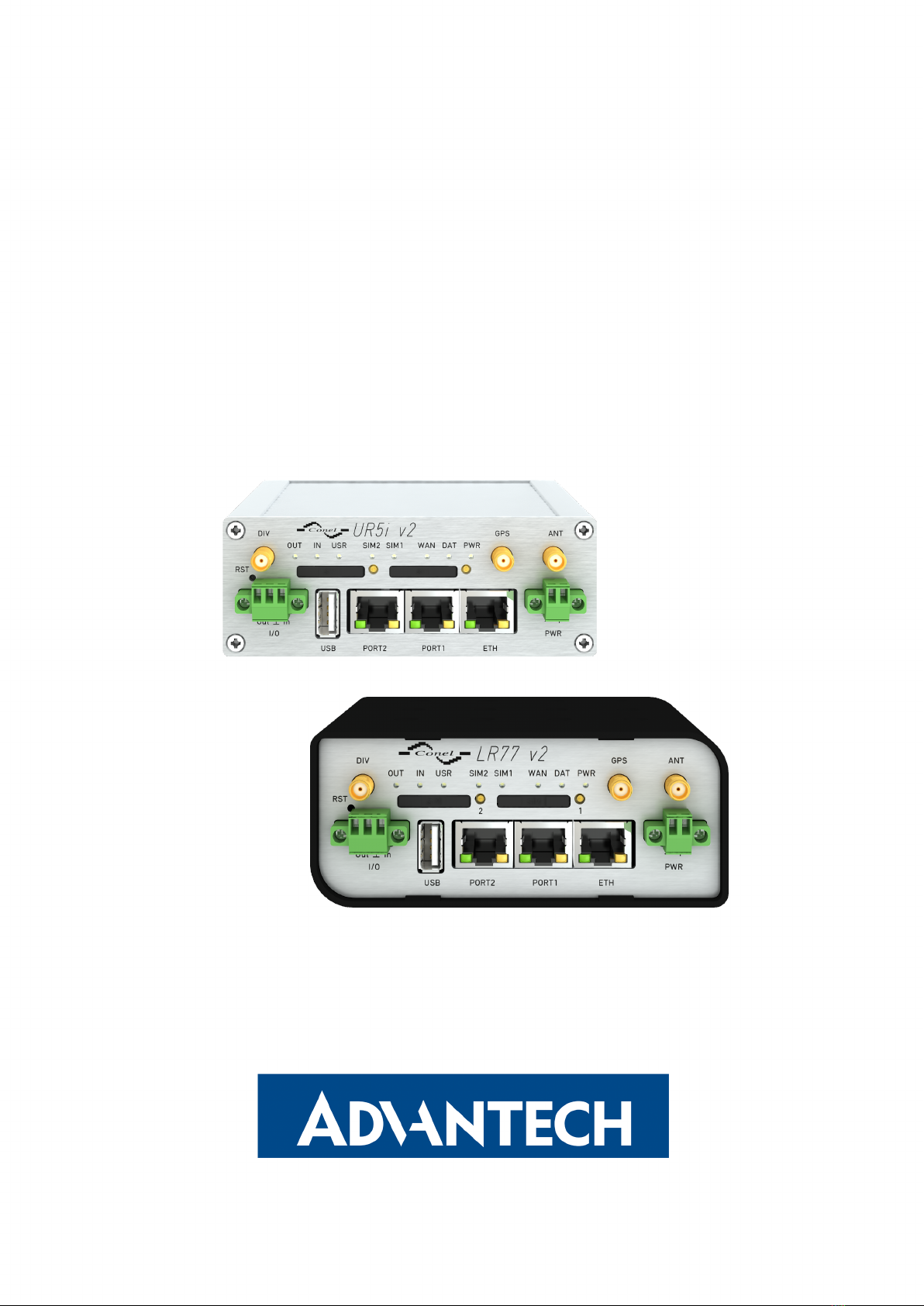

Advantech UR5i v2 Libratum Leitfaden

Start Guide

for v2 Routers

Start Guide

Safety Instructions

Please take care to following instructions:

•Use the router in compliance with national and international law and in compliance with

any special or additional restrictions regulating the use of the router in various applica-

tions and environments.

•To avoid possible injury and/or damage to the device, observe the relevant provisions

and standards. Use only the original accessories as recommended. Unauthorized de-

vice or accessory modiﬁcation or using accessories that have not been approved can

result in router damage and/or violation of the regulations.

•Unauthorized device or accessory modiﬁcation or using the accessories that have not

been approved can result in warranty termination.

•Do not open the router.

•Caution! Small children can swallow the SIM card.

•When connecting the device to a power supply, do not exceed the deﬁned voltage.

•Do not expose the router to extreme ambient conditions. Protect the router against dust,

moisture, and high temperature.

•It is recommended that you do not use the router at petrol ﬁlling stations. We recommend

observing local restrictions concerning radio-based devices while working with explosive

material, such as at petrol ﬁlling stations or in chemical plants.

•While using the router close to personal medical devices, such as cardiac pacemakers

or hearing aids, proceed with heightened caution.

•Operating the router too close to TV sets, radio receivers, personal computers, or tele-

phones can cause interference.

•It is recommended that you create a copy or backup of the essential settings stored in

the memory of the router.

QSG-0001-EN, February 28, 2022 1Released in the Czech Republic

Start Guide

Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) direc-

tive has been introduced to ensure that electrical/electronic products are recy-

cled using the best available recovery techniques to minimize the impact on

the environment. This product contains high-quality materials and components

which can be recycled. At the end of its life, this product MUST NOT be mixed

with other commercial waste for disposal. Check with the terms and conditions

of your supplier for disposal information.

Open Source Software License

The software in this device uses various pieces of open-source software governed by the

following licenses:

•GPL versions 2 and 3

•LGPL version 2

•BSD-style licences

•MIT-style licences

The list of components together with complete license texts can be found on the device

itself. See the Licenses link at the bottom of the router’s main Web page (General Status)

or point your browser to this address (replace the DEVICE_IP string with the real router’s IP

address):

http://DEVICE_IP/licenses.cgi

This is a written offer valid for three years since the device purchase, offering any third party

for a charge no more than the cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code on a ﬂash drive medium. If you are

interested in obtaining the source, please get in touch with us at:

cellularsales@advantech-bb.com

Modiﬁcations and debugging of LGPL-linked executables:

The device manufacturer hereby grants the right to use debugging techniques (e.g., de-

compilation) and making customer modiﬁcations of any executable linked with an LGPL library

for its purposes. Note these rights are limited to the customer’s usage. No further distribution

of such modiﬁed executables and no transmission of the information obtained during these

actions may be done.

QSG-0001-EN, February 28, 2022 2Released in the Czech Republic

Start Guide

First Use

Before applying power to the router, connect all the components you need for your appli-

cations.

Do not run the router without an antenna connected to the main antenna connector. The

energy from the transmission is effectively reﬂected by the open end and can damage

the equipment.

XR5i v2 routers are not equipped with a cellular module, which means that SIM card

readers and antenna connectors are not available on the router.

1. Antenna

Use an SMA connector to connect the antennas to the router; see the ﬁgure below. First,

connect the main antenna to the ANT connector. Next, connect the second diversity antenna

to the DIV connector to improve the quality and reliability of a wireless link.

QSG-0001-EN, February 28, 2022 3Released in the Czech Republic

Start Guide

2. SIM Card

The SIM card reader for one or two mini-SIM cards (2FF with size of 25.0 x 15.0 x 0.76 mm)

is located on the router’s front panel. The full version of the router contains two readers. If you

intend to use this device to communicate over a cellular network, please place an activated

data-provisioned SIM card into the SIM card reader. Insert your SIM card into the SIM1 or

SIM2 holder and push it to the reader, see the ﬁgure below. You can install two SIM cards

simultaneously to utilize the SIM card switching feature.

Disconnect the router from the power supply before handling the SIM card!

3. Power

The router requires an external DC power supply. The DC voltage required is between

+10 and +30 V DC. The router has built-in protection against reverse polarity without signaling.

Connect the power supply cable to the PWR connector on the router’s front panel (see the

ﬁgure below) and tighten the locking screws.

QSG-0001-EN, February 28, 2022 4Released in the Czech Republic

Start Guide

4. Ethernet

For an initial conﬁguration made in a web browser, connect a PC by an Ethernet cable to

the default LAN interface, use the ETH port; see the ﬁgure above. By default, this interface

has the following conﬁguration:

Connector Purpose Default Setting

ETH LAN port (default)

Connect your PC to this port to get the

router web interface.

DHCP Server

IP Address: 192.168.1.1

NetMask: 255.255.255.0

If the router is equipped with any expansion port, connect the appropriate cable to the port

PORT1 or PORT2. The pin assignments for expansion ports is described in manual for corre-

sponding expansion port.

Conﬁguration

1. Conﬁguring the Device Using the Web Browser

You can use a web browser running on your PC to access the router web interface. Here

you can perform router monitoring, conﬁguration, and administration. First, connect the PC to

the default LAN interface described in the Ethernet chapter. To get the router interface, enter

the https://192.168.1.1 address in a web browser. Please note that usage of the HTTPS

protocol for secure communication over the network is required.

There is just the extbfroot user account created on the router by default. See the product

label on the router for its default password1. Log in to the web interface by the root user

and his password. See the conﬁguration manual of the router for a detailed description and

examples of the router conﬁguration.

2. Conﬁguring the Device Using the SSH or Telnet

Device management can be done by accessing the device through the Secure Shell (SSH)

or the Telnet protocol. The default IP address of the device is 192.168.1.1. Standard TCP

ports are used, 22 for the SSH and 23 for the Telnet. Please note, that access is permitted for

users of the admin role only and that the Telnet protocol is disabled by default. For a detailed

description of SSH and Telnet conﬁguration, see the Conﬁguration Manual.

1If the label does not contain a unique password, use "root" string as the password.

QSG-0001-EN, February 28, 2022 5Released in the Czech Republic

Start Guide

2. Conﬁguration Settings via WebAccess/DMP

Your router has been pre-installed with the WebAccess/DMP client. For its activation,

enable it in the router’s web interface (Customization -> User Modules -> WebAccess/DMP

Client). For more information, see the conﬁguration manual of your router.

The activated client periodically uploads router identiﬁers, conﬁguration, and cellular net-

work statistics to the WebAccess/DMP server. If you have purchased a part number

ending with "-SWH", the DMP client is activated by default.

With the WebAccess/DMP client activated, you may conﬁgure the router from WebAc-

cess/DMP portal. Navigate your browser to https://www.wadmp.com.

If this is your ﬁrst time, please self-sign-up with the site. If not, please log in with your

username and password. Once logged in, further assistance can be found at https://docs.

wadmp.com.

4. Restoring and Backing up the Router Conﬁguration

The default factory settings will replace the current conﬁguration if you reset the router.

Therefore, we recommend you back up the router conﬁguration before resetting the device.

Refer to the conﬁguration manual for more information.

You can restore the default router conﬁguration once the router boots up and the PWR

LED starts blinking. To do so, press the RST button on the router’s front panel for more than

4 seconds. After you press this button, all settings reset to the default values, and the router

will reboot.

After logging on to the device for the ﬁrst time, we strongly recommend changing the

default password due to security reasons. Simultaneously, you will gain access to all

functions of the router.

For security reasons, we highly recommend updating the router’s ﬁrmware to the latest

version regularly. Downgrading the ﬁrmware to an older version than the production

version or uploading ﬁrmware intended for a different device may cause the device’s

malfunction.

QSG-0001-EN, February 28, 2022 6Released in the Czech Republic

Start Guide

Support

All product-related manuals, documents, and software can be found and downloaded on

the website at icr.advantech.cz/download address.

We, Advantech Czech s.r.o., declare that the radio equipment type LR-77-

v2L complies with Directive Radio Equipment Regulations 2017 (S.I. 2017 No.

1206).

We, Advantech Czech s.r.o., declare that the radio equipment type CR10 v2,ER75i

v2,LR77 v2,LR77 v2 Libratum,RR75i v2,UR5i v2,UR5i v2 Libratum,XR5i v2,

and XR5i v2E (WiFi versions) comply with Directive 2014/53/EU. Furthermore, XR5i

v2 and XR5i v2E (non-WiFi versions) comply with the essential requirements and

other relevant provisions of Directives 2014/30/EU and 2014/35/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

icr.advantech.cz/eudoc

QSG-0001-EN, February 28, 2022 7Released in the Czech Republic
