Advantech UR5i v2 Libratum Montage- und Bedienungsanleitung

Expansion Port

Mounting for v2 Routers

APPLICATION NOTE

Expansion Port Mounting

Used Symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL Licence

Source codes under GPL licence are available free of charge by sending an email to:

[email protected]

Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic.

Document No. APP-0001-EN, revision from November 21, 2018. Released in the Czech Republic.

Expansion Port Mounting

Contents

1 Safety Instruction 1

2 Product Disposal Instructions 1

3 Expansion Port Mounting 1

3.1 Plastic Enclosure ................................... 1

3.2 Metal Enclosure ................................... 3

4 Recommended Literature 5

Expansion Port Mounting

List of Figures

1 Router in plastic enclosure .............................. 1

2 Router in metal enclosure .............................. 3

List of Tables

1 Part list for routers in plastic enclosure ....................... 2

2 Part list for routers in metal enclosure ....................... 4

iii

Expansion Port Mounting

1. Safety Instruction

Please, observe the following instructions:

•The expansion port must be used in compliance with all applicable international and

national laws and in compliance with any special restrictions regulating the utilization of

the communication module in prescribed applications and environments.

•Use only the original Advantech B+B SmartWorx company accessories. Thus you will

prevent possible health risks and damage to the devices and ensure compliance with all

relevant provisions. Unauthorised adjustments or use of unapproved accessories may

result in damage to the expansion port and breach of applicable laws. Use of unapproved

adjustments or accessories may lead to cancellation of guarantee, which has no effects

on your legal rights.

•Do not expose the expansion port to extreme conditions. Protect it from dust, moisture

and heat.

2. Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive has been

introduced to ensure that electrical/electronic products are recycled using the best available

recovery techniques to minimize the impact on the environment. This product contains high

quality materials and components which can be recycled. At the end of it’s life this product

MUST NOT be mixed with other commercial waste for disposal. Check the terms and condi-

tions of your supplier for disposal information.

Expansion Port Mounting

3. Expansion Port Mounting

3.1 Plastic Enclosure

Attention! Expansion port PORT1 and PORT2 can be connected only when the router

is switched off.

At ﬁrst, it is necessary to remove (snap out) front panel (position 5) and then take out

the B-RB-v2 motherboard (position 1). The expansion port PORT1 (position 2) has to be

connected to connector J8 (see ﬁgure below) of the router motherboard (B-RB-v2, position

1) from TOP side. The expansion port PORT2 (position 3) has to be connected to connector

J3 (see ﬁgure below) of the router motherboard (B-RB-v2, position 1) from TOP side. Attach

each expansion port to the B-RB-v2 board using three pieces of spacers (position 10). After

mounting the expansion port, slide the router (motherboard with expansion ports) to the box

and snap the front panel in.

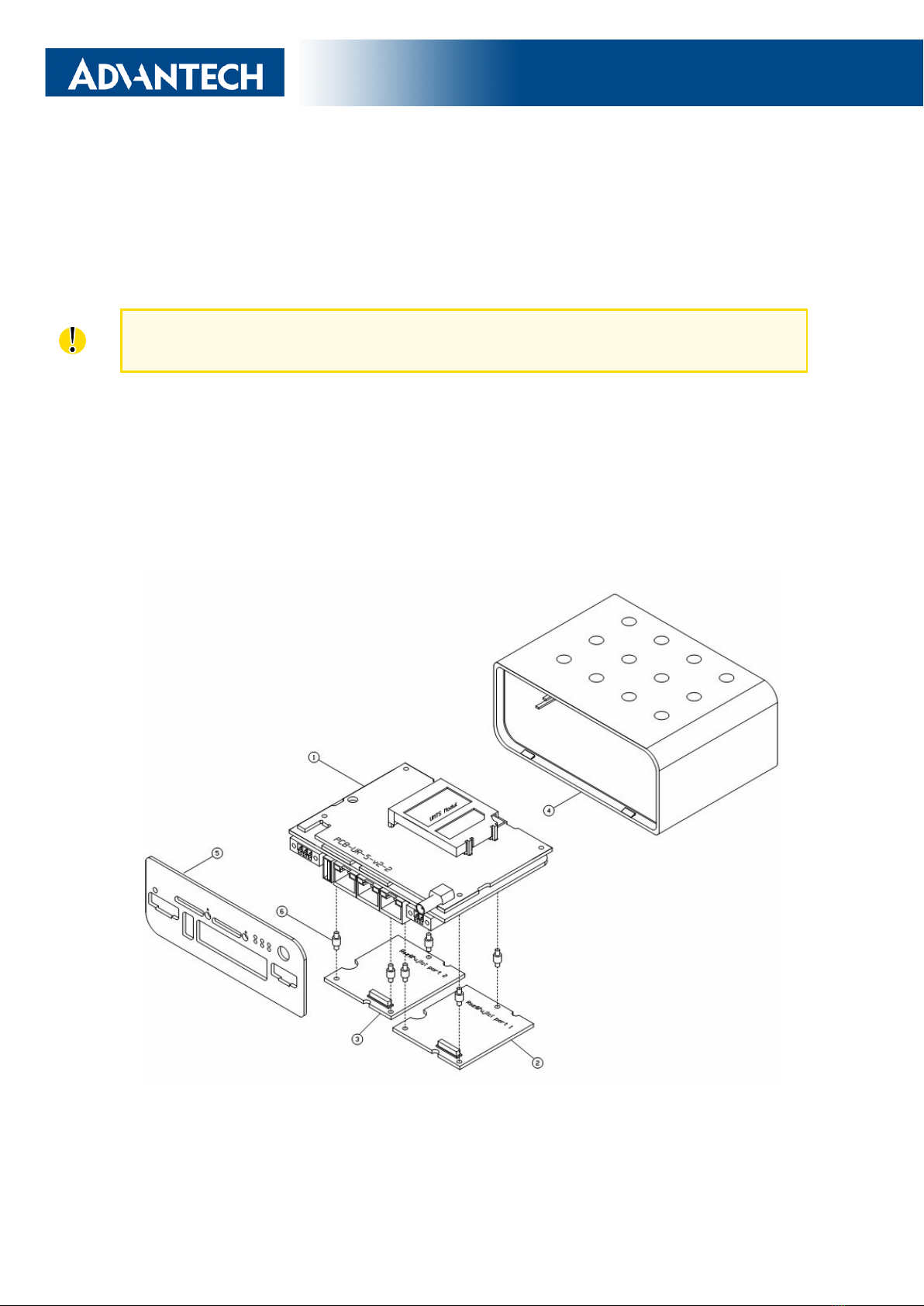

Figure 1: Router in plastic enclosure

Expansion Port Mounting

Part Description Count

1 Router motherboard 1

2 Expansion port PORT 1 1

3 Expansion port PORT 2 1

4 Router box 1

5 Front panel of the router 1

6 Spacers for attaching the expansion port to the motherboard 6

Table 1: Part list for routers in plastic enclosure

Expansion Port Mounting

3.2 Metal Enclosure

Attention! Expansion port PORT1 and PORT2 can be connected only when the router

is switched off.

Unscrew four screws (position 11) on the rear panel (position 6) and remove it. Then take

out the B-RB-v2 motherboard (position 1). The expansion port PORT1 (position 2) has to be

connected to connector J8 (see ﬁgure below) of the router motherboard (B-RB-v2, position 1)

from TOP side. The expansion port PORT2 (position 3) has to be connected to connector J3

(see ﬁgure below) of the router motherboard (B-RB-v2, position 1) from TOP side. Attach each

expansion port to the B-RB-v2 board using three pieces of spacers (position 10). After mount-

ing the expansion port, slide the router (motherboard with expansion ports) to the enclosure,

put the rear panel on the enclosure and screw it using four screws (position 11).

Figure 2: Router in metal enclosure

Expansion Port Mounting

Part Description Count

1 Router motherboard 1

2 Expansion port PORT 1 1

3 Expansion port PORT 2 1

4 Left sidewall 1

5 Right sidewall 1

6 Rear panel of the router 1

7 Front panel of the router 1

8 Bottom cover 1

9 Top cover 1

10 Spacers for attaching the expansion port to the motherboard 6

11 Screw for assembling the router enclosure 8

Table 2: Part list for routers in metal enclosure

Expansion Port Mounting

4. Recommended Literature

[1] Advantech B+B SmartWorx: Conﬁguration Manual – Cellular Industrial

v2 Routers (MAN-0021-EN)

[2] Advantech B+B SmartWorx: User guide – Expansion port RS232

(MAN-0020-EN)

[3] Advantech B+B SmartWorx: User guide – Expansion port RS485/422

(MAN-0025-EN)

[4] Advantech B+B SmartWorx: User guide – Expansion port ETH

(MAN-0027-EN)

[5] Advantech B+B SmartWorx: User guide – Expansion port CNT

(MAN-0028-EN)

[6] Advantech B+B SmartWorx: User guide – Expansion port MBUSD

(MAN-0030-EN)

[7] Advantech B+B SmartWorx: User guide – Expansion port SWITCH

(MAN-0029-EN)

[8] Advantech B+B SmartWorx: User guide – Expansion port WIFI

(MAN-0031-EN)

[9] Advantech B+B SmartWorx: User guide – Expansion port WMBUS

(MAN-0032-EN)

[10] Advantech B+B SmartWorx: User guide – Expansion port SDH

(MAN-0026-EN)

Product related documents can be obtained on Engineering Portal at

https://ep.advantech-bb.cz/ address.
