Agilent 1260 Infinity II

DataStream

User Manual

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Agilent disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Agilent shall not be

liable for errors or for incidental or

consequential damages in connection

with the furnishing, use, or perfor-

mance of this document or of any

information contained herein. Should

Agilent and the user have a separate

written agreement with warranty

terms covering the material in this

document that conflict with these

terms, the warranty terms in the sep-

arate agreement shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of a

U.S. Government prime contract or subcon-

tract, Software is delivered and licensed as

“Commercial computer software” as

defined in DFAR 252.227-7014 (June 1995),

or as a “commercial item” as defined in FAR

2.101(a) or as “Restricted computer soft-

ware” as defined in FAR 52.227-19 (June

1987) or any equivalent agency regulation

or contract clause. Use, duplication or dis-

closure of Software is subject to Agilent

Technologies’ standard commercial license

terms, and non-DOD Departments and

Agencies of the U.S. Government will

receive no greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2) (June

1987). U.S. Government users will receive

no greater than Limited Rights as defined in

FAR 52.227-14 (June 1987) or DFAR

252.227-7015 (b)(2) (November 1995), as

applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could

result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION

notice until the indicated condi-

tions are fully understood and

met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice,

or the like that, if not correctly

performed or adhered to, could

result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indi-

cated conditions are fully under-

stood and met.

Notices

No part of this manual may be reproduced

in any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Agilent

Technologies, Inc. as governed byUnited

States and international copyright laws.

Manual Part Number

G7825-90000

Edition

07/2017

Printed in UK

Agilent Technologies

Hewlett-Packard-Strasse 8

76337 Waldbronn

This product may be used as a com-

ponent of an in vitro diagnostic sys-

tem if the system is registered with

the appropriate authorities and com-

plies with the relevant regulations.

Otherwise, it is intended only for gen-

eral laboratory use.

Agilent 1260 Infinity II DataStream User Manual

Agilent 1260 Infinity II DataStream User Manual 3

In This Guide...

This manual covers the

•G7825A Agilent 1260 Infinity II DataStream

1 Introduction to the DataStream

This chapter gives anintroduction to the DataStream

2 Site Requirements and Specifications

This chapter provides information on environmental requirements, physical

and performance specifications.

3 Maintenance and Troubleshooting

This chapter gives an overview about the troubleshooting and provides general

information on maintenance.

4 Appendix

This chapter provides safetey and other general information

Contents

Agilent 1260 Infinity II DataStream User Manual

Agilent Technologies

Introduction to the DataStream

Introduction to the DataStream 6

Connections 7

Using the Module 9

Introduction to the DataStream

The Agilent 1260 Infinity II DataStream is a high performance data acquisition unit. As

part of a system, interfaced to Agilent GPC/SEC Software or Cirrus software it is designed

to meet the exacting acquisition, display and analysis requirements of chromatography

applications.

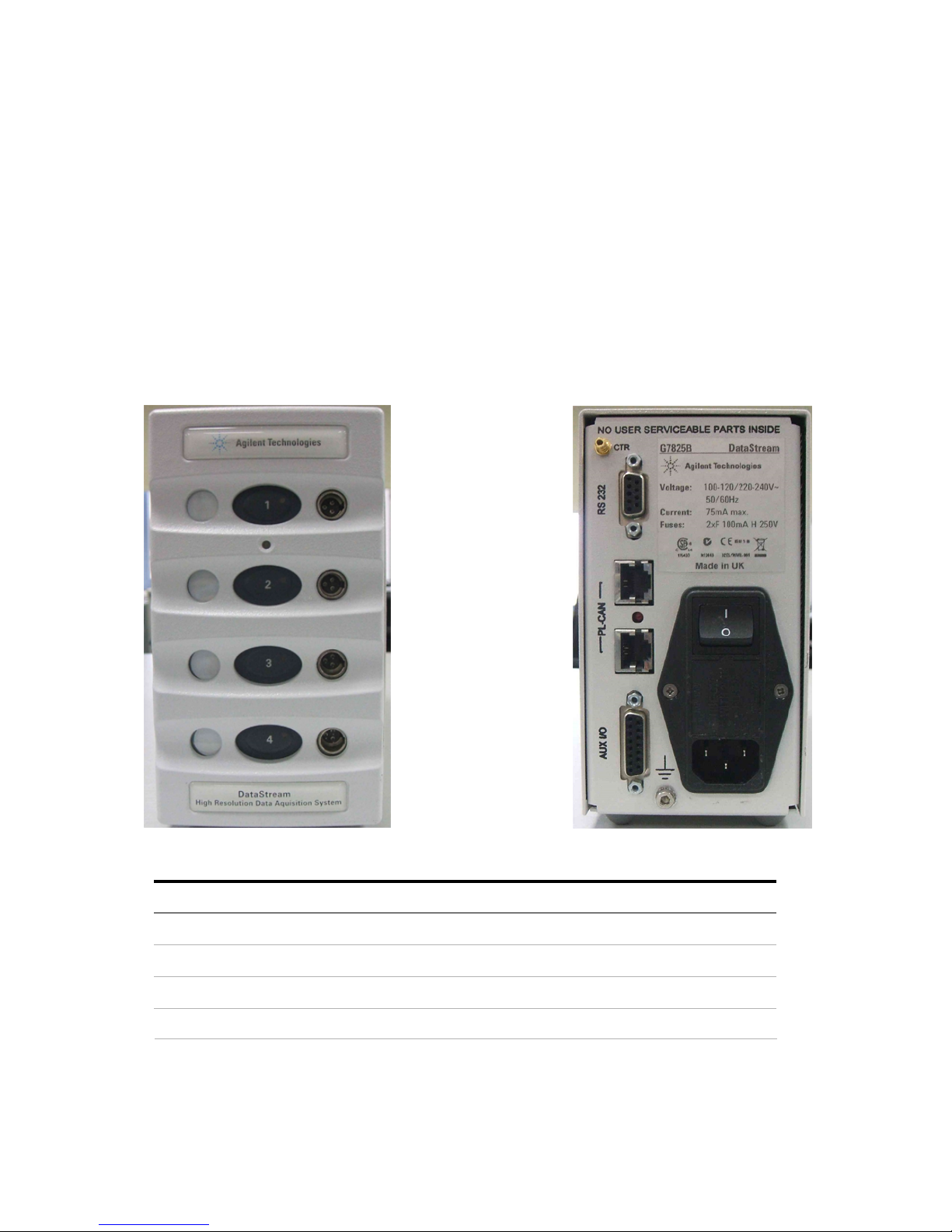

Figure 1. Agilent 1260 DataStream (Front & Rear)

No. Description

Channel start button

Status LEDs

Channel analogue input

4CTR connector

Description

Aux I/O connector

RS232 connector

PL-CAN connector (not used)

Power Switch

Voltage selector

No.

10 Power inlet

Agilent 1260 Infinity II DataStream User Manual

1 Introduction to the DataStream

Site Requirements

Analogue Inputs

The analogue input cables are intended for connection between the

DataStream and any detector or other voltage source with an output

range of ±1V or smaller. Connect the red wire to the positive output

terminal and the black wire to the negative output terminal of the source.

Do not connect the screen of the cable to the source.

The 3-pin connector on the analogue cable should be inserted into the

desired channel input socket on the DataStream.

Unused channels can be left unconnected.

Connections

Agilent 1260 Infinity II DataStream User Manual

RS232 Serial Cable

Connect the serial cable from the 9-pin RS232 socket on the DataStream

to a free serial port on the PC on which the Cirrus software has been

installed.

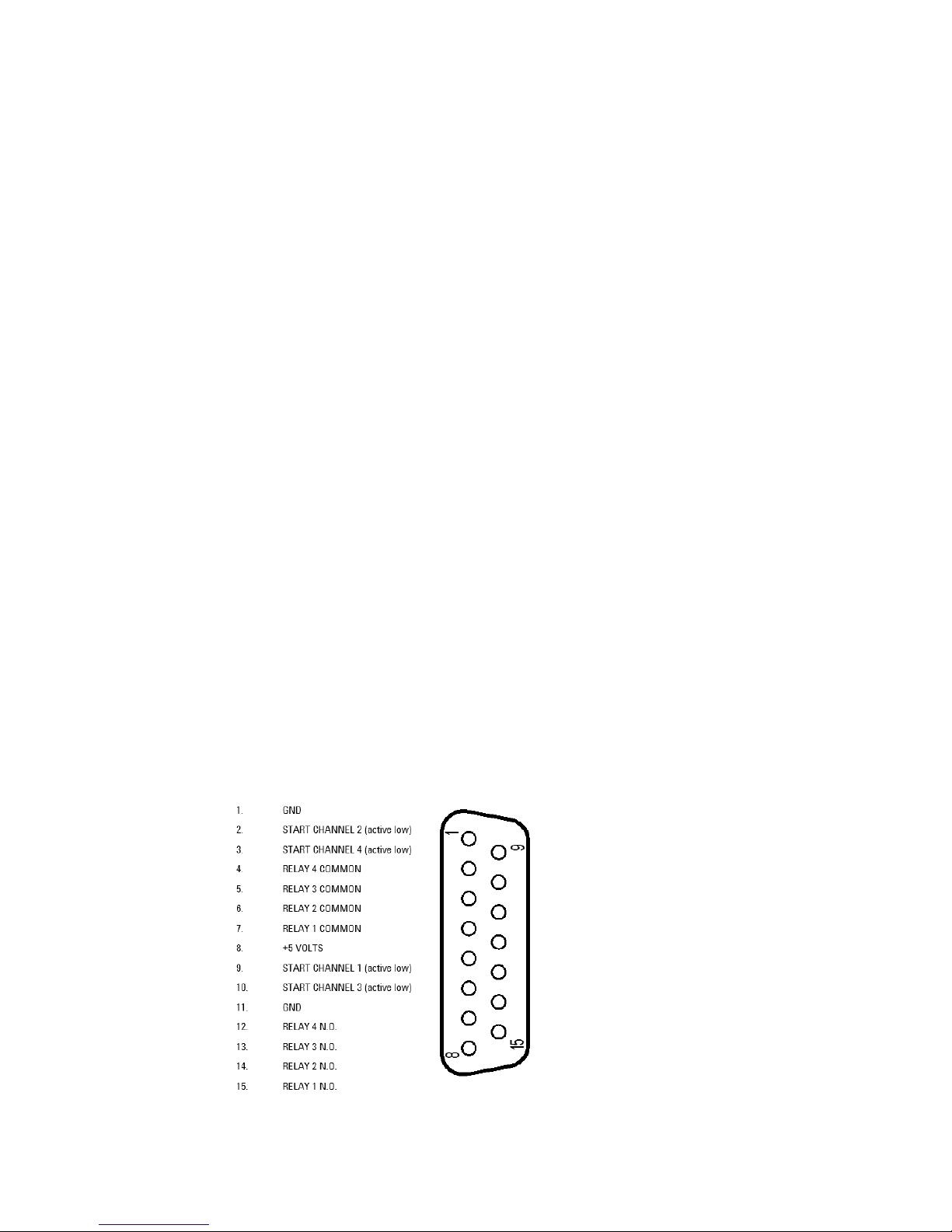

AUX I/O

This connector provides external channel start facilities and contact-

closure relay outputs:

Introduction to the DataStream 1

Connections

To trigger a channel using an external contact closure, simply connect one

side of the switch to one of the GND pins and the other side to the desired

START CHANNEL pin. Data collection will start as soon as the switch is

closed. Alternatively a TTL-compatible logic LOW signal can be used to

trigger a channel

5IFSFMBZTBSFOPSNBMMZPQFODPOUBDUDMPTVSFVOJUTSBUFEBU4VN"

$POUBDUSFTJTUBODFJTƄBOEUIFTFUUMJOHUJNFJTNT 5IF7PMUT

PVUQVUJTDVSSFOUMJNJUFEUPN"5IJTDPVMECFVTFEUPTVQQMZFYUFSOBM

DJSDVJUSZPGMPXQPXFSDPOTVNQUJPO

5Iis connector is reserved for use by Agilent service personnel only

CTR

5Iis connector are reserved for future use

PL-CAN

Agilent 1260 Infinity II DataStream User Manual8

1 Introduction to the DataStream

Connections

The differential pressure transducer monitors the pressure drop across the bridge,

ΔP, and the inlet pressure transducer measures the pressure drop through the

bridge, Pi. When the sample is introduced across capillary 4 (C4) of the bridge, an

imbalance is caused due to the hold-up columns. This change in pressure, ΔPis

proportional to the specific viscosity, ηsp, according to the following equation.

Where ΔPis the differential pressure across the bridge and

,is the pressure of the

flow through the capillary bridge. The instrument makes a true differential

measurement directly, making it very sensitive to dilute solution viscosity

measurements.

Using the Module

Agilent 1260 Infinity II DataStream User Manual

Power Switch

The power switch is located on the power inlet situated on the rear panel

of the instrument.

Press the ‘I’ symbol to switch ON or the ‘O’ symbol to switch OFF.

Channel Start Buttons

A data acquisition run on any channel may be started manually by

pressing the associated channel start button after the DataStream has

been initialised by the Cirrus software.

Power-Up Sequence

When the instrument is turned on the status LED on the front panel

will briefly become green. It will then go amber whilst the instrument

performs a range of internal self-test and calibration tasks. These can

take up to 1 minute after which the status LED will become green

again, indicating that the instrument is ready to collect data. If an

error occurs during the internal tests the LED will remain amber and

the 4 channel run LEDs will flash. If this happens, cycle the power to

retry the internal tests.

Introduction to the DataStream 1

Using the Module

10Agilent 1260 Infinity II DataStream User Manual

1 Introduction to the DataStream
