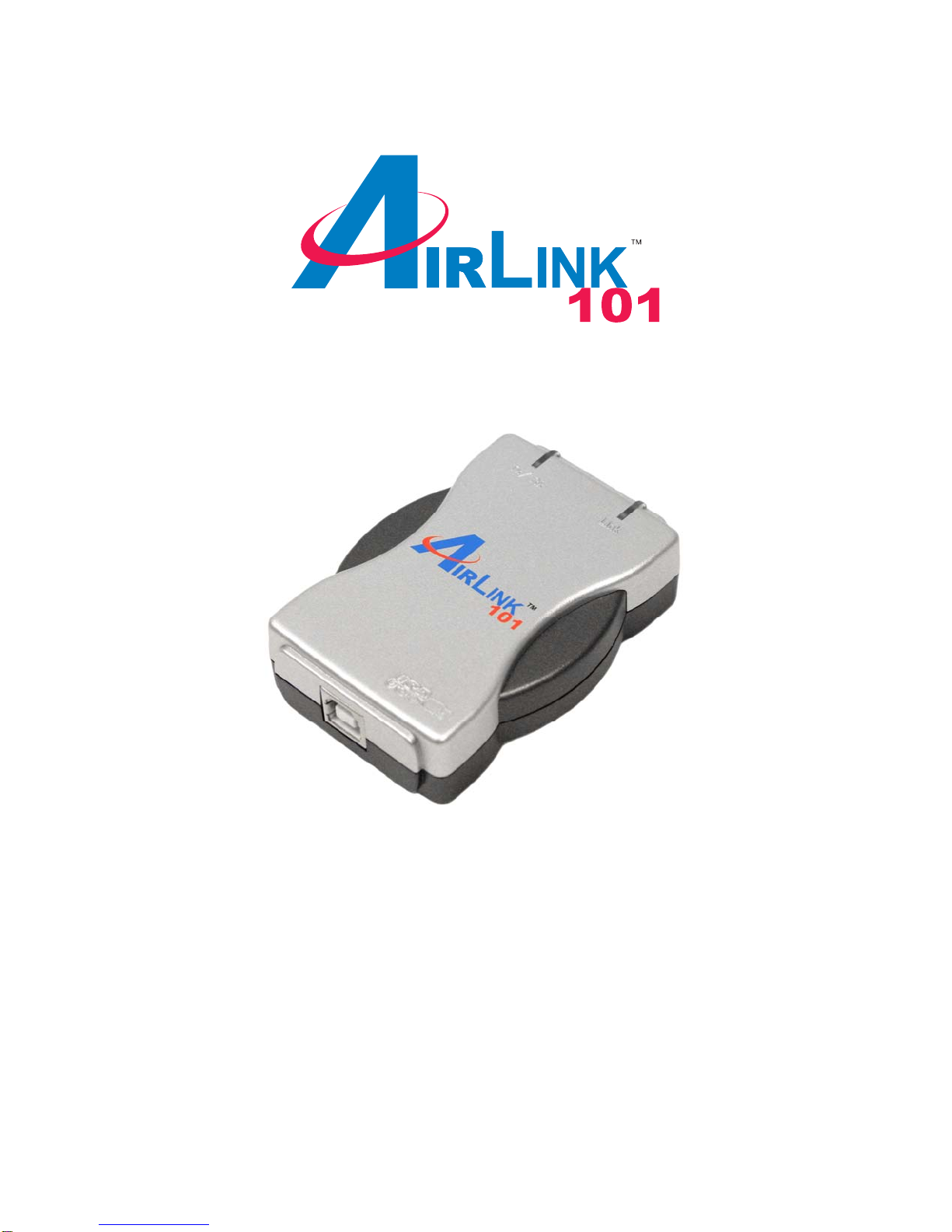

Airlink101 AGIGAUSB Bedienungsanleitung

USB 2.0 Gigabit Network Adapter

Model # AGIGAUSB

User’s Manual

Ver. 1A

Table of Contents

Introduction .....................................................................................................................4

Package Contents .......................................................................................................4

Specifications ..............................................................................................................4

Network Specification...............................................................................................4

Host Interface...........................................................................................................4

Supported operating systems ..................................................................................4

LED Indicators..........................................................................................................4

Power Requirement .................................................................................................5

EMC Certification.....................................................................................................5

Installation.......................................................................................................................6

Verify Driver Installation ................................................................................................12

Technical Support .........................................................................................................14

REGULATORY STATEMENTS

FCC Certification

Part15, Class B

The United States Federal Communication Commission (FCC) and the Canadian Department of

Communications have established certain rules governing the use of electronic equipment.

FCC Part 15 Registration

This device complies with Part 15 of FCC rules. Operation is subject to the following two

conditions:

•This device may not cause harmful interface, and

•This device must accept any interface received, including interface that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy, and if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the distance between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Introduction

The USB 2.0 Gigabit Network Adapter (hereafter referred to as the Gigabit Adapter) is

specifically designed to plug into any available Universal Serial Bus port of a desktop or

laptop PC. The Gigabit Adapter is for users who wish to connect to a 10Mbps, 100Mbps

or 1000Mbps Fast Ethernet LAN using the convenience and ease of USB technology.

The Gigabit Adapter complies with USB Specification 1.0/1.1/2.0. It uses an USB type B

connector to connect directly to the USB host computer and a RJ-45 connector provides

a quick and simple method of connecting to an Ethernet or Fast Ethernet network.

This low power-consuming device draws power from the host USB bus directly, so no

external power supply is required. Simply connect the USB port of this device to the

computer and plug a standard twisted-pair Ethernet cable into the RJ-45 port, and you’ll

be networked in no time. This device offers a simple way to connect to your network.

Package Contents

•Gigabit Network Adapter

•USB 2.0 Cable

•Driver CD

•Quick Installation Guide

Specifications

Network Specification

•IEEE802.3 10BaseT, 802.3u 100BaseTX and 802.3ab 1000Base-T.

•Cat3/Cat5 UTP cable up to 328ft/100M.

Host Interface

•High-power Bus-powered from USB HOST or HUB, no external power needed.

•Full Speed/High Speed USB device, upstream B USB port.

Supported operating systems

•Windows 2000/XP

LED Indicators

•Link: When the device is well-connected to the computer, the Link LED will

appear as solid green.

•TX/RX: 10/100/Gigabit linking status

10Mbps: Appears as solid orange + green when the device is connected to 10Mbps

network; blinking orange + green when transmitting data.

100Mbps: Appears as solid orange when the device is connected to 100Mbps network;

blinking orange when transmitting data.

Gigabit: Appears as solid green, when the device is connected to Gigabit network;

blinking green when transmitting data.

Power Requirement

Operating Voltage: 5V DC

Operation Mode: 425mA (Max)

Physical specification

Dimension: 3.2"(L) x 2.2"(W) x1" (H)

EMC Certification

•FCC Part15 ClassB

•CE

•VCCI

Installation

The following steps and screen shots are for Windows XP. Steps for Windows 2000 are

similar unless noted otherwise.

Note: Do not connect the USB 2.0 Gigabit Network Adapter to your computer until

you’ve reached the appointed step. If the Gigabit Adapter is connected already,

Windows will detect the Adapter and request for a driver. Click Cancel to quit the wizard

and remove the Gigabit Adapter from your computer.

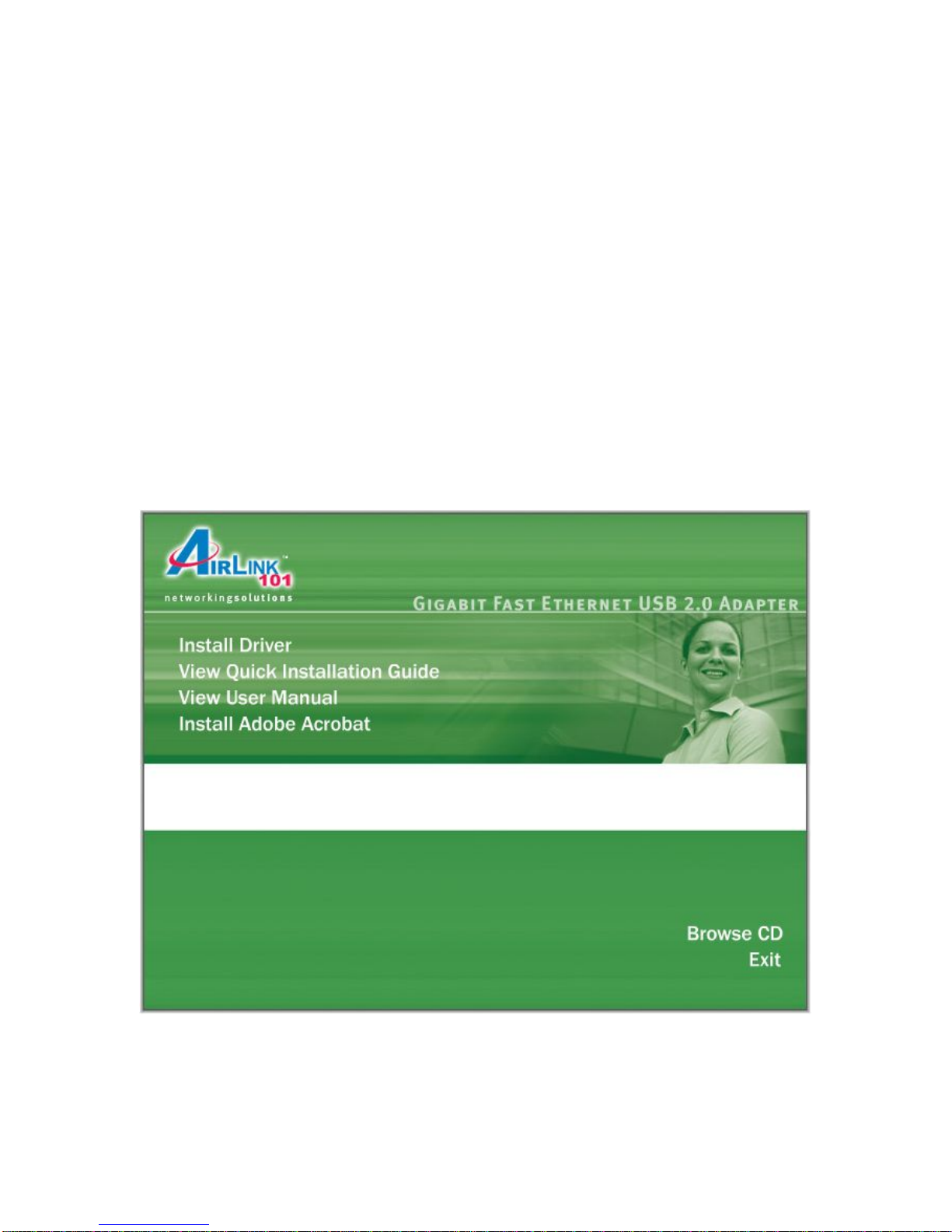

Step 1 Insert the Driver CD into your CD drive and wait for the autorun window to

appear on screen.

Step 2 Click on Install Driver at the autorun window.

Note: If the autorun window doesn’t appear automatically go to Start, Run, and type

D:\autorun.exe (where D is the letter of your CD drive) and click OK.

Step 3 Click Next at the welcome screen.

Step 4 Click Next to accept the default destination location for the driver to be installed

in or click Browse to select the desired location.

Step 5 Click Next to accept the Program Folder for the driver.

Step 6 Click Continue Anyway at the Windows Logo Testing prompt.

(For Windows 2000, click Yes at the Digital Signature Not Found prompt).

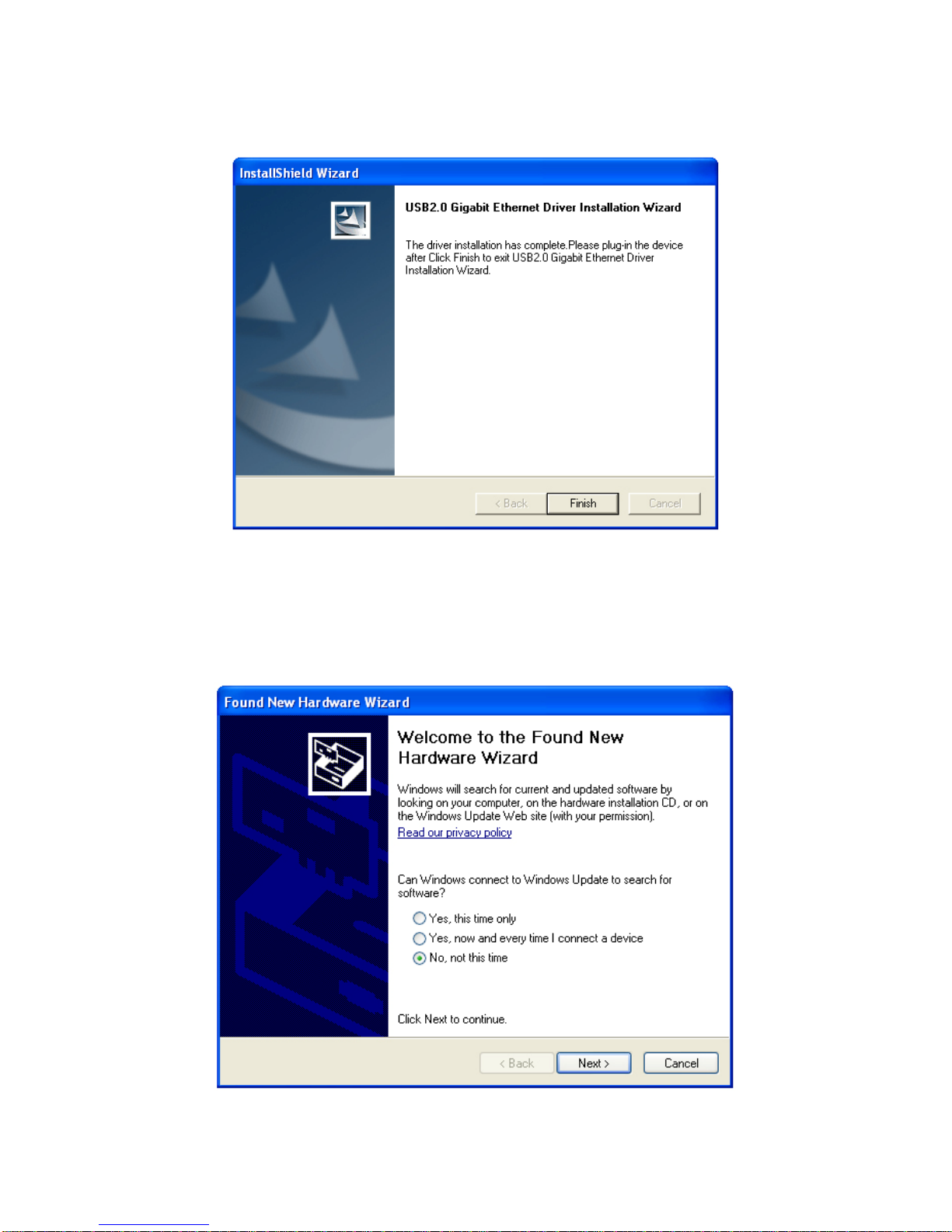

Step 7 Click Finish to complete the installation wizard.

Step 8 Connect one end of the Gigabit Network Adapter to your computer’s USB port

and connect the other end to a hub/switch/router.

Step 9 At the Found New Hardware Wizard window, select No, not this time and

click Next.

Step 10 Select Install the software automatically (Recommended) and click Next.

For Windows 2000, select Search for a suitable driver for my device

(Recommended) and click Next. Then check on the CD-ROM drives check box and

click Next.

Step 11 Click Continue Anyway at the Windows Logo Testing prompt.

(For Windows 2000, click Yes at the Digital Signature Not Found prompt).
