Airlink101 AWLL7025 Bedienungsanleitung

Dual Band Wireless N USB Adapter

Model # AWLL7025

User’s Manual

Rev. 1.0

Table of Contents

1. Introduction .................................................................................................................3

1.1 Package Contents ................................................................................................. 3

1.2 Features ................................................................................................................ 3

2. Install Utility and Driver................................................................................................ 4

3. Configure the Adapter ................................................................................................. 7

4. Use Wireless Monitor Utility ...................................................................................... 14

4.1 Link Information ................................................................................................... 14

4.2 AP List ................................................................................................................. 16

4.3 Configure Encryption Settings ............................................................................. 17

4.4 Profile Setting.......................................................................................................... 22

4.5 Configure IP Setting............................................................................................. 25

4.6 WiFi Protected Setup (WPS)................................................................................... 26

4.6.1 PBC (Push Button Configuration) ..................................................................... 26

4.6.2 PIN (Personal Identifier Number)...................................................................... 27

4.7 About....................................................................................................................... 30

Appendix A – Specifications.......................................................................................... 31

Appendix B – Information.............................................................................................. 32

Technical Support ......................................................................................................... 36

1. Introduction

Thank you for purchasing Airlink101 Dual Band Wireless N USB Adapter. The

AWLL7025 Dual Band Wireless N USB Adapter can operate on either 2.4 or 5 GHz

radio band depending on the current frequency of the Wireless Router or AP it connects

to, which allows more clean channels and less interference for your wireless network. A

full range of security features such as WPA2-PSK, WPA-PSK, and WEP provide the

highest level of wireless network security. The Wireless Monitor Utility let you set up the

USB Adapter with an easy-to-use user interface.

You will be able to enjoy home entertainment with HD video streaming, VoIP and online

gaming with the high wireless data rate of up to 300Mbps* when used with Airlink101®

Dual Band Wireless N Router.

1.1 Package Contents

Before you begin the installation, please check the items of your package. The package

should include the following items:

•Dual Band Wireless N USB Adapter

•USB Extension Cable

•Quick Installation Guide

•Installation CD (Driver/Utility/Manual)

1.2 Features

•Highest wireless data rate of up to 300Mbps with 802.11n draft 2.0

•Works with both 5 and 2.4GHz radio bands

•Less interference, stronger signal and wider coverage

•Enhanced security, WiFi Protected Setup (WPA2, WPA) provide full protection

for your wireless connection

•WPS button for easy connection to the existing wireless network

•Great for environments with the need for higher wireless data traffic

•Supports Windows Vista / XP / 2000

•Fully backward compatible with 802.11a/b/g

•RoHS compliant

•Works best with Airlink101 Dual Band Wireless N Router AR725W

2. Install Utility and Driver

This Quick Installation Guide only provides the basic installation instructions. For

detailed installation instructions on advanced features, please refer to the User’s

Manual that can be found on the provided CD.

Step 1 Insert the USB adapter into an available USB port of your computer.

Step 2 Windows will launch the Found New Hardware Wizard. The Found New

Hardware Wizard appears differently depending on your computer operating system,

click Cancel to quit the wizard and insert the Installation CD in the CD drive. Continue

to Step 3.

Step 3 The Autorun screen will pop up. Click Install Utility and Driver from the menu.

Note: If the Autorun screen doesn’t appear automatically go to Start, Run, and

type D:\Utility\Setup.exe (where D is the letter of your CD drive) and click OK.

Windows Vista Users:At this point, you may get a warning message like the one

below. Make sure that you click Allow to continue with the installation.

Step 4 The InstallShield Wizard will popup. Click Next at the screen.

Step 5 Click Next to begin the installation.

Step 6 Give Permission to Window to install the driver software

For Windows Vista, click the Install this driver software anyway.

For Windows XP click Continue Anyway at the Windows Logo Screen.

For Windows 2000, click Yes at the Digital Signature Not Found prompt.

Step 7 Select Yes, I want to restart my computer now and click Finish to complete

the installation. Your computer will now be restarted.

3. Configure the Adapter

This section describes how to connect your Dual Band Wireless N USB Adapter to a

wireless network.

Note to Windows XP Users:

You must disable the Wireless Zero Configuration Utility in order to use the bundled

Wireless Utility. Please follow the steps below to disable XP’s wireless utility.

Step 1 Double-click on the Wireless Network Connection Icon in the system tray and

then click on Properties or Advanced.

Step 2 Go to the Wireless Networks tab, uncheck the “Use Windows to configure

my wireless network settings” check box and click OK. If the Wireless Networks tab

is not available, it means that Wireless Zero Configuration has been disabled. You can

ignore this step.

Open the Airlink101 Wireless Monitor utility by double clicking on the Airlink101

Wireless Monitor Utility icon in the system tray at the bottom right-hand corner of your

screen.

Step 1 Click on AP List tab and select a Network Name (SSID) from the list you want to

connect to and click Connect.

Step 2 If encryption is not enabled for the selected access point / router, skip to step 7.

Otherwise, enter a Profile Name for your wireless setting and click Next.

Step 3 Verify that the Network Name matches the wireless network you selected to

connect and click Next.

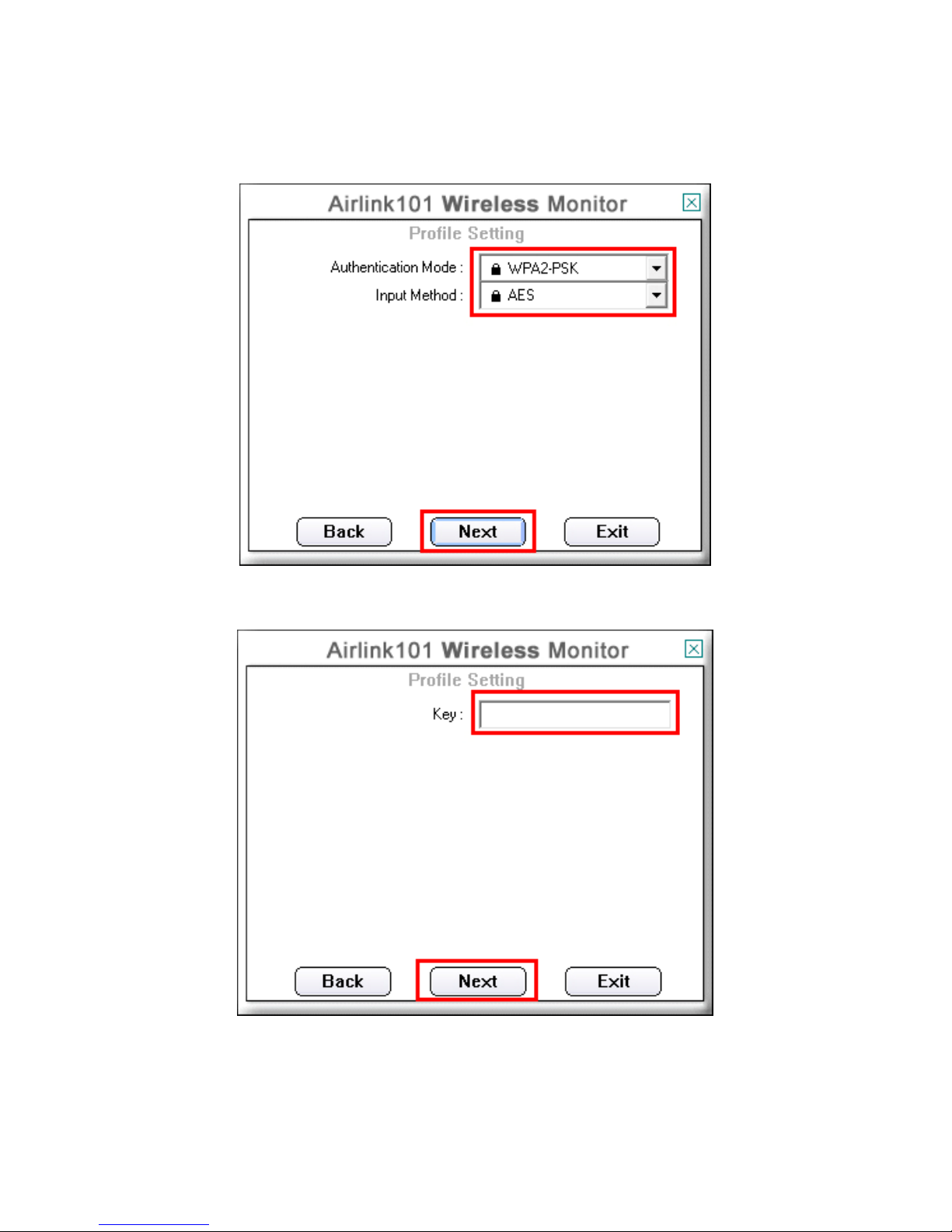

Step 4 Verify that the Authentication Mode and Input Method match to your wireless

router’s settings and click Next.

Step 5 Input the encryption key for your wireless network and click Next.
