Airlink101 AWLC5025 Bedienungsanleitung

Ver. 1A

Package Content:

•Cardbus Adapter

•Driver&UtilityCD

•Quick Installation Guide

Model#AWLC5025

Section 1

Install Utility Software

Quick Installation Guide

MIMO XR™ 802.11g CardbusAdapter

This Quick Installation Guide only provides the basic instructions. For more

advancedfeaturessuch as configuringencryption settings, please referto the

User’sManual in theprovided CD.

Note: Donotinsert the CardbusAdapteruntil you havereached the appointed

step.

For Windows 98SE and ME users, you may be prompted to insert the Windows

98SE or ME CD during the driver installation. Be sure to have your Windows 98SE

or ME CD ready.

Note: IftheAutorun screen doesn’t appearautomaticallygo to Start, Run,and

type D:\autorun.exe (whereD istheletter of your CD drive) andclickOK.

Step 1 Insert the Driver & Utility CD into your CD drive and select Install Utility

fromthe menu.

Step 2 Click Next at the welcome screen.

Step 3 Click Next to accept the default destination folder.

Continue on back...

ContinueonBack

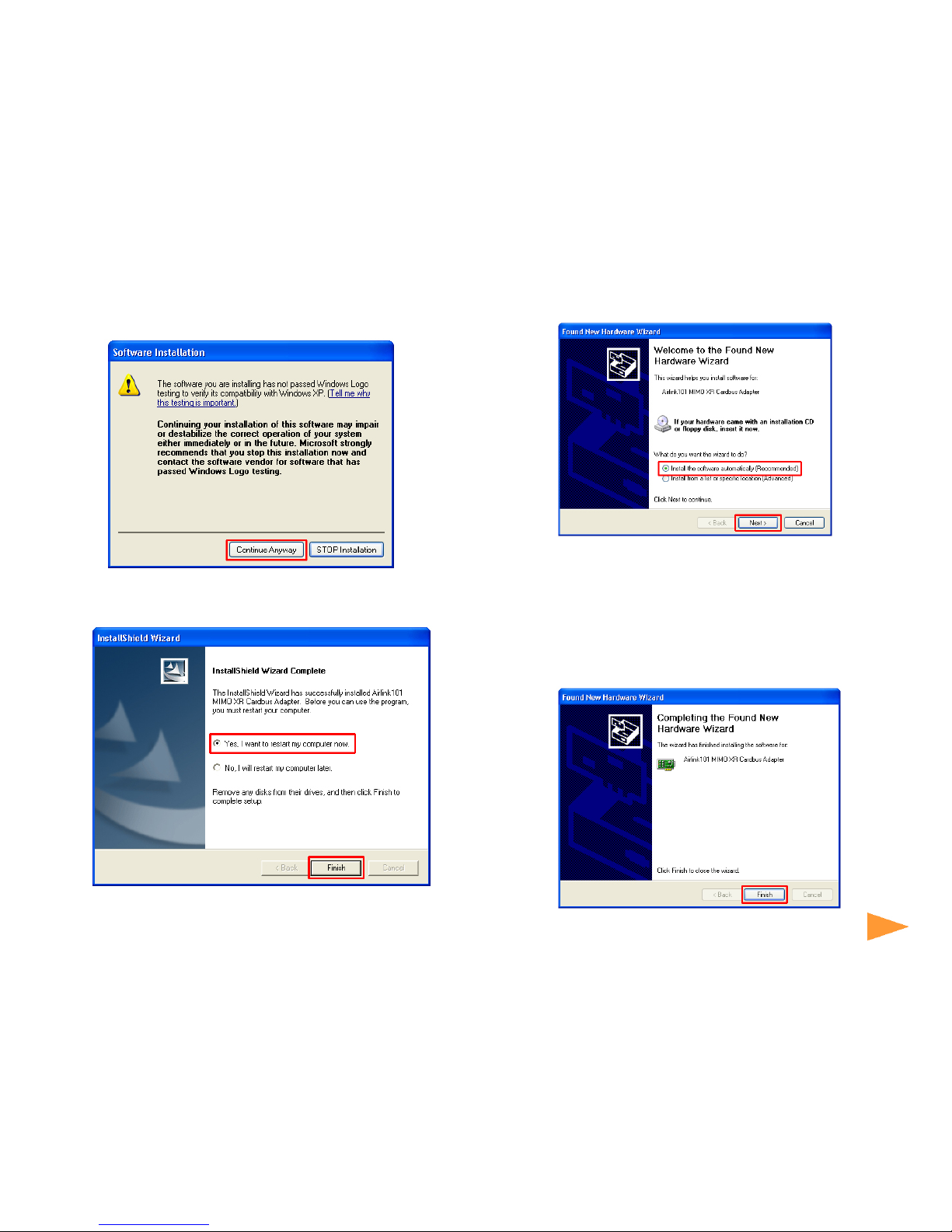

Step 5 Verify Yes, I want to restart my computer now is selected and click

Finish torestartyour computer.

Step 4 Click Continue Anyway at the Windows Logo Screen.

(For Windows 2000, click Yes at the Digital Signature Not Found prompt). Step 7 Select Install the software automatically and click Next.

Step 8 Click Continue Anyway at the Windows Logo Screen.

(For Windows 2000, click Yes at the Digital Signature Not Found prompt).

For Windows 98SE and ME, select Search for the best driver for your device

and click Next. Verify all the check boxes are checked and click Next.

Step 9 Click Finish. (Restart the computer for Windows 98SE and ME).

Step 6After your computer is restarted, insert the CardbusAdapter.

Section 3

Section 2

Configure the Cardbus Adapter

To open the CardbusAdapter’s utility go to Start > (All) Programs > Airlink101

MIMO Cardbus Utility > Airlink101 MIMO Cardbus Utility.

Step 1 Go to the AP List tab, select the SSID (Network Name) of the wireless

network you wish to connect to, and click Connect.

Step 2 If encryption is not enabled for the selected access point / router, skip to

step 6. Otherwise, enter a Profile Name for your wireless setting and click Next.

Step 3 Verify that the Network Name matches the SSID of your wireless network

and click Next.

E-mail:[email protected]

TollFree:1-888-746-3238

WebSite:www.airlink101.com

Section 3

Technical Support

Section 4

Step 4 Select the proper encryption setting for your wireless router or access

point from the drop-down menu and click Next.

Step 8Verifythatyou are receiving adequate SignalStrengthand Link Quality and

that you have been assigned a valid IP address (instead of all 0’s). If all 0’s, please

repeat step 1 - 5.

Step 5 Follow the on-screen instructions to complete the encryption settings.

Click Complete when finished.

andlogosthatareidentifiedastrademarksand/orservicemarksare, unless noted otherwise, thetrademarksandservicemarksof AirLink101.

Allother product or service names are the property of theirrespectiveholders.AirLink101productsareprotectedunder numerous U.S. and

foreignpatentsandpendingapplications,mask work rights,andcopyrights.MIMO XR is a registered trademark of Ralink Technology

Corporation.

*Theoreticalmaximum wireless signal rate based on IEEE standard802.11gspecifications.Actualdatathroughput will vary.Network conditions

andenvironmental factors, including volume of network traffic, building materials and construction, mixofwirelessproductsused,radio

frequencyinterference (e.g., cordless telephones and microwaves)aswellasnetworkoverhead lower actual data throughput rate.

Step 6 You should see a blue circle around the antenna icon indicating a valid

connection.

Step 7 Go to the Link Information tab and click on the More button.
